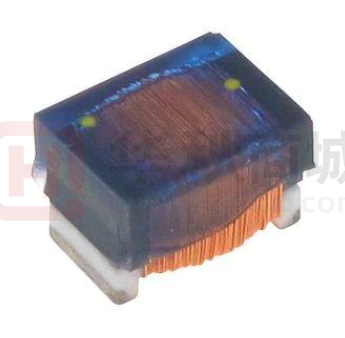

1812LS-563XJLC

Web page Sample & buy Tools & software Support & FAQ Document 106-1 Chip Inductors – 1812LS Series (4532) Halogen Free AEC Q200 +125°C • Highest inductance values of all our chip inductors • Ferrite construction for high current handling • Inductance values from 12 – 1000 µH Request free evaluation samples by contacting Coilcraft or visiting www.coilcraft.com.   Inductance2   SRF typ4   Percent Q Test freq DCR max5   Irms6 Part number1 (µH) tolerance   typ3 (MHz) (MHz) (Ohms) (mA) 1812LS-123XJL_ 12 5 42 2.5 85 2.0 310 1812LS-153XJL_ 15 5 42 2.5 70 2.5 290 1812LS-183XJL_ 18 5 45 2.5 52 2.8 270 1812LS-223XJL_ 22 5 45 2.5 58 3.2 260 1812LS-273XJL_ 27 5 45 2.5 46 3.6 240 1812LS-333XJL_ 33 5 45 2.5 40 4.0 230 1812LS-393XJL_ 39 5 45 2.5 30 4.5 210 1812LS-473XJL_ 47 5 42 2.5 24 5.0 200 1812LS-563XJL_ 56 5 42 2.5 20 5.5 190 1812LS-683XJL_ 68 5 40 2.5 16 6.0 180 1812LS-823XJL_ 82 5 40 2.5 13.5 7.0 170 1812LS-104XJL_ 100 5 40 2.5 12.0 8.0 150 1812LS-124XJL_ 120 5 33 0.79 14.5 11.5 135 1812LS-154XJL_ 150 5 36 0.79 11.5 13.0 125 1812LS-184XJL_ 180 5 36 0.79 9.3 14.2 120 1812LS-224XJL_ 220 5 38 0.79 7.6 16.2 115 1812LS-274XJL_ 270 5 38 0.79 8.3 20.5 105 1812LS-334XJL_ 330 5 38 0.79 7.0 22.5 100 1812LS-394XJL_ 390 5 38 0.79 5.2 24.5 90 1812LS-474XJL_ 470 5 38 0.79 4.4 26.5 85 1812LS-564XJL_ 560 5 33 0.79 2.8 28.5 75 1812LS-684XJL_ 680 5 25 0.79 2.3 38.0 60 1812LS-824XJL_ 820 5 25 0.79 2.1 41.0 55 1812LS-105XJL_ 1000 5 30 0.79 1.9 44.0 50 1. When ordering, please specify termination and packaging codes: 1812LS-105XJLC Termination: L = RoHS compliant silver-palladium-platinum-glass frit. R = RoHS compliant matte tin over nickel over silverplatinum-glass frit. Special order: T = RoHS tin-silver-copper (95.5/4/0.5) or S = non-RoHS tin-lead (63/37). Packaging: C = 7″ machine-ready reel. EIA-481 embossed plastic tape (600 per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge). D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (2200 per full reel). B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C. 2. Inductance at 2.5 MHz measured using an Agilent/HP 4286A and a Coilcraft SMD-A fixture with Coilcraft-provided correlation pieces. Inductance at 0.79 MHz measured using an Agilent/HP 4192A and Coilcraft SMD-B test fixture. 3. Q read at test frequency directly on an Agilent/HP 4192A LF impedance analyzer and a Coilcraft SMD-B test fixture. 4. SRF measured using an Agilent/HP 8753D network analyzer and a Coilcraft SMD-D test fixture. 5. DCR measured on a Cambridge Technology micro-ohmmeter. 6. Current that causes a 15°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. 7. Electrical specifications at 25°C. Refer to Doc 362 “Soldering Surface Mount Components” before soldering. Visit http://www.coilcraft.com/colrcode.cfm for part marking data. US +1-847-639-6400 sales@coilcraft.com UK +44-1236-730595 sales@coilcraft-europe.com Taiwan +886-2-2264 3646 sales@coilcraft.com.tw China +86-21-6218 8074 sales@coilcraft.com.cn Singapore + 65-6484 8412 sales@coilcraft.com.sg Document 106-1  Revised 12/02/21 © Coilcraft Inc. 2021 This product may not be used in medical or high risk applications without prior Coilcraft approval. Specification subject to change without notice. Please check web site for latest information. Document 106-2 1812LS (4532) Chip Inductors Typical Q vs Frequency Typical L vs Current 10000 60 50 12 µH 270 µH AEC Q200 125°C + Q Factor 40 82 µH 18 µH 33 µH Inductance (µH) Halogen Free 560 µH 1000 µH 30 20 1000 µH 1000 330 µH 100 µH 100 33 µH 2.5 MHz 10 0.79 MHz 12 µH 10 0 0.1 0.2 0.3 0.4 D F E terminal 1 Frequency (MHz) 2 3 C B overall A 0.6 4 5 6 8 10 H Pick and place material I G J F I Terminal wraparound: approx 0.015/0,38 both ends Recommended Land Pattern A B C D max max max ref E F G H I J 0.195 0.150 0.135 0.070 0.100 0.025 0.128 0.120 0.045 0.118 inches 4,95 3,81 3,43 1,78 2,54 0,64 3,25 3,05 1,14 3,00 mm Note: Height dimension (C) is before optional solder application. For maximum height dimension including solder, add 0.006 in / 0,152 mm. 1 10 100 DC Current (mA) 1000 Designer’s Kit C314 contains 10 of each value Core material Ferrite Terminations  RoHS compliant silver-palladium-platinum-glass frit. Other terminations available at additional cost. Weight  142 – 171 mg Ambient temperature  –40°C to +85°C with Irms current Maximum part temperature  +100°C (ambient + temp rise) Storage temperature  Component: –40°C to +100°C. Tape and reel packaging: –40°C to +80°C Resistance to soldering heat  Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles Temperature Coefficient of Inductance (TCL)  +200 to +700 ppm/°C Moisture Sensitivity Level (MSL)  1 (unlimited floor life at
