PCV-2-274-03L

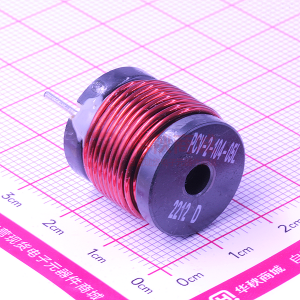

Document 135-1 Power Chokes – Vertical Mount The Coilcraft PCV power chokes are low cost power inductors whose simple design provides rugged reliability and performance. They feature 130°C class insulation and are available in a wide range of standard values. The open core construction provides the highest saturation current available in a low cost power choke. The PCV-1 Series incorporates a plastic mounting header for maximum lead protection and consistency. The PCV-2 Series uses a ferrite bobbin core to provide the highest possible inductance at the lowest cost. Coilcraft Designer’s Kit P405 contains samples of the part numbers shown in bold from the PCV-0 and PCV-2 Series. Contact Coilcraft or visit http://order.coilcraft.com to purchase on-line. PCV-0 Series A (winding dia) PCV-1 Series PCV-2 Series B B B D C 0.22/0.28 5,6/7,1 Dimensions are in inches mm D A 0.22/0.28 5,6/7,1 C A 0.22/0.28 5,6/7,1 C D Terminations: Tin-silver over copper Specifications subject to change without notice. Please check our website for latest information. 10/3105/28/08 © Coilcraft, Inc. 2009 Document 135-2 Power Chokes – Vertical Mount Part number PCV-0 Series PCV-0-102-25L PCV-0-102-10L PCV-0-332-10L PCV-0-472-03L PCV-0-472-05L PCV-0-472-10L PCV-0-472-20L PCV-0-103-03L PCV-0-103-05L PCV-0-103-10L PCV-0-103-20L PCV-0-153-03L PCV-0-153-10L PCV-0-223-03L PCV-0-223-05L PCV-0-223-10L PCV-0-273-05L PCV-0-333-12L PCV-0-473-03L PCV-0-473-05L PCV-0-473-10L PCV-0-823-03L PCV-0-104-01L PCV-0-104-03L PCV-0-104-05L PCV-0-154-03L PCV-0-154-05L PCV-0-184-05L PCV-0-224-03L PCV-0-274-04L PCV-0-274-10L PCV-0-394-03L PCV-0-394-05L PCV-1 Series PCV-1-152-15L PCV-1-182-10L PCV-1-182-15L PCV-1-472-03L PCV-1-472-05L PCV-1-472-10L PCV-1-103-03L PCV-1-103-05L PCV-1-103-10L PCV-1-153-10L PCV-1-223-03L PCV-1-223-05L PCV-1-223-10L PCV-1-473-03L PCV-1-473-05L PCV-1-473-10L PCV-1-104-03L PCV-1-104-05L PCV-1-184-03L PCV-1-304-05L PCV-1-394-05L Inductance1 (µH) 1.0 ±15% 1.0 ±15% 3.3 ±15% 4.7 ±15% 4.7 ±15% 4.7 ±15% 4.7 ±15% 10 ±10% 10 ±10% 10 ±10% 10 ±10% 15 ±10% 15 ±10% 22 ±10% 22 ±10% 22 ±10% 27 ±10% 33 ±10% 47 ±10% 47 ±10% 47 ±10% 82 ±10% 100 ±10% 100 ±10% 100 ±10% 150 ±10% 150 ±10% 180 ±10% 220 ±10% 270 ±10% 270 ±10% 390 ±10% 390 ±10% 1.5 ±15% 1.8 ±15% 1.8 ±15% 4.7 ±15% 4.7 ±15% 4.7 ±15% 10 ±10% 10 ±10% 10 ±10% 15 ±10% 22 ±10% 22 ±10% 22 ±10% 47 ±10% 47 ±10% 47 ±10% 100 ±10% 100 ±10% 180 ±10% 300 ±10% 390 ±10% Irms2 (A) 21.8 16.7 12.7 7.4 8.9 11.9 16.4 5.9 7.1 11.8 17.0 6.8 9.8 7.4 8.9 13.0 7.1 11.0 4.3 6.0 8.7 2.8 1.8 3.8 5.5 2.8 5.2 3.3 2.1 2.1 3.6 3.0 3.1 18.2 18.2 19.3 7.5 9.1 11.8 6.0 7.1 10.9 11.8 5.5 6.9 10.4 5.3 6.3 8.2 3.4 4.9 2.8 3.4 3.0 DCR max (Ohms) 0.002 0.003 0.005 0.021 0.012 0.012 0.004 0.023 0.017 0.015 0.006 0.025 0.020 0.035 0.023 0.015 0.024 0.017 0.050 0.035 0.022 0.110 0.190 0.072 0.055 0.140 0.065 0.110 0.210 0.250 0.160 0.250 0.190 0.003 0.006 0.003 0.021 0.012 0.012 0.026 0.020 0.013 0.020 0.035 0.023 0.018 0.050 0.033 0.022 0.072 0.055 0.150 0.160 0.190 A max (in/mm) 0.60/15,2 0.50/12,7 0.50/12,7 0.51/13,0 0.50/12,7 0.50/12,7 0.53/13,5 0.50/12,7 0.50/12,7 0.52/13,2 0.75/19,1 0.50/12,7 0.52/13,2 0.50/12,7 0.50/12,7 0.66/16,8 0.50/12,7 0.70/17,8 0.55/14,0 0.65/16,5 0.85/21,6 0.50/12,7 0.40/10,2 0.55/14,0 0.65/16,5 0.60/15,2 0.65/16,5 0.60/15,2 0.55/14,0 0.95/24,0 1.1/28,0 1.1/28,0 1.1/28,0 0.65/16,5 0.65/16,5 0.65/16,5 0.62/15,7 0.62/15,7 0.62/15,7 0.63/16,0 0.62/15,7 0.63/16,0 0.70/17,8 0.62/15,7 0.62/15,7 0.70/17,8 0.65/16,5 0.90/22,9 0.90/22,9 0.90/22,9 0.90/22,9 0.63/16,0 1.1/27,9 1.1/27,9 B max (in/mm) 0.68/17,3 0.75/19,1 1.0/25,4 0.75/19,1 0.75/19,1 1.0/25,4 1.2/30,5 0.75/19,1 0.75/19,1 1.0/25,4 1.8/45,7 1.0/25,4 1.0/25,4 1.0/25,4 1.0/25,4 1.3/33,0 1.0/25,4 1.3/33,0 1.0/25,4 1.1/28,0 1.3/33,0 0.65/16,5 0.90/22,9 1.2/30,5 1.3/33,0 1.2/30,5 1.3/33,0 1.2/30,5 1.2/30,5 0.72/18,3 1.0/25,4 1.0/25,4 1.0/25,4 0.90/22,9 1.1/27,9 1.1/27,9 0.85/21,6 0.85/21,6 1.1/27,9 0.85/21,6 0.85/21,6 1.1/27,9 1.4/35,6 1.1/27,9 1.1/27,9 1.4/35,6 1.1/27,9 1.2/30,5 1.4/35,6 1.3/33,1 1.4/35,6 1.2/30,5 1.0/25,4 1.0/25,4 C ±0.015/0,38 (in/mm) 0.42/10,7 0.42/10,7 0.42/10,7 0.42/10,7 0.42/10,7 0.42/10,7 0.42/10,7 0.42/10,7 0.42/10,7 0.42/10,7 0.60/15,2 0.42/10,7 0.42/10,7 0.42/10,7 0.42/10,7 0.42/10,7 0.49/12,5 0.55/14,0 0.42/10,7 0.70/17,8 0.70/17,8 0.375/9,5 0.30/7,6 0.70/17,8 0.70/17,8 0.43/10,9 0.70/17,8 0.43/10,9 0.42/10,7 0.71/18,0 0.72/18,3 0.72/18,3 0.72/18,3 0.42/10,7 0.42/10,7 0.42/10,7 0.42/10,7 0.42/10,7 0.42/10,7 0.42/10,7 0.42/10,7 0.42/10,7 0.42/10,7 0.42/10,7 0.42/10,7 0.42/10,7 0.42/10,7 0.70/17,8 0.70/17,8 0.70/17,8 0.70/17,8 0.42/10,7 0.70/17,8 0.70/17,8 D ±0.004/0,10 (in/mm) 0.068/1,73 0.054/1,37 0.054/1,37 0.035/0,89 0.042/1,07 0.054/1,37 0.068/1,73 0.035/0,89 0.042/1,07 0.054/1,37 0.075/1,91 0.035/0,89 0.054/1,37 0.035/0,89 0.042/1,07 0.060/1,52 0.042/1,07 0.060/1,52 0.035/0,89 0.042/1,07 0.060/1,52 0.028/0,71 0.020/0,51 0.035/0,89 0.042/1,07 0.028/0,71 0.042/1,07 0.035/0,89 0.025/0,64 0.030/0,76 0.038/0,97 0.035/0,89 0.038/0,97 0.068/1,73 0.054/1,37 0.068/1,73 0.035/0,89 0.042/1,07 0.054/1,37 0.035/0,89 0.042/1,07 0.054/1,37 0.060/1,52 0.035/0,89 0.042/1,07 0.060/1,52 0.035/0,89 0.042/1,07 0.060/1,52 0.035/0,89 0.042/1,07 0.028/0,71 0.038/0,97 0.038/0,97 Specifications subject to change without notice. Please check our website for latest information. Document 135-2 Revised 10/31/08 © Coilcraft, Inc. 2009 Document 135-3 Power Chokes – Vertical Mount Part number PCV-2 Series PCV-2-103-05L PCV-2-103-10L PCV-2-223-05L PCV-2-223-10L PCV-2-473-05L PCV-2-473-10L PCV-2-104-03L PCV-2-104-05L PCV-2-104-10L PCV-2-184-05L PCV-2-184-10L PCV-2-224-05L PCV-2-274-03L PCV-2-274-05L PCV-2-274-10L PCV-2-394-05L PCV-2-564-02L PCV-2-564-06L PCV-2-564-08L PCV-2-684-01L PCV-2-105-02L Inductance1 ±10% (µH) 10 10 22 22 47 47 100 100 100 180 180 220 270 270 270 390 560 560 560 680 1000 Irms2 (A) 10.5 11.8 7.6 10.3 5.0 9.6 4.4 5.6 10.1 4.0 8.0 6.6 4.3 5.2 7.2 3.9 2.6 4.0 7.0 1.3 2.3 DCR max (Ohms) 0.015 0.010 0.020 0.015 0.035 0.020 0.080 0.048 0.032 0.092 0.048 0.075 0.130 0.080 0.060 0.130 0.270 0.170 0.090 0.700 0.370 A max (in/mm) 0.61/15,49 0.61/15,49 0.61/15,49 0.86/21,84 0.70/17,78 1.00/25,40 0.84/21,34 0.84/21,34 1.05/26,67 0.80/20,32 1.44/36,58 1.05/26,67 1.00/25,40 1.05/26,67 1.50/38,10 1.10/29,34 0.80/20,32 1.21/30,73 1.50/38,10 0.70/17,78 1.00/25,40 B max (in/mm) 0.83/21,08 0.83/21,08 0.83/21,08 0.83/21,08 0.83/21,08 0.83/21,08 0.83/21,08 0.83/21,08 1.10/27,94 0.90/22,86 1.10/27,94 1.10/27,94 0.83/21,08 1.05/26,67 1.10/27,94 0.83/21,08 0.90/22,86 1.10/27,94 1.43/36,32 0.83/21,08 0.83/21,08 C ±0.015/0,38 (in/mm) 0.42/10,67 0.50/12,70 0.42/10,67 0.58/14,73 0.48/12,19 0.70/17,78 0.58/14,73 0.70/17,78 0.88/22,35 0.58/14,73 1.05/26,67 0.75/19,05 0.75/19,05 0.80/20,32 1.08/27,43 0.85/21,59 0.57/14,48 0.90/22,86 1.08/27,43 0.50/12,70 0.72/18,29 D ±0.004/0,10 (in/mm) 0.042/1,07 0.054/1,37 0.042/1,07 0.054/1,37 0.038/0,97 0.054/1,37 0.031/0,79 0.042/1,07 0.054/1,37 0.035/0,89 0.054/1,37 0.042/1,07 0.035/0,89 0.042/1,07 0.054/1,37 0.038/0,97 0.028/0,71 0.038/0,97 0.054/1,37 0.018/0,46 0.028/0,71 1. Tested at 15.75 kHz, 0.1 Vrms, with DC bias applied up to the Irms current. 2. Current that causes a 40°C temperature rise from 25°C ambient. 3. Ambient temperature range: –40°C to +85°C with Irms current 4. Storage temperature range: Component: –40°C to +125°C Packaging: –40°C to +80°C 5. Electrical specifications at 25°C. 6. Parts in bold type are included in Coilcraft Designer’s Kit P405. Refer to Doc 362 “Soldering Surface Mount Components” before soldering. PCV-0 Series A (winding dia) PCV-1 Series PCV-2 Series B B B D C 0.22/0.28 5,6/7,1 Dimensions are in inches mm D A 0.22/0.28 5,6/7,1 C A 0.22/0.28 5,6/7,1 C D Terminations: Tin-silver over copper Specifications subject to change without notice. Please check our website for latest information. Document 135-3 Revised 10/31/08 © Coilcraft, Inc. 2009
