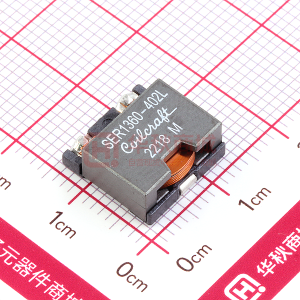

Document 290 -1 SMT Power Inductors - SER1360 Series The SER1360 series provides exceptionally high current carrying capability (up to 43 Amps) and very low DC resistance, all in a low profile, small footprint package. The part’s magnetic shielding and 13 × 13 mm base allow high density mounting while the flat wire winding keeps the overall height to just 6 mm. In addition to the standard values show, custom values are available to meet specific applications. Part number1 SER1360-331KL_ SER1360-651KL_ SER1360-102KL_ SER1360-182KL_ SER1360-272KL_ SER1360-402KL_ SER1360-472KL_ SER1360-602KL_ SER1360-802KL_ SER1360-103KL_ Inductance2 ±10% (µH) 0.33 0.65 1.0 1.8 2.7 4.0 4.7 6.0 8.0 10 DCR typ3 (mOhm) 0.77 0.77 2.36 2.36 2.36 5.50 5.50 5.50 9.83 9.83 DCR max3 (mOhm) 0.85 0.85 2.60 2.60 2.60 6.05 6.05 6.05 10.81 10.81 SRF typ4 (MHz) 200 160 75 50 42 34 32 28 26 24 10% drop 36 23 32 17 12 11 9.5 8.0 7.5 6.2 Isat (A)5 20% drop 41 27 33 19 13 12 11 9.0 8.5 7.0 30% drop 43 28 33.5 20 14 13 12 9.5 9.0 7.5 Irms (A)6 20°C rise 40°C rise 13.0 13.0 9.5 9.5 9.5 7.1 7.1 7.1 5.5 4.4 16.9 16.9 13.0 13.0 13.0 9.4 9.4 9.4 7.6 7.2 1. When ordering, please specify termination and packaging codes: SER1360-103KLD Termination: L = RoHS compliant matte-tin over nickel over phos bronze. Special order: T = RoHS tin-silver-copper (95.5/4/0.5) or S = non-RoHS tin-lead (63/37). Packaging: D = 13″ machine-ready reel. EIA-481 embossed plastic tape (500 parts per full reel). B = Less than full reel. In tape, but not machine ready. To have a leader and trailer added ($25 charge), use code letter D instead. 2. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/ HP 4284A or equivalent. 3. DCR measured on a micro-ohmmeter. 4. SRF measured using an Agilent/HP 8753D network analyzer and a Coilcraft SMD-D test fixture. 5. DC current at which the inductance drops 10% (typ) from its value without current. 6. Current that causes a 40°C temperature rise from 25°C ambient. 7. Electrical specifications at 25°C. Refer to Doc 362 “Soldering Surface Mount Components” before soldering. Designer’s Kit C365 contains 3 each of all values Core material Ferrite Core and winding loss See www.coilcraft.com/coreloss Terminations RoHS matte tin over nickel over phos bronze. Other terminations available at additional cost. Weight 2.6 – 2.8 g Ambient temperature –40°C to +85°C with Irms current, +85°C to +125°C with derated current Storage temperature Component: –40°C to +125°C. Packaging: –40°C to +80°C Resistance to soldering heat Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles Moisture Sensitivity Level (MSL) 1 (unlimited floor life at
