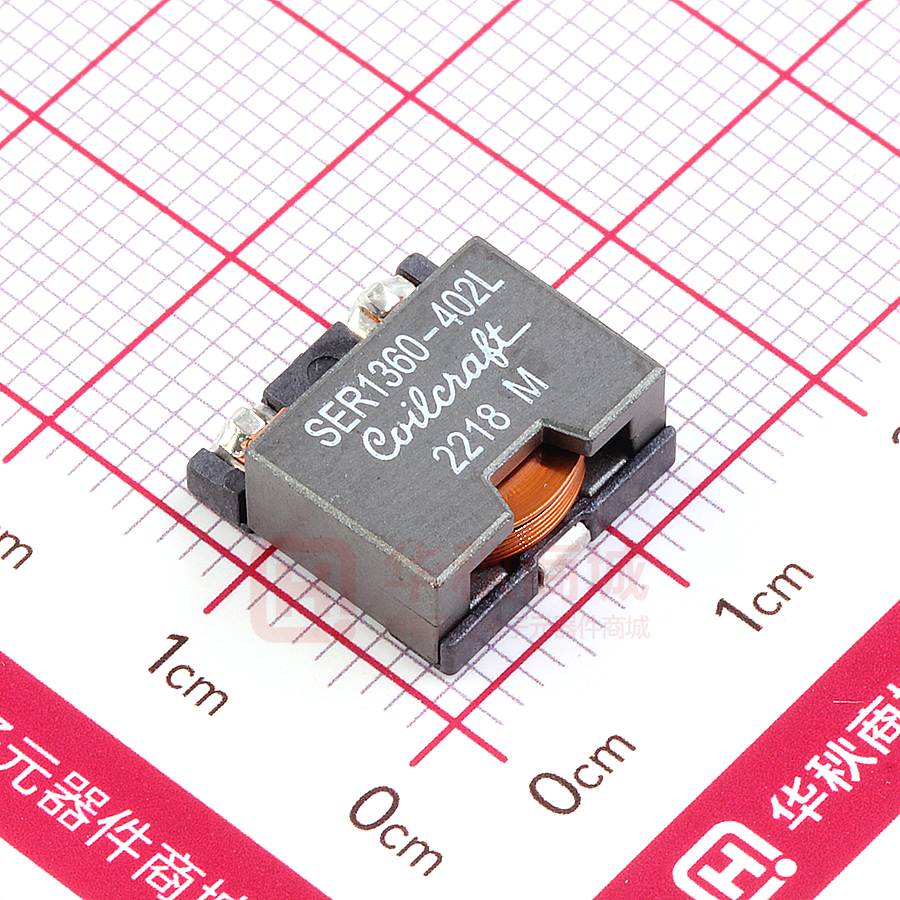

Web page Sample & buy Tools & software Support & FAQ Document 290 -1 Shielded Power Inductors – SER1360 AEC The SER1360 series provides exceptionally high current carrying capability (up to 43 Amps) and very low DC resistance, all in a low profile, small footprint package. Q200 +85°C The part’s magnetic shielding and 13 × 13 mm base allow high density mounting while the flat wire winding keeps the overall height to just 6 mm. In addition to the standard values show, custom values are available to meet specific applications.   SRF typ4 (MHz)  Isat (A)5 20% drop  Irms (A)6 20°C rise  40°C rise  Inductance2 Part number1 ±10% (µH) DCR (mOhm)3 typ    max SER1360-331KL_ 0.33 SER1360-651KL_ 0.65 SER1360-102KL_ 1.0 SER1360-182KL_ 1.8 SER1360-272KL_ 2.7 0.77 0.85 200 0.77 0.85 160 2.36 2.60 75 2.36 2.60 50 2.36 2.60 42 36 41 43 13.0 16.9 23 27 28 13.0 16.9 32 33 33.5 9.5 13.0 17 19 20 9.5 13.0 12 13 14 9.5 13.0 SER1360-402KL_ 4.0 SER1360-472KL_ 4.7 SER1360-602KL_ 6.0 SER1360-802KL_ 8.0 SER1360-103KL_ 10 5.50 6.05 5.50 6.05 5.50 6.05 9.83 10.81 9.83 10.81 11 12 13 7.1 9.4 9.5 11 12 7.1 9.4 8.0 9.0 9.5 7.1 9.4 7.5 8.5 9.0 5.5 7.6 6.2 7.0 7.5 4.4 7.2 1. When ordering, please specify termination and packaging codes: SER1360-103KLD Termination: L = RoHS compliant tin-silver-copper over copper over tin over nickel over phos-bronze. Special order: T = RoHS tin-silver-copper over copper (95.5/4/0.5) or S = non-RoHS tin-lead (63/37). Packaging: D = 13″ machine-ready reel. EIA-481 embossed plastic tape (500 parts per full reel). B = Less than full reel. In tape, but not machine ready. To have a leader and trailer added ($25 charge), use code letter D instead. 2. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/ HP 4284A or equivalent. 3. DCR measured on a micro-ohmmeter. 4. SRF measured using an Agilent/HP 4395A network analyzer and an Agilent/HP 16193A test fixture. 5. DC current at 25°C that causes the specified inductance drop from its value without current. Click for temperature derating information. 6. Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Click for temperature derating information. 7. Electrical specifications at 25°C. Refer to Doc 362 “Soldering Surface Mount Components” before soldering. 10% drop 34 32 28 26 24 30% drop Designer’s Kit C365 contains 4 each of all values Core material Ferrite Core and winding loss See www.coilcraft.com/coreloss Terminations  RoHS compliant tin-silver-copper over copper over tin over nickel over phos-bronze (pins 1 and 2); matte tin over nickel over phos bronze (pin 3). Other terminations available at additional cost. Weight  2.6 – 2.8 g Ambient temperature  –40°C to +85°C with (40°C rise) Irms current. Maximum part temperature  +125°C (ambient + temp rise). Derating. Storage temperature  Component: –40°C to +125°C. Tape and reel packaging: –40°C to +80°C Resistance to soldering heat  Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles Moisture Sensitivity Level (MSL)  1 (unlimited floor life at
