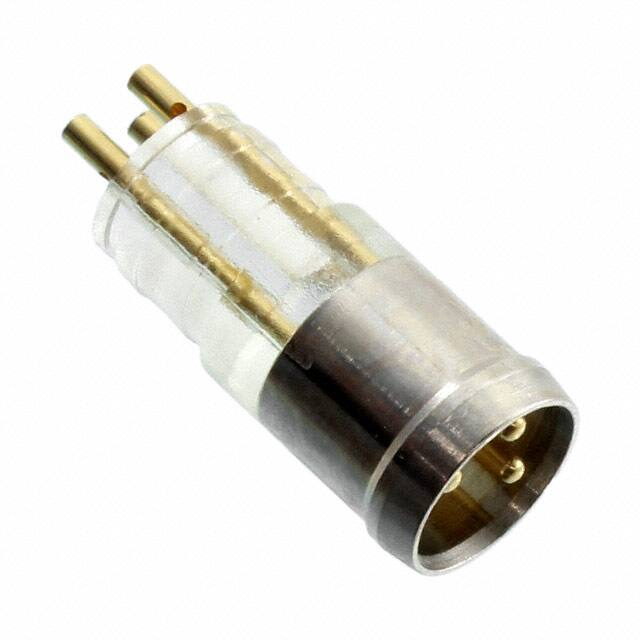

42-01002

Technical specification: A 3pos 60 V 4pos 30 V Current rating: IEC 61076-2-104 3 A bei 40°C n6,9 n6,5 Insulation resistance: IEC 60512 >=100 M n5,8 Pollution degree: IEC 60664-1 3/2 Degree of protection: IEC 60529 IP 67, in mated condition Temperature range: IEC 60664-1 -30°C ... +85°C Mating cycles: IEC 60512-9a >=100 14 9 Ω Rated voltage: IEC 61076-2-104 2,5 Materials: n0,7 Contact: CuZn Contact plating: Nickel, gold plated Contact carrier: PA , UL 94 Socket housing: CuZn, Nickel plated n5,8 A A 4 4 2 +0,05 n 5,75 1 3 1 Directive 2002/95/EC RoHS compliant DO NOT ALTER CAD DRAWING BY HAND 3 Index: a 02.03.11 fro Ä3914 date drawn 15.10.08 appd. THIS DRAWING MAY NOT BE COPIED OR REPRODUCED IN ANY WAY, AND MAY NOT BE PASSED ON TO A THIRD PARTY WITHOUT WRITTEN PERMISSION. OWNERSHIP AND COPYRIGHT OF CONEC GmbH 15.10.08 Description: Pos 42-01002 SAL - 8 - ESTM3 - L 3 42-01003 SAL - 8 - ESTM4 - L 4 title: dim. in mm Data sheet revised Part no: Male socket M8x1 with soldering version name Fromm dwg no: Mankopf 42K1A111 R part no:
