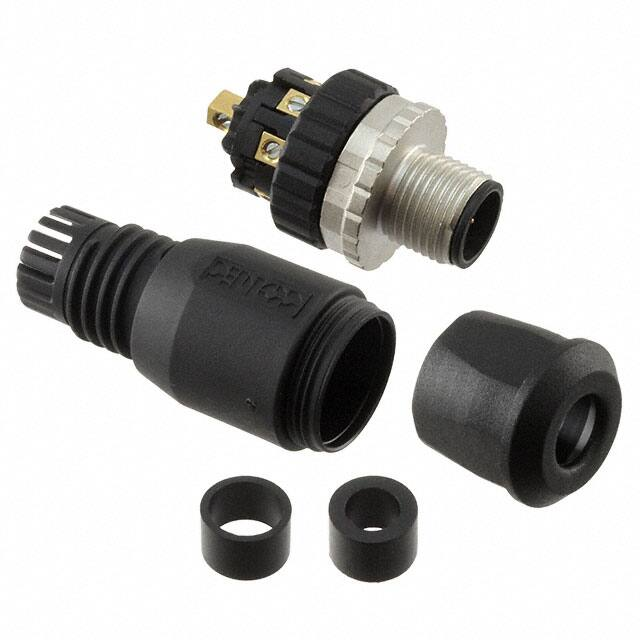

43-00132

Technical specification: n20 M12x1 30 V Current rating: IEC 61076-2-101 2 A at 40°C Insulation resistance: IEC 60512-2 >=100 M Pollution degree: IEC 60664-1 3/2 Degree of protection: IEC 60529 IP 67, in mated condition Temperature range: -30°C ... +85°C Mating cycles: IEC 60512-9a >=100 Wire cross section: AWG20 / max. 0,5 mm² Ω Rated voltage: IEC 61076-2-101 ~61 Width across flats 18 Width across flats 17 Materials: max. external cable diameter see table Directive 2002/95/EC RoHS compliant DO NOT ALTER CAD DRAWING BY HAND n20 Contact: CuZn Contact plating: Nickel, gold plated Contact carrier: PA6, UL 94 Contact screw: Steel, zinc plated Cable sealing: Elastomere O-Ring: NBR Coupling screw: GD-Zn, nickel plated PA6 GF, UL 94 2 1 Housing: 3 7 Installation specification: 6 Recommended torque: 0,6 Nm 8 4 5 Conec installation tooling: Torque wrench: 36-000200 Insert across flats 18: 36-000240 title: dim. in mm date drawn 16.10.13 appd. general tolerance: 0 0,0 0,00 ± 0,50mm ± 0,25mm ± 0,10mm THIS DRAWING MAY NOT BE COPIED OR REPRODUCED IN ANY WAY, AND MAY NOT BE PASSED ON TO A THIRD PARTY WITHOUT WRITTEN PERMISSION. OWNERSHIP AND COPYRIGHT OF CONEC GmbH 16.10.13 name Mankopf Part no: Description: Cable-n: 43-00132 SAL - 12 - RSC8 - S 4 - 8 mm Male connector M12x1, 8pos, field attachable, axial, with screw connection dwg no: Franz 43K1A2194 R part no: see table
