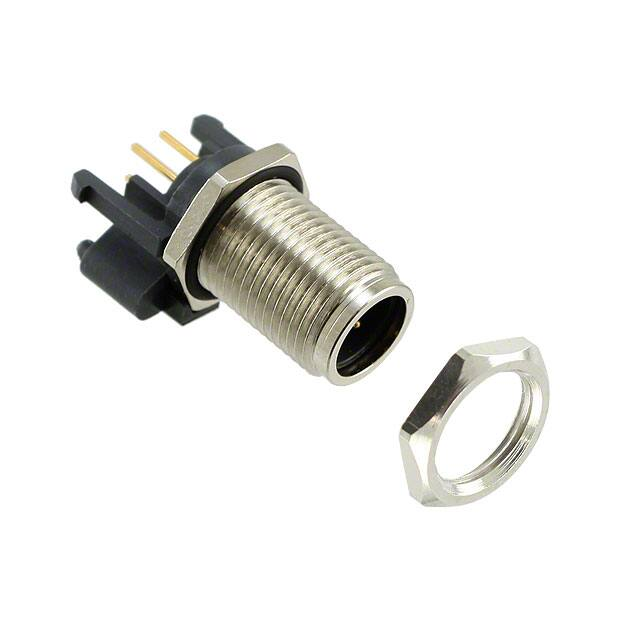

43-01175

M12x1 3,3 3 7,5 10 25,8 Sealing Shroud 16 s ros ac th 1 5 wid flats 15 2 6,5 45° n 7,7 5pos 60 V Current rating: IEC 61076-2-101 4 A at 40°C Insulation resistance: IEC 60512-2 >=100 M Pollution degree: IEC 60664-1 3/2 Degree of protection: IEC 60529 IP 67, in mated condition Temperature range: IEC 60664-1 -30°C ... +85°C Mating cycles: IEC 60512-9a >=100 Contact: CuZn Contact plating: Nickel, gold plated Contact carrier: PA 6.6, UL 94 Sealing: FPM Socket housing: CuZn, nickel plated Shroud: Spring steel -plating: Tin plated Installation specification: n5 Pin Layout PCB 1,60mm 1, 2 2 5 1 4 3 n1,3 n2 n2 0,8-1 Nm Conec installation tool: Torque wrench: 36-000200 Insert across flats 15: 36-000320 ,8 ,35 Hole for optional shroud Index: a 24.03.11 fro Ä3914 n12,5 +- 00,2 Part no: Description: 43-01174 SAL - 12 - FSH4 - X10 4 43-01175 SAL - 12S - FSH4 - X10 4 43-01176 SAL - 12 - FSH5.1 - X10 5 43-01177 SAL - 12S - FSH5.1 - X10 5 date drawn 11.10.07 appd. 18.10.07 Pos Note: with shroud with shroud title: dim. in mm Data sheet revised, technical specification changed THIS DRAWING MAY NOT BE COPIED OR REPRODUCED IN ANY WAY, AND MAY NOT BE PASSED ON TO A THIRD PARTY WITHOUT WRITTEN PERMISSION. OWNERSHIP AND COPYRIGHT OF CONEC GmbH recommended torque: feedthrough 15 Directive 2002/95/EC RoHS compliant 4pos 250 V Materials: 6,5 DO NOT ALTER CAD DRAWING BY HAND Rated voltage: IEC 61076-2-101 Ω Panel thickness min 2mm - max 3mm Technical specification: Male socket M12x1 axial, backmounting, dip solder, X10 name Fromm dwg no: W.Schmidt 43K1A500 R part no:
