43-01178

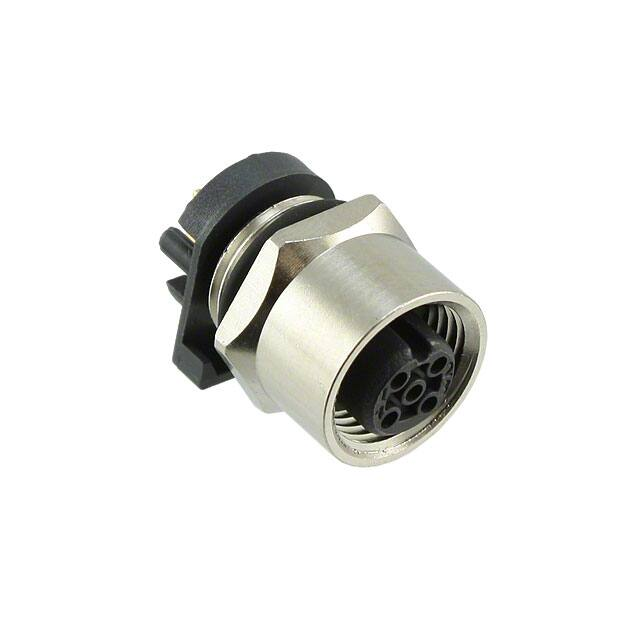

n14 M12x1 2,9 2,2 3 5,5 19,8 Sealing Rated voltage: IEC 61076-2-101 4pos 250 V 5pos 60 V Current rating: IEC 61076-2-101 4 A at 40°C Insulation resistance: IEC 60512 >=100 M Pollution degree: IEC 60664-1 3/2 Degree of protection: IEC 60529 IP 67, in mated condition Temperature range: IEC 60664-1 -30°C ... +85°C Mating cycles: IEC 60512-9a >=100 Ω Panel thickness min 2,5mm - max 3mm Technical specification: Shroud Materials: 16 s ros ac dth 15 Wi flats 12 8,5 Contact: CuZn Contact plating: Nickel, gold plated Contact carrier: PA 6.6, UL 94 Sealing: FPM Socket housing: CuZn, nickel plated Shroud: Spring steel -plating: Tin plated Installation specification: Pin Layout PCB 1,60mm 5 n2,2 7,7 1 4 n1 2 3 ,3 Directive 2002/95/EC RoHS compliant DO NOT ALTER CAD DRAWING BY HAND Torque wrench: 36-000200 Insert across flats 15: 36-000320 Screw - in thread Hole for optional shroud 10 Index: b 24.03.11 fro Ä3914 Installation specification added M12x1 Part no: Description: 43-01178 SAL - 12 - FK4 - X5,5 4 43-01179 SAL - 12S - FK4 - X5,5 4 43-01180 SAL - 12 - FK5 - X5,5 5 43-01181 SAL - 12S - FK5 - X5,5 5 date appd. 18.10.07 Pos Note: with shroud with shroud title: dim. in mm drawn 01.10.07 THIS DRAWING MAY NOT BE COPIED OR REPRODUCED IN ANY WAY, AND MAY NOT BE PASSED ON TO A THIRD PARTY WITHOUT WRITTEN PERMISSION. OWNERSHIP AND COPYRIGHT OF CONEC GmbH Conec installation tool: n1,7 45° n1,2 0,8-1 Nm 0,5x45° n5 recommended torque: Female socket M12x1 axial, frontmounting, dip solder, X5,5 name Fromm dwg no: W. Schmidt 43K1A501 R part no:
