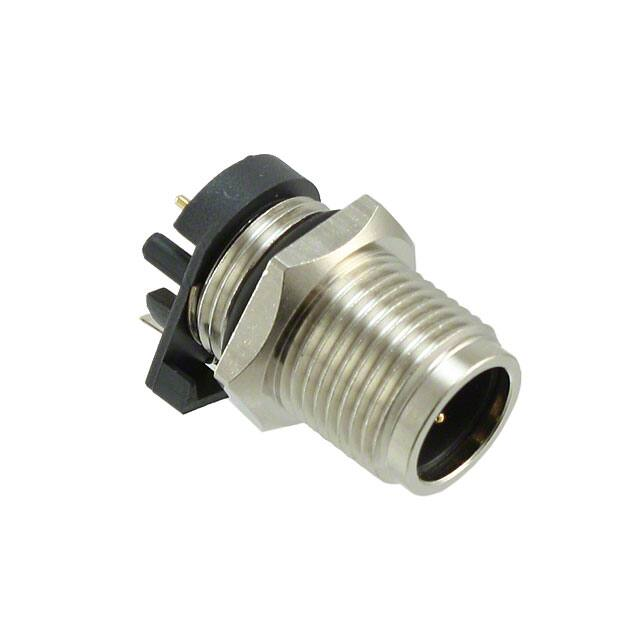

43-01185

M12x1 4 A at 40°C Insulation resistance: IEC 60512 >=100 M Pollution degree: IEC 60664-1 3/2 Degree of protection: IEC 60529 IP 67, in mated condition Temperature range: IEC 60664-1 -30°C ... +85°C Mating cycles: IEC 60512-9a >=100 12 s ros ac d th 1 5 Wi flats Pin Layout PCB 1,60mm 45° n1,2 CuZn Contact plating: Nickel, gold plated Contact carrier: PA 6.6, UL 94 Sealing: FPM Socket housing: CuZn, nickel plated Shroud: Spring steel -plating: Tin plated n1 0,8-1 Nm Conec installation tool: Torque wrench: 36-000200 Insert across flats 15: 36-000320 1 4 ,3 Screw - in thread M12x1 Hole for optional shroud 10 Index: a 06.01.11 fro Ä3759 Installation specification added Part no: Description: 43-01182 SAL - 12 - FS4 - X5,5 4 43-01183 SAL - 12S - FS4 - X5,5 4 43-01184 SAL - 12 - FS5.1 - X5,5 5 43-01185 SAL - 12S - FS5.1 - X5,5 5 date appd. 18.10.07 Pos Note: with shroud with shroud title: dim. in mm drawn 15.10.07 THIS DRAWING MAY NOT BE COPIED OR REPRODUCED IN ANY WAY, AND MAY NOT BE PASSED ON TO A THIRD PARTY WITHOUT WRITTEN PERMISSION. OWNERSHIP AND COPYRIGHT OF CONEC GmbH recommended torque: n1,7 5 2 3 n2,2 Contact: Installation specification: n5 7,7 Current rating: IEC 61076-2-101 0,5x45° 2,9 8,5 Directive 2002/95/EC RoHS compliant 5pos 60 V Materials: Shroud 16 DO NOT ALTER CAD DRAWING BY HAND 4pos 250 V 2,2 3 5,5 22 Sealing Rated voltage: IEC 61076-2-101 Ω Panel thickness min 2,5mm - max 3mm Technical specification: Male Socket M12x1 axial, frontmounting, dip solder, X5,5 name Fromm dwg no: W. Schmidt 43K1A502 R part no:
