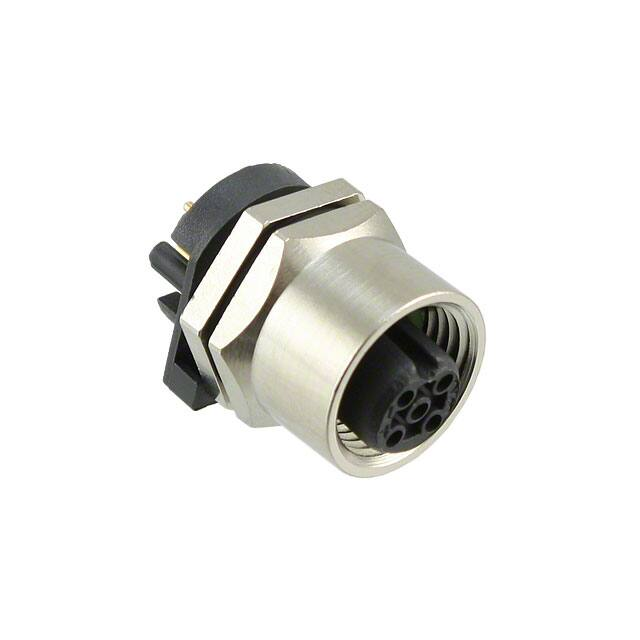

43-01188

n14 M12x1 2,9 2,2 3 5,5 19,8 Sealing 16 s ros ac th 1 5 wid flats 12 8,5 Current rating: IEC 61076-2-101 4 A at 40°C Insulation resistance: IEC 60512-2 >=100 M Pollution degree: IEC 60664-1 3/2 Degree of protection: IEC 60529 IP 67, in mated condition Temperature range: IEC 60664-1 -30°C ... +85°C Mating cycles: IEC 60512-9a >=100 Contact: CuZn Contact plating: Nickel, gold plated Contact carrier: PA 6.6, UL 94 Sealing: FPM Socket housing: CuZn, nickel plated Shroud: Spring steel -plating: Tin plated Pin Layout PCB 1,60mm recommended torque: 0,8-1 Nm Conec installation tool: Torque wrench: 36-000200 Insert across flats 15: 36-000320 5 n2,2 n1 2 3 ,3 n12,5 +- 00,2 Hole for optional shroud 10 Index: b 24.03.11 fro Ä3914 Part no: Description: 43-01186 SAL - 12 - FKH4 - X5,5 4 43-01187 SAL - 12S - FKH4 - X5,5 4 43-01188 SAL - 12 - FKH5 - X5,5 5 43-01189 SAL - 12S - FKH5 - X5,5 5 date drawn 15.10.07 appd. 18.10.07 Pos Note: with shroud with shroud title: dim. in mm Data sheet revised, technical specification changed THIS DRAWING MAY NOT BE COPIED OR REPRODUCED IN ANY WAY, AND MAY NOT BE PASSED ON TO A THIRD PARTY WITHOUT WRITTEN PERMISSION. OWNERSHIP AND COPYRIGHT OF CONEC GmbH feedthrough n1,7 45° n1,2 1 4 7,7 5pos 60 V Installation specification: n5 Directive 2002/95/EC RoHS compliant 4pos 250 V Materials: Shroud DO NOT ALTER CAD DRAWING BY HAND Rated voltage: IEC 61076-2-101 Ω Panel thickness min 2mm - max 3mm Technical specification: Female socket M12x1 axial, backmounting, dip solder, X5,5 name Fromm dwg no: W. Schmidt 43K1A503 R part no:
