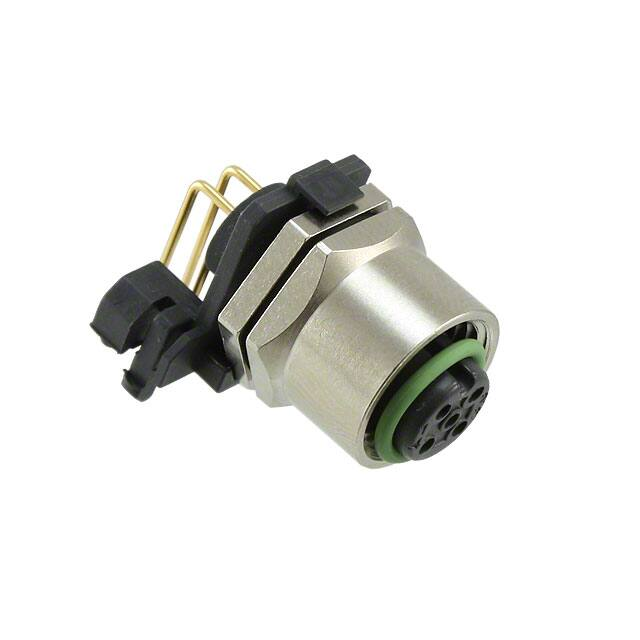

43-01197

n13,8 width across flats 14 Sealing 4 9 2 16,8 M12x1 width across flats 15 Rated voltage: IEC 61076-2-101 4pos 250 V 5pos 60 V Current rating: IEC 61076-2-101 4 A at 40°C Insulation resistance: IEC 60512 >=100 M Pollution degree: IEC 60664-1 3/2 Degree of protection: IEC 60529 IP 67, in mated condition Temperature range: EN 60512-11-10 EN 60512-11-4 -30°C ... +85°C -40°C -40°C ... +85°C Mating cycles: IEC 60512-9a >=100 Ω Panel thickness min 2mm - max 3mm Technical specification: Materials: 20,7 17 8,5 Contact: CuZn, Ni b / Au 0,2 gal. Contact carrier: PA GF, UL 94 V-0 Sealing: FPM / NBR Socket housing: CuZn, nickel plated Shroud: spring steel, nickel plated 19 15 Installation specification: recommended torque: 0,8-1 Nm Conec installation tool: Torque wrench: 36-000200 Insert across flats 14: 36-000370 Insert across flats 15: 36-000320 Shroud 24 Panel n1, 3 4 9 n2 ,8 3 5 4 n2 ,35 2 1 n1 ,2 45° RoHS & REACH compliant drawn 17.10.07 tolerance of wire: appd. ± ± ± ± 0,50mm 0,25mm 0,10mm 1,5° THIS DRAWING MAY NOT BE COPIED OR REPRODUCED IN ANY WAY, AND MAY NOT BE PASSED ON TO A THIRD PARTY WITHOUT WRITTEN PERMISSION. OWNERSHIP AND COPYRIGHT OF CONEC GmbH Part no: Description: 43-01196 SAL - 12 - FKHW4 4 43-01197 SAL - 12S - FKHW4 4 43-01198 SAL - 12 - FKHW5 5 43-01199 SAL - 12S - FKHW5 5 29.02.08 Pos Note: with shroud with shroud title: dim. in mm date general tolerance: n12,5 +- 00,2 Pin layout PCB 1,60mm Index: d 26.08.13 MG Ä4884 Data sheet revised, width across flats changed, installation specification added 0 0,0 0,00 ∢ feedthrough n5 15 `0,1 DO NOT ALTER CAD DRAWING BY HAND Hole for optional shroud Female socket M12x1 angled, backmounting, dip solder name Fromm dwg no: W.Schmidt 43K1A511 R part no:
