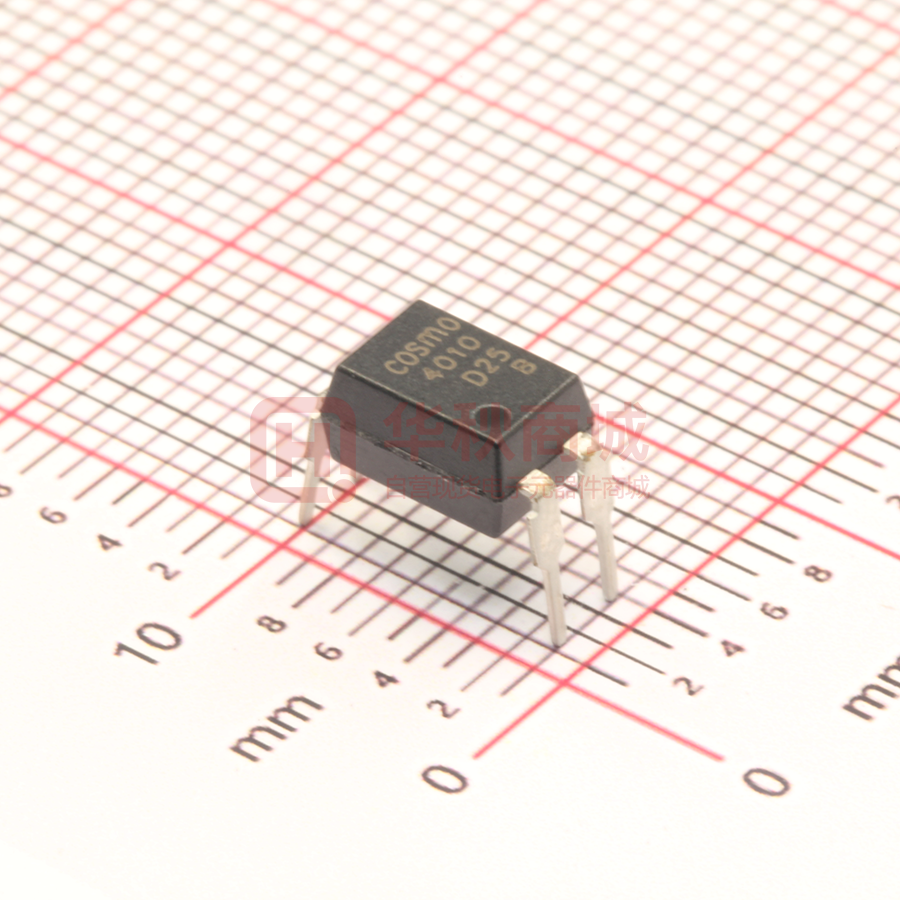

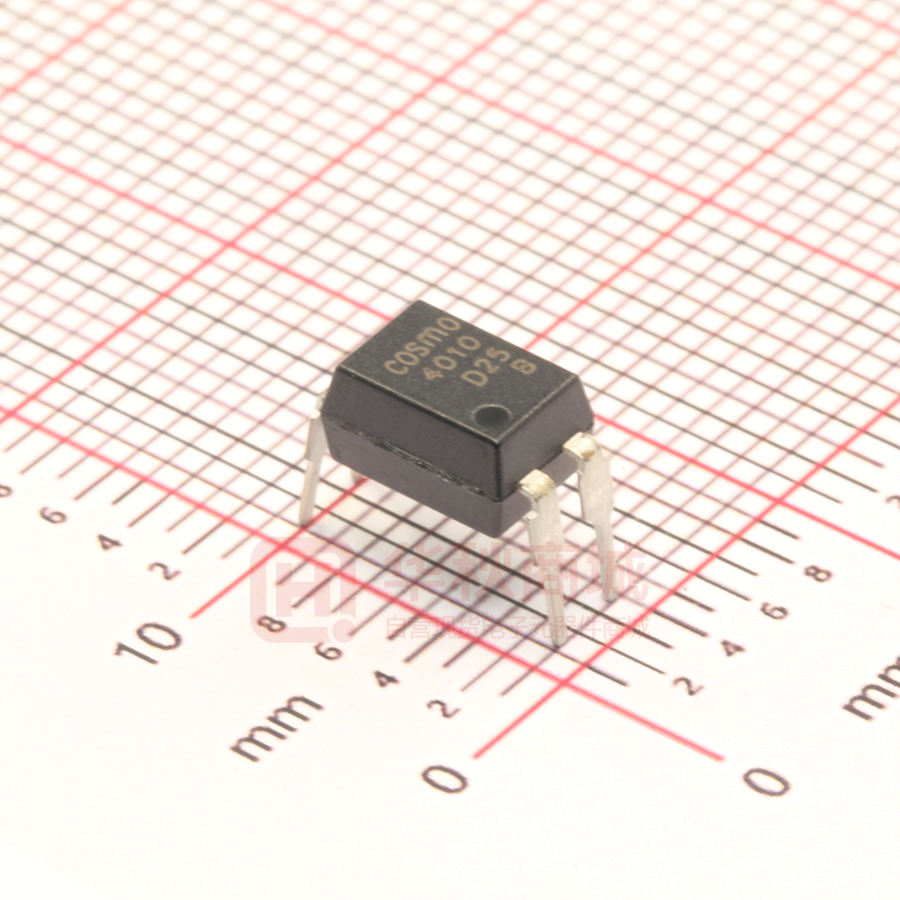

KP40101B

KP4010 High Reliability Photo Coupler UL 1577 (File No.E169586) Features VDE 0884 / 0860 / 0805 (File No.101347) Outside Dimension : Unit (mm) 1. High current transfer ratio (VCEO:300V MIN) (CTR:MIN.600% at IF=1mA, Vce=2V) 2. High isolation voltage between input and output (Viso:5000Vrms). 3. Compact dual-in-line package. 4. Available package : DIP/ SMD/ H. (For Package Dimension please refer to page 82 ) Applications 1. System appliances, measuring instruments. 2. Industrial robots. 3. Copiers, automatic vending machines. TOLERANCE :+ 0.2mm 4. Signal transmission between circuits of different potentials and Schematic : Top View impedances. 5. Telephone sets. 6. Copiers, facsimiles. 1. Anode 2. Cathode 3. Emitter 4. Collector 7. Interface with various power supply circuits, power distribution boards. 8. Numerical control machines. Absolute Maximum Ratings (Ta=25°C) Parameter Input Output Forward current Symbol Rating Unit IF 50 mA Peak forward current IFM 1 A Reverse voltage VR 6 V Power dissipation PD 70 mW Collector-emitter voltage VCEO 300 V Emitter-collector voltage VECO 0.1 V IC 150 mA Collector current Collector power dissipation PC 200 mW Total power dissipation Ptot 200 mW Isolation voltage 1 minute Viso 5000 Vrms Operating temperature Topr -30 to +100 °C Storage temperature Tstg -55 to +125 °C Soldering temperature 10 second Tsol 260 °C Electro-optical Characteristics Parameter Input Forward voltage Peak forward voltage Reverse current 46 (Ta=25°C) Symbol Conditions MIN. TYP. MAX. Unit VF IF =20mA — 1.2 1.4 V VFM IFM =0.5A — — 3.5 V IR VR =4V — — 10 uA Terminal capacitance Ct V=0, f=1kHz — 30 — pF Output Collector dark current ICEO VCE =200V, IF=0 — — 1.0 uA Transfer Current transfer ratio CTR IF =1mA,VCE=2V 600 — 9000 % charac- Collector-emitter saturation voltage — — 1.5 V teristics Isolation resistance 5X1010 — — ohm VCE (sat) Riso IF=20mA, IC=5mA DC500V Floating capacitance Cf V=0, f=1MHZ — 0.6 1.0 pF Cut-off frequency fc VCC=5V, IC=2mA, RL=100ohm — 7 — kHz Respone time (Rise) tr Respone time (Fall) tf c 2004 cosmo ELECTRONICS CORPORATION http://www.cosmo-ic.com VCE=2V, IC=20mA, RL=100ohm — 60 300 us — 50 250 us KP4010 Current transfer ratio CTR (%) *SPECIAL OPTION Fig.2 Collector Power Dissipation vs. Ambient Temperature Collector Power Dissipation Pc (mW) Fig.1 Current Transfer Ratio vs. Forward Current Classification table of current transfer ratio is shown below. Forward Current IF (mA) Fig.4 Forward Current vs. Ambient Temperature Fig.5 Forward Current vs. Forward Voltage Ambient Temperature Ta (°C) Forward Current IF (mA) Forward Current IF (mA) Collector Dark Current Iceo (A) Fig.3 Collector Dark Current vs. Ambient Temperature Ambient Temperature Ta (°C) Ambient Temperature Ta (°C) Fig.8 Collector-emitter Saturation Voltage vs. Forward Current Collector-emitter Saturation Voltage Vce (V) Fig.7 Relative Current Transfer Ratio vs. Ambient Temperature Collector Current Ic (mA) Relative Current Transfer Ratio (%) Fig.6 Collector Current vs. Collectoremitter Voltage Forward Voltage VF (V) Collector-emitter Voltage VCE (V) Ambient Temperature Ta (°C) Forward Current IF (mA) Response Rise Time (us) Fig.9 Response Time vs. Load Resistance Load Resistance RL (K ohm) c 2004 cosmo ELECTRONICS CORPORA TION http://www.cosmo-ic.com 47
