CEVAL-033

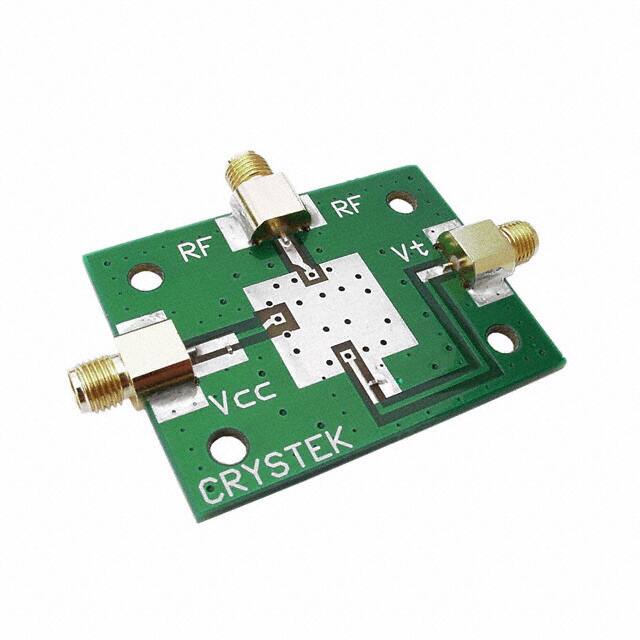

CRYSTEK MICROWAVE VCO Evaluation Boards A Division of Crystek Corporation 0.250 (6.35) RF OUT Ø 0.161 4 Places 0.250 (6.35) Vcc IN C1 0.1µF VCO Vt IN 1.50 (38.1) C2 1000pF 2.00 (50.8) Model CEVAL-055 Shown Features: Connectors: Gold Plated SMA Female Connectors Frequency Range: DC to 6 GHz PCB: 0.062” FR4 Operating Temperature: -40°C to +85°C Crystek’s VCO Evaluation boards are a turn key solution to easy stand alone testing. Evaluation boards are constructed using rigid 0.062” FR4 PCB material. Solder down connection method ensures that the VCO will receive proper grounding for best testing results. Evaluation boards are available for 0.3” x 0.3” and 0.5” x 0.5” Industry Standard VCO foot prints. Crystek also produces a line of RF Cables that can be purchased separately to make connection to equipment an effortless task. Part Number Description CEVAL-033 0.3”x 0.3” VCO CVCO33 Model CEVAL-055 0.5”x 0.5” VCO CVCO55 Model Product Control: Crystek Part Number: CEVAL-033 or CEVAL-055 Release Date: 13-Dec-2017 Revision Level: D Responsible: K. Piotrowicz C CRYSTEK CORPORATION 12730 Commonwealth Drive • Fort Myers, Florida 33913 Phone: 239-561-3311 • 800-237-3061 Fax: 239-561-1025 • www.crystek.com
