CPDETLS-4000

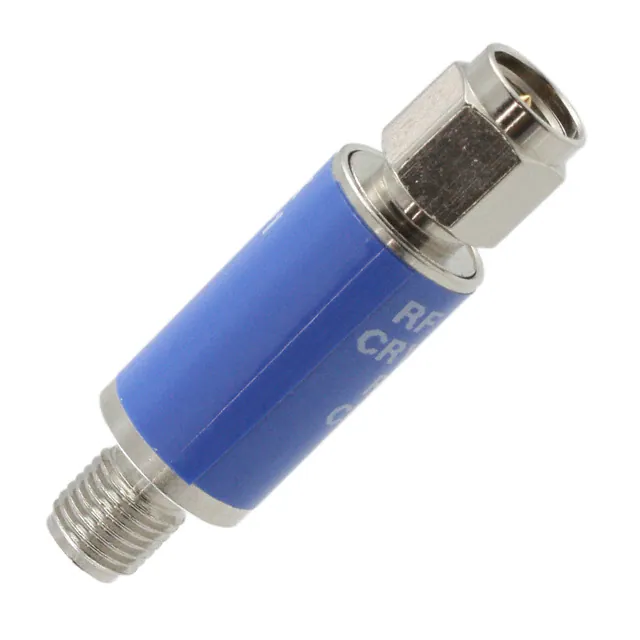

CRYSTEK MICROWAVE RF Power Detector CPDETLS-4000 Frequency Range 10 MHz to 4000 MHz A Division of Crystek Corporation Features: • 10 MHz to 4 GHz Frequency Range • Zero Bias Schottky • Large Signal Power Detector, greater than -10 dBm • +30 dBm Max Input Signal • 100 pF Video Capacitance • Operating Temperature: -20°C to 70°C • Storage Temperature: -40°C to 85°C Applications: • Low Cost RF Power Monitoring • General Lab Use Product Control: Crystek Part Number: CPDETLS-4000 Release Date: 06-Sep-2018 Revision Level: E Responsible: C. Vales C CRYSTEK CORPORATION Page 1 of 2 12730 Commonwealth Drive • Fort Myers, Florida 33913 Phone: 239-561-3311 • 800-237-3061 Fax: 239-561-1025 • www.crystek.com CRYSTEK MICROWAVE RF Power Detector CPDETLS-4000 Frequency Range 10 MHz to 4000 MHz A Division of Crystek Corporation Output DC Voltage (+mV) Output Voltage vs. Input Power 10MHz 1400 1200 4 GHz 3 GHz 2 GHz 915 MHz 10 MHz 1000 800 600 400 200 0 -10 50MHz -8 -6 -4 -2 0 2 4 Input Power (dBm) 1GHz 6 1.5GHz 8 10 100MHz 500MHz 800MHz 915MHz -10 (dBm) 0.491 0.614 0.676 0.731 0.750 0.813 0.838 1.129 2GHz 1.809 3GHz 4.037 4GHz 3.279 -8 (dBm) 1.286 1.719 1.920 2.081 2.152 2.361 2.452 3.590 5.682 12.702 10.317 -6 (dBm) 4.182 5.717 6.409 6.930 7.216 7.890 8.260 12.577 17.811 34.399 29.919 -4 (dBm) 13.900 18.369 20.059 21.334 22.166 23.793 24.790 31.572 43.310 70.238 68.075 -2 (dBm) 39.495 48.826 52.035 54.096 55.573 58.100 60.027 73.044 88.722 126.286 130.315 0 (dBm) 85.210 98.951 103.585 106.336 108.477 108.876 113.438 125.140 148.010 200.485 227.010 2 (dBm) 153.115 172.880 179.140 181.735 184.455 184.135 190.275 208.390 235.005 299.975 347.645 4 (dBm) 248.540 272.525 280.245 282.570 285.670 284.105 292.115 320.035 349.170 427.445 503.595 6 (dBm) 370.385 410.635 407.155 415.370 422.995 400.055 411.665 432.520 477.430 594.675 725.540 8 (dBm) 531.085 577.910 572.210 581.485 590.555 559.355 572.760 609.630 659.485 802.725 975.390 10 (dBm) 725.090 784.340 774.235 786.770 798.890 754.320 768.480 835.225 887.470 1063.620 1275.450 1.504 (38.20) Schematic 0.807 (20.54) RF In 0.435 (11.05) SMA Male DC Out 50 Ω SMA Female Product Control: Crystek Part Number: CPDETLS-4000 Release Date: 06-Sep-2018 Revision Level: E Responsible: C. Vales C CRYSTEK CORPORATION Specification is subject to change without notice Page 2 of 2 12730 Commonwealth Drive • Fort Myers, Florida 33913 Phone: 239-561-3311 • 800-237-3061 Fax: 239-561-1025 • www.crystek.com
