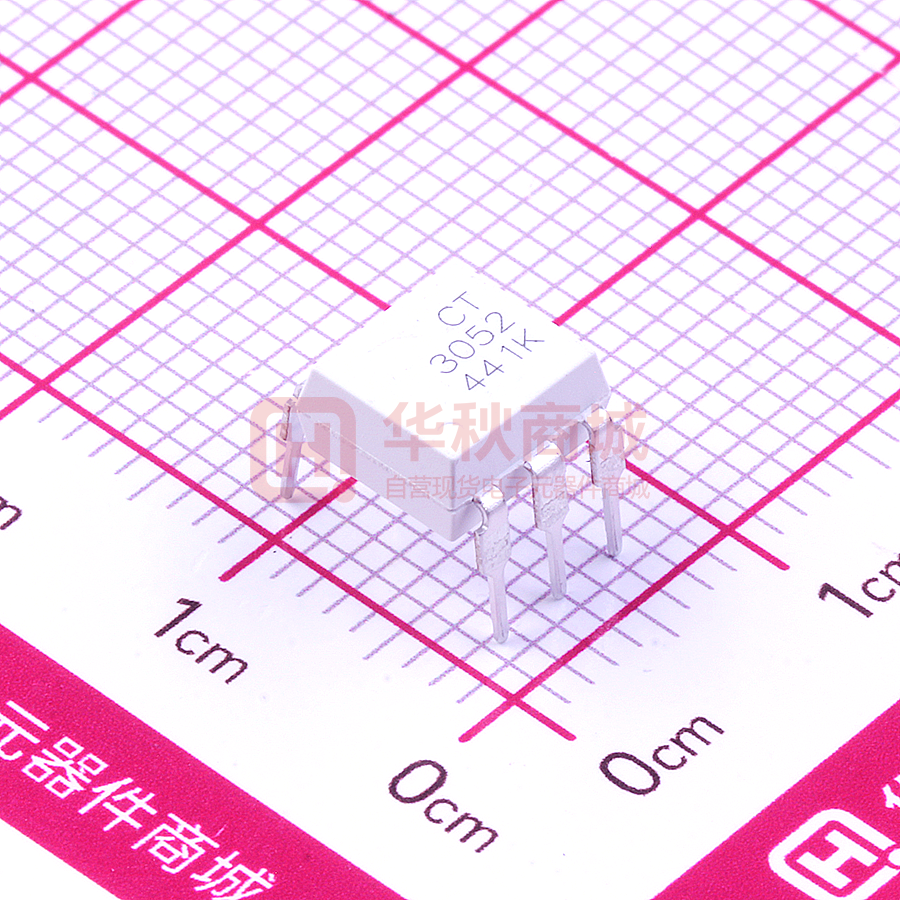

CT3051, CT3052, CT3053 600V Random Phase 6-Pin Phototriac Optocoupler Features • High isolation 5000 VRMS • Peak Breakdown Voltage 600V • Temperature range - 55 °C to 100 °C • Regulatory Approvals
UL - UL1577 (E364000)
VDE - EN60747-5-5(VDE0884-5)
CQC – GB4943.1, GB8898
IEC60065, IEC60950 Description The CT3051, CT3052, CT3053 series consists of a Random Phase Photo Triac optically coupled to a gallium arsenide Infrared-emitting diode in a 6-lead DIP package with bending options. Applications • Motor Controls • Lamp ballasts • Static AC Power Switch • Solenoid/ Valve Control Package Outline Schematic Note: Different bending options available. See package dimension. CT Micro Proprietary & Confidential Page 1 Rev 1 Jul, 2014 CT3051, CT3052, CT3053 600V Random Phase 6-Pin Phototriac Optocoupler Absolute Maximum Rating at 25oC Symbol Parameters Ratings Units 5000 VRMS VISO Isolation voltage TOPR Operating temperature -55 ~ +100 oC TSTG Storage temperature -55 ~ +150 oC TSOL Soldering temperature 260 oC Forward current 60 mA 1 A 6 V Notes Emitter IF IF(TRANS) Peak transient current (≤1µs P.W,300pps) VR Reverse voltage PD Power dissipation 100 mW Power dissipation 300 mW VDRM Off-State Output Terminal Voltage 600 V ITSM Peak Repetitive Surge Current 1 A Detector PD CT Micro Proprietary & Confidential Page 2 Rev 1 Jul, 2014 CT3051, CT3052, CT3053 600V Random Phase 6-Pin Phototriac Optocoupler Electrical Characteristics T A = 25°C (unless otherwise specified) Emitter Characteristics Symbol Parameters Test Conditions Min Typ Max Units VF Forward voltage IF=10mA - - 1.5 V IR Reverse Current VR = 6V - - 5 µA Input Capacitance f= 1MHz - 45 - pF Min Typ Max Units CIN Notes Detector Characteristics Symbol Parameters Test Conditions IDRM Peak Blocking Current IF= 0mA, VDRM= Rated VDRM - - 100 nA VTM Peak On-State Voltage IF= Rated IFT, ITM= 100mA - - 2.5 V 1000 - - V/µs Min Typ Max Units - - 15 - - 10 - - 5 - 250 - µA 1x1011 - - Ω - 0.25 - pF Notes Critical Rate of Rise dv/dt CT305X VPEAK = 600V off-State Voltage Transfer Characteristics Symbol Parameters Input Test Conditions CT3051 Notes Terminal Voltage = 3V IFT Trigger mA ITM=100mA Current IH CT3052 CT3053 Holding Current RIO Isolation Resistance VIO= 500VDC CIO Isolation Capacitance f= 1MHz CT Micro Proprietary & Confidential Page 3 Rev 1 Jul, 2014 CT3051, CT3052, CT3053 600V Random Phase 6-Pin Phototriac Optocoupler Typical Characteristic Curve CT Micro Proprietary & Confidential Page 4 Rev 1 Jul, 2014 CT3051, CT3052, CT3053 600V Random Phase 6-Pin Phototriac Optocoupler CT Micro Proprietary & Confidential Page 5 Rev 1 Jul, 2014 CT3051, CT3052, CT3053 600V Random Phase 6-Pin Phototriac Optocoupler Package Dimension Dimensions in mm unless otherwise stated Standard DIP – Through Hole Wide Lead Forming – Through Hole (M Type) CT Micro Proprietary & Confidential Page 6 Rev 1 Jul, 2014 CT3051, CT3052, CT3053 600V Random Phase 6-Pin Phototriac Optocoupler Surface Mount Forming (S Type) Surface Mount Forming (Low Profile) (SL Type) CT Micro Proprietary & Confidential Page 7 Rev 1 Jul, 2014 CT3051, CT3052, CT3053 600V Random Phase 6-Pin Phototriac Optocoupler Recommended Solder Mask Dimensions in mm unless otherwise stated Marking Information CT 3051 VYWWK Note: CT 3051 : Denotes “CT Micro” : Part Number V Y WW K : VDE Option : Fiscal Year : Work Week : Manufacturing Code CT Micro Proprietary & Confidential Page 8 Rev 1 Jul, 2014 CT3051, CT3052, CT3053 600V Random Phase 6-Pin Phototriac Optocoupler Ordering Information CT305X(Y)(Z)-G X = Part No. (X = 1,2,3) V = VDE Option (V or none) Y = Lead form option (S, SL, M or none) Z = Tape and reel option (T1, T2 or none) G= Material option (G: Green, None: Non-green) Option Description Quantity None Standard 6 Pin Dip 50Units/Tube M Gullwing(400mil) Lead Forming 50Units/Tube S(T1) Surface Mount Lead Forming – With Option 1 Taping 1000 Units/Reel S(T2) Surface Mount Lead Forming – With Option 2 Taping 1000 Units/Reel SL(T1) Surface Mount Lead Forming(Low Profile) – With Option 1 Taping 1000 Units/Reel SL(T2) Surface Mount Lead Forming(Low Profile) – With Option 2 Taping 1000 Units/Reel CT Micro Proprietary & Confidential Page 9 Rev 1 Jul, 2014 CT3051, CT3052, CT3053 600V Random Phase 6-Pin Phototriac Optocoupler Carrier Tape Specifications Dimensions in mm unless otherwise stated Option S(T1) & SL(T1) Option S(T2) & SL(T2) CT Micro Proprietary & Confidential Page 10 Rev 1 Jul, 2014 CT3051, CT3052, CT3053 600V Random Phase 6-Pin Phototriac Optocoupler Reflow Profile Profile Feature Pb-Free Assembly Profile Temperature Min. (Tsmin) 150°C Temperature Max. (Tsmax) 200°C Time (ts) from (Tsmin to Tsmax) 60-120 seconds Ramp-up Rate (tL to tP) 3°C/second max. Liquidous Temperature (TL) 217°C Time (tL) Maintained Above (TL) 60 – 150 seconds Peak Body Package Temperature 260°C +0°C / -5°C Time (tP) within 5°C of 260°C 30 seconds Ramp-down Rate (TP to TL) 6°C/second max Time 25°C to Peak Temperature 8 minutes max. CT Micro Proprietary & Confidential Page 11 Rev 1 Jul, 2014 CT3051, CT3052, CT3053 600V Random Phase 6-Pin Phototriac Optocoupler DISCLAIMER CT MICRO RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. CT MICRO DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS. ______________________________________________________________________________________ DISCOLORATION MIGHT OCCUR ON THE PACKAGE SURFACE AFTER SOLDERING, REFLOW OR LONG TERM USE. THIS DOES NOT IMPACT THE PRODUCT PERFORMANCE NOR THE PRODUCT RELIABILITY. CT MICRO ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT EXPRESS WRITTEN APPROVAL OF CT MICRO INTERNATIONAL CORPORATION. 1. Life support devices or systems are devices or 2. A critical component is any component of a life systems which, (a) are intended for surgical support device or system whose failure to perform implant into the body, or (b) support or sustain life, can be reasonably expected to cause the failure of or (c) whose failure to perform when properly used the life support device or system, or to affect its in accordance with instruction for use provided in safety or effectiveness. the labelling, can be reasonably expected to result in significant injury to the user. CT Micro Proprietary & Confidential Page 12 Rev 1 Jul, 2014
