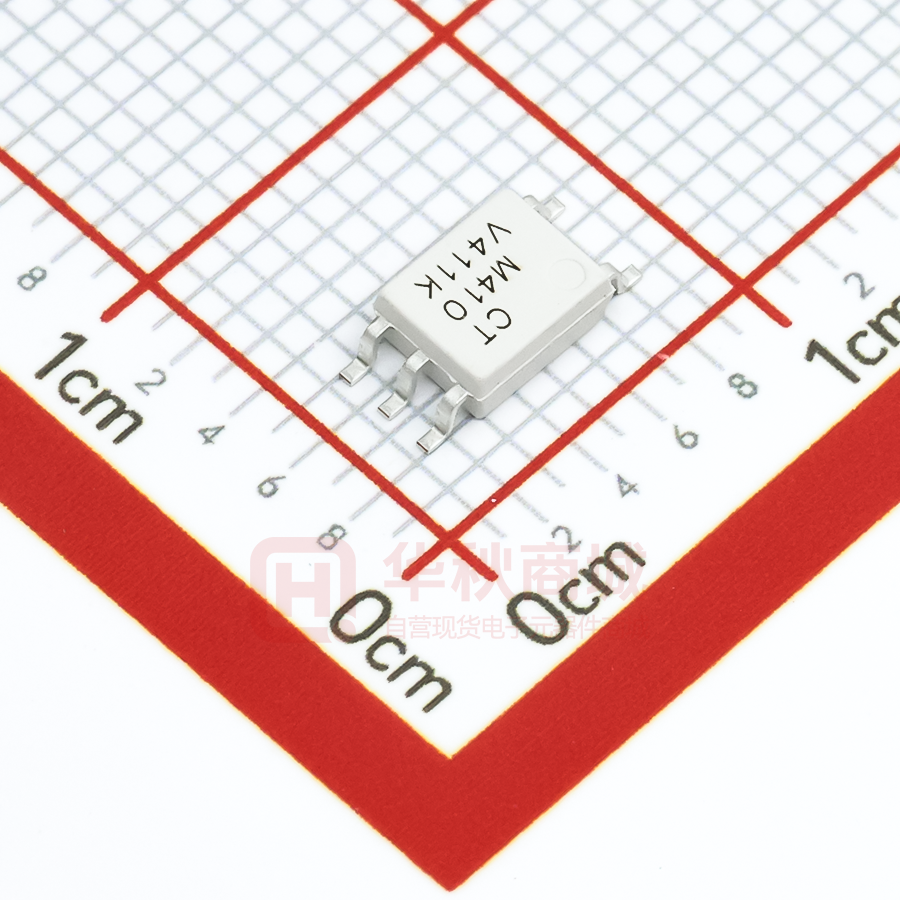

CTM3053(T1)

CTM3051, CTM3052, CTM3053 600V Random Phase 4-Pin Mini-Flat Phototriac Optocoupler Features • High isolation 3750 VRMS • Peak Breakdown Voltage 600V • Temperature range - 55 °C to 100 °C • Regulatory Approvals •
