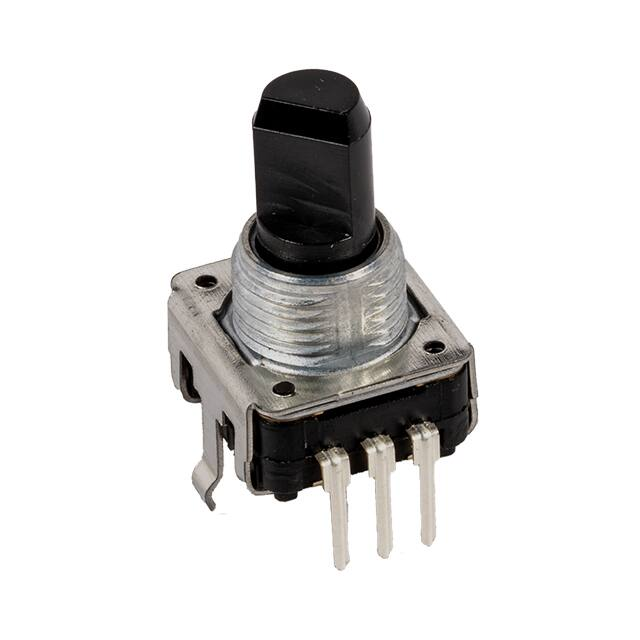

11CEH20F243B

Series 11CE 12mm Rotary Encoder      Compact 12 mm package size Rotational life (30,000 cycles) Wide temperature range (-10°C to +70°C) Momentary switch option Bushing and mounting style options Applications      Consumer portable electronics Commercial appliances Instrument amplifiers and guitar effects Keyboards and synthesizers Communications equipment Ordering Information Series Terminal Configuration Shaft Length Shaft Trim Resolution Detent Option Switch Option 11CE H 20 F 12 2 A Code M H K Y Spec. Code Horizontal/Side Mount Sleeve Bushing, PC Pins, 10mm Height Vertical/Rear Mount Thread Bushing, PC Pins Vertical/Rear Mount Sleeve Bushing, PC Pins Horizontal/Side Mount Thread Bushing, PC Pins, 10mm Height 12 24 Code F Code Spec. A 12 PPR 24 PPR B Spec. Flatted Code Code Spec.* 17 20 25 30 17.5 mm 20 mm 25 mm 30 mm Spec. No switch Momentary switch 1 2 3 Spec. No Detents 12 Detents* 24 Detents** *Available w/12 PPR only **Available w/12 & 24 PPR * See outline drawings for shaft length (LM) availability by configuration. 2020-08-26 Rev. B Page 1 of 7 ©2019 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote. Series 11CE 12mm Rotary Encoder Encoder Specifications Voltage Rating Output Insulation Resistance Dielectric Strength Resolution Contact Bounce/Chatter t1, t3 t2 Phase Difference 12 PPR 24 PPR Total Mechanical Travel Operating Torque Detent Position 12 detents 24 detents Detent Torque Detent Position Play Shaft Wobble Shaft Push-Pull Strength Shaft Static Side Load Terminal Strength Rotational Life Min Typical @ 0.5 mA – +5.0 2-bit quadrature 100 MΩ min. @ 250 VDC 300 VAC for 1 min., no arcing 12 or 24 PPR (pulses per revolution) (See Fig. 1) ≤ 3 ms ≤ 2 ms (See Fig. 2) ΔT ≥ 4 ms (A leads B by 90° in the CW direction) ΔT ≥ 3.5 ms (A leads B by 90° in the CW direction) 360° continuous 50 gf-cm (non-detent option only) Max – Unit VDC Max – Unit VDC 30° ± 3° 15° ± 3° 30 to 200 gf-cm 4° max. 1.0 x L/30mm p-p max.; L = Shaft Length 5 kgf for 10 sec. 2 kgf max. 300 gf max. 30,000 cycles Switch Specifications Voltage Rating Contact Resistance Contact Arrangement Chatter Switch Travel Actuation Force Insulation Resistance Dielectric Strength Operating Life IP Rating Packaging Weight 2020-08-26 Rev. B @ 0.5 mA 100 mΩ max. SPST Momentary 10 ms max. 0.5mm +0.4mm, -0.3mm 300 gf +150 gf/-100 gf 100 MΩ min. @ 250 VDC 300 VAC for 1 min., no arcing 20,000 actuations 40 Tray 3.2 grams Min – Typical +5.0 Page 2 of 7 ©2019 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote. Series 11CE 12mm Rotary Encoder Environmental Specifications Operating Temperature Storage Temperature Soldering Conditions Wave Solder Manual Solder Wash Moisture Sensitivity Level ESD Classification (HBM) Min -10 -40 Typical – – Max +70 +85 Unit °C °C Preheat: 100°C max for 2 min max; Solder temperature: 260°C ± 5°C for 5 sec max.; No clean foam flux recommended 350°C ± 5°C for 3 sec max.; Sn95Ag5 no clean solder Not recommended 1 Not applicable All testing is performed at room ambient conditions except as noted. Users should verify device actual performance in their specific applications This product is compliant to RoHS3 Directive 2015/863 Amendments of Annex II on 31 March 2015, and REACH SVHC Directive EC 1907/2006 Amendments of Annex XIV & Annex XVII on 15 January 2018. Custom and value-added options available on request. Please contact your sales representative for additional information. Electrical Specifications Figure 1: Contact Bounce/Chatter Figure 2: Phase Difference Figure 3: Suggested Filter Circuit 2020-08-26 Rev. B Page 3 of 7 ©2019 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote. Series 11CE 12mm Rotary Encoder Mechanical Specifications Series 11CE Horizontal/Side Mount Sleeve Bushing (No Switch) Series 11CE Vertical/Rear Mount Sleeve Bushing (No Switch) Unit: mm 2020-08-26 Rev. B Page 4 of 7 ©2019 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote. Series 11CE 12mm Rotary Encoder Mechanical Specifications Series 11CE Horizontal/Side Mount with Threaded Bushing (No Switch) Series 11CE Vertical/Rear Mount with Threaded Bushing (No Switch) Unit: mm 2020-08-26 Rev. B Page 5 of 7 ©2019 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote. Series 11CE 12mm Rotary Encoder Mechanical Specifications Series 11CE Horizontal/Side Mount Sleeve Bushing (With Switch) Series 11CE Vertical/Rear Mount Sleeve Bushing (With Switch) Unit: mm 2020-08-26 Rev. B Page 6 of 7 ©2019 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote. Series 11CE 12mm Rotary Encoder Mechanical Specifications Series 11CE Horizontal/Side Mount with Threaded Bushing (With Switch) Series 11CE Vertical/Rear Mount with Threaded Bushing (With Switch) Unit: mm 2020-08-26 Rev. B Page 7 of 7 ©2019 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
