220AMA16R

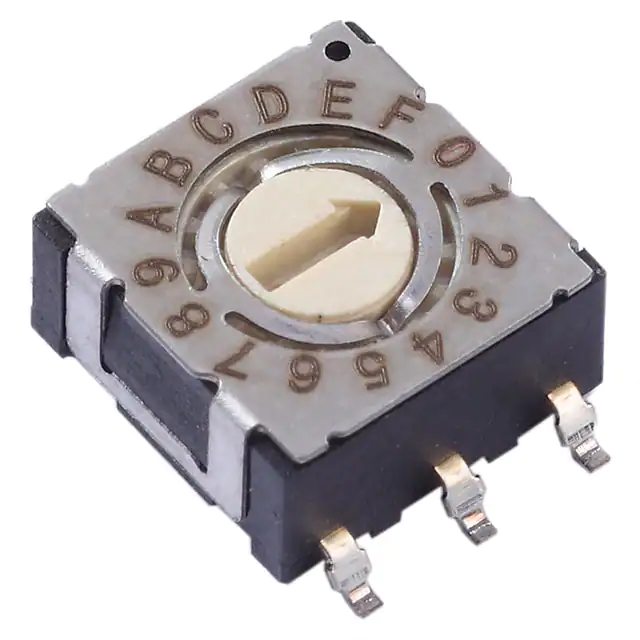

Series 220 7x7mm Compact Rotary DIP Switch ▪ Robust metal bracket design ▪ Standard through hole and surface mount gull-wing terminal configurations ▪ Binary coded decimal, Hexadecimal code and Single pole output ▪ Clockwise or counterclockwise rotation Ordering Information Terminal Type Series 220 20212124 Code AM AD ActuatorB Height Positions AM 2 A 1 Spec. Surface mount gull wing, 3.8mm height Standard through hole, 3.6mm height Number of Packaging Type 04 S B C Spec. Flush arrow rotor Knurled, slotted, flatted shaft Knurled, slotted shaft Code 04 10 16 RT T T TTT T TSS E Code A RRRTTT T T Spec. 4 Positions 10 Positions 16 Positions Code Spec. Tube packaging only for through hole Blank terminals Tape & reel packaging only for surface R mount terminals Notes: Contact CTS for other common features not listed. 2022-04-11 Rev. G Page 1 of 9 ©2022 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote. Series 220 Rotary DIP Switch Electrical Specifications Parameter Output Conditions & Remarks Min Binary coded decimal Hexadecimal Single pole Contact Resistance Insulation Resistance Dielectric Strength Between insulated terminals 250 Vac between adjacent switches Max Unit 10 16 4 position 100 milliohms 1000 Nonswitching Rating megohms 1 minute 100 or 50 mA or VDC 1μA 20m Load VDC Mechanical and Environmental Soldering RoHS Rotational Torque: Actuation Life Marking: Packaging : Operating Temperature Range Storage Temperature Range: Maximum reflow temperature, 260°C for 5 seconds Maximum wave temperature, 260°C for 10 seconds Maximum manual temperature, 350°C for 4 seconds Lead-Free. Fully compliant to RoHS 40~200 gf-cm 10,000 steps Special top marking available-consult CTS Standard anti-static tube packaging for through hole terminal Standard tape and reel packaging for gull wing terminal -40°C to +85°C -40°C to +85°C Soldering Profile 2022-04-11 Rev. G Page 2 of 9 ©2022 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote. Series 220 Rotary DIP Switch Mechanical Specifications Figure 1 – 220AM_10, 16R - Surface Mount Gull Wing, 10 and 16 Position 2022-04-11 Rev. G Page 3 of 9 ©2022 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote. Series 220 Rotary DIP Switch Figure 2 – 220AD_10, 16 - Standard Through Hole, 10 and 16 Position Figure 3 – 220AM_04R - Surface Mount Gull Wing, 4 Position 2022-04-11 Rev. G Page 4 of 9 ©2022 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote. Series 220 Rotary DIP Switch Figure 4 – 220AD_04 - Standard Through Hole, 4 Position 2022-04-11 Rev. G Page 5 of 9 ©2022 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote. Series 220 Rotary DIP Switch Packing: Tape and Reel 2022-04-11 Rev. G Page 6 of 9 ©2022 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote. Series 220 Rotary DIP Switch REEL: (A) SPECIFIED REEL PARTS DIMENSIONS: (COMMON TO ALL SMT COMPONENTS) 2022-04-11 Rev. G Page 7 of 9 ©2022 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote. Series 220 Rotary DIP Switch TAPE BREAK FORCE, PEEL STRENGTH AND ANGLE: REQUIRED SETTINGS : • TOP COVER TAPE PEEL FORCE : 10 ~ 140 gm • ANGLE BETWEEN THE TOP COVER TAPE AND THE DIRECTION OF FEED DURING PEEL OFF : 165° ~ 180° 2022-04-11 Rev. G Page 8 of 9 ©2022 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote. Series 220 Rotary DIP Switch THE COVER TAPES MAY NOT EXTEND OVER THE DEGE OF THE CARRIER TAPE OR COVER ANY PART OF THE SPROCKETS HOLES. 2022-04-11 Rev. G Page 9 of 9 ©2022 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
