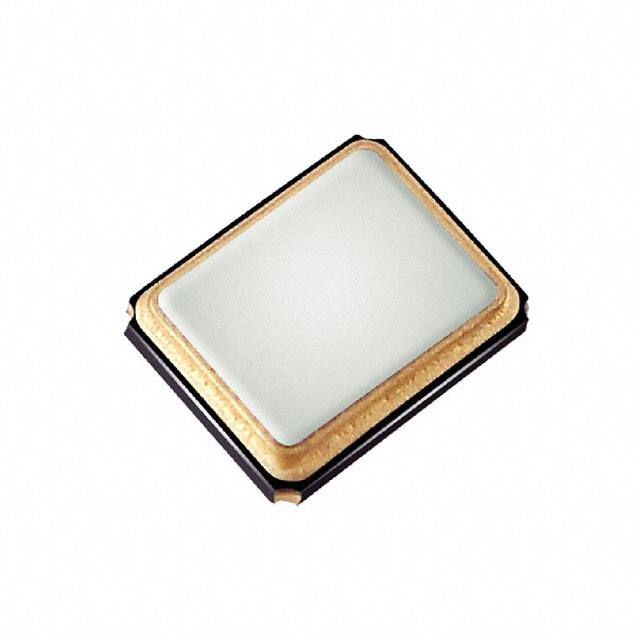

403WF32015HKR

Model 403W IoT Enhanced Quartz Crystal Features        Optimized Design for Low Plating Capacitance and ESR Improves Start-Up and Power Savings for Low Energy Applications Hermetic Ceramic Surface Mount Package Fundamental and 3rd Overtone Crystal Design Part Dimensions: 3.2 × 2.5 × 0.80mm • 20.71627mg Frequency Range 8 – 54MHz Operating Temperature Range to -40°C to +125°C Standard Frequencies – see Page 5 for developed frequencies. * Check with factory for availability of frequencies not listed. Tape and Reel Packaging, EIA-418 Applications  Wireless Communications  Low Power MCUs, SoCs, RF ICs  M2M Communications  WiFi, ZigBee, ZigBee RF4CE, Z-Wave  Bluetooth, Bluetooth Low Energy  LoRa, LPWAN, 6LowPan, WLAN  Near Field Communication  Low Drive Chipsets  ISM Band Applications Description CTS Model 403W incorporates a high Q quartz resonator and has optimized design parameters for Low ESR and Load Capacitance [CL]. M403W is ideal for supporting commercial and industrial IoT applications using low power MCUs, portable RF communication ICs and low drive chipsets. Ordering Information Model 403W Mode of Oscillation F Frequency Code [MHz] XXX Mode Code Fundamental F Code 1 X 2 Y 3 Code Frequency Product Frequency Code Notes: 1] 2] 3] 4] 5] Tolerance @ +25°C 3 1 Temperature Stability 5 Tolerance ±10ppm ±15ppm ±20ppm ±25ppm ±30ppm Code 1 X 2 Y Temperature Range C Load Capacitance D Temp. Range Code C -20°C to +70°C 2 D -30°C to +85°C 2 I -40°C to +85°C 3 G -40°C to +105°C 4 H -40°C to +125°C 5 Stability ±10ppm ±15ppm ±20ppm ±25ppm Code 3 5 6 Stability ±30ppm ±50ppm ±100ppm Code M W T V Capacitance 4pF 5pF 6pF 7pF Packaging R Code R Packing 3k pcs./reel Code K J A L Capacitance 8pF 9pF 10pF 12pF Refer to document 016-1454-0, Frequency Code Tables. 3-digits for frequencies
