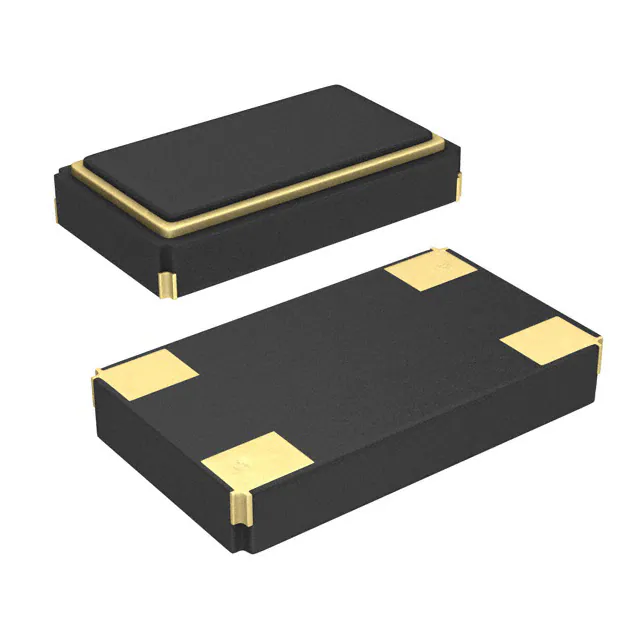

Model 40 406 Surface Mount Quartz Crystal Features






Hermetic Ceramic Surface Mount Package Fundamental Crystal Design Frequency Range 7.0 – 54MHz Frequency Tolerance, ±30ppm Standard Frequency Stability, ±50ppm Standard Operating Temperature Range to -40°C to +85°C Tape and Reel Packaging, EIA-481 Part Dimensions: 6.0 × 3.5 × 1.2mm • 68mg Standard Frequencies – see Page 5 for common frequencies. * Check with factory for availability of frequencies not listed. Applications
IoT and IIoT Applications
Wireless Communications
FPGA/Microcontrollers
USB Interfaces
Computer Peripherals
Portable Equipment
Test and Measurement
M2M Communications
Broadband Access Description CTS Model 406 incorporates a high Q quartz resonator and is ideal for supporting a wide range of commercial and industrial applications. Ordering Information Model 406 Temperature Range C Tolerance @ +2 5 °C 3 Code Temp. Range C -20°C to +70°C -30°C to +85°C D -40°C to +85°C I Temperature Stability 5 Code 1 X 2 3 5 Code 1 X 2 3 Tolerance ±10ppm ±15ppm ±20ppm ±30ppm Load Capacitance D Stability Frequency [MHz] X X MXX XX X Code Frequency 1 ±10ppm ±15ppm ±20ppm ±30ppm ±50ppm Code K J A L Frequency 2 Capacitance Code Capacitance Code Capacitance 8pF 13pF 24pF B F 9pF 16pF 30pF C G 10pF 18pF 32pF D H 12pF 20pF Series E S Notes: 1] Check factory availability when combined with -40°C to +85°C temperature range. 2] Frequency is recorded with 2 leading digits before the "M" and 5 significant digits after the "M" [including zeroes]. (Ex. XXMXXXXX [16M38400], XXMXXXXX [22M11840], XXMXXXXX [14M31818]) Not all performance combinations and frequencies may be available. Contact your local CTS Representative or CTS Customer Serv ice for av ailability. This product is specified for use only in standard commercial applications. Supplier disclaims all express and implied warranties and liability in connection with any use of this product in any non-commercial applications or in any application that may expose the product to conditions that are outside of the tolerances provided in its specification. DOC# 008-0260-0 Rev. J Page 1 of 5 ©2017 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote. Model 406 Surface Mount Quartz Crystal Electrical Specifications Operating Conditions P ARAMETER SYMBO L CO NDITIO NS MIN TYP -20 O perating Temperature -30 UNIT +70 +25 +85 TA - TSTG - -55 - +125 °C SYMBO L CO NDITIO NS MIN TYP MAX UNIT -40 °C +85 -40 Storage Temperature MAX +105 Frequency Stability P ARAMETER fO Fundamental Mode 7 - 54 MHz Frequenc y Toleranc e Δf/fO @ +25°C 10, 15, 20, 25 or 30 ±ppm Frequenc y Stability Δf/f25 Referenced to +25°C reading Aging Δf/f0 Typical per year @ +25°C -3 - 3 ppm SYMBO L CO NDITIO NS MIN TYP MAX UNIT Frequenc y Range 10, 15, 20, 25, 30 or 50 ±ppm Crystal Parameters P ARAMETER O perating Mode - - Fundamental - Crystal Cut - - AT-Cut Strip - Load Capac itanc e CL - See Ordering Information pF Shunt Capac itanc e C0 - - 5.0 7.0 pF 7MHz -
