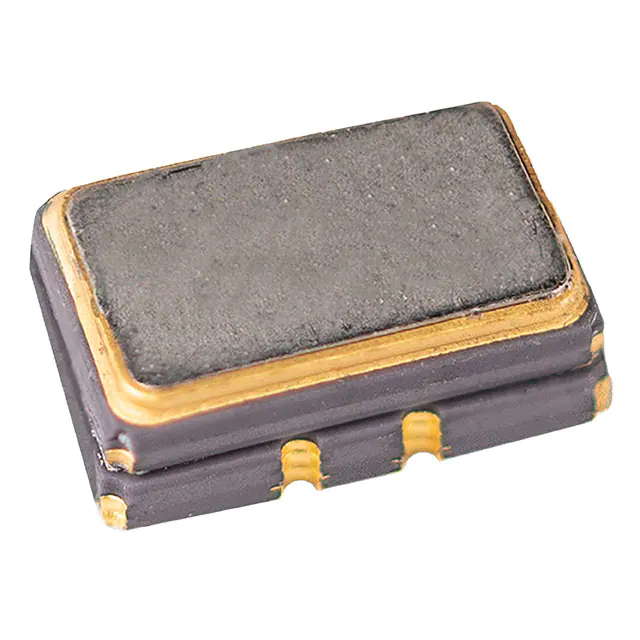

536L25001IT5

Model 536 High Stability HCMOS TCXO Features







Fundamental Crystal Design Frequency Range 10 – 50MHz * Operating Voltage +3.3V Frequency Stability, Overall ±4.6ppm [-40°C to +85°C] Operating Temperature Range to -40°C to +105°C Voltage Control Option for Frequency Tuning [VCTCXO] Enable Function Option Available Tape and Reel Packaging, EIA-481 Part Dimensions: 5.0 × 3.2 × 2.0mm Standard Frequencies – see Page 7 for developed frequencies. * Check with factory for availability of frequencies not listed. Applications







5G, 4G, LTE Femtocells, RRU, BBU Military Radio [Manpack] Inflight Entertainment Autonomous Technologies Synchronous Ethernet IP Networking Medical Imaging



Stratum 3 IEEE 1588 Timing Wireless Communication Test and Measurement Description CTS Model 536 is a high performance Temperature Compensated Crystal Oscillator [TCXO] suitable for applications requiring tight stability, Stratum 3 performance and more. Employing IC technology with HCMOS output and analog temperature compensation engine; coupled with a fundamental quartz crystal M536 has excellent stability and low jitter/phase noise performance. Ordering Information Model Output Enable Supply Voltage L 53 6 Code Function Blank No Enable E Enable, Pin 3 [MHz] 2 Frequency Product Frequency Code Voltage +3.3Vdc Stability X2 XX X Code Code L Frequency Frequency Code Temperature Range I Frequency Tuning Packaging T 5 Temp. Range Code -10°C to +70°C C -40°C to +85°C I 3 G -40°C to +105°C 1 Code 01 X2 05 Stability ±0.10ppm ±0.28ppm ±0.50ppm Packing Code 5 500 pcs./reel Frequency Deviation Code T TCXO [No Voltage Control] A ±5ppm - ±10ppm [VCTCXO ] Notes: 1] Refer to document 016-1454-0, Frequency Code Tables. 3-digits for frequencies
