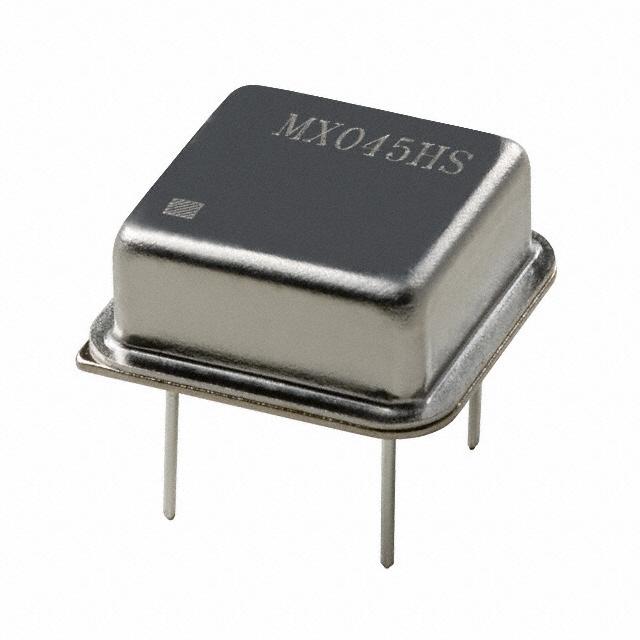

MXO45HS-3C-5M000000

MXO45 & MXO45HS HCMOS/TTL HCMOS/TTL Clock Oscillators Oscillators Features






Standard 14-Pin or 8-Pin Metal DIP Packages Fundamental and 3rd Overtone Crystal Designs Low Phase Jitter Performance Frequency Range 1 – 200MHz +5.0V Operation Output Enable Option Available Three Approved Packing Methods. Part Dimensions: 20.8 × 13.2 × 5.1mm • 3.774537g 13.2 × 13.2 × 5.5mm • 2.206637g Applications
Computers and Peripherals
Microcontrollers and FPGAs
Storage Area Networking
Broadband Access
Data Communications
Networking Equipment
Ethernet/Gigabit Ethernet
Fiber Channel
Test and Measurement Description CTS MXO45 and MXO45HS are legacy thru-hole clock oscillators that offer a low cost design supporting older HCMOS/TTL applications. MXO45/MXO45HS is not recommended for new design activity, but is available to support existing applications developed for the full and half-size metal DIP packages. Ordering Information Information P ackage Type/ Output Enable 45 Model MX O Code 45 45T 45HS 45HST - Frequency Stability 3 Package/Enable 14-Pin DIP/STD Output [no enable] 14-Pin DIP/Output Enable 8-Pin DIP/STD Output [no enable] 8-Pin DIP/Output Enable Code 6 5 Temperature Range C Frequency Code [MHz] - X XX MXXX XX X Code Temp. Range -20°C to +70°C C -40°C to +85°C I Stability 1 ±20ppm ±25ppm Code 3 2 Stability ±50ppm ±100ppm Frequency Code 2 Product Frequency Code Notes: 1] Consult factory for availability of 6C Stability/Temperature combination. The 6I combination is not available. 2] Frequency is recorded with 1, 2 or 3 leading significant digits before and 6 significant digits [including zeroes] after the "M". [Ex. 3.579545MHz = 3M579545, 14.31818MHz = 14M318180, 25MHz = 25M000000, 125MHz = 125M000000] Not all performance combinations and frequencies may be av ailable. Contact your local CTS Representative or CTS Customer Serv ice for availability. This product is specified for use only in standard commercial applications. Supplier disclaims all express and implied warranties and liability in connection with any use of this product in any non-commercial applications or in any application that may expose the product to conditions that are outside of the tolerances provided in its specification. DOC# 008-0258-0 Rev. K Page 1 of 5 ©2017 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote. MXO45 & MXO45HS HCMOS/TTL Clock Oscillators Electrical Specifications Operating Conditions P ARAMETER SYMBO L CO NDITIO NS MIN TYP MAX UNIT Maximum Supply Voltage VCC - -0.5 - 7.0 V Supply Voltage VCC ±10% 4.5 5.0 5.5 V Supply Current Freq Range [tested load noted for TYP values.] ICC 1.0MHz to 20MHz [CL = 30pF] - 10 26 20.001MHz to 40MHz [CL = 30pF] - 20 40 40.001MHz to 80MHz [CL = 30pF] - 30 60 80.001MHz to 125MHz [CL = 15pF] - 40 70 - 55 125.001MHz to 200MHz [CL = 15pF] O perating Temperature Storage Temperature -20 TA - TSTG - -40 SYMBO L CO NDITIO NS MIN +25 -40 mA 80 +70 °C +85 - +100 °C TYP MAX UNIT Frequency Stability P ARAMETER Frequenc y Range Frequenc y Stability [Note 1] Aging fO - 1 - 200 Δf/fO - 20, 25, 50 or 100 Δf/f25 First Year @ +25°C, nominal VCC -5 MHz ±ppm ±3 5 ppm TYP MAX UNIT 1.] Inclusive of initial tolerance at time of shipment, changes in supply voltage, load, temperature and 1st year aging. Output Parameters P ARAMETER SYMBO L CO NDITIO NS O utput Type - - O utput Load CL VOH O utput Voltage Levels VOL O utput Current Levels O utput Duty Cyc le - 1.0MHz to 50MHz [CMOS Load] - 15 50 50.001MHz to 80MHz [CMOS Load] - 15 30 80.001MHz to 200MHz [CMOS Load] - 15 15 1.0MHz to 200MHz [TTL Load] - - 10 CMOS Load 0.9VCC - - 10TTL Load 2.4 - - CMOS Load - - 0.1VCC 10TTL Load - - 0.4 VOH = 3.9V, VCC = 4.5V - - -16 IOL VOL = 0.4V, VCC = 4.5V - - 16 SYM @ 50% Level 45 - 55 1.0MHz to 20MHz [CL = 30pF] - 8 10 20.001MHz to 80MHz [CL = 30pF] - 5 8 80.001MHz to 125MHz [CL = 15pF] - 2.5 5 pF TTL V mA % @ 10%/90% Levels [tested load noted for TYP values.] TR, TF DOC# 008-0258-0 Rev. K HCMOS IOH Rise and Fall Time Start Up Time MIN TS 125.001MHz to 200MHz [CL = 15pF] - - 2 Application of VCC, CL = 15pF - 5 10 ns ms Page 2 of 5 ©2017 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote. MXO45 & MXO45HS HCMOS/TTL Clock Oscillators Electrical Specifications Output Parameters P ARAMETER SYMBO L CO NDITIO NS MIN TYP MAX UNIT Enable Func tion Enable Input Voltage VIH Pin 1 Logic '1', Output Enabled 2.0 - - V Disable Input Voltage VIL Pin 1 Logic '0', Output Disabled - - 0.8 V Disable Current Enable Time P hase Jitter, RMS [Note 2 ] IIL Pin 1 Logic '0', Output Disabled - 10 15 mA TPLZ Pin 1 Logic '1', Output Enabled - - 200 ns tjrms Bandwidth 12 kHz - 20 MHz - 0.7 1.0 ps 2.] For frequencies 10MHz - 40MHz, the measurement Bandwidth is 12kHz - 5MHz. Enable Truth Table Pin 1 Pin 8 or Pin 5 Logic ‘1’ Open Output Enabled Output Enabled Logic ‘0’ Output Disabled. High Impedance Test Circuit HCMOS Output Waveform HCMOS DOC# 008-0258-0 Rev. K Page 3 of 5 ©2017 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote. MXO45 & MXO45HS HCMOS/TTL Clock Oscillators Mechanical Specifications Package Drawing – DIP-14 Marking Information MXO45 XXXMXXXXXX CTS ST ● YYWW ** Package Drawing - DIP-8 1. Model Name: DIP-14 – MXO45 or MXO45T DIP-8 – MXO45HS or MXO45HST 2. xxxMxxxxxx – Frequency is marked with 1,2 or 3 leading significant digits before the “M” and 6 digits after the “M” [including zeroes]. Ex. xMxxxxxx [3M579545] xxMxxxxxx [14M318180] xxMxxxxxx [25M000000] xxxMxxxxxx [125M000000] 3. ST – Frequency Stability/Temperature Code. [Refer to Ordering Information] 4. YYWW – Date Code; YY – year, WW – week. 5. ** - Manufacturing Site Code. Notes MXO45HS XXXMXXXXXX CTS ST ● YYWW ** 1. JEDEC termination code (e1). Lead finish is tinsilver-copper [SnAgCu]. 2. Reflow conditions per JEDEC J-STD-020; +260°C maximum, 20 seconds. 3. Hand soldering conditions; solder iron temperature +350°C maximum, 10 seconds. 4. MSL = 1. Pin Assignments Pin Symbol Function 1 7 or 4 EOH GND Enable Circuit & Package Ground 8 or 5 14 or 8 Output VCC RF Output Supply Voltage DOC# 008-0258-0 Rev. K Page 4 of 5 ©2017 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote. MXO45 & MXO45HS HCMOS/TTL Clock Oscillators Packag Packaging aging - CTS Approved Methods Anti-Static Foam in Cardboard Carton Typical packing format: 1. 50pcs. per anti-static foam layer. 2. 2 layers of anti-static foam [100pcs.] per inner cardboard carton. Carton size is approximately 170mm x 120mm x 45mm [LxWxH]. 3. An anti-static foam sheet layer is placed as a buffer on top of each layer containing oscillators. 4. Master-pack multiple inner cartons in a larger outer cardboard carton. 20 inner cartons [100pcs. per carton] per outer carton, is approximately 550mm x 350mm x 180mm [LxWxH]. Anti-Static Plastic Trays Typical packing format: 1. 50pcs. per plastic tray. Tray size is approximately 180mm x 136mm x 18mm [LxWxH]. 2. 2 trays per anti-static bag [100pcs.] or 10 trays per anti-static bag [500pcs.] Bag height for 10 trays is approximately 175mm. 3. One anti-static bag per inner cardboard carton. 4. Master-pack multiple inner cartons in a larger outer cardboard carton. 8 inner cartons [10 trays per carton] per outer carton, is approximately 460mm x 380mm x 400mm [LxWxH]. Anti-Static Plastic Tubes Typical packing format: 1. 10pcs. per plastic tube – Full-Size package. 15pcs. per plastic tube – Half-Size package. 2. Plastic tubes are master packed in cardboard carton. Carton is approximately 35mm x 35mm x 20mm [LxWxH]. DOC# 008-0258-0 Rev. K Page 5 of 5 ©2017 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
