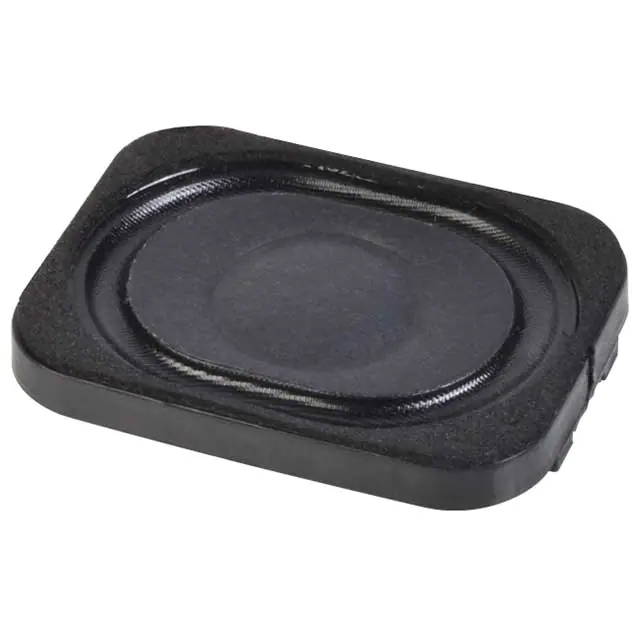

MODEL: CDS-40304 | DESCRIPTION: SPEAKER
FEATURES
• micro-speaker
• wide operating temp range
• 4 ohm impedance
SPECIFICATIONS
parameter
conditions/description
min
typ
max
units
input power
maximum power: IEC-60268-5, filter 60s on/120s off, 10
cycles at room temp
2.0
3.0
W
impedance
at 2.0 kHz, 1.0 V
3.4
4
4.6
Ω
resonant frequency (Fo)
at 1.0 V
frequency response
average SPL -10 dB
320
Fo
400
sound pressure level
at 2.0 W, 0.1 m ave, at 0.8, 1.0, 1.2, 1.5 kHz
at 1.0 W, 1.0 m ave, at 0.8, 1.0, 1.2, 1.5 kHz
99
76
distortion
at Fo ~ 6 kHz, 2 W
buzz, rattle, etc.
must be normal at sine wave between Fo ~ 20 kHz
polarity
cone will move forward with positive dc current to “+”
terminal
dimensions
40 x 30 x 7.1
magnet
Nd-Fe-B
material
ABS777
cone material
paper + cloth
terminal
solder pads
Hz
Hz
105
82
dB
dB
15
%
2.83
V
mm
weight
7.5
operating temperature
storage temperature
RoHS
Notes:
102
79
480
20,000
g
-30
70
°C
-40
85
°C
yes
1. All specifications measured at 5~35°C, humidity at 45~85%, under 86~106kPa pressure, unless otherwise noted.
SOLDERABILITY
parameter
conditions/description
min
typ
max
units
hand soldering
for maximum 3 seconds
370
380
390
°C
cuidevices.com
Additional Resources:
Product Page
|
3D Model
CUI DEVICES | MODEL: CDS-40304 | DESCRIPTION: SPEAKER
date 08/05/2022 | page 2 of 3
MECHANICAL DRAWING
units: mm
tolerance: ±0.25 mm
RESPONSE CURVES
Frequency Response Curve
Total Harmonic Distortion Curve
cuidevices.com
Additional Resources:
Product Page
|
3D Model
CUI DEVICES | MODEL: CDS-40304 | DESCRIPTION: SPEAKER
date 08/05/2022 | page 3 of 3
REVISION HISTORY
rev.
description
date
1.0
initial release
03/25/2015
1.01
brand update
01/22/2020
logo, datasheet style update
08/05/2022
1.02
The revision history provided is for informational purposes only and is believed to be accurate.
CUI Devices offers a one (1) year limited warranty. Complete warranty information is listed on our website.
