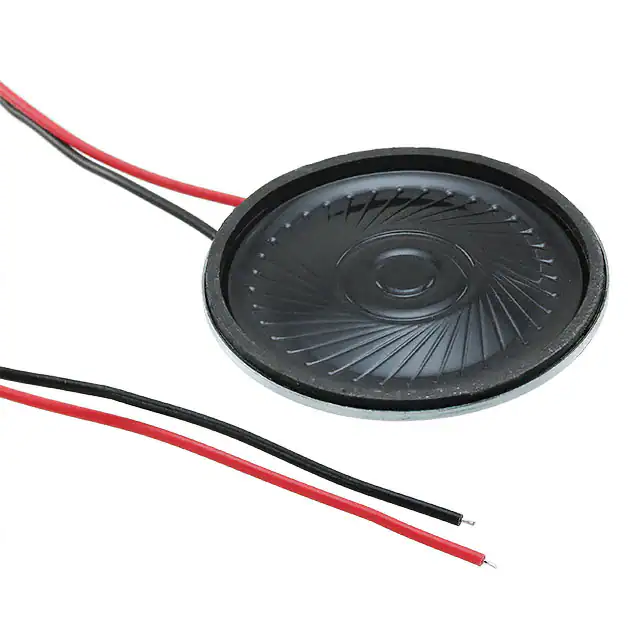

CMS-40558N-L152

Additional Resources: Product Page date 08/05/2022 page 1 of 5 SERIES: CMS-40558N-L152 | DESCRIPTION: SPEAKER FEATURES • 500 Hz resonant frequency • 90 dB SPL • wire leads with connector options SPECIFICATIONS parameter conditions/description min typ max units input power maximum power: IEC-60268-5, filter 60s on/120s off, 10 cycles at room temp 0.5 1.0 W impedance at 2.0 kHz, 1.0 V 6.8 8 9.2 Ω resonant frequency (Fo) at 1.0 V frequency response output SPL -10 dB 400 Fo 500 sound pressure level at 0.1 W, 0.1 m ave, at 0.8, 1.0, 1.2, 1.5 kHz 87 distortion at 1.0 kHz, 0.1 W buzz, rattle, etc. must be normal at sine wave between Fo ~ 20,000 Hz dimensions Ø40 x 5.5 magnet Nd-Fe-B material metal cone material PET terminal wire leads Hz Hz 93 dB 5 % 2.0 V mm weight 10.3 operating temperature -30 storage temperature -40 hand soldering for maximum 3 seconds RoHS yes Notes: 90 600 6,000 370 380 g 70 °C 85 °C 390 °C 1. All specifications measured at 5~35°C, humidity at 45~85%, under 86~106 kPa pressure, unless otherwise noted. PART NUMBER KEY CMS-40558N-L152 X Base Number cuidevices.com Termination Options: “blank” = wire leads, no connector A = wire leads with Molex housing 51021-0200 B = wire leads with JST housing SHR-02V-S-B Additional Resources: Product Page CUI DEVICES | SERIES: CMS-40558N-L152 | DESCRIPTION: SPEAKER date 08/05/2022 | page 2 of 5 MECHANICAL DRAWINGS units: mm tolerance: ±0.2 mm WIRE LEADS, NO CONNECTOR wire: UL 1007 28 AWG CMBDL SFE XFFL 12! 13! ZFBS 27...3127 28...3128 WIRE LEADS WITH MOLEX CONNECTOR WIRE LEADS WITH JST CONNECTOR wire: UL 1571 28 AWG connector: Molex 51021-0200 mating connector: Molex 53261-0271 wire: UL 1571 28 AWG connector: JST SHR-02V-S-B mating connector: JST BM02B-SRSS-TB CUI 8Ω 0.5W 01 15 %/$&. 5(' 5('   %/$&.    cuidevices.com    Additional Resources: Product Page CUI DEVICES | SERIES: CMS-40558N-L152 | DESCRIPTION: SPEAKER date 08/05/2022 | page 3 of 5 FREQUENCY RESPONSE CURVE Frequency Response.Magn dB re 20.00μ PA (at 0.1 W / 0.1m) ! cuidevices.com Additional Resources: Product Page CUI DEVICES | SERIES: CMS-40558N-L152 | DESCRIPTION: SPEAKER PACKAGING units: mm Tray Size: 290 x 350 x 10 mm Carton Size: 370 x 370 x 290 mm Tray QTY: 42 pcs per tray Carton QTY: 966 pcs per carton cuidevices.com date 08/05/2022 | page 4 of 5 Additional Resources: Product Page CUI DEVICES | SERIES: CMS-40558N-L152 | DESCRIPTION: SPEAKER date 08/05/2022 | page 5 of 5 REVISION HISTORY rev. description date 1.0 initial release 06/24/2016 1.01 brand update 01/21/2020 1.02 added Molex and JST connector options, updated packaging 10/23/2020 logo, datasheet style update 08/05/2022 1.03 The revision history provided is for informational purposes only and is believed to be accurate. CUI Devices offers a one (1) year limited warranty. Complete warranty information is listed on our website. CUI Devices reserves the right to make changes to the product at any time without notice. Information provided by CUI Devices is believed to be accurate and reliable. However, no responsibility is assumed by CUI Devices for its use, nor for any infringements of patents or other rights of third parties which may result from its use. CUI Devices products are not authorized or warranted for use as critical components in equipment that requires an extremely high level of reliability. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness. cuidevices.com
