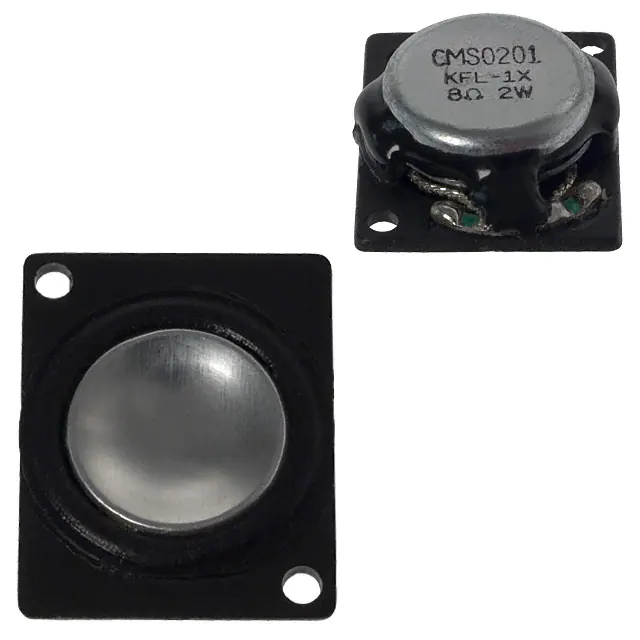

CMS0201KFL-1X

Part No: CMS0201KFL-1X Description: speaker Date: 10/2/2006 Unit: mm Page No: 1 of 2 Specifications Nominal Size Impedance Resonant frequency Sound pressure level Response Input power Operation Buzz, rattle, etc. Magnet Load test Heat test Humidity test 16 x 20 x 6.6 mm (See attached drawing) 8 Ohm ± 15% at 1K Hz 1 V 1050 Hz ± 210 Hz at 1V 81 dB/w ± 3 dB 1 w 50 cm ave. at 1.2K, 1.5K, 2.0K, 2.5KHz Fo Hz ~ 20 KHz max 10 dB Nominal 2W Handling capacity 2.5 W must be normal at program source 2 W must be normal at sine wave 4 V Size: 9.6 x 2.2 mm White noise 2W for 24 hours 65 ± 2° C 20-50% R.H. 24 hours 40 ± 2° C 90-95% R.H. 24 hours Frequency Response Curve Potentiometer range Rectifier Lower limit frequency Wr. speed 50 dB RMS 20 Hz 100 mm/sec Zero level 60 dB Phone: 800.275.4899 Fax: 503.612.2381 www.cui.com 20050 SW 112th Ave. Tualatin, OR 97062 REV. A DESCRIPTION NEW DRAWING DATE 10/2/2006 1.8 (2 PLCS) 20.0 16.0 12.6 16.6 12.9 TOLERANCE: ±0.2mm UNLESS OTHERWISE SPECIFIED RoHS 1.1 6.6 0.3 20050 SW 112th Ave. Tualatin, OR 97062 Phone: 503-643-4899 800-275-4899 Fax: 503-372-1266 Website: www.cui.com TITLE: MINIATURE MONITOR SPEAKER CMS0201KFL-1X APPROVED BY: UNITS: REV: A PART NO. PC FILE NAME: MM [INCHES] SCALE: CMS0201KFL-1X DRAWN BY: COPYRIGHT 2006 BY CUI INC. ZRJ 3:1
