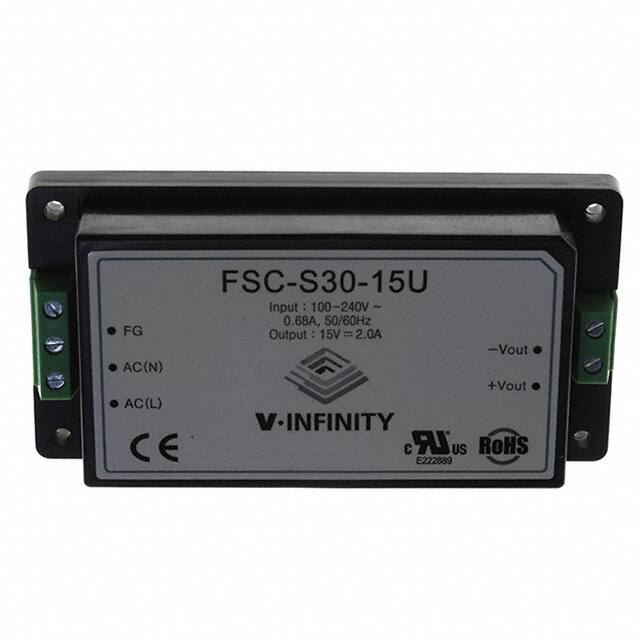

FSC-S30-15U

rev. page page date date 1 of 3 10/2007 PART NUMBER: FSC-S30 series DESCRIPTION: AC-DC converter Features ·Encapsulated compact case ·High efficiency ·Universal input ·Built in EMI filter ·100kHz fixed frequency ·Fixed output voltage ·Thermal shutdown ·Short circuit protection ·Low output ripple and noise ·Isolated output ·2 year warranty- model number FSC-S30-3R3U FSC-S30-5U FSC-S30-12U FSC-S30-15U FSC-S30-24U AC AC AC AC AC input voltage 85-264V / DC 110-340V 85-264V / DC 110-340V 85-264V / DC 110-340V 85-264V / DC 110-340V 85-264V / DC 110-340V output voltage 3.3V @ 6.0A 5V @ 6.0A 12V @ 2.5A 15V @ 2.0A 24V @ 1.25A power max. 19.8 W 30 W 30 W 30 W 30 W ripple & noise max. 80 mVp-p 80 mVp-p 120 mVp-p 150 mVp-p 200 mVp-p efficiency (%) 78 80 83 83 86 INPUT parameter input frequency input voltage input current inrush current leakage current conditions/description min 47 85 110 nom (50~60) max 440 264 340 0.49 0.25 30 60 0.5 0.75 units Hz VAC VDC A A A A mA mA AC input of 110 VAC AC input of 220 VAC measured at 110 VAC at full load, cold start measured at 220 VAC at full load, cold start measured at 110 VAC measured at 220 VAC OUTPUT parameter voltage tolerance conditions/description min -2% - 3% -1% -1% -1% -3% -1% 10 nom max +2% +3% +1% +1% +1% +3% +1% 400 units ripple and noise line regulation load regulation dynamic load regulation temperature drift rise time hold-up time mS mS 20050 SW 112th Ave. Tualatin, Oregon 97062 phone 503.612.2300 fax 503.612.2382 phone fax rev. page date 2 of 3 10/2007 PART NUMBER: FSC-S30 series DESCRIPTION: AC-DC converter PROTECTION CIRCUIT parameter output over current over temperature conditions/description works at over 105% of the rating and recovers automatically. 145 ºC G ENERAL parameter operating temp. storage temp. operating humid. storage humid. isolation voltage (HI-POT) vibration impact MTBF RoHS safety w arranty conditions/description min -10 -20 20% 20% nom max 60 70 90% 90% units ºC ºC RH RH non-condensing non-condensing applied for 1 minute, 10mA primary to secondary, 500 Vdc @ 100 M Ω 3000 VAC at 10G 3 minute period 10 55 Hz 50G for 11mS, once on each X, Y, Z axis 3.0 x 10 5 hours yes approved to UL60950(E222889), CSA C22.2 NO.60950, CE(EN60950) - through tuv standard warranty length 2 years DERATING CURVE 20050 SW 112th Ave. Tualatin, Oregon 97062 phone 503.612.2300 fax 503.612.2382 phone fax REV. A DESCRIPTION NEW DRAWING DATE 9/11/2007 3.5 0.138 (4 PLCS) 0.2 1 7 58.7 2.311 2 5 3 48.26 1.900 (2 PLCS) 0.2 104.14 4.100 (2 PLCS) 0.2 SCALE: 1:2 28.0 1.102 17.5 0.689 TOLERANCE: ±0.5mm UNLESS OTHERWISE SPECIFIED RoHS 8.8 0.346 116.0 4.567 20050 SW 112th Ave. Tualatin, OR 97062 Phone: 503-612-2300 800-275-4899 Fax: 503-612-2383 Website: www.cui.com TITLE: PC FILE NAME: FSC-S30 PIN ASSIGNMENTS 1. FG 2. AC (N) 3. AC (L) 5. +Vout 7. -Vout COPYRIGHT 2007 BY CUI INC. AC-DC CONVERTER FSC-S30 APPROVED BY: UNITS: REV: A PART NO. MM [INCHES] SCALE: DRAWN BY: ZRJ 1:1
