MJ1-2502

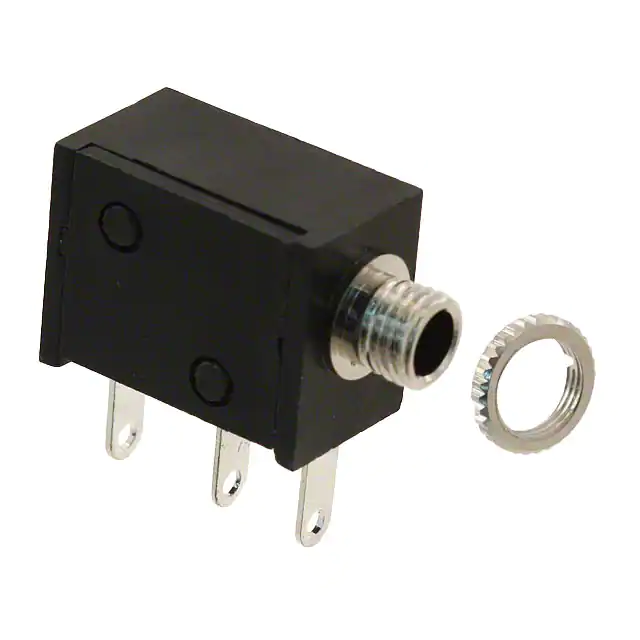

Additional Resources: Product Page | 3D Model | PCB Footprint date 04/06/2020 page 1 of 3 MODEL: MJ1-2502 │ DESCRIPTION: AUDIO JACK FEATURES • 2.5 mm mono jack • right angle • threaded bushing SPECIFICATIONS parameter conditions/description min rated input voltage typ rated input current contact resistance1 between terminal and mating plug between terminal in a closed circuit insulation resistance at 500 Vdc voltage withstand at 50/60Hz for 1 minute 0.3 operating temperature -25 life 1 A 50 30 mΩ mΩ MΩ 500 Vac 3 kg 85 5,000 RoHS units Vdc 100 insertion/withdrawal force Note: max 12 °C cycles yes 1. When measured at a current of less than 100 mA/1 kHz 2. All specifications measured at 10~35°C, humidity at 45~85%, under standard atmospheric pressure, unless otherwise noted. SOLDERABILITY parameter conditions/description min typ max units wave soldering dipped in solder pot for 5 ±0.5 seconds 255 260 265 °C cuidevices.com Additional Resources: Product Page | 3D Model | PCB Footprint CUI Devices │ MODEL: MJ1-2502 │ DESCRIPTION: AUDIO JACK date 04/06/2020│ page 2 of 3 MECHANICAL DRAWING units: mm tolerance: X.X ±0.2 mm X.XX ±0.1 mm X.XXX ±0.05 mm PCB: ±0.05 mm C I T MATERIAL PLATING terminal 1 brass tin terminal 2 copper alloy tin terminal 3 brass tin bushing brass nickel plastic PBT C I T C I T C I T C I T C I T C I T C I T C I T Recommended PCB Layout Top View Model No. MJ1-2502 Schematic Ø2.5 MATING PLUG PIN 1 sleeve 2 tip 3 tip switch cuidevices.com Additional Resources: Product Page | 3D Model CUI Devices │ MODEL: MJ1-2502 │ DESCRIPTION: AUDIO JACK | PCB Footprint date 04/06/2020│ page 3 of 3 REVISION HISTORY rev. description date 1.0 initial release 06/24/2009 1.01 brand update 04/06/2020 The revision history provided is for informational purposes only and is believed to be accurate. CUI Devices offers a one (1) year limited warranty. Complete warranty information is listed on our website. CUI Devices reserves the right to make changes to the product at any time without notice. Information provided by CUI Devices is believed to be accurate and reliable. However, no responsibility is assumed by CUI Devices for its use, nor for any infringements of patents or other rights of third parties which may result from its use. CUI Devices products are not authorized or warranted for use as critical components in equipment that requires an extremely high level of reliability. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness. cuidevices.com
