P78A05-0500

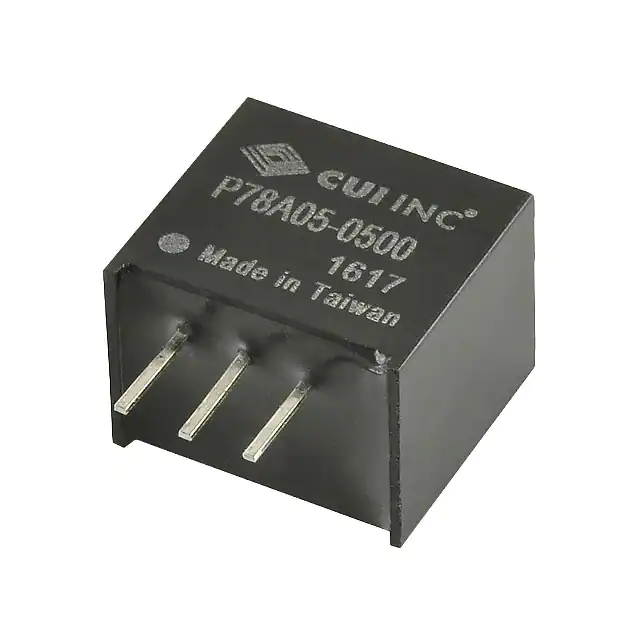

Additional Resources: Product Page | 3D Model | PCB Footprint date 09/20/2021 page 1 of 7 SERIES: P78A-0500 │ DESCRIPTION: DC-DC CONVERTER FEATURES • • • • • • • • • • up to 500 mA current output pin compatible with LM78XX linear regulators non-isolated switching regulator high start-up current capability wide input voltage range efficiency up to 95% low ripple and noise short circuit protection ultra-compact SIP3 package -40°C to +85°C temperature range MODEL input voltage output voltage output current output power ripple & noise1 efficiency2 typ (Vdc) range (Vdc) (Vdc) min3 (mA) max (mA) max (W) typ (mVp-p) typ (%) P78A03-0500 24 6~28 3.3 10 500 1.65 50 88 P78A05-0500 24 7~28 5 10 500 2.5 50 92 Notes: 1. 2. 3. 4. At full load, nominal input, 20 MHz bandwidth oscilloscope. At min Vin. Operation under minimum load will not affect the reliability of the converter; however, the ripple and noise may exceed the specified values. All specifications measured at: Ta=25°C, nominal input voltage, rated output load, and after warm up unless otherwise specified. PART NUMBER KEY P78A XX - 0500 Base Number Output Voltage cui.com Output Current Additional Resources: Product Page | 3D Model | PCB Footprint CUI Inc │ SERIES: P78A-0500 │ DESCRIPTION: DC-DC CONVERTER date 09/20/2021 │ page 2 of 7 INPUT parameter conditions/description operating input voltage 3.3 Vdc model 5 Vdc model min typ max units 6 7 24 24 28 28 Vdc Vdc no load input current 1.5 mA OUTPUT parameter conditions/description min typ maximum capacitive load 1 line regulation measured from low to high line, full load load regulation measured from 10~100% load max units 220 μF ±0.5 % ±1 % voltage accuracy ±3 % switching frequency 570 kHz Note: 1. Maximum capacitive load is tested at minimum input voltage and full load. PROTECTIONS parameter conditions/description short circuit protection continuous, auto recovery min typ max units min typ max units SAFETY AND COMPLIANCE parameter conditions/description conducted emissions EN55022, class A, class B (external circuit required, see Figure 2) radiated emissions EN55022, class A, class B (external circuit required, see Figure 2) MTBF as per MIL-HDBK-217F, full load, 25 °C as per MIL-HDBK-217F, full load, 85 °C RoHS 2011/65/EU 4,185,000 2,182,000 hours hours ENVIRONMENTAL parameter conditions/description min operating temperature see derating curve storage temperature vibration max units -40 85 °C -55 125 °C 10~55 Hz, 30 minutes along each axis typ 2 G SOLDERABILITY parameter conditions/description wave soldering see wave solder profile Note: min 2. The wave solder profile is measured on lead temperature. 3. Need to keep the solder parts internal temperature less than about 210°C. cui.com typ max units 260 °C Additional Resources: Product Page | 3D Model | PCB Footprint CUI Inc │ SERIES: P78A-0500 │ DESCRIPTION: DC-DC CONVERTER date 09/20/2021 │ page 3 of 7 MECHANICAL parameter conditions/description dimensions 11.6 x 8.5 x 10.4 min case material non-conductive black plastic (UL94V-0) potting material silicone (UL94V-0) typ max units mm weight 2 g MECHANICAL DRAWING units: mm tolerance: XX.X=±0.50 mm XX.XX=±0.25 mm 11.6 GND 3 +Vout 3.21 xxxx 0.5 Marking xxxx 1 2 3 0.25 Ø1.0 +0.15/-0 5.08 2.54 2 10.4 +Vin 4.10 Function 1 8.5 2.0 PIN 0.51 PIN CONNECTIONS 2.54 Recommended PCB Layout Top View cui.com Additional Resources: Product Page | CUI Inc │ SERIES: P78A-0500 │ DESCRIPTION: DC-DC CONVERTER 3D Model | PCB Footprint date 09/20/2021 │ page 4 of 7 DERATING CURVE EFFICIENCY CURVES cui.com Additional Resources: Product Page | 3D Model | PCB Footprint CUI Inc │ SERIES: P78A-0500 │ DESCRIPTION: DC-DC CONVERTER date 09/20/2021 │ page 5 of 7 APPLICATION CIRCUIT Figure 1 Table 1 Optional External Components Notes: C1 10μF MLCC C2 10μF MLCC 1. The converter cannot be used as a positive to negative converter. EMC RECOMMENDED CIRCUIT EMC FILTERING Figure 2 Table 2 Table 3 EN55022 Class A Recommended External Circuit Components EN55022 Class B Recommended External Circuit Components C1 L1 C2 C1 L1 C2 1206 4.7μF, 50V MLCC 3.3μH NC 1210 10μF, 50V MLCC 10μH 1206 4.7μF, 50V MLCC cui.com Additional Resources: Product Page | 3D Model | PCB Footprint CUI Inc │ SERIES: P78A-0500 │ DESCRIPTION: DC-DC CONVERTER date 09/20/2021 │ page 6 of 7 PACKAGING units: mm Tube Size: 520 x 16.5 x 9.3 mm QTY: 42 pcs 16.5±0.5 12.1±0.5 9.3±0.5 0.5±0.2 4.9±0.5 cui.com Additional Resources: Product Page | 3D Model | PCB Footprint CUI Inc │ SERIES: P78A-0500 │ DESCRIPTION: DC-DC CONVERTER date 09/20/2021 │ page 7 of 7 REVISION HISTORY rev. description date 1.0 initial release 05/25/2016 1.01 company logo updated 04/14/2021 1.02 derating curve, efficiency curves and circuit figures updated 09/20/2021 The revision history provided is for informational purposes only and is believed to be accurate. Headquarters 20050 SW 112th Ave. Tualatin, OR 97062 800.275.4899 Fax 503.612.2383 cui.com techsupport@cui.com CUI offers a two (2) year limited warranty. Complete warranty information is listed on our website. CUI reserves the right to make changes to the product at any time without notice. Information provided by CUI is believed to be accurate and reliable. However, no responsibility is assumed by CUI for its use, nor for any infringements of patents or other rights of third parties which may result from its use. CUI products are not authorized or warranted for use as critical components in equipment that requires an extremely high level of reliability. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.
