PJ1-021-SMT-TR

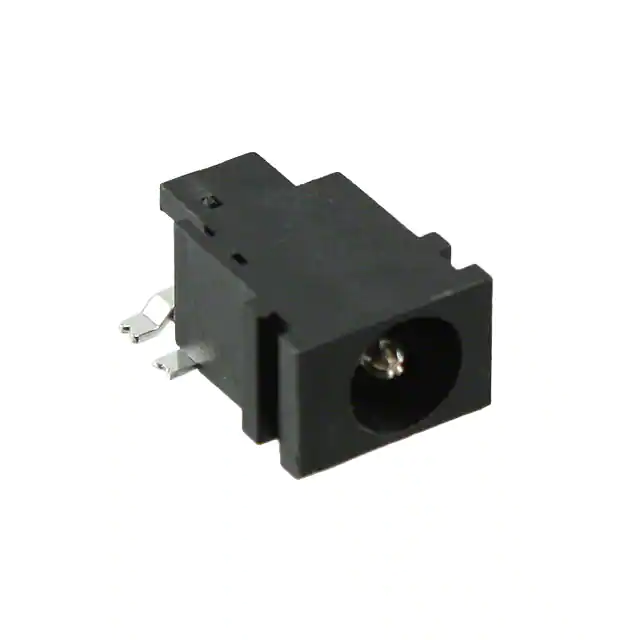

Additional Resources: Product Page date 12/08/2022 page 1 of 4 MODEL: PJ1-021-SMT-TR | DESCRIPTION: DC POWER JACK FEATURES • 1.65mm center pin • 5 A rating • right angle orientation • surface mount (SMT) • internal switch SPECIFICATIONS parameter conditions/description min rated input voltage typ max 24 units Vdc rated input current 5 A contact resistance 30 mΩ insulation resistance at 250 Vdc voltage withstand for 1 minute 100 MΩ 500 Vac 0.3 3 kg operating temperature -25 85 °C storage temperature -40 85 °C insertion/withdrawal force life 5,000 flammability rating UL94V-0 RoHS yes cycles SOLDERABILITY parameter conditions/description reel storage reel opened & unsused parts repacked within 2 hours: ≤30°C, ≤60% humidity reel unopened, 1 year shelf life: ≤30°C, ≤85% humidity reflow soldering see reflow profile drying conditions parts removed from reel over 6 hours: bake at 40°C for 6 hours typ 1. CUI Devices recommends usage of the product within 2 hours after T&R is opened. After 6 hours, CUI Devices recommends drying the parts prior to use. 260 255 Temperature (°C) Note: min 260°C 10 s max 3°C/s max ramp up 6°C/s max ramp down 217 255±5°C 24~36 s 175 175±25°C 120±60 s 217°C 60~150 s Time (sec) cuidevices.com max units 260 °C Additional Resources: Product Page CUI DEVICES | MODEL: PJ1-021-SMT-TR | DESCRIPTION: DC POWER JACK date 12/08/2022 | page 2 of 4 MECHANICAL DRAWING units: mm tolerance: ±0.2 mm unless otherwise specified DESCRIPTION MATERIAL PLATING center pin brass nickel terminal 1 brass nickel terminal 2 bronze silver terminal 3 brass silver housing PA9T (UL94V-0) black Recommended PCB Layout Top View 1 SCHEMATIC 3 2 MATING PLUG Jack Insertion Depth: 8.1 mm Model PJ1-021-SMT Center Pin Ø1.65 mm cuidevices.com Additional Resources: Product Page CUI DEVICES | MODEL: PJ1-021-SMT-TR | DESCRIPTION: DC POWER JACK PACKAGING units: mm Reel Size: Ø380 mm Reel QTY: 900 pcs per reel cuidevices.com date 12/08/2022 | page 3 of 4 Additional Resources: Product Page CUI DEVICES | MODEL: PJ1-021-SMT-TR | DESCRIPTION: DC POWER JACK date 12/08/2022 | page 4 of 4 REVISION HISTORY rev. description date 1.0 initial release 10/20/2005 1.01 changed housing material to PA6T from PBT 01/10/2006 1.02 added TR package option and jack insertion depth 11/07/2012 1.03 applied new spec template 08/22/2013 1.04 increased voltage rating 04/08/2016 1.05 added storage and drying conditions, and tape and reel packaging details 07/28/2017 1.06 brand update 10/25/2019 1.07 product reengineered for improved manufacturability and production yield, see PCN for details 12/08/2022 The revision history provided is for informational purposes only and is believed to be accurate. CUI Devices offers a one (1) year limited warranty. Complete warranty information is listed on our website. CUI Devices reserves the right to make changes to the product at any time without notice. Information provided by CUI Devices is believed to be accurate and reliable. However, no responsibility is assumed by CUI Devices for its use, nor for any infringements of patents or other rights of third parties which may result from its use. CUI Devices products are not authorized or warranted for use as critical components in equipment that requires an extremely high level of reliability. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness. cuidevices.com
