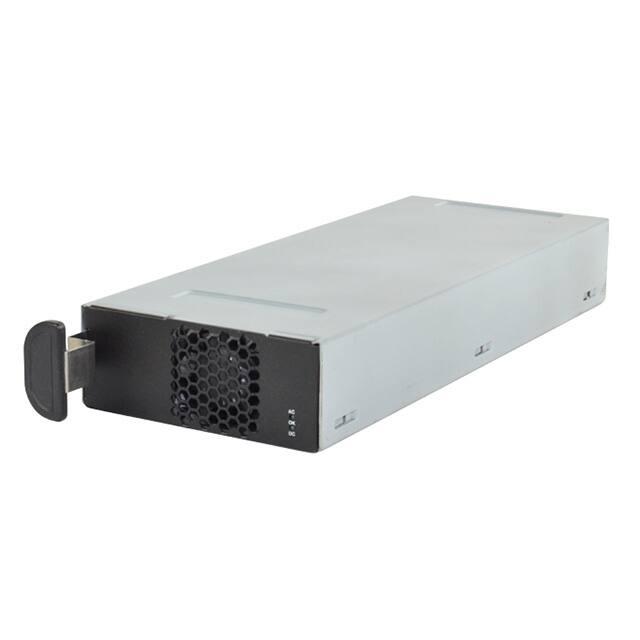

PSE-1800-48

Additional Resources: Product Page date 05/07/2015 page 1 of 4 SERIES: PSE-1800 │ DESCRIPTION: AC-DC HOT-SWAP POWER SUPPLY FEATURES up to 1800 W continuous power 1U package I2C communication for monitoring and control redundant (N+1) operation blind mate connections for hot-swap power factor correction 3.3 Vdc (0.5A) standby voltage DROOP current sharing single I/O connector for AC input, DC output & signals remote on/off control, power good signal o of N C rt . T Rheinla nd UV , I nc • • • • • • • • • • h A ca meri US MODEL output voltage output current output power1,2 ripple and noise efficiency3 (Vdc) max (A) max (W) max (mVp-p) typ (%) 48 37.5 1800 480 85 PSE-1800-48 Notes: 1. At 90~180 Vac input, maximum of 1000 W. 2. At 180~264 Vac input, maximum of 1800 W. 3. At 90 Vac input. PART NUMBER KEY PSE-1800 - 48 - CXX Base Number Output Voltage cui.com Reserved for Custom Configurations Additional Resources: Product Page CUI Inc │ SERIES: PSE-1800 │ DESCRIPTION: AC-DC HOT-SWAP POWER SUPPLY date 05/07/2015 │ page 2 of 4 INPUT parameter conditions/description min voltage frequency max units 90 typ 264 Vac 50 60 Hz current at 90 Vac, full load 11 A inrush current half cycle, cold start, 25°C at 115 Vac, 60 Hz at 230 Vac, 50 Hz 20 40 A A 1.5 mArms max units leakage current power factor correction 0.95 0.98 min typ OUTPUT - V1 (MAIN OUTPUT) parameter conditions/description regulation ±3 transient response 25% step load, recovery to 1% within 1 ms, slew rate 1 A/µs hold-up time at full load in redundant operation % 3 12 20 % ms ms OUTPUT - V2 (STANDBY OUTPUT) parameter conditions/description min output voltage typ max 3.3 output current 0 ripple and noise regulation units Vdc 0.5 A 50 mVp-p ±5 % STATUS & CONTROL parameter conditions/description I2C interface SCL 1000 kHz clock rate SDA data line remote sense main oputput remote enable “active low” enables main output, last-mate / firstbreak enable pin current share droop share status AC OK, DC OK and OTP_OK (open collector, active “low”=ok); and PS_Present LED indicator AC OK & DC OK indicators min typ max units typ max units 60 120 Vdc % 120 % max units PROTECTIONS parameter conditions/description min over voltage protection V1 V2 110 over current protection followed by latching shutdown after 2 s over temperature protection output shut down, auto recovery SAFETY & COMPLIANCE parameter conditions/description min safety approvals cTUVus EN60950-1, CE (LVD) emissions FCC 15 Sub Part J, Class A, EN55022 Class A, VCCI Class A harmonic compliance EN61000-3-2 Class A surges (mains) IEC/EN 61000-4-5 voltage dips/interruptions IEC/EN 61000-4-11 cui.com typ Additional Resources: Product Page CUI Inc │ SERIES: PSE-1800 │ DESCRIPTION: AC-DC HOT-SWAP POWER SUPPLY date 05/07/2015 │ page 3 of 4 SAFETY & COMPLIANCE (CONTINUED) parameter conditions/description MTBF as per Telcordia SR332, 40°C, full load min RoHS 2011/65/EU typ max 500,000 units hours ENVIRONMENTAL parameter conditions/description min operating temperature storage temperature max units 0 typ 55 °C -40 85 °C max units MECHANICAL parameter conditions/description min dimensions 11.00 x 4.00 x 1.60 (279.4 x 101.6 x 40.6 mm) cooling / airflow internal high performance 38 mm fan, air inlet at face; exhaust at connector input / output connector FCI P/N 51939-531LF mates with FCI 51915-299LF hot-swap capability fully hot-swappable, blind mate connector typ inches MECHANICAL DRAWING units: inches [mm] tolerance: X.XX ±0.02 [0.50] X.XXX ±0.010 [0.25] INPUT / OUTPUT CONNECTOR Pins Function Pins Function Pins Function Pins Function Pins Function P1 No Blade A1 +V Sense B1 ISHARE C1 -V Sense D1 Reserved P2 +48 V A2 V Pgm B2 I2C Address A0 C2 I2C Address A1 D2 I2C Address A2 P3 +48 V A3 Reserved B3 Reserved C3 Reserved D3 Reserved P4 No Blade A4 AC_OK_L B4 DC_OK_L C4 PS_Present_L D4 OTP_OK_L P5 -48 V A5 Signal Return B5 I C SCL C5 I C SDA D5 +3.3 VSB 2 2 P6 -48 V A6 -3.3 VSB B6 Reserved C6 Reserved D6 Remote_On _L (short pin) P7 Earth -- -- -- -- -- -- -- -- P8 Neutral -- -- -- -- -- -- -- -- P9 Line -- -- -- -- -- -- -- -- cui.com Additional Resources: Product Page CUI Inc │ SERIES: PSE-1800 │ DESCRIPTION: AC-DC HOT-SWAP POWER SUPPLY date 05/07/2015 │ page 4 of 4 REVISION HISTORY rev. 1.0 description date initial release 05/07/2015 The revision history provided is for informational purposes only and is believed to be accurate. Headquarters 20050 SW 112th Ave. Tualatin, OR 97062 800.275.4899 Fax 503.612.2383 cui.com techsupport@cui.com CUI offers a two (2) year limited warranty. Complete warranty information is listed on our website. CUI reserves the right to make changes to the product at any time without notice. Information provided by CUI is believed to be accurate and reliable. However, no responsibility is assumed by CUI for its use, nor for any infringements of patents or other rights of third parties which may result from its use. CUI products are not authorized or warranted for use as critical components in equipment that requires an extremely high level of reliability. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.
