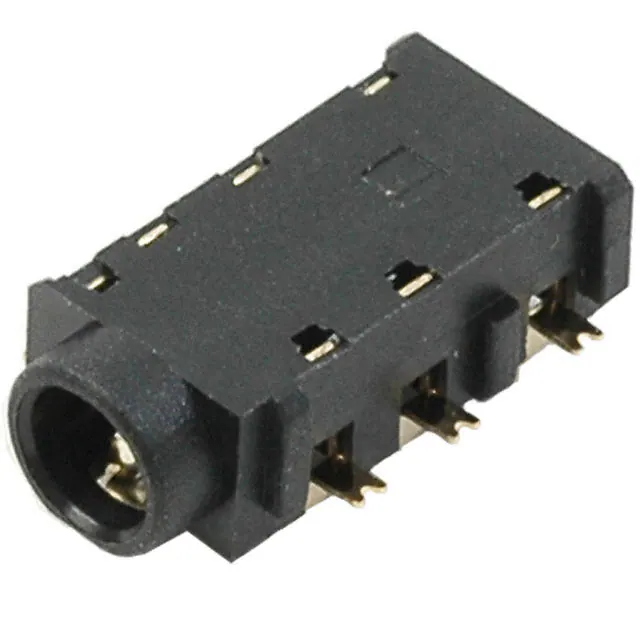

SJ-43614-SMT-TR

Additional Resources: Product Page | PCB Footprint date 10/09/2019 page 1 of 4 SERIES: SJ-4361X-SMT │ DESCRIPTION: MID MOUNT AUDIO JACK FEATURES • mid mount for low profile applications • 4 conductor • multiple switch configurations PART NUMBER KEY SJ-4361 X-SMT-TR Base Number Switch Options Packaging: 4 = no switch TR = Tape & Reel 5RS = ring switch 5TS = tip switch 6 = tip and ring switch 7 = tip, ring 1, and ring 2 switch SPECIFICATIONS parameter conditions/description min rated input voltage typ 12 rated input current contact resistance1 between terminal and mating plug between terminal in a closed circuit insulation resistance at 500 Vdc voltage withstand for 1 minute 1 A 50 30 mΩ mΩ MΩ 0.3 operating temperature -25 life at a rate of 24 cycles/minute flammability rating UL94V-0 RoHS yes 500 Vac 3 kg 85 5,000 1. When measured at a current of less than 100 mA/1 kHz 2. All specifications measured at 10~35°C, humidity at 45~85%, under standard atmospheric pressure, unless otherwise noted. cuidevices.com units Vdc 100 insertion/withdrawal force Note: max °C cycles Additional Resources: Product Page | PCB Footprint CUI Devices │ SERIES: SJ-4361X-SMT │ DESCRIPTION: MID MOUNT AUDIO JACK date 10/09/2019 │ page 2 of 4 MECHANICAL DRAWING units: mm[inches] TOLERANCE: X.X ±0.2mm X.XX ±0.1mm X.XXX ±0.05mm PCB: ±0.05 mm 0.90 0.035 (4 PLCS) 0.80 0.031 (7 PLCS) 4.40 0.173 PLATING copper alloy gold flash terminal (10~12) copper alloy gold flash plastic PA6T or equivalent 12.1 0.476 3.00 0.118 1.90 0.075 A 5.4 0.213 5.3 0.209 8.10 0.319 (2 PLCS) MATERIAL terminal (1~4) 5.00 0.197 1.000 0.039 (2 PLCS) 2.20 0.087 3.600 0.142 COPLANARITY 0.1 10.2 0.402 DETAIL A SCALE 12 : 1 6.0 0.236 1.00 0.039 (6 PLCS) + 3.0 0.118 2 3 4 8.6 0.339 0.3 10 11 12 1 0.60 0.024 (2 PLCS) 14 0.80 0.031 1.0 0.039 Ø 3.5 MATING PLUG 3.0 0.118 6.0 0.236 10.2 0.402 Model No. Recommended PCB Layout Top View SJ-43614-SMT SJ-43615RS-SMT SJ-43615TS-SMT 1 4 3 11 2 1 4 3 10 2 1 4 3 2 Schematic SJ-43616-SMT SJ-43617-SMT 1 4 12 3 11 10 2 1 4 3 11 10 2 PIN 1 sleeve sleeve sleeve sleeve sleeve 2 tip tip tip tip tip 3 ring 1 ring 1 ring 1 ring 1 ring 1 4 ring 2 ring 2 ring 2 ring 2 ring 2 10 NP NP tip switch tip switch tip switch 11 NP ring 1 switch NP ring 1 switch ring 1 switch 12 NP NP NP NP ring 2 switch cuidevices.com Additional Resources: Product Page | PCB Footprint CUI Devices │ SERIES: SJ-4361X-SMT │ DESCRIPTION: MID MOUNT AUDIO JACK date 10/09/2019 │ page 3 of 4 SOLDERABILITY parameter conditions/description reel storage at relative humidity
