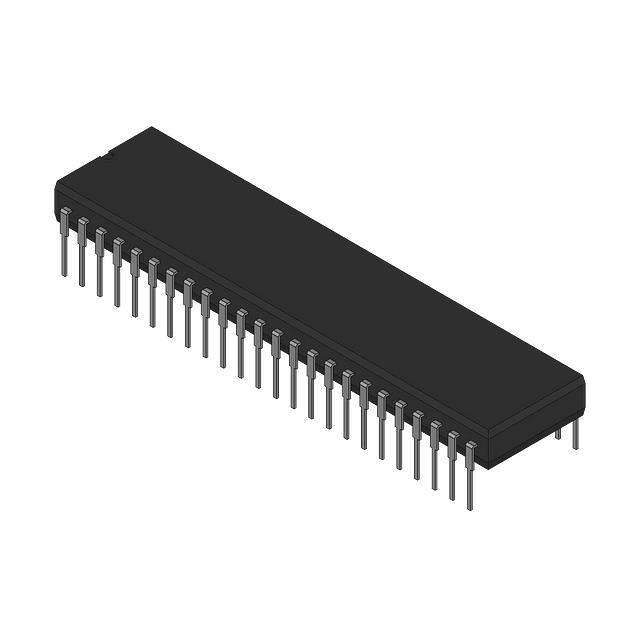

CY7C132-35PC

CY7C132/CY7C136 CY7C142/CY7C146 2K x 8 Dual-Port Static RAM Features Functional Description • True Dual-Ported memory cells which allow simultaneous reads of the same memory location The CY7C132/CY7C136/CY7C142 and CY7C146 are high-speed CMOS 2K by 8 dual-port static RAMs. Two ports are provided to permit independent access to any location in memory. The CY7C132/ CY7C136 can be utilized as either a standalone 8-bit dual-port static RAM or as a MASTER dual-port RAM in conjunction with the CY7C142/CY7C146 SLAVE dual-port device in systems requiring 16-bit or greater word widths. It is the solution to applications requiring shared or buffered data such as cache memory for DSP, bit-slice, or multiprocessor designs. • 2K x 8 organization • 0.65-micron CMOS for optimum speed/power • High-speed access: 15 ns • Low operating power: ICC = 110 mA (max.) • Fully asynchronous operation • Automatic power-down • Master CY7C132/CY7C136 easily expands data bus width to 16 or more bits using slave CY7C142/CY7C146 • BUSY output flag on CY7C132/CY7C136; BUSY input on CY7C142/CY7C146 • INT flag for port-to-port communication (52-pin PLCC/PQFP versions) • Available in 48-pin DIP (CY7C132/142), 52-pin PLCC and 52-pin TQFP (CY7C136/146) Each port has independent control pins; chip enable (CE), write enable (R/W), and output enable (OE). BUSY flags are provided on each port. In addition, an interrupt flag (INT) is provided on each port of the 52-pin PLCC version. BUSY signals that the port is trying to access the same location currently being accessed by the other port. On the PLCC version, INT is an interrupt flag indicating that data has been placed in a unique location (7FF for the left port and 7FE for the right port). An automatic power-down feature is controlled independently on each port by the chip enable (CE) pins. • Pb-Free packages available The CY7C132/CY7C142 are available in 48-pin DIP. The CY7C136/CY7C146 are available in 52-pin PLCC and PQFP. Logic Block Diagram Pin Configuration R/WL CEL R/WR CER OEL OER I/O7L I/O CONTROL I/O0L I/O7R I/O CONTROL I/O0R BUSYL[1] A 10L A 0L DIP Top View [1] BUSYR MEMORY ARRAY ADDRESS DECODER CEL OEL ARBITRATION LOGIC (7C132/7C136 ONLY) AND INTERRUPTLOGIC (7C136/7C146 ONLY) R/WL A 10R ADDRESS DECODER A 0R CER OER R/WR INTL[2] INTR [2] CEL R/WL BUSYL A10L OEL A0L A1L A2L A3L A4L A5L A6L A7L A8L A9L I/O0L I/O1L I/O2L I/O3L I/O4L I/O5L I/O6L I/O7L GND 1 2 3 4 5 6 7 8 9 10 11 12 7C132 13 7C142 14 15 16 17 18 19 20 21 22 23 24 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 VCC CER R/WR BUSYR A10R OER A0R A1R A2R A3R A4R A5R A6R A7R A8R A9R I/O7R I/O6R I/O5R I/O4R I/O3R I/O2R I/O1R I/O0R Notes: 1. CY7C132/CY7C136 (Master): BUSY is open drain output and requires pull-up resistor. CY7C142/CY7C146 (Slave): BUSY is input. 2. Open drain outputs; pull-up resistor required. Cypress Semiconductor Corporation Document #: 38-06031 Rev. *C • 198 Champion Court • San Jose, CA 95134-1709 • 408-943-2600 Revised September 1, 2005 [+] Feedback CY7C132/CY7C136 CY7C142/CY7C146 Pin Configurations OER A0R A1R A2R A3R A4R A5R I/O5R I/O6R A6R A7R A8R A9R NC I/O7R BUSYR INTR A10R CER R/WR INTL BUSYL R/W L CEL VCC 52 51 50 49 48 47 46 45 44 43 42 41 40 A1L A2L A3L A4L A5L A6L A7L A8L A9L I/O0L I/O1L I/O2L I/O3L I/O2R I/O3R I/O4R 1 2 3 4 5 6 7 8 9 10 11 12 13 OER A0R A1R A2R A3R A4R A5R 39 38 37 36 35 34 33 32 31 30 29 28 27 7C136 7C146 A6R A7R A8R A9R NC I/O7R I/O5R I/O6R I/O2R I/O3R I/O4R NC GND I/O0R I/O1R I/O6L I/O7L 1415 16 17 18 19 20 21 22 23 24 25 26 I/O4L I/O5L I/O0R I/O1R NC GND A0L OEL A10L BUSYR INTR A10R CER R/WR PQFP Top View 7 6 5 4 3 2 1 52 51 50 49 48 47 46 45 44 43 42 41 7C136 40 7C146 39 38 37 36 35 34 2122 23 24 25 26 27 28 29 30 31 32 33 I/O6L I/O7L 8 9 10 11 12 13 14 15 16 17 18 19 20 I/O4L I/O5L A1L A2L A3L A4L A5L A6L A7L A8L A9L I/O0L I/O1L I/O2L I/O3L BUSYL R/W L CEL VCC A0L OEL A10L INTL PLCC Top View Selection Guide 7C132-25[3] 7C136-25 7C136-15[3] 7C142-25 7C146-15 7C146-25 7C132-30 7C136-30 7C142-30 7C146-30 7C132-35 7C136-35 7C142-35 7C146-35 7C132-45 7C136-45 7C142-45 7C146-45 7C132-55 7C136-55 7C142-55 7C146-55 Unit 55 ns Maximum Access Time 15 25 30 35 45 Maximum Operating Current Com’l/Ind 190 170 170 120 120 110 mA 170 170 120 mA mA Maximum Operating Current Military Maximum Standby Current Com’l/Ind 75 Military 65 65 45 45 35 65 65 45 Shaded areas contain preliminary information. Note: 3. 15 and 25-ns version available in PQFP and PLCC packages only. Document #: 38-06031 Rev. *C Page 2 of 18 [+] Feedback CY7C132/CY7C136 CY7C142/CY7C146 DC Input Voltage ................................................. −3.5V to +7.0V Maximum Ratings (Above which the useful life may be impaired. For user guidelines, not tested.) Storage Temperature ..................................... −65°C to +150°C Ambient Temperature with Power Applied.................................................. −55°C to +125°C Output Current into Outputs (LOW)............................. 20 mA Static Discharge Voltage.......................................... > 2001V (per MIL-STD-883, Method 3015) Latch-up Current.................................................... > 200 mA Operating Range Supply Voltage to Ground Potential (Pin 48 to Pin 24).................................................−0.5V to +7.0V Range Ambient Temperature VCC 0°C to +70°C 5V ± 10% Industrial –40°C to +85–C 5V ± 10% Military[4] –55°C to +125°C 5V ± 10% Commercial DC Voltage Applied to Outputs in High-Z State .....................................................−0.5V to +7.0V Electrical Characteristics Over the Operating Range[5] 7C132-30[3] 7C136-25,30 7C136-15[3] 7C142-30 7C146-15 7C146-25,30 Parameter Description Output HIGH voltage VCC = Min., IOH = –4.0 mA VOL Output LOW voltage IOL = 4.0 mA 2.4 IOL = 16.0 mA[6] VIH Input HIGH voltage VIL Input LOW voltage 7C132-55 7C136-55 7C142-55 7C146-55 Min. Max. Min. Max. Min. Max. Min. Max. Unit Test Conditions VOH 7C132-35,45 7C136-35,45 7C142-35,45 7C146-35,45 2.4 2.4 2.4 V 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.5 2.2 2.2 0.8 2.2 0.8 2.2 0.8 V V 0.8 V IIX Input load current GND < VI < VCC –5 +5 −5 +5 −5 +5 −5 +5 µA IOZ Output leakage current GND < VO < VCC, Output Disabled –5 +5 −5 +5 −5 +5 −5 +5 µA IOS Output short circuit current[7] VCC = Max., VOUT = GND –350 −350 −350 −350 mA ICC VCC Operating Supply Current CE = VIL, Outputs Open, f = Com’l fMAX[8] Mil 190 170 120 110 mA 170 120 ISB1 Standby current both CEL and CER > VIH, ports, TTL Inputs f = fMAX[8] Com’l 75 65 45 35 65 45 ISB2 Standby Current One Port, TTL Inputs CEL or CER > VIH, Active Port Outputs Open, f = fMAX[8] Com’l 135 115 90 75 115 90 Standby Current Both Ports, CMOS Inputs Both Ports CEL and CER > VCC – 0.2V, VIN > VCC – 0.2V or VIN < 0.2V, f = 0 Com’l 15 15 15 15 Standby Current One Port, CMOS Inputs One Port CEL or CER > VCC – Com’l 0.2V, VIN > VCC – 0.2V or VIN < Mil 0.2V, Active Port Outputs Open, f = fMAX[8] ISB3 ISB4 Mil Mil 15 15 Mil 125 105 85 70 105 85 mA mA mA mA Capacitance[9] Parameter Description CIN Input Capacitance COUT Output Capacitance Test Conditions TA = 25°C, f = 1 MHz, VCC = 5.0V Max. Unit 15 pF 10 pF Shaded areas contain preliminary information. Notes: 4. TA is the “instant on” case temperature. 5. See the last page of this specification for Group A subgroup testing information. 6. BUSY and INT pins only. 7. Duration of the short circuit should not exceed 30 seconds. 8. At f = fMAX, address and data inputs are cycling at the maximum frequency of read cycle of 1/trc and using AC Test Waveforms input levels of GND to 3V. 9. This parameter is guaranteed but not tested. Document #: 38-06031 Rev. *C Page 3 of 18 [+] Feedback CY7C132/CY7C136 CY7C142/CY7C146 AC Test Loads and Waveforms R1 893Ω 5V OUTPUT 5V R1 893Ω 5V OUTPUT R2 347Ω 30 pF INCLUDING JIG AND SCOPE Equivalent to: R2 347Ω 5 pF INCLUDING JIG AND SCOPE (a) THÉVENIN EQUIVALENT 250Ω OUTPUT 1.4V 30 pF BUSY Output Load (CY7C132/CY7C136 Only) (b) ALL INPUT PULSES 3.0V GND 281Ω BUSY OR INT 10% 90% 10% 90% < 5 ns < 5 ns Switching Characteristics Over the Operating Range (Speeds -15, -25, -30) [5, 10] 7C136-15[3] 7C146-15 Parameter Description Min. Max. 7C132-25[3] 7C136-25 7C142-25 7C146-25 Min. Max. 7C132-30 7C136-30 7C142-30 7C146-30 Min. Max. Unit Read Cycle tRC Read Cycle Time 15 Valid[11] tAA Address to Data tOHA Data Hold from Address Change tACE CE LOW to Data Valid[11] tDOE OE LOW to Data Valid[11] tLZOE OE LOW to Low Z[9, 12] tHZOE OE HIGH to High tLZCE CE LOW to Low tHZCE CE HIGH to High Z[9, 12, 13] tPU CE LOW to Power-Up[9] tPD CE HIGH to 15 0 0 15 3 10 3 5 0 ns 30 ns 20 ns ns ns 15 ns 15 ns 5 15 0 15 30 3 15 10 ns 0 25 10 3 Power-Down[9] 30 25 15 Z[9, 12, 13] Z[9, 12] 25 ns 0 25 ns 25 ns Write Cycle[14] tWC Write Cycle Time 15 25 30 ns tSCE CE LOW to Write End 12 20 25 ns tAW Address Set-up to Write End 12 20 25 ns tHA Address Hold from Write End 2 2 2 ns tSA Address Set-up to Write Start 0 0 0 ns tPWE R/W Pulse Width 12 15 25 ns tSD Data Set-up to Write End 10 15 15 ns tHD Data Hold from Write End 0 0 0 ns Z [9] tHZWE R/W LOW to High tLZWE R/W HIGH to Low Z [9] 10 0 15 0 15 0 ns ns Shaded areas contain preliminary information. Notes: 10. Test conditions assume signal transition times of 5 ns or less, timing reference levels of 1.5V, input pulse levels of 0 to 3.0V and output loading of the specified IOL/IOH, and 30-pF load capacitance. 11. AC test conditions use VOH = 1.6V and VOL = 1.4V. 12. At any given temperature and voltage condition for any given device, tHZCE is less than tLZCE and tHZOE is less than tLZOE. 13. tLZCE, tLZWE, tHZOE, tLZOE, tHZCE, and tHZWE are tested with CL = 5pF as in (b) of AC Test Loads. Transition is measured ±500 mV from steady-state voltage. 14. The internal write time of the memory is defined by the overlap of CE LOW and R/W LOW. Both signals must be LOW to initiate a write and either signal can terminate a write by going HIGH. The data input setup and hold timing should be referenced to the rising edge of the signal that terminates the write. Document #: 38-06031 Rev. *C Page 4 of 18 [+] Feedback CY7C132/CY7C136 CY7C142/CY7C146 Switching Characteristics Over the Operating Range (Speeds -15, -25, -30) (continued)[5, 10] 7C136-15[3] 7C146-15 Parameter Description Min. Max. 7C132-25[3] 7C136-25 7C142-25 7C146-25 Min. Max. 7C132-30 7C136-30 7C142-30 7C146-30 Min. Max. Unit Busy/Interrupt Timing tBLA BUSY LOW from Address Match 15 20 20 ns tBHA BUSY HIGH from Address Mismatch[15] 15 20 20 ns tBLC BUSY LOW from CE LOW 15 20 20 ns 20 ns tBHC BUSY HIGH from CE HIGH tPS Port Set Up for Priority [15] 15 5 [16] 20 5 5 ns tWB R/W LOW after BUSY LOW 0 0 0 ns tWH R/W HIGH after BUSY HIGH 13 20 30 ns tBDD BUSY HIGH to Valid Data tDDD tWDD Interrupt 15 25 30 ns Write Data Valid to Read Data Valid Note 17 Note 17 Note 17 ns Write Pulse to Data Delay Note 17 Note 17 Note 17 ns Timing[18] tWINS R/W to INTERRUPT Set Time 15 25 25 ns tEINS CE to INTERRUPT Set Time 15 25 25 ns tINS Address to INTERRUPT Set Time 15 25 25 ns tOINR OE to INTERRUPT Reset Time[15] 15 25 25 ns tEINR Time[15] 15 25 25 ns 25 25 ns tINR CE to INTERRUPT Reset Address to INTERRUPT Reset Time[15] 15 Switching Characteristics Over the Operating Range (Speeds -35, -45, -55) 7C132-35 7C136-35 7C142-35 7C146-35 Parameter Description Min. Max. [5, 10] 7C132-45 7C136-45 7C142-45 7C146-45 Min. Max. 7C132-55 7C136-55 7C142-55 7C146-55 Min. Max. Unit Read Cycle tRC Read Cycle Time tAA Address to Data Valid[11] 35 tOHA Data Hold from Address Change 45 35 0 55 45 0 ns 55 ns 0 ns tACE CE LOW to Data Valid[11] 35 45 55 ns tDOE OE LOW to Data Valid[11] 20 25 25 ns 25 ns [9, 12] tLZOE OE LOW to Low Z tHZOE OE HIGH to High Z[9, 12, 13] tLZCE CE LOW to Low Z[9, 12] CE HIGH to High Z tPU CE LOW to Power-Up[9] CE HIGH to Power-Down[9] 3 20 5 [9, 12, 13] tHZCE tPD 3 3 20 5 20 0 5 20 0 35 ns ns 25 ns 0 35 ns 35 ns Notes: 15. These parameters are measured from the input signal changing, until the output pin goes to a high-impedance state. 16. CY7C142/CY7C146 only. 17. A write operation on Port A, where Port A has priority, leaves the data on Port B’s outputs undisturbed until one access time after one of the following: BUSY on Port B goes HIGH. Port B’s address toggled. CE for Port B is toggled. R/W for Port B is toggled during valid read. 18. 52-pin PLCC and PQFP versions only. Document #: 38-06031 Rev. *C Page 5 of 18 [+] Feedback CY7C132/CY7C136 CY7C142/CY7C146 Switching Characteristics Over the Operating Range (Speeds -35, -45, -55) (continued)[5, 10] 7C132-35 7C136-35 7C142-35 7C146-35 Parameter Description Min. Max. 7C132-45 7C136-45 7C142-45 7C146-45 Min. Max. 7C132-55 7C136-55 7C142-55 7C146-55 Min. Max. Unit [14] Write Cycle tWC Write Cycle Time 35 45 55 ns tSCE CE LOW to Write End 30 35 40 ns tAW Address Set-up to Write End 30 35 40 ns tHA Address Hold from Write End 2 2 2 ns tSA Address Set-up to Write Start 0 0 0 ns tPWE R/W Pulse Width 25 30 30 ns tSD Data Set-up to Write End 15 20 20 ns tHD Data Hold from Write End 0 0 0 ns Z [9] tHZWE R/W LOW to High tLZWE R/W HIGH to Low Z [9] 20 0 20 0 25 ns 0 ns Busy/Interrupt Timing tBLA BUSY LOW from Address Match 20 25 30 ns tBHA BUSY HIGH from Address Mismatch[15] 20 25 30 ns tBLC BUSY LOW from CE LOW 20 25 30 ns tBHC BUSY HIGH from CE HIGH[15] 20 25 30 ns tPS Port Set Up for Priority 5 LOW[16] 5 tWB R/W LOW after BUSY tWH R/W HIGH after BUSY HIGH tBDD BUSY HIGH to Valid Data tDDD Write Data Valid to Read Data Valid Note 17 tWDD Write Pulse to Data Delay Note 17 5 ns 0 0 0 ns 30 35 35 ns 35 45 45 ns Note 17 Note 17 ns Note 17 Note 17 ns [18] Interrupt Timing tWINS R/W to INTERRUPT Set Time 25 35 45 ns tEINS CE to INTERRUPT Set Time 25 35 45 ns tINS Address to INTERRUPT Set Time 25 35 45 ns tOINR OE to INTERRUPT Reset Time[15] 25 35 45 ns tEINR [15] 25 35 45 ns Time[15] 25 35 45 ns tINR CE to INTERRUPT Reset Time Address to INTERRUPT Reset Document #: 38-06031 Rev. *C Page 6 of 18 [+] Feedback CY7C132/CY7C136 CY7C142/CY7C146 Switching Waveforms Read Cycle No. 1 (Either Port-Address Access)[19, 20] tRC ADDRESS tAA tOHA DATA OUT PREVIOUS DATA VALID DATA VALID Read Cycle No. 2 (Either Port-CE/OE)[19, 21] CE tHZCE tACE OE tLZOE tHZOE tDOE tLZCE DATA VALID DATA OUT tPU tPD ICC ISB Read Cycle No. 3 (Read with BUSY Master: CY7C132 and CY7C136) tRC ADDRESSR ADDRESS MATCH R/WR tPWE DINR VALID tPS ADDRESS MATCH ADDRESSL tBHA BUSYL tBLA tBDD DOUTL VALID tWDD tDDD Notes: 19. R/W is HIGH for read cycle. 20. Device is continuously selected, CE = VIL and OE = VIL. 21. Address valid prior to or coincident with CE transition LOW. Document #: 38-06031 Rev. *C Page 7 of 18 [+] Feedback CY7C132/CY7C136 CY7C142/CY7C146 Switching Waveforms (continued) Write Cycle No.1 (OE Three-States Data I/Os—Either Port)[14, 22] tWC ADDRESS tSCE CE tAW tSA tHA tPWE R/W tSD DATAIN tHD DATA VALID OE tHZOE HIGH IMPEDANCE DOUT Write Cycle No. 2 (R/W Three-States Data I/Os—Either Port)[14, 23] tWC ADDRESS tSCE tHA CE tSA tAW tPWE R/W tSD DATAIN tHD DATA VALID tHZWE tLZWE HIGH IMPEDANCE DOUT Notes: 22. If OE is LOW during a R/W controlled write cycle, the write pulse width must be the larger of tPWE or tHZWE + tSD to allow the data I/O pins to enter high impedance and for data to be placed on the bus for the required tSD. 23. If the CE LOW transition occurs simultaneously with or after the R/W LOW transition, the outputs remain in a high-impedance state. Document #: 38-06031 Rev. *C Page 8 of 18 [+] Feedback CY7C132/CY7C136 CY7C142/CY7C146 Switching Waveforms (continued) Busy Timing Diagram No. 1 (CE Arbitration) CEL Valid First: ADDRESSL,R ADDRESS MATCH CEL tPS CER tBLC tBHC BUSYR CER Valid First: ADDRESSL,R ADDRESS MATCH CER tPS CEL tBLC tBHC BUSYL Busy Timing Diagram No. 2 (Address Arbitration) Left Address Valid First: tRC or tWC ADDRESSL ADDRESS MATCH ADDRESS MISMATCH tPS ADDRESSR tBLA tBHA BUSYR Right Address Valid First: tRC or tWC ADDRESSR ADDRESS MATCH ADDRESS MISMATCH tPS ADDRESSL tBLA tBHA BUSYL Document #: 38-06031 Rev. *C Page 9 of 18 [+] Feedback CY7C132/CY7C136 CY7C142/CY7C146 Switching Waveforms (continued) Busy Timing Diagram No. 3 (Write with BUSY, Slave: CY7C142/CY7C146) CE tPWE R/W tWB tWH BUSY Interrupt Timing Diagrams[18] Left Side Sets INTR: tWC ADDRESSL WRITE 7FF tHA tINS CEL tEINS R/WL tSA tWINS INTR Right Side Clears INTR: tRC ADDRESSR READ 7FF tHA CER tINR tEINR R/WR OER tOINR INTR Right Side Sets INTL: tWC ADDRESSR WRITE 7FE tINS CER tEINS R/WR INTL Document #: 38-06031 Rev. *C tHA tSA tWINS Page 10 of 18 [+] Feedback CY7C132/CY7C136 CY7C142/CY7C146 Interrupt Timing Diagrams[18] (continued) Right Side Clears INTL: tRC ADDRESSL READ 7FE tHA CEL tINR tEINR R/WL OEL tOINR INTL Typical DC and AC Characteristics 1.0 0.8 0.6 0.4 0.0 4.0 4.5 5.0 0.8 0.6 VCC = 5.0V VIN = 5.0V 0.4 0.2 ISB3 0.2 1.0 5.5 ISB3 0.6 –55 6.0 NORMALIZED ACCESS TIME vs. AMBIENT TEMPERATURE 1.4 1.6 1.3 1.4 NORMALIZED tAA NORMALIZED tAA NORMALIZED ACCESS TIME vs. SUPPLY VOLTAGE 1.2 1.1 TA = 25°C 1.2 1.0 VCC = 5.0V 0.8 0.9 0.8 4.0 4.5 5.0 5.5 0.6 –55 6.0 25 30.0 2.5 25.0 20.0 2.0 15.0 1.5 0.5 4.0 SUPPLY VOLTAGE (V) Document #: 38-06031 Rev. *C 40 20 0 0 5.0 0 1.0 2.0 3.0 4.0 OUTPUT VOLTAGE (V) 140 OUTPUT SINK CURRENT vs. OUTPUT VOLTAGE 120 100 80 60 40 VCC = 5.0V TA = 25°C 20 0 0.0 1.0 2.0 3.0 4.0 OUTPUT VOLTAGE (V) 1.25 NORMALIZED ICC vs. CYCLE TIME VCC = 5.0V TA = 25°C VIN = 0.5V 1.0 VCC = 4.5V TA = 25°C 5.0 3.0 VCC = 5.0V TA = 25°C 0.75 10.0 1.0 2.0 60 NORMALIZED ICC TYPICAL ACCESS TIME CHANGE vs. OUTPUT LOADING 3.0 1.0 80 125 DELTA tAA (ns) NORMALIZED tPC TYPICAL POWER-ON CURRENT vs. SUPPLY VOLTAGE 0 100 AMBIENT TEMPERATURE (°C) SUPPLY VOLTAGE (V) 0.0 125 120 AMBIENT TEMPERATURE (°C) SUPPLY VOLTAGE (V) 1.0 25 OUTPUT SOURCE CURRENT vs. OUTPUT VOLTAGE OUTPUT SOURCE CURRENT (mA) ICC ICC OUTPUT SINK CURRENT (mA) 1.2 1.2 NORMALIZED ICC, ISB NORMALIZED ICC, ISB 1.4 NORMALIZED SUPPLY CURRENT vs. AMBIENT TEMPERATURE NORMALIZED SUPPLY CURRENT vs. SUPPLY VOLTAGE 0 200 400 600 800 1000 CAPACITANCE (pF) 0.50 10 20 30 40 CYCLE FREQUENCY (MHz) Page 11 of 18 [+] Feedback CY7C132/CY7C136 CY7C142/CY7C146 Ordering Information Speed (ns) 30 35 45 55 15 25 30 35 45 55 30 35 Ordering Code CY7C132-30PC Package Name P25 Package Type 48-Lead (600-Mil) Molded DIP Operating Range Commercial CY7C132-30PI P25 48-Lead (600-Mil) Molded DIP Industrial CY7C132-35PC P25 48-Lead (600-Mil) Molded DIP Commercial CY7C132-35PI P25 48-Lead (600-Mil) Molded DIP Industrial CY7C132-35DMB D26 48-Lead (600-Mil) Sidebraze DIP Military CY7C132-45PC P25 48-Lead (600-Mil) Molded DIP Commercial CY7C132-45PI P25 48-Lead (600-Mil) Molded DIP Industrial CY7C132-45DMB D26 48-Lead (600-Mil) Sidebraze DIP Military CY7C132-55PC P25 48-Lead (600-Mil) Molded DIP Commercial CY7C132-55PI P25 48-Lead (600-Mil) Molded DIP Industrial CY7C132-55DMB D26 48-Lead (600-Mil) Sidebraze DIP Military CY7C136-15JC J69 52-Lead Plastic Leaded Chip Carrier Commercial CY7C136-15NC N52 52-Pin Plastic Quad Flatpack CY7C136-25JC J69 52-Lead Plastic Leaded Chip Carrier CY7C136-25JXC J69 52-Lead Pb-Free Plastic Leaded Chip Carrier CY7C136-25NC N52 52-Pin Plastic Quad Flatpack CY7C136-25NXC N52 52-Pin Pb-Free Plastic Quad Flatpack CY7C136-30JC J69 52-Lead Plastic Leaded Chip Carrier CY7C136-30NC N52 52-Pin Plastic Quad Flatpack Commercial Commercial CY7C136-30JI J69 52-Lead Plastic Leaded Chip Carrier Industrial CY7C136-35JC J69 52-Lead Plastic Leaded Chip Carrier Commercial CY7C136-35NC N52 52-Pin Plastic Quad Flatpack CY7C136-35JI J69 52-Lead Plastic Leaded Chip Carrier Industrial CY7C136-35LMB L69 52-Square Leadless Chip Carrier Military CY7C136-45JC J69 52-Lead Plastic Leaded Chip Carrier Commercial CY7C136-45NC N52 52-Pin Plastic Quad Flatpack CY7C136-45JI J69 52-Lead Plastic Leaded Chip Carrier Industrial CY7C136-45LMB L69 52-Square Leadless Chip Carrier Military CY7C136-55JC J69 52-Lead Plastic Leaded Chip Carrier Commercial CY7C136-55JXC J69 52-Lead Pb-Free Plastic Leaded Chip Carrier CY7C136-55NC N52 52-Pin Plastic Quad Flatpack CY7C136-55NXC N52 52-Pin Pb-Free Plastic Quad Flatpack CY7C136-55JI J69 52-Lead Plastic Leaded Chip Carrier CY7C136-55JXI J69 52-Lead Pb-Free Plastic Leaded Chip Carrier CY7C136-55NI N52 52-Pin Plastic Quad Flatpack CY7C136-55NXI N52 52-Pin Pb-Free Plastic Quad Flatpack CY7C136-55LMB L69 52-Square Leadless Chip Carrier Military Industrial CY7C142-30PC P25 48-Lead (600-Mil) Molded DIP Commercial CY7C142-30PI P25 48-Lead (600-Mil) Molded DIP Industrial CY7C142-35PC P25 48-Lead (600-Mil) Molded DIP Commercial CY7C142-35PI P25 48-Lead (600-Mil) Molded DIP Industrial CY7C142-35DMB D26 48-Lead (600-Mil) Sidebraze DIP Military Document #: 38-06031 Rev. *C Page 12 of 18 [+] Feedback CY7C132/CY7C136 CY7C142/CY7C146 Ordering Information (continued) Speed (ns) 45 55 15 25 30 35 45 55 Ordering Code Package Name Package Type Operating Range CY7C142-45PC P25 48-Lead (600-Mil) Molded DIP Commercial CY7C142-45PI P25 48-Lead (600-Mil) Molded DIP Industrial CY7C142-45DMB D26 48-Lead (600-Mil) Sidebraze DIP Military CY7C142-55PC P25 48-Lead (600-Mil) Molded DIP Commercial CY7C142-55PI P25 48-Lead (600-Mil) Molded DIP Industrial CY7C142-55DMB D26 48-Lead (600-Mil) Sidebraze DIP Military CY7C146-15JC J69 52-Lead Plastic Leaded Chip Carrier Commercial CY7C146-15NC N52 52-Pin Plastic Quad Flatpack CY7C146-25JC J69 52-Lead Plastic Leaded Chip Carrier CY7C146-25JXC J69 52-Lead Pb-Free Plastic Leaded Chip Carrier Commercial CY7C146-25NC N52 52-Pin Plastic Quad Flatpack CY7C146-30JC J69 52-Lead Plastic Leaded Chip Carrier CY7C146-30NC N52 52-Pin Plastic Quad Flatpack CY7C146-30JI J69 52-Lead Plastic Leaded Chip Carrier Industrial CY7C146-35JC J69 52-Lead Plastic Leaded Chip Carrier Commercial CY7C146-35NC N52 52-Pin Plastic Quad Flatpack CY7C146-35JI J69 52-Lead Plastic Leaded Chip Carrier Industrial CY7C146-35LMB L69 52-Square Leadless Chip Carrier Military CY7C146-45JC J69 52-Lead Plastic Leaded Chip Carrier Commercial CY7C146-45NC N52 52-Pin Plastic Quad Flatpack CY7C146-45JI J69 52-Lead Plastic Leaded Chip Carrier Industrial CY7C146-45LMB L69 52-Square Leadless Chip Carrier Military CY7C146-55JC J69 52-Lead Plastic Leaded Chip Carrier Commercial CY7C146-55JXC J69 52-Lead Pb-Free Plastic Leaded Chip Carrier CY7C146-55NC N52 52-Pin Plastic Quad Flatpack CY7C146-55JI J69 52-Lead Plastic Leaded Chip Carrier Industrial CY7C146-55LMB L69 52-Square Leadless Chip Carrier Military Document #: 38-06031 Rev. *C Commercial Page 13 of 18 [+] Feedback CY7C132/CY7C136 CY7C142/CY7C146 MILITARY SPECIFICATIONS Group A Subgroup Testing—DC Characteristics Parameter VOH VOL VIH VIL Max. IIX IOZ ICC ISB1 ISB2 ISB3 ISB4 Subgroups 1, 2, 3 1, 2, 3 1, 2, 3 1, 2, 3 1, 2, 3 1, 2, 3 1, 2, 3 1, 2, 3 1, 2, 3 1, 2, 3 1, 2, 3 Switching Characteristics Parameter Read Cycle tRC tAA tACE tDOE Write Cycle tWC tSCE tAW tHA tSA tPWE tSD tHD Busy/Interrupt Timing tBLA tBHA tBLC tBHC tPS tWINS tEINS tINS tOINR tEINR tINR BUSY TIMING tWB[24] tWH tBDD Subgroups 7, 8, 9, 10, 11 7, 8, 9, 10, 11 7, 8, 9, 10, 11 7, 8, 9, 10, 11 7, 8, 9, 10, 11 7, 8, 9, 10, 11 7, 8, 9, 10, 11 7, 8, 9, 10, 11 7, 8, 9, 10, 11 7, 8, 9, 10, 11 7, 8, 9, 10, 11 7, 8, 9, 10, 11 7, 8, 9, 10, 11 7, 8, 9, 10, 11 7, 8, 9, 10, 11 7, 8, 9, 10, 11 7, 8, 9, 10, 11 7, 8, 9, 10, 11 7, 8, 9, 10, 11 7, 8, 9, 10, 11 7, 8, 9, 10, 11 7, 8, 9, 10, 11 7, 8, 9, 10, 11 7, 8, 9, 10, 11 7, 8, 9, 10, 11 7, 8, 9, 10, 11 Note: 24. CY7C142/CY7C146 only. Document #: 38-06031 Rev. *C Page 14 of 18 [+] Feedback CY7C132/CY7C136 CY7C142/CY7C146 Package Diagrams 48-Lead (600-Mil) Sidebraze DIP D26 MIL-STD-1835 D-14 Config. C 51-80044-** 52-Lead Plastic Leaded Chip Carrier J69 52-Lead Pb-Free Plastic Leaded Chip Carrier J69 51-85004-*A Document #: 38-06031 Rev. *C Page 15 of 18 [+] Feedback CY7C132/CY7C136 CY7C142/CY7C146 Package Diagrams (continued) 52-Square Leadless Chip Carrier L69 51-80054-** 52-Lead Plastic Quad Flatpack N52 52-Lead Pb-Free Plastic Quad Flatpack N52 51-85042-** Document #: 38-06031 Rev. *C Page 16 of 18 [+] Feedback CY7C132/CY7C136 CY7C142/CY7C146 Package Diagrams (continued) 48-Lead (600-Mil) Molded DIP P25 51-85020-*A All product and company names mentioned in this document are the trademarks of their respective holders. Document #: 38-06031 Rev. *C Page 17 of 18 © Cypress Semiconductor Corporation, 2005. The information contained herein is subject to change without notice. Cypress Semiconductor Corporation assumes no responsibility for the use of any circuitry other than circuitry embodied in a Cypress product. Nor does it convey or imply any license under patent or other rights. Cypress products are not warranted nor intended to be used for medical, life support, life saving, critical control or safety applications, unless pursuant to an express written agreement with Cypress. Furthermore, Cypress does not authorize its products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress products in life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges. [+] Feedback CY7C132/CY7C136 CY7C142/CY7C146 Document History Page Document Title: CY7C132/CY7C136/CY7C142/CY7C146 2K x 8 Dual Port Static RAM Document Number: 38-06031 REV. ECN NO. Orig. of Issue Date Change Description of Change ** 110171 10/21/01 SZV Change from Spec number: 38-06031 *A 128959 09/03/03 JFU Added CY7C136-55NI to Order Information *B 236748 See ECN YDT Removed cross information from features section *C 393184 See ECN YIM Added Pb-Free Logo Added Pb-Free parts to ordering information: CY7C136-25JXC, CY7C136-25NXC, CY7C136-55JXC, CY7C136-55NXC, CY7C136-55JXI, CY7C136-55NXI, CY7C146-25JXC, CY7C146-55JXC Document #: 38-06031 Rev. *C Page 18 of 18 [+] Feedback
