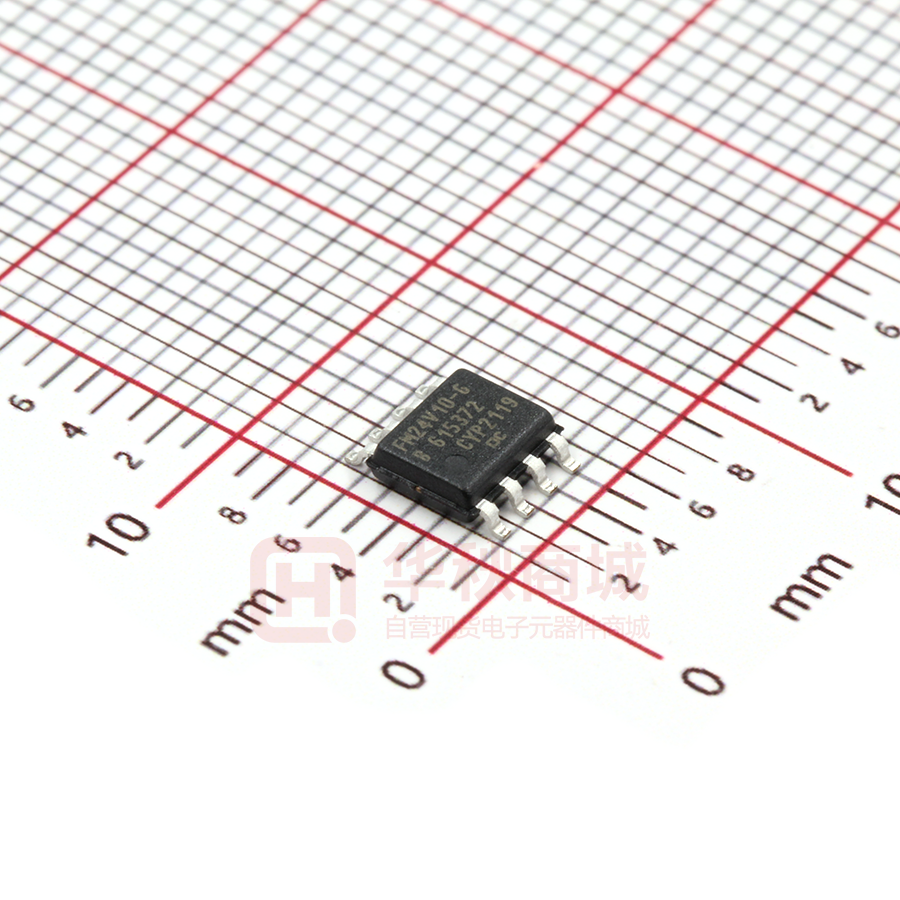

FM24V10-GTR

Please note that Cypress is an Infineon Technologies Company. The document following this cover page is marked as “Cypress” document as this is the company that originally developed the product. Please note that Infineon will continue to offer the product to new and existing customers as part of the Infineon product portfolio. Continuity of document content The fact that Infineon offers the following product as part of the Infineon product portfolio does not lead to any changes to this document. Future revisions will occur when appropriate, and any changes will be set out on the document history page. Continuity of ordering part numbers Infineon continues to support existing part numbers. Please continue to use the ordering part numbers listed in the datasheet for ordering. www.infineon.com FM24V10 1-Mbit (128K × 8) Serial (I2C) F-RAM 1-Mbit (128K × 8) Serial (I2C) F-RAM Features ■ ■ Functional Description 1-Mbit ferroelectric random access memory (F-RAM) logically organized as 128K × 8 14 ❐ High-endurance 100 trillion (10 ) read/writes ❐ 151-year data retention (See Data Retention and Endurance on page 13) ❐ NoDelay™ writes ❐ Advanced high-reliability ferroelectric process The FM24V10 is a 1-Mbit nonvolatile memory employing an advanced ferroelectric process. A ferroelectric random access memory or F-RAM is nonvolatile and performs reads and writes similar to a RAM. It provides reliable data retention for 151 years while eliminating the complexities, overhead, and system-level reliability problems caused by EEPROM and other nonvolatile memories. Fast two-wire Serial interface (I2C) ❐ Up to 3.4-MHz frequency 2 ❐ Direct hardware replacement for serial (I C) EEPROM ❐ Supports legacy timings for 100 kHz and 400 kHz Unlike EEPROM, the FM24V10 performs write operations at bus speed. No write delays are incurred. Data is written to the memory array immediately after each byte is successfully transferred to the device. The next bus cycle can commence without the need for data polling. In addition, the product offers substantial write endurance compared with other nonvolatile memories. Also, F-RAM exhibits much lower power during writes than EEPROM since write operations do not require an internally elevated power supply voltage for write circuits. The FM24V10 is capable of supporting 1014 read/write cycles, or 100 million times more write cycles than EEPROM. ■ Device ID and Serial Number ❐ Manufacturer ID and Product ID ❐ Unique Serial Number (FM24VN10) ■ Low power consumption ❐ 175 A active current at 100 kHz ❐ 90 A (typ) standby current ❐ 5 A (typ) sleep mode current ■ Low-voltage operation: VDD = 2.0 V to 3.6 V ■ Industrial temperature: –40 C to +85 C ■ 8-pin small outline integrated circuit (SOIC) package ■ Restriction of hazardous substances (RoHS) compliant These capabilities make the FM24V10 ideal for nonvolatile memory applications, requiring frequent or rapid writes. Examples range from data logging, where the number of write cycles may be critical, to demanding industrial controls where the long write time of EEPROM can cause data loss. The combination of features allows more frequent data writing with less overhead for the system. The FM24V10 provides substantial benefits to users of serial (I2C) EEPROM as a hardware drop-in replacement. The FM24VN10 is offered with a unique serial number that is read-only and can be used to identify a board or system. Both devices incorporate a read-only Device ID that allows the host to determine the manufacturer, product density, and product revision. The device specifications are guaranteed over an industrial temperature range of –40 C to +85 C. For a complete list of related documentation, click here. Logic Block Diagram Address Latch Counter 128 K x 8 F-RAM Array 17 8 SDA Serial to Parallel Converter Data Latch 8 8 SCL WP Device ID and Serial Number Control Logic A2-A1 Errata: STOP condition is optional for sleep mode entry. For more information, see Errata on page 19. Details include errata trigger conditions, scope of impact, available workarounds, and silicon revision applicability. Cypress Semiconductor Corporation Document Number: 001-84463 Rev. *J • 198 Champion Court • San Jose, CA 95134-1709 • 408-943-2600 Revised December 26, 2018 FM24V10 Contents Pinout ................................................................................ 3 Pin Definitions .................................................................. 3 Functional Overview ........................................................ 4 Memory Architecture ........................................................ 4 I2C Interface ...................................................................... 4 STOP Condition (P) ..................................................... 4 START Condition (S) ................................................... 4 Data/Address Transfer ................................................ 5 Acknowledge/No-acknowledge ................................... 5 Slave Device Address ................................................. 6 High Speed Mode (Hs-mode) ...................................... 6 Addressing Overview .................................................. 6 Data Transfer .............................................................. 6 Memory Operation ............................................................ 6 Write Operation ........................................................... 6 Read Operation ........................................................... 7 Sleep Mode ................................................................. 9 Device ID ........................................................................... 9 Unique Serial Number (FM24VN10 only) ...................... 10 Function to Calculate CRC ........................................ 11 Maximum Ratings ........................................................... 12 Operating Range ............................................................. 12 DC Electrical Characteristics ........................................ 12 Data Retention and Endurance ..................................... 13 Document Number: 001-84463 Rev. *J Capacitance .................................................................... 13 Thermal Resistance ........................................................ 13 AC Test Loads and Waveforms ..................................... 13 AC Test Conditions ........................................................ 13 AC Switching Characteristics ....................................... 14 Power Cycle Timing ....................................................... 15 Ordering Information ...................................................... 16 Ordering Code Definitions ......................................... 16 Package Diagram ............................................................ 17 Acronyms ........................................................................ 18 Document Conventions ................................................. 18 Units of Measure ....................................................... 18 Errata ............................................................................... 19 Part Numbers Affected .............................................. 19 FM24V10/FM24VN10 I2C F-RAM Qualification Status ........................................................... 19 FM24V10/FM25VN10 Errata Summary .................... 19 Document History Page ................................................. 21 Sales, Solutions, and Legal Information ...................... 23 Worldwide Sales and Design Support ....................... 23 Products .................................................................... 23 PSoC® Solutions ...................................................... 23 Cypress Developer Community ................................. 23 Technical Support ..................................................... 23 Page 2 of 23 FM24V10 Pinout Figure 1. 8-pin SOIC pinout NC 1 A1 2 A2 3 VSS 4 Top View not to scale 8 VDD 7 WP 6 SCL 5 SDA Pin Definitions Pin Name I/O Type Description A2–A1 Input Device Select Address 2–1. These pins are used to select one of up to 4 devices of the same type on the same I2C bus. To select the device, the address value on the three pins must match the corresponding bits contained in the slave address. The address pins are pulled down internally. SDA Input/Output Serial Data/Address. This is a bi-directional pin for the I2C interface. It is open-drain and is intended to be wire-AND'd with other devices on the I2C bus. The input buffer incorporates a Schmitt trigger for noise immunity and the output driver includes slope control for falling edges. An external pull-up resistor is required. SCL Input Serial Clock. The serial clock pin for the I2C interface. Data is clocked out of the device on the falling edge, and into the device on the rising edge. The SCL input also incorporates a Schmitt trigger input for noise immunity. WP Input Write Protect. When tied to VDD, addresses in the entire memory map will be write-protected. When WP is connected to ground, all addresses are write enabled. This pin is pulled down internally. VSS Power supply Ground for the device. Must be connected to the ground of the system. VDD Power supply Power supply input to the device. NC No connect No connect. This pin is not connected to the die. Document Number: 001-84463 Rev. *J Page 3 of 23 FM24V10 Functional Overview ready condition because writes occur at bus speed. By the time a new bus transaction can be shifted into the device, a write operation is complete. This is explained in more detail in the interface section. The FM24V10 is a serial F-RAM memory. The memory array is logically organized as 131,072 × 8 bits and is accessed using an industry-standard I2C interface. The functional operation of the F-RAM is similar to serial (I2C) EEPROM. The major difference between the FM24V10 and a serial (I2C) EEPROM with the same pinout is the F-RAM’s superior write performance, high endurance, and low power consumption. I2C Interface The FM24V10 employs a bi-directional I2C bus protocol using few pins or board space. Figure 2 illustrates a typical system configuration using the FM24V10 in a microcontroller-based system. The industry standard I2C bus is familiar to many users but is described in this section. Memory Architecture When accessing the FM24V10, the user addresses 128K locations of eight data bits each. These eight data bits are shifted in or out serially. The addresses are accessed using the I2C protocol, which includes a slave address (to distinguish other non-memory devices), a page select bit, and a two-byte address. The 17-bit address consists of a page select bit followed by 16-bits. The complete address of 17-bits specifies each byte address uniquely. By convention, any device that is sending data onto the bus is the transmitter while the target device for this data is the receiver. The device that is controlling the bus is the master. The master is responsible for generating the clock signal for all operations. Any device on the bus that is being controlled is a slave. The FM24V10 is always a slave device. The bus protocol is controlled by transition states in the SDA and SCL signals. There are four conditions including START, STOP, data bit, or acknowledge. Figure 3 on page 5 and Figure 4 on page 5 illustrates the signal conditions that specify the four states. Detailed timing diagrams are shown in the electrical specifications section. The access time for the memory operation is essentially zero, beyond the time needed for the serial protocol. That is, the memory is read or written at the speed of the I2C bus. Unlike a serial (I2C) EEPROM, it is not necessary to poll the device for a Figure 2. System Configuration using Serial (I2C) nvSRAM Vcc RPmin = (VDD - VOLmax) / IOL RPmax = tr / (0.8473 * Cb) SDA Microcontroller SCL Vcc Vcc A1 A2 SCL A1 SCL A1 SCL SDA A2 SDA A2 SDA WP #0 WP #1 WP #3 STOP Condition (P) START Condition (S) A STOP condition is indicated when the bus master drives SDA from LOW to HIGH while the SCL signal is HIGH. All operations using the FM24V10 should end with a STOP condition. If an operation is in progress when a STOP is asserted, the operation will be aborted. The master must have control of SDA in order to assert a STOP condition. A START condition is indicated when the bus master drives SDA from HIGH to LOW while the SCL signal is HIGH. All commands should be preceded by a START condition. An operation in progress can be aborted by asserting a START condition at any time. Aborting an operation using the START condition will ready the FM24V10 for a new operation. If during operation the power supply drops below the specified VDD minimum, the system should issue a START condition prior to performing another operation. Document Number: 001-84463 Rev. *J Page 4 of 23 FM24V10 Figure 3. START and STOP Conditions full pagewidth SDA SDA SCL SCL S P STOP Condition START Condition Figure 4. Data Transfer on the I2C Bus handbook, full pagewidth P SDA Acknowledgement signal from slave MSB SCL S 1 2 7 9 8 1 Acknowledgement signal from receiver 2 3 4-8 ACK START condition 9 ACK All data transfers (including addresses) take place while the SCL signal is HIGH. Except under the three conditions described above, the SDA signal should not change while SCL is HIGH. Acknowledge/No-acknowledge The acknowledge takes place after the 8th data bit has been transferred in any transaction. During this state the transmitter should release the SDA bus to allow the receiver to drive it. The receiver drives the SDA signal LOW to acknowledge receipt of the byte. If the receiver does not drive SDA LOW, the condition is a no-acknowledge and the operation is aborted. S or P STOP or START condition Byte complete Data/Address Transfer S The receiver would fail to acknowledge for two distinct reasons. First is that a byte transfer fails. In this case, the no-acknowledge ceases the current operation so that the device can be addressed again. This allows the last byte to be recovered in the event of a communication error. Second and most common, the receiver does not acknowledge to deliberately end an operation. For example, during a read operation, the FM24V10 will continue to place data onto the bus as long as the receiver sends acknowledges (and clocks). When a read operation is complete and no more data is needed, the receiver must not acknowledge the last byte. If the receiver acknowledges the last byte, this will cause the FM24V10 to attempt to drive the bus on the next clock while the master is sending a new command such as STOP. Figure 5. Acknowledge on the I2C Bus handbook, full pagewidth DATA OUTPUT BY MASTER No Acknowledge DATA OUTPUT BY SLAVE Acknowledge SCL FROM MASTER 1 2 8 9 S START Condition Document Number: 001-84463 Rev. *J Clock pulse for acknowledgement Page 5 of 23 FM24V10 Slave Device Address The first byte that the FM24V10 expects after a START condition is the slave address. As shown in Figure 6, the slave address contains the device type or slave ID, the device select address bits, a page select bit, and a bit that specifies if the transaction is a read or a write. Bits 7–4 are the device type (slave ID) and should be set to 1010b for the FM24V10. These bits allow other function types to reside on the I2C bus within an identical address range. Bits 3–2 are the device select address bits. They must match the corresponding value on the external address pins to select the device. Up to four FM24V10 devices can reside on the same I2C bus by assigning a different address to each. Bit 1 is the page select bit and is effectively the address MSB, A16. It specifies the 64K-byte block of memory that is targeted for the current operation. Bit 0 is the read/write bit (R/W). R/W = ‘1’ indicates a read operation and R/W = ‘0’ indicates a write operation. Figure 6. Memory Slave Device Address MSB handbook, halfpage 1 LSB 0 1 0 A2 A1 Device Select Slave ID A16 R/W Page select High Speed Mode (Hs-mode) The FM24V10 supports a 3.4-MHz high speed mode. A master code (00001XXXb) must be issued to place the device into high speed mode. Communication between master and slave will then be enabled for speeds up to 3.4-MHz. A STOP condition will exit Hs-mode. Single- and multiple-byte reads and writes are supported. Figure 7. Data transfer format in Hs-mode handbook, full pagewidth Hs-mode F/S-mode S MASTER CODE 1 S SLAVE ADD. R/W 0 F/S-mode DATA A /1 P n (bytes+ ack.) No Acknowledge Addressing Overview After the FM24V10 (as receiver) acknowledges the slave address, the master can place the memory address on the bus for a write operation. The address requires a 1-bit page select and two bytes. Since the device uses 17-bit address, the page select bit is the MSB of the address followed by the remaining 16-bit address. The complete 17-bit address is latched internally. Each access causes the latched address value to be incremented automatically. The current address is the value that is held in the latch; either a newly written value or the address following the last access. The current address will be held for as long as power remains or until a new value is written. Reads always use the current address. A random read address can be loaded by beginning a write operation as explained below. After transmission of each data byte, just prior to the acknowledge, the FM24V10 increments the internal address latch. This allows the next sequential byte to be accessed with no additional addressing. After the last address (1FFFFh) is reached, the address latch will roll over to 00000h. There is no limit to the number of bytes that can be accessed with a single read or write operation. Data Transfer After the address bytes have been transmitted, data transfer between the bus master and the FM24V10 can begin. For a read operation the FM24V10 will place 8 data bits on the bus then wait for an acknowledge from the master. If the acknowledge occurs, the FM24V10 will transfer the next sequential byte. If the acknowledge is not sent, the FM24V10 will end the read operation. For a write operation, the FM24V10 will accept 8 data Document Number: 001-84463 Rev. *J Acknowledge or No Acknowledge Hs-mode continues S SLAVE ADD. bits from the master then send an acknowledge. All data transfer occurs MSB (most significant bit) first. Memory Operation The FM24V10 is designed to operate in a manner very similar to other I2C interface memory products. The major differences result from the higher performance write capability of F-RAM technology. These improvements result in some differences between the FM24V10 and a similar configuration EEPROM during writes. The complete operation for both writes and reads is explained below. Write Operation All writes begin with a slave address, then a memory address. The bus master indicates a write operation by setting the LSB of the slave address (R/W bit) to a ‘0’. After addressing, the bus master sends each byte of data to the memory and the memory generates an acknowledge condition. Any number of sequential bytes may be written. If the end of the address range is reached internally, the address counter will wrap from 1FFFFh to 00000h. Unlike other nonvolatile memory technologies, there is no effective write delay with F-RAM. Since the read and write access times of the underlying memory are the same, the user experiences no delay through the bus. The entire memory cycle occurs in less time than a single bus clock. Therefore, any operation including read or write can occur immediately following a write. Acknowledge polling, a technique used with EEPROMs to determine if a write is complete is unnecessary and will always return a ready condition. Page 6 of 23 FM24V10 all addresses. The FM24V10 will not acknowledge data bytes that are written to protected addresses. In addition, the address counter will not increment if writes are attempted to these addresses. Setting WP to a LOW state (VSS) will disable the write protect. WP is pulled down internally. Internally, an actual memory write occurs after the 8th data bit is transferred. It will be complete before the acknowledge is sent. Therefore, if the user desires to abort a write without altering the memory contents, this should be done using START or STOP condition prior to the 8th data bit. The FM24V10 uses no page buffering. Figure 8 and Figure 9 below illustrate a single-byte and multiple-byte write cycles in F/S mode. Figure 10 below illustrate a single-byte write cycles in Hs mode. The memory array can be write-protected using the WP pin. Setting the WP pin to a HIGH condition (VDD) will write-protect Figure 8. Single-Byte Write Start By Master S Stop Address & Data Slave Address P 0 S A Address MSB By F-RAM A Address LSB A Data Byte A P Acknowledge Figure 9. Multi-Byte Write Start Stop Address & Data By Master S Slave Address P 0 S A Address MSB By F-RAM A Address LSB A Data Byte A Data Byte A P Acknowledge Figure 10. Hs-mode Byte Write Start Start & Enter HS-mode HS-mode command By Master S 0 0 0 0 1 X By F-RAM X X 1 S Slave Address No Acknowledge Read Operation There are two basic types of read operations. They are current address read and selective address read. In a current address read, the FM24V10 uses the internal address latch to supply the address. In a selective read, the user performs a procedure to set the address to a specific value. Current Address & Sequential Read As mentioned above the FM24V10 uses an internal latch to supply the address for a read operation. A current address read uses the existing value in the address latch as a starting place for the read operation. The system reads from the address immediately following that of the last operation. Document Number: 001-84463 Rev. *J Stop & Exit HS-mode Address & Data P 0 A S Address MSB A Address LSB A Data Byte A P Acknowledge To perform a current address read, the bus master supplies a slave address with the LSB set to a ‘1’. This indicates that a read operation is requested. After receiving the complete slave address, the FM24V10 will begin shifting out data from the current address on the next clock. The current address is the value held in the internal address latch. Beginning with the current address, the bus master can read any number of bytes. Thus, a sequential read is simply a current address read with multiple byte transfers. After each byte the internal address counter will be incremented. Note Each time the bus master acknowledges a byte, this indicates that the FM24V10 should read out the next sequential byte. Page 7 of 23 FM24V10 2. The bus master issues a no-acknowledge in the 9th clock cycle and a START in the 10th. 3. The bus master issues a STOP in the 9th clock cycle. 4. The bus master issues a START in the 9th clock cycle. There are four ways to properly terminate a read operation. Failing to properly terminate the read will most likely create a bus contention as the FM24V10 attempts to read out additional data onto the bus. The four valid methods are: 1. The bus master issues a no-acknowledge in the 9th clock cycle and a STOP in the 10th clock cycle. This is illustrated in the diagrams below. This is preferred. If the internal address reaches 1FFFFh, it will wrap around to 00000h on the next read cycle. Figure 11 and Figure 12 below show the proper operation for current address reads. Figure 11. Current Address Read Start By Master No Acknowledge Address Stop S Slave Address X 1 A By F-RAM Data Byte Acknowledge 1 P Data Figure 12. Sequential Read Start By Master No Acknowledge Acknowledge Address Stop S X 1 A Slave Address By F-RAM Data Byte Acknowledge A Data Byte 1 P Data Figure 13. Hs-mode Current Address Read Start By Master S 0 0 0 0 By F-RAM Document Number: 001-84463 Rev. *J 1 X No Acknowledge Start & Enter HS-mode Address HS-mode command X X 1 S No Acknowledge Stop & Exit HS-mode Slave Address X 1 A Acknowledge Data Byte 1 P Data Page 8 of 23 FM24V10 Selective (Random) Read There is a simple technique that allows a user to select a random address location as the starting point for a read operation. This involves using the first three bytes of a write operation to set the internal address followed by subsequent read operations. To perform a selective read, the bus master sends out the slave address with the LSB (R/W) set to 0. This specifies a write operation. According to the write protocol, the bus master then sends the address bytes that are loaded into the internal address latch. After the FM24V10 acknowledges the address, the bus master issues a START condition. This simultaneously aborts the write operation and allows the read command to be issued with the slave address LSB set to a ‘1’. The operation is now a current address read. Figure 14. Selective (Random) Read Start Address By Master Start No Acknowledge Address Stop S Slave Address P 0 S A Address MSB A Address LSB By F-RAM A S Slave Address X 1 A Data Byte Data Acknowledge Sleep Mode A low power mode called Sleep Mode is implemented on the FM24V10 device. The device will enter this low power state when the Sleep command 86h is clocked-in. Sleep Mode entry can be entered as follows: 1. The master sends a START command. 2. The master sends Reserved Slave ID F8h. 3. The FM24V10 sends an ACK. 4. The master sends the I2C-bus slave address of the slave device it needs to identify. The last bit is a ‘Don’t care’ value (page select and R/W bits). Only one device must acknowledge this byte (the one that has the I2C-bus slave address). 5. The FM24V10 sends an ACK. 6. The master sends a Re-START command. 7. The master sends Reserved Slave ID 86h. 1 P 8. The FM24V10 sends an ACK. 9. The master sends STOP to ensure the device enters sleep mode. Note Errata: Step 9 - Sending STOP is an optional step for FM24V10. The FM24V10 starts entering the Sleep mode from step 8 and releases the SDA line when in the Sleep mode. The LOW to HIGH transition on the SDA line when I2C clock is HIGH generates an unintended STOP. For more information, see Errata on page 19. Once in sleep mode, the device draws IZZ current, but the device continues to monitor the I2C pins. Once the master sends a Slave Address that the FM24V10 identifies, it will “wakeup” and be ready for normal operation within tREC time. As an alternative method of determining when the device is ready, the master can send read or write commands and look for an ACK. While the device is waking up, it will NACK the master until it is ready. Figure 15. Sleep Mode Entry Start Address By Master S Rsvd Slave ID (F8) A Start Slave Address X X A By F-RAM Device ID The FM24V10 device incorporates a means of identifying the device by providing three bytes of data, which are manufacturer ID, product ID, and die revision. The Device ID is read-only. It can be accessed as follows: 1. The master sends a START command. 2. The master sends Reserved Slave ID F8h. 3. The FM24V10 sends an ACK. 4. The master sends the I2C-bus slave address of the slave device it needs to identify. The last bit is a ‘Don’t care’ value (page select and R/W bits). Only one device must acknowledge this byte (the one that has the I2C-bus slave address). Document Number: 001-84463 Rev. *J S Address Rsvd Slave ID (86) Stop A P Acknowledge 5. The FM24V10 sends an ACK. 6. The master sends a Re-START command. 7. The master sends Reserved Slave ID F9h. 8. The FM24V10 sends an ACK. 9. The Device ID Read can be done, starting with the 12 manufacturer bits, followed by the 9 device identification bits, and then the 3 die revision bits. 10.The master ends the Device ID read sequence by NACKing the last byte, thus resetting the slave device state machine and allowing the master to send the STOP command. Note The reading of the Device ID can be stopped anytime by sending a NACK command. Page 9 of 23 FM24V10 Table 1. Device ID 23–12 (12 bits) Device ID (3 bytes) Device Manufacturer ID FM24V10 FM24VN10 004400h 004480h 000000000100 000000000100 Device ID Description 11–8 7–3 (4 bits) (5 bits) Product ID Density Variation 0100 N0000 0100 10000 2–0 (3 bits) Die Rev 000 000 Note Product ID bit 4 = S/N, Product ID bit 0 = reserved. Figure 16. Read Device ID Start Address By Master No Acknowledge Acknowledge Address Start Stop S Rsvd Slave ID (F8) A Slave Address X X A By F-RAM S Rsvd Slave ID (F9) A Data Byte A Data Byte A Data Byte 1 P Data Acknowledge Unique Serial Number (FM24VN10 only) The FM24VN10 device also incorporates a read-only 8-byte serial number. It can be used to uniquely identify a pc board or system. The serial number includes a 40-bit unique number, an 8-bit CRC, and a 16-bit number that can be defined upon request by the customer. If a customer-specific number is not requested, the 16-bit Customer Identifier is 0000h. The 8 bytes of data are accessed via a slave address sequence similar to the Device ID. The serial number can be read by the system as follows: 1. The master sends a START command 2. The master sends Reserved Slave ID F8h 3. The FM24VN10 sends an ACK. 4. The master sends the I2C-bus slave address of the slave device it needs to identify. The last two bits are ‘Don’t care’ values. Only one device must acknowledge this byte (the one that has the I2C-bus slave address). 5. The FM24VN10 sends an ACK. 6. The master sends a Re-START command 7. The master sends Reserved Slave ID CDh to read the serial number. 8. The FM24VN10 sends an ACK. 9. The master ends the serial number read sequence by NACKing the last byte, thus resetting the slave device state machine and allowing the master to send the STOP command. The 8-bit CRC value can be used to compare to the value calculated by the controller. If the two values match, then the communication between slave and master was performed without errors. The function (shown in Function to Calculate CRC on page 11) is used to calculate the CRC value. To perform the calculation, 7 bytes of data are filled into a memory buffer in the same order as they are read from the part - i.e. byte7, byte6, byte5, byte4, byte3, byte2, byte1 of the serial number. The calculation is performed on the 7 bytes, and the result should match the final byte out from the part which is byte0, the 8-bit CRC value. Table 2. 8-Byte Serial Number (read-only) Customer IDENTIFIER SN(63–56) 40-bit UNIQUE NUMBER SN(55–48) SN(47–40) SN(39–32) SN(31–24) 8-bit CRC SN(23–16) SN(15–8) SN(7–0) Note Contact factory for requesting a customer identifier number. Figure 17. 8-byte Serial Number (read-only) Start Address By Master Address Start No Acknowledge Acknowledge Stop S Rsvd Slave ID (F8) A Slave Address By F-RAM Document Number: 001-84463 Rev. *J X X A S Rsvd Slave ID (CD) Acknowledge A Data Byte 7 A A Data Byte 0 1 P Data Page 10 of 23 FM24V10 Function to Calculate CRC BYTE calcCRC8( BYTE* pData, int nBytes ) { static BYTE crctable[256] = { 0x00, 0x07, 0x0E, 0x09, 0x1C, 0x1B, 0x12, 0x15, 0x38, 0x3F, 0x36, 0x31, 0x24, 0x23, 0x2A, 0x2D, 0x70, 0x77, 0x7E, 0x79, 0x6C, 0x6B, 0x62, 0x65, 0x48, 0x4F, 0x46, 0x41, 0x54, 0x53, 0x5A, 0x5D, 0xE0, 0xE7, 0xEE, 0xE9, 0xFC, 0xFB, 0xF2, 0xF5, 0xD8, 0xDF, 0xD6, 0xD1, 0xC4, 0xC3, 0xCA, 0xCD, 0x90, 0x97, 0x9E, 0x99, 0x8C, 0x8B, 0x82, 0x85, 0xA8, 0xAF, 0xA6, 0xA1, 0xB4, 0xB3, 0xBA, 0xBD, 0xC7, 0xC0, 0xC9, 0xCE, 0xDB, 0xDC, 0xD5, 0xD2, 0xFF, 0xF8, 0xF1, 0xF6, 0xE3, 0xE4, 0xED, 0xEA, 0xB7, 0xB0, 0xB9, 0xBE, 0xAB, 0xAC, 0xA5, 0xA2, 0x8F, 0x88, 0x81, 0x86, 0x93, 0x94, 0x9D, 0x9A, 0x27, 0x20, 0x29, 0x2E, 0x3B, 0x3C, 0x35, 0x32, 0x1F, 0x18, 0x11, 0x16, 0x03, 0x04, 0x0D, 0x0A, 0x57, 0x50, 0x59, 0x5E, 0x4B, 0x4C, 0x45, 0x42, 0x6F, 0x68, 0x61, 0x66, 0x73, 0x74, 0x7D, 0x7A, 0x89, 0x8E, 0x87, 0x80, 0x95, 0x92, 0x9B, 0x9C, 0xB1, 0xB6, 0xBF, 0xB8, 0xAD, 0xAA, 0xA3, 0xA4, 0xF9, 0xFE, 0xF7, 0xF0, 0xE5, 0xE2, 0xEB, 0xEC, 0xC1, 0xC6, 0xCF, 0xC8, 0xDD, 0xDA, 0xD3, 0xD4, 0x69, 0x6E, 0x67, 0x60, 0x75, 0x72, 0x7B, 0x7C, 0x51, 0x56, 0x5F, 0x58, 0x4D, 0x4A, 0x43, 0x44, 0x19, 0x1E, 0x17, 0x10, 0x05, 0x02, 0x0B, 0x0C, 0x21, 0x26, 0x2F, 0x28, 0x3D, 0x3A, 0x33, 0x34, 0x4E, 0x49, 0x40, 0x47, 0x52, 0x55, 0x5C, 0x5B, 0x76, 0x71, 0x78, 0x7F, 0x6A, 0x6D, 0x64, 0x63, 0x3E, 0x39, 0x30, 0x37, 0x22, 0x25, 0x2C, 0x2B, 0x06, 0x01, 0x08, 0x0F, 0x1A, 0x1D, 0x14, 0x13, 0xAE, 0xA9, 0xA0, 0xA7, 0xB2, 0xB5, 0xBC, 0xBB, 0x96, 0x91, 0x98, 0x9F, 0x8A, 0x8D, 0x84, 0x83, 0xDE, 0xD9, 0xD0, 0xD7, 0xC2, 0xC5, 0xCC, 0xCB, 0xE6, 0xE1, 0xE8, 0xEF, 0xFA, 0xFD, 0xF4, 0xF3 }; BYTE crc = 0; .................... while( nBytes-- ) crc = crctable[crc ^ *pData++]; return crc; } Document Number: 001-84463 Rev. *J Page 11 of 23 FM24V10 Maximum Ratings Exceeding maximum ratings may shorten the useful life of the device. These user guidelines are not tested. Storage temperature ................................ –65 °C to +125 °C Package power dissipation capability (TA = 25 °C) ................................................................. 1.0 W Surface mount lead soldering temperature (10 seconds) ............................................................ +260 °C Maximum accumulated storage time At 125 °C ambient temperature ................................. 1000 h At 85 °C ambient temperature ................................ 10 Years Electrostatic Discharge Voltage Human Body Model (AEC-Q100-002 Rev. E) .................. 2.5 kV Charged Device Model (AEC-Q100-011 Rev. B) ............. 1.25 kV Machine Model (AEC-Q100-003 Rev. E) ............................ 200 V Ambient temperature with power applied ................................... –55 °C to +125 °C Latch-up current .................................................... > 140 mA Supply voltage on VDD relative to VSS .........–1.0 V to +4.5 V Input voltage .......... –1.0 V to + 4.5 V and VIN < VDD + 1.0 V DC voltage applied to outputs in High-Z state .................................... –0.5 V to VDD + 0.5 V * Exception: The “VIN < VDD + 1.0 V” restriction does not apply to the SCL and SDA inputs. Operating Range Transient voltage (< 20 ns) on any pin to ground potential ............ –2.0 V to VDD + 2.0 V Range Ambient Temperature (TA) VDD Industrial –40 C to +85 C 2.0 V to 3.6 V DC Electrical Characteristics Over the Operating Range Parameter Description VDD Power supply IDD Average VDD current Test Conditions SCL toggling between VDD – 0.2 V and VSS, other inputs VSS or VDD – 0.2 V. Min Typ [1] Max Unit 2.0 3.3 3.6 V fSCL = 100 kHz – – 175 A fSCL = 1 MHz – – 400 A fSCL = 3.4 MHz – – 1000 A ISB Standby current SCL = SDA = VDD. All other inputs VSS or VDD. Stop command issued. – 90 150 A IZZ Sleep mode current SCL = SDA = VDD. All other inputs VSS or VDD. Stop command issued. – 5 8 A ILI Input leakage current (Except WP and A2–A1) VSS < VIN < VDD –1 – +1 A Input leakage current (for WP and A2–A1) VSS < VIN < VDD –1 – +100 A ILO Output leakage current VSS < VIN < VDD –1 – +1 A VIH Input HIGH voltage 0.7 × VDD – VDD + 0.3 V VIL Input LOW voltage –0.3 – 0.3 × VDD V VOL1 Output LOW voltage IOL = 2 mA, VDD > 2.7 V – – 0.4 V VOL2 Output LOW voltage IOL = 150 A – – 0.2 V Input resistance (WP, A2–A1) For VIN = VIL (Max) 50 – – k For VIN = VIH (Min) 1 – – M Rin [2] Notes 1. Typical values are at 25 °C, VDD = VDD (typ). Not 100% tested. 2. The input pull-down circuit is strong (50 k) when the input voltage is below VIL and weak (1 M) when the input voltage is above VIH. Document Number: 001-84463 Rev. *J Page 12 of 23 FM24V10 Data Retention and Endurance Parameter TDR NVC Description Test condition Data retention Endurance Min Max Unit TA = 85 C 10 – Years TA = 75 C 38 – TA = 65 C 151 – 14 – Over operating temperature 10 Cycles Capacitance Parameter [3] Description Test Conditions CO Output pin capacitance (SDA) CI Input pin capacitance Max Unit 8 pF 6 pF Test Conditions 8-pin SOIC Unit Test conditions follow standard test methods and procedures for measuring thermal impedance, per EIA/JESD51. 138 C/W 40 C/W TA = 25 C, f = 1 MHz, VDD = VDD(typ) Thermal Resistance Parameter [3] Description JA Thermal resistance (junction to ambient) JC Thermal resistance (junction to case) AC Test Loads and Waveforms Figure 18. AC Test Loads and Waveforms 3.6 V 1.8 k OUTPUT 100 pF AC Test Conditions Input pulse levels .................................10% and 90% of VDD Input rise and fall times .................................................10 ns Input and output timing reference levels ................0.5 × VDD Output load capacitance ............................................ 100 pF Note 3. These parameters are guaranteed by design and are not tested. Document Number: 001-84463 Rev. *J Page 13 of 23 FM24V10 AC Switching Characteristics Over the Operating Range Parameter [4] Cypress Parameter F/S-mode [5] Description Alt. Parameter Hs-mode[5] Unit Min Max Min Max – 1.0 – 3.4 MHz fSCL[6] SCL clock frequency tSU; STA Start condition setup for repeated Start 260 – 160 – ns tHD;STA Start condition hold time 260 – 160 – ns tLOW Clock LOW period 500 – 160 – ns Clock HIGH period 260 – 60 – ns tSU;DATA Data in setup 50 – 10 – ns tHD;DATA Data in hold 0 – 0 – ns Data output hold (from SCL @ VIL) 0 – 0 – ns – 120 – 80 ns tHIGH tSU;DAT [7] tHD;DAT tDH [8] tr Input rise time tF[8] tf Input fall time tR – 120 – 80 ns 260 – 160 – ns SCL LOW to SDA Data Out Valid – 450 – 130 ns tBUF Bus free before new transmission 500 – 300 – ns tSP Noise suppression time constant on SCL, SDA – 50 – 5 ns tSU;STO tAA STOP condition setup tVD;DATA Figure 19. Read Bus Timing Diagram tR ` tF tHIGH tSP tLOW tSP SCL tSU:SDA 1/fSCL tBUF tHD:DAT tSU:DAT SDA tDH tAA Stop Start Start Acknowledge Figure 20. Write Bus Timing Diagram tHD:DAT SCL tHD:STA tSU:STO tSU:DAT tAA SDA Start Stop Start Acknowledge Notes 4. Test conditions assume signal transition time of 10 ns or less, timing reference levels of VDD/2, input pulse levels of 0 to VDD(typ), and output loading of the specified IOL and load capacitance shown in Figure 18 on page 13. 5. Bus Load (Cb) considerations; Cb < 500 pF for I2C clock frequency (SCL) 1 MHz; Cb < 100 pF for SCL at 3.4 MHz. 6. The speed-related specifications are guaranteed characteristic points along a continuous curve of operation from DC to fSCL (max). 7. In Hs-mode and VDD < 2.7 V, the tSU:DAT (min.) spec is 15 ns. 8. These parameters are guaranteed by design and are not tested. Document Number: 001-84463 Rev. *J Page 14 of 23 FM24V10 Power Cycle Timing Over the Operating Range Parameter Description Min Max Unit 250 – µs tPU Power-up VDD(min) to first access (START condition) tPD Last access (STOP condition) to power-down (VDD(min)) 0 – µs tVR [9, 10] VDD power-up ramp rate 50 – µs/V tVF [9, 10] VDD power-down ramp rate 100 – µs/V tREC [10] Recovery time from sleep mode – 400 µs VDD ~ ~ Figure 21. Power Cycle Timing VDD(min) tVR SDA I2 C START tVF tPD ~ ~ tPU VDD(min) I2 C STOP Notes 9. Slope measured at any point on the VDD waveform. 10. Guaranteed by design. Document Number: 001-84463 Rev. *J Page 15 of 23 FM24V10 Ordering Information Package Diagram Ordering Code FM24V10-G 51-85066 Package Type 8-pin SOIC Operating Range Industrial FM24V10-GTR FM24VN10-G 8-pin SOIC, Serial Number FM24VN10-GTR All these parts are Pb-free. Contact your local Cypress sales representative for availability of these parts. Ordering Code Definitions FM 24 V N 10 - G X Option: X = Blank or TR Blank = Standard; TR = Tape and Reel Package Type: G = 8-pin SOIC Density: 10 = 1-Mbit N = Serial Number Voltage: V = 2.0 V to 3.6 V I2C F-RAM Cypress Document Number: 001-84463 Rev. *J Page 16 of 23 FM24V10 Package Diagram Figure 22. 8-pin SOIC (150 Mils) Package Outline, 51-85066 51-85066 *I Document Number: 001-84463 Rev. *J Page 17 of 23 FM24V10 Acronyms Acronym Document Conventions Description Units of Measure ACK Acknowledge CMOS Complementary Metal Oxide Semiconductor °C degree Celsius EIA Electronic Industries Alliance Hz hertz I2C Inter-Integrated Circuit Kb 1024 bit I/O Input/Output kHz kilohertz JEDEC Joint Electron Devices Engineering Council k kilohm LSB Least Significant Bit MHz megahertz MSB Most Significant Bit M megaohm NACK No Acknowledge A microampere RoHS Restriction of Hazardous Substances s microsecond R/W Read/Write mA milliampere SCL Serial Clock Line ms millisecond ns nanosecond SDA Serial Data Access  ohm SOIC Small Outline Integrated Circuit % percent WP Write Protect pF picofarad V volt W watt Document Number: 001-84463 Rev. *J Symbol Unit of Measure Page 18 of 23 FM24V10 Errata This document describes the errata for the serial I2C F-RAM FM24V10/FM24VN10 (1-Mbit) product. Details include errata trigger conditions, scope of impact, available workarounds, and silicon revision applicability. Compare this document to the device’s datasheet for a complete functional description. Contact your local Cypress Sales Representative if you have questions. You can also send your related queries directly to cypressfram@cypress.com. Part Numbers Affected Part Number Device Characteristics FM24V10 1-Mbit (128K × 8) Serial (I2C) F-RAM with Device ID, 2.0 V to 3.6 V, Industrial temperature FM24VN10 1-Mbit (128K × 8) Serial (I2C) F-RAM with Device ID and Unique Serial Number, 2.0 V to 3.6 V, Industrial temperature FM24V10/FM24VN10 I2C F-RAM Qualification Status Production parts. FM24V10/FM25VN10 Errata Summary The following table defines the errata applicability to available FM24V10/FM24VN10 devices. Items Part Number 1. The I2C F-RAM enters Sleep mode without the STOP condition FM24V10-G FM24V10-GTR FM24VN10-G FM24VN10-GTR Silicon Revision Rev A Fix Status None. 1. The I2C F-RAM enters Sleep mode without the STOP condition ■ Problem Definition When the I2C master sends the last Reserved Slave ID (86h) of the Sleep command sequence, as shown in Figure 23, the I2C F-RAM returns an acknowledgement (ACK) and releases the SDA line after the rising edge of the 9th clock. If this LOW to HIGH transition on the SDA line happens when the I2C clock is HIGH, it artificially generates an unintended STOP. Figure 23. I2C F-RAM Sleep Cycle Document Number: 001-84463 Rev. *J Page 19 of 23 FM24V10 ■ Parameters Affected None of the existing parameters are affected. ■ Trigger Condition(S) The I2C master sends the last Reserved Slave ID (86h) of the Sleep command and receives an ACK from the I2C F-RAM. The I2C F-RAM starts entering the Sleep mode from the 9th rising edge of the I2C clock and releases the SDA line when in the Sleep mode. The LOW to HIGH transition on the SDA line when I2C clock is HIGH generates an unintended STOP. ■ Scope of Impact The ongoing I2C communication can be disrupted due to unintended STOP generated by the I2C F-RAM slave. ■ Workaround This issue can be mitigated by implementing one of the following two methods: The I2C master ignores any unintended STOP generated by the I2C F-RAM slave. 2 2 ❐ The I C master latches the ACK on the 9th rising edge of the I C clock and starts driving the SDA line LOW. This will ensure when the I2C F-RAM enters Sleep and releases the SDA line; it still remains LOW driven by the I2C master. This will prevent unintended LOW to HIGH transition when SCL is LOW. ❐ ■ Fix Status This issue is applicable to all the existing I2C F-RAM parts shown in this errata. The existing parts are in production status and will continue serving with errata. There is no plan to fix this issue in the existing silicon. Document Number: 001-84463 Rev. *J Page 20 of 23 FM24V10 Document History Page Document Title: FM24V10, 1-Mbit (128K × 8) Serial (I2C) F-RAM Document Number: 001-84463 Rev. ECN No. Orig. of Change Submission Date ** 3902204 GVCH 02/25/2013 New spec Description of Change *A 3996669 GVCH 05/13/2013 Added Appendix A - Errata for FM24V10 and FM24VN10 *B 4045469 GVCH 06/30/2013 All errata items are fixed and the errata is removed. *C 4283424 GVCH 02/18/2014 Updated Maximum Ratings: Added “Maximum junction temperature” and its corresponding details. Added “DC voltage applied to outputs in High-Z state” and its corresponding details. Added “Transient voltage (< 20 ns) on any pin to ground potential” and its corresponding details. Added “Package power dissipation capability (TA = 25 °C)” and its corresponding details. Removed “Package Moisture Sensitivity Level (MSL)” and its corresponding details. Added “Latch-up current” and its corresponding details. Updated DC Electrical Characteristics: Removed existing details of ILI parameter and splitted ILI parameter into two rows namely “Input leakage current (Except WP and A2–A1)” and “Input leakage current (for WP and A2–A1)” and added corresponding values. Updated Data Retention and Endurance: Removed existing details of TDR parameter. Added details of TDR parameter corresponding to “TA = 85 °C”, “TA = 75 °C” and “TA = 65 °C”. Added NVC parameter and its corresponding details. Added Thermal Resistance. Updated Package Diagram: Removed Package Marking Scheme (top mark). Removed “Ramtron Revision History”. Updated to Cypress template. Completing Sunset Review. *D 4564960 GVCH 11/10/2014 Updated Functional Description: Added “For a complete list of related documentation, click here.” at the end. *E 4700243 GVCH 03/26/2015 Updated Package Diagram: spec 51-85066 – Changed revision from *F to *G. Added Errata. *F 4781095 GVCH 05/29/2015 Updated Ordering Information: No change in part numbers. Fixed Typo (Replaced “001-85066” with “51-85066” in “Package Diagram” column). Updated to new template. *G 4874648 ZSK / PSR 08/06/2015 Updated Maximum Ratings: Removed “Maximum junction temperature” and its corresponding details. Added “Maximum accumulated storage time” and its corresponding details. Added “Ambient temperature with power applied” and its corresponding details. Document Number: 001-84463 Rev. *J Page 21 of 23 FM24V10 Document History Page (continued) Document Title: FM24V10, 1-Mbit (128K × 8) Serial (I2C) F-RAM Document Number: 001-84463 Rev. ECN No. Orig. of Change Submission Date *H 5366088 GVCH 07/22/2016 Updated Pin Definitions: Added details corresponding to “NC” pin. Updated Package Diagram: spec 51-85066 – Changed revision from *G to *H. Updated to new template. *I 5738855 GNKK 05/16/2017 Updated Cypress logo and copyright. *J 6422002 GVCH 12/26/2018 Updated Maximum Ratings: Replaced “–55 °C to +125 °C” with “–65 °C to +125 °C” in ratings corresponding to “Storage temperature”. Updated Package Diagram: spec 51-85066 – Changed revision from *H to *I. Updated to new template. Completing Sunset Review. Document Number: 001-84463 Rev. *J Description of Change Page 22 of 23 FM24V10 Sales, Solutions, and Legal Information Worldwide Sales and Design Support Cypress maintains a worldwide network of offices, solution centers, manufacturer’s representatives, and distributors. To find the office closest to you, visit us at Cypress Locations. PSoC® Solutions Products Arm® Cortex® Microcontrollers Automotive cypress.com/arm cypress.com/automotive Clocks & Buffers Interface cypress.com/clocks cypress.com/interface Internet of Things Memory cypress.com/iot cypress.com/memory Microcontrollers cypress.com/mcu PSoC cypress.com/psoc Power Management ICs Touch Sensing USB Controllers Wireless Connectivity PSoC 1 | PSoC 3 | PSoC 4 | PSoC 5LP | PSoC 6 MCU Cypress Developer Community Community | Projects | Video | Blogs | Training | Components Technical Support cypress.com/support cypress.com/pmic cypress.com/touch cypress.com/usb cypress.com/wireless © Cypress Semiconductor Corporation, 2013–2018. This document is the property of Cypress Semiconductor Corporation and its subsidiaries, including Spansion LLC (“Cypress”). This document, including any software or firmware included or referenced in this document (“Software”), is owned by Cypress under the intellectual property laws and treaties of the United States and other countries worldwide. Cypress reserves all rights under such laws and treaties and does not, except as specifically stated in this paragraph, grant any license under its patents, copyrights, trademarks, or other intellectual property rights. If the Software is not accompanied by a license agreement and you do not otherwise have a written agreement with Cypress governing the use of the Software, then Cypress hereby grants you a personal, non-exclusive, nontransferable license (without the right to sublicense) (1) under its copyright rights in the Software (a) for Software provided in source code form, to modify and reproduce the Software solely for use with Cypress hardware products, only internally within your organization, and (b) to distribute the Software in binary code form externally to end users (either directly or indirectly through resellers and distributors), solely for use on Cypress hardware product units, and (2) under those claims of Cypress’s patents that are infringed by the Software (as provided by Cypress, unmodified) to make, use, distribute, and import the Software solely for use with Cypress hardware products. Any other use, reproduction, modification, translation, or compilation of the Software is prohibited. TO THE EXTENT PERMITTED BY APPLICABLE LAW, CYPRESS MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARD TO THIS DOCUMENT OR ANY SOFTWARE OR ACCOMPANYING HARDWARE, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. No computing device can be absolutely secure. Therefore, despite security measures implemented in Cypress hardware or software products, Cypress does not assume any liability arising out of any security breach, such as unauthorized access to or use of a Cypress product. In addition, the products described in these materials may contain design defects or errors known as errata which may cause the product to deviate from published specifications. To the extent permitted by applicable law, Cypress reserves the right to make changes to this document without further notice. Cypress does not assume any liability arising out of the application or use of any product or circuit described in this document. Any information provided in this document, including any sample design information or programming code, is provided only for reference purposes. It is the responsibility of the user of this document to properly design, program, and test the functionality and safety of any application made of this information and any resulting product. Cypress products are not designed, intended, or authorized for use as critical components in systems designed or intended for the operation of weapons, weapons systems, nuclear installations, life-support devices or systems, other medical devices or systems (including resuscitation equipment and surgical implants), pollution control or hazardous substances management, or other uses where the failure of the device or system could cause personal injury, death, or property damage (“Unintended Uses”). A critical component is any component of a device or system whose failure to perform can be reasonably expected to cause the failure of the device or system, or to affect its safety or effectiveness. Cypress is not liable, in whole or in part, and you shall and hereby do release Cypress from any claim, damage, or other liability arising from or related to all Unintended Uses of Cypress products. You shall indemnify and hold Cypress harmless from and against all claims, costs, damages, and other liabilities, including claims for personal injury or death, arising from or related to any Unintended Uses of Cypress products. Cypress, the Cypress logo, Spansion, the Spansion logo, and combinations thereof, WICED, PSoC, CapSense, EZ-USB, F-RAM, and Traveo are trademarks or registered trademarks of Cypress in the United States and other countries. For a more complete list of Cypress trademarks, visit cypress.com. Other names and brands may be claimed as property of their respective owners. Document Number: 001-84463 Rev. *J Revised December 26, 2018 Page 23 of 23
