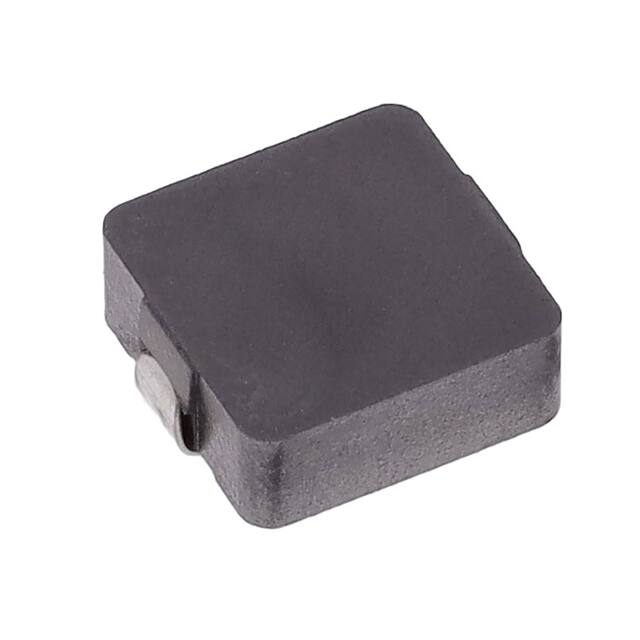

CMLE104T-R36MS0R765

CYNTEC CO., LTD. 乾坤科技股份有限公司 DOCUMENT : CMLE104T-000 REVISION : A0 PAGE : 1 OF 3 Power Choke Coil CMLE104T MS type
Features High performance (Isat) realized by metal dust core. Low profile Thickness max. 4.0mm Low loss realized with low DCR Capable of corresponding high frequency (3MHz) 100% lead (Pb) free meet RoHS standard ：
Application DC/DC converter for CPU in Notebook PC Thin type on-board power supply module for exchanger VRM for server
Outline Dimensions L A' A B W B' Code Dimensions (mm) L 11.15 ± 0.35 W 10 ± 0.3 T 3.8 ± 0.2 A 2.0 ± 0.5 A 2.5 ± 0.1 B 3.0 ± 0.5 ’ B H H
’ 5.0 ± 0.2 0 ~ +0.15 T Recommend Land Pattern Dimensions The customer shall determine the land dimensions shown below after confirming and safety. B A C A 4.1 B 5.4 C 13.6 Unit : mm Mar., 2015 CYNTEC CO., LTD. 乾坤科技股份有限公司
DOCUMENT : CMLE104T-000 REVISION : A0 PAGE : 2 OF 3 Specifications L0 Inductance ( µH ) @ (0A) Rdc ( mΩ) CMLE104T-R22MS0R607 0.22 CMLE104T-R36MS0R765 Part Number Heat Rating Current DC Amps. Idc ( A ) Saturation Current DC Amps. Isat ( A ) Typical Maximum Typical Maximum 0.6 ± 7% 50.0 45.0 72.0 66.0 0.36 0.76 ± 5% 43.0 38.0 46.0 41.0 CMLE104T-R45MS1R007 0.45 1.0 ± 7% 35.0 32.0 45.0 38.0 CMLE104T-R56MS1R407 0.56 1.4 ± 7% 30.0 28.0 38.0 35.0 CMLE104T-R68MS1R607 0.68 1.6 ± 7% 28.0 25.0 34.0 31.0 CMLE104T-R88MS2R307 0.88 2.3 ± 7% 27.0 24.0 33.0 28.5 CMLE104T-1R0MS2R307 1.0 2.3 ± 7% 25.0 22.5 32.0 28.0 ：If you require another part number please contact with us. **：Inductance Tolerance ± 20% Note 1.： All test data is referenced to 25℃ ambient. Note 2.： Test Condition:100KHz, 1.0Vrms Note 3.： Idc : DC current (A) that will cause an approximate △T of 40℃ Note 4.： Isat : DC current (A) that will cause L0 to drop approximately 30% Note 5.： Operating Temperature Range -55℃ to + 125℃ Note 6.： The part temperature (ambient + temp rise) should not exceed 125℃ under the worst case operating * conditions. Circuit design, component placement, PCB trace size and thickness, airflow and other cooling provision all affect the part temperature. Part temperature should be verified in the end application. Note 7. ： The rated current as listed is either the saturation current or the heating current depending on which value is lower. Mar., 2015 CYNTEC CO., LTD. 乾坤科技股份有限公司
: CMLE104T-000 REVISION : A0 PAGE : 3 OF 3 Current Characteristic 0.42 80 0.35 ℃ ) 0.25 100 0.20 INDUCTANCE(µH) 40 ℃) 20 0.05 0.00 5 TEMP RISE ( 0.14 0 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 DC BIAS(Amps) 60 INDUCTANCE(µH) ℃) 40 0.20 ℃ TEMPRISE( ) 0.40 20 0.10 0.00 5 10 15 20 25 30 35 40 45 50 55 80 0.48 60 0.36 INDUCTANCE(µH) TEMP.RISE( 0.24 0.00 60 0 0 5 10 15 60 INDUCTANCE(µH) 0.42 TEMP. RISE( 0.28 ℃) 40 20 0.14 0.00 5 1.20 10 15 20 25 30 DC BIAS(Amps) 35 40 40 45 100 0.90 80 0.72 60 INDUCTANCE(µH) 0.54 TEMP.RISE( 0.36 ℃) 40 20 0.18 0.00 0 0 0 0 45 5 10 15 20 25 30 35 40 DC BIAS(Amps) 100 CMLE104T-1R0MS2R307 1.00 INDUCTANCE(µH) ℃ INDUCTANCE(µH) 80 0.56 35 CMLE104T-R88MS2R307 1.08 TEMPRISE( ) 0.70 20 25 30 DC BIAS(Amps) 80 0.80 60 INDUCTANCE(µH) 0.60 TEMP.RISE( 0.40 ℃) 40 ℃ TEMPRISE( ) INDUCTANCE(µH) 100 CMLE104T-R68MS1R607 40 20 0.20 0.00 0 0 5 10 15 20 25 30 35 ℃ 20 DC BIAS(Amps) 0.84 ℃) 0.12 0 0 100 CMLE104T-R56MS1R407 0.60 80 INDUCTANCE(µH) 0.50 INDUCTANCE(µH) 0.72 100 CMLE104T-R45MS1R007 TEMP. RISE( ℃ 20 DC BIAS(Amps) 0.30 40 0.00 10 15 20 25 30 35 40 45 50 55 60 65 70 75 0.60 ℃) 0.07 0 0 60 INDUCTANCE(µH) 0.21 TEMPRISE( ) TEMP. RISE( 80 0.28 40 DC BIAS(Amps) Mar., 2015 ℃ TEMPRISE( ) 0.10 TEMP RISE( 60 0.15 100 CMLE104T-R36MS0R765 TEMPRISE( ) CMLE104T-R22MS0R607 INDUCTANCE(µH) 0.30 INDUCTANCE(µH) DOCUMENT
