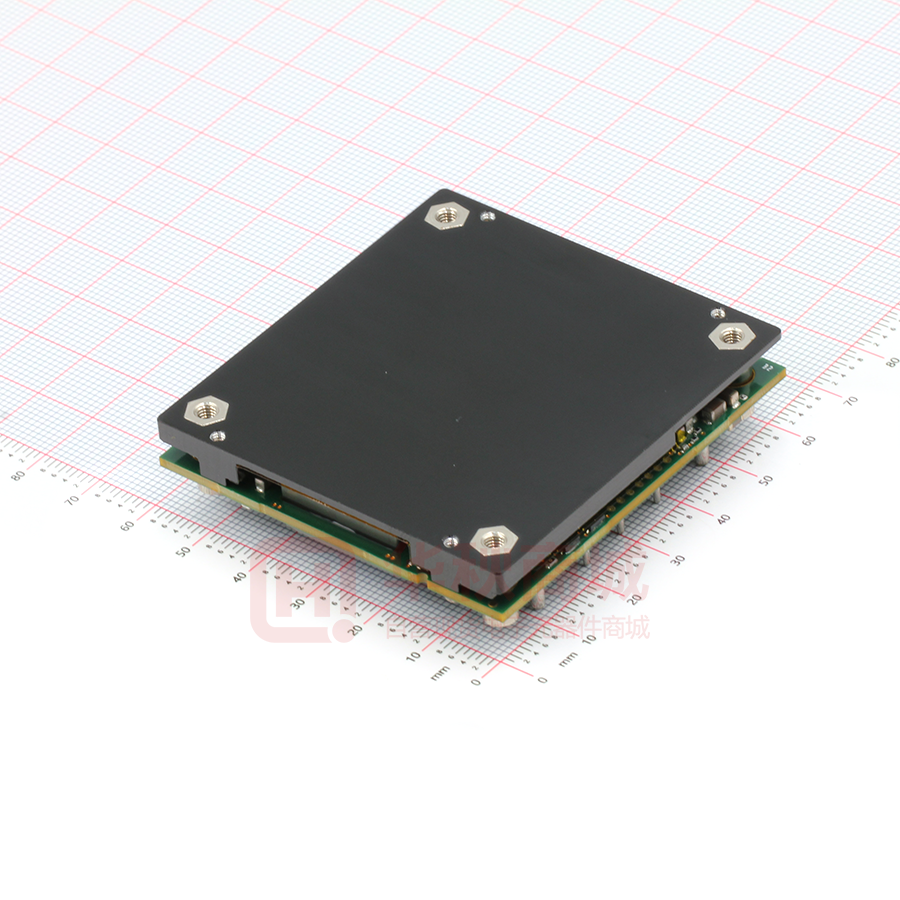

H48SC28016NNFH

H48SC28016 450W DC/DC Power Module FEATURES               High efficiency: 95% @ 28V/16A Size: 61.0x57.9x10.8mm (2.40”x2.28”x0.43”) w/o heat-spreader 61.0x57.9x12.5mm (2.40”x2.28”x0.49”) with heat-spreader Industry standard footprint and pinout Fixed frequency operation Input UVLO OTP and output OVP Output OCP hiccup mode Output voltage trim range: 23~33V and 14~33V optional Monotonic startup into normal and pre-biased loads 1500V isolation and basic insulation No minimum load required No negative current during power or enable on/off ISO 9001, TL 9000, ISO 14001, QS 9000, OHSAS18001 certified manufacturing facility UL/cUL 60950-1 (US & Canada) H48SC28016 Half Brick DC/DC Power Modules 36~75V in, 28V/16A out, 450W H48SC28016, 36~75V input, isolated single output, Half Brick, are full digital control DC/DC converters, it provides up to 450 watts of power in an industry standard, DOSA compliant footprint and pin out; the typical efficiency is 95% at 48V input, 28V output and 16A load. There is a built-in digital PWM controller in the H48SC28016, which is used to complete the Vo feedback, PWM signal generation, fault protection, and PMBUS communications, and so on. With the digital control, many design and application flexibility, advanced performance, and reliability are obtained. DS_H48SC28016_12092020 OPTIONS  Negative or Positive Remote On/Off  Open frame/Heat spreader  Digital pins, PMBus APPLICATIONS  Optical Transport  Data Networking  Communications  Servers E-mail: dcdc@deltaww.com http://www.deltaww.com/dcdc P1 TECHNICAL SPECIFICATIONS (TA=25°C, airflow rate=300 LFM, Vin=48Vdc, nominal Vout unless otherwise noted.) PARAMETER NOTES and CONDITIONS H48SC28016 Min. ABSOLUTE MAXIMUM RATINGS Input Voltage Continuous Transient (100ms) Operating Ambient Temperature Storage Temperature Input/output Isolation Voltage INPUT CHARACTERISTICS Operating Input Voltage Input Under-Voltage Lockout Turn-On Voltage Threshold Turn-Off Voltage Threshold Lockout Hysteresis Voltage Maximum Input Current No-Load Input Current Off Converter Input Current Inrush Current ( I2t) Input Reflected-Ripple Current Input Voltage Ripple Rejection OUTPUT CHARACTERISTICS Output Voltage Set Point Output Regulation Over Load Over Line Over Temperature Total Output Voltage Range Output Voltage Ripple and Noise Peak-to-Peak RMS Operating Output Current Range Output Over Current Protection(hiccup mode) DYNAMIC CHARACTERISTICS Output Voltage Current Transient Positive Step Change in Output Current Negative Step Change in Output Current Settling Time (within 1% Vout nominal) Turn-On Transient Start-Up Time, From On/Off Control Start-Up Time, From Input Output Capacitance (note1) EFFICIENCY 100% Load 100% Load 60% Load ISOLATION CHARACTERISTICS Input to Output Isolation Resistance Isolation Capacitance FEATURE CHARACTERISTICS Switching Frequency ON/OFF Control, Negative Remote On/Off logic Logic Low (Module On) Logic High (Module Off) ON/OFF Control, Positive Remote On/Off logic Logic Low (Module Off) Logic High (Module On) ON/OFF Current (for both remote on/off logic) Leakage Current (for both remote on/off logic) Output Voltage Trim Range (note2) Output Voltage Remote Sense Range Output Over-Voltage Protection GENERAL SPECIFICATIONS MTBF Weight Weight Over-Temperature Shutdown (With heat spreader) Over-Temperature Shutdown ( NTC resistor ) Typ. 0 100ms -40 -55 Max. Units 80 100 85 125 1500 Vdc Vdc Vdc °C °C Vdc 36 48 75 Vdc 33.0 30.0 35.0 33.0 2 36.0 35.0 Vdc Vdc Vdc A mA mA A2s mA dB Full Load, 36Vin Vin=48V, Io=0A Vin=48V, Io=0A 110 22 17 P-P thru 12µH inductor, 5Hz to 20MHz 120 Hz 80 50 1 Vin=48V, Io=Io.max, Tc=25°C Io=Io, min to Io, max Vin=36V to 75V Tc=-40°C to 85°C Over sample load, line and temperature 5Hz to 20MHz bandwidth Vin=48V, Full Load, 50µF ceramic, 1000uF Electrolytic Capacitor Vin=48V, Full Load, 50µF ceramic, 1000uF Electrolytic Capacitor Vin=36V to75V Output Voltage 10% Low 27.72 28.28 Vdc ±56 ±560 28.84 mV mV mV V 16 24 mV mV A A ±56 27.16 100 30 0 17.6 48Vin, 50µF ceramic, 1000uF Electrolytic Capacitor, 0.1A/µs 75% Io.max to 50% Io.max 50% Io.max to 75% Io.max Full load; 5% overshoot of Vout at startup, low ESR cap. 28 300 300 200 mV mV µs 80 100 mS mS µF 470 Vin=36V Vin=48V Vin=48V 5000 94.5 95 95.5 % % % 1500 6.9 Vdc MΩ nF 120 KHz 10 Von/off Von/off 3.5 0.8 10 V V 3.5 0.8 10 V V mA Pout≦ max rated power,Io≦ Io.max, for suffix xxxB and xxxC -50 +18 % Pout≦max rated power,Io≦Io.max, for suffix xxxA and xxxH Pout ≦ max rated power,Io ≦ Io.max % of nominal Vout -18 -1 125 +18 +10 150 % % % Von/off Von/off Ion/off at Von/off=0.0V Logic High, Von/off=5V Io=80% of Io, max; Ta=25°C, airflow rate=300LFM Without heat spreader With heat spreader 2.9 62.0 93.5 Mhours hours grams Refer to Figure 18 for Hot spot location (48Vin,80% Io) 110 °C 125 °C grams Note: Please attach thermocouple on NTC resistor to test OTP function, the hot spots’ temperature is just for reference. Note1: If the ambient temp is less than 0°C, double minimum output capacitance and additional 50uF ceramic capacitance is necessary. Note2: For wider output voltage trim range and larger output capacitance, please contact Delta. DS_H48SC28016_12092020 E-mail: dcdc@deltaww.com http://www.deltaww.com/dcdc P2 DIGITAL INTERFACE SPECIFICATIONS (TA=25°C, airflow rate=400 LFM, Vin=48Vdc, nominal Vout unless otherwise noted.) PARAMETER NOTES and CONDITIONS H48SC28016 Min. PMBUS SIGNAL INTERFACE CHARACTERISTICS Logic input high (VIH) Logic input low ( VIL) Logic output high (VOH) Logic output low (VOL) Input high level current (CLK, DATA, SMALERT) Input low level current (CLK, DATA, SMALERT) Sinking current (CLK,DATA,SMBALERT,C2) PMBus Operating frequency range CLK,DATA,SMBALERT,C2 CLK,DATA,SMBALERT,C2 CLK,DATA,SMBALERT,C2 CLK,DATA,SMBALERT,C2 Pin voltage=3.3V Pin voltage=0V Typ. 2.4 2.5 -10 -10 100 Max. Units 3.6 0.8 3.6 0.4 10 10 4 400 Vdc Vdc Vdc Vdc uA uA mA kHz 3 2.5 % A % Vdc °C °C Measurement System Characteristics Output current reading accuracy 5A
