TECHNICAL DATASHEET

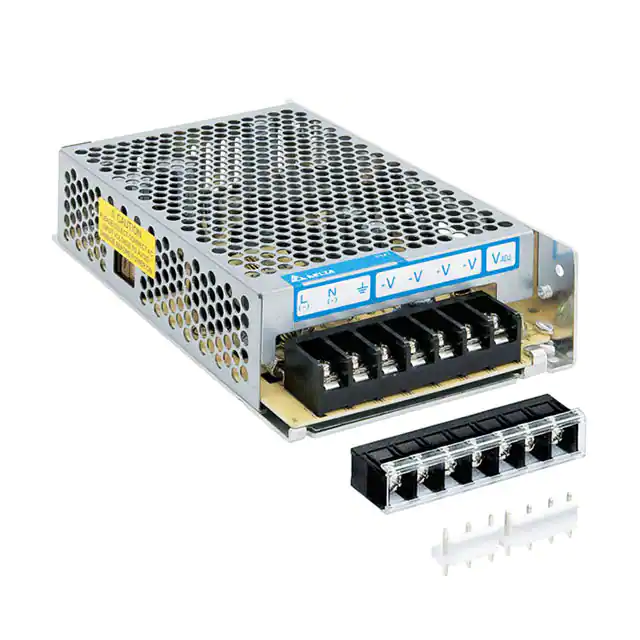

PMT Panel Mount Power Supply
24 V 100 W 1 Phase / PMT-24V100W1A□□
PMT
Highlights & Features
•
•
•
•
•
AC input voltage range selectable by switch (85-132 Vac,
176-264 Vac)
Conforms to harmonic current IEC/EN 61000-3-2, Class A
High MTBF > 700,000 hrs as per Telcordia SR-332
Versatile configuration options (Enclosed, L Frame)
Versatile connector options (Terminal Block, Front Face,
Harness)
Safety Standards
CB Certified for worldwide use
Model Number:
PMT-24V100W1A☐☐
Unit Weight:
0.36 kg (0.79 lb)
Dimensions (L x W x H): 158 x 97 x 38 mm
(6.22 x 3.82 x 1.50 inch)
General Description
The new PMT series of panel mount power supplies is the latest offering from one of the world’s largest power supply manufacturers and
solution providers - Delta. The product offers a wide operating temperature range from -10°C to +70°C and can withstand shock and
vibration requirements (in accordance to IEC 60068-2-27 and IEC 60068-2-6 respectively). In addition to features like overvoltage and
overload protections, Delta’s PMT series of panel mount power supplies is unlike many other brands in the same price level. The PMT
series is designed for cost competitive markets without compromising the quality of the components and product specifications. The
series of products has an expected life time of 10 years. This versatile series has three different connector options (Terminal Block, Front
Face and Harness) and can also be converted into L Frame (PML) type of power supplies to satisfy different application needs.
Model Information
PMT Panel Mount Power Supply
Model Number
Input Voltage Range
Rated Output Voltage
Rated Output Current
PMT-24V100W1A☐☐
85-132 Vac, 176-264 Vac
(Selectable by Switch)
24 Vdc
4.50 A
Model Numbering
CC Code**
PM
□–
24V
Panel Mount
Product Type Output Voltage Output Power Single Phase
T – Enclosed
L – L Frame*
100W
1
A
□
□
No PFC
Connector Type
A – Terminal Block
G – Front Face*
H – Harness*
Blank – Without
connector cover
A – With connector
cover
B – With conformal
coating
*Options
**For Enclosed type with Terminal Block
A
1
G
H
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 07)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
24 V 100 W 1 Phase / PMT-24V100W1A□□
Specifications
Input Ratings / Characteristics
Nominal Input Voltage
100-120 Vac, 200-240 Vac (Selectable by Switch)
Input Voltage Range
85-132 Vac, 176-264 Vac (Selectable by Switch)
Nominal Input Frequency
50-60 Hz
Input Frequency Range
47-63 Hz
Input Current
< 2.00 A @ 115 Vac, < 1.20 A @ 230Vac
Efficiency at 100% Load
> 86.0% @ 115 Vac & 230 Vac
Max Power Dissipation
0% load
0.46 W typ. @ 230 Vac
100% load
10.6 W typ. @ 230 Vac
Max Inrush Current (Cold Start)
< 36 A @ 230 Vac
Leakage Current
< 0.5 mA @ 240 Vac
Output Ratings / Characteristics*
Nominal Output Voltage
24 Vdc
Factory Set Point Tolerance
24 Vdc ± 1%
Output Voltage Adjustment Range
22.8-26.4 Vdc
Output Current
4.50 A (108 W max.)
Output Power
108 W
Line Regulation
± 0.5% typ. (@ 115-132 Vac & 176-264 Vac,100% Load )
Load Regulation
± 0.5% typ. (@ 115-132 Vac & 176-264 Vac,0-100% Load )
PARD** (20MHz)
< 120 mVpp @ 0°C to 50°C
< 240 mVpp @ -10°C to 0°C
Rise Time
< 25 ms @ nominal input (100% load)
Start-up Time
< 1000 ms @ nominal input (100% load)
Hold-up Time
> 25 ms @ 115 Vac, > 30 ms @ 230 Vac (100% load)
Dynamic Response (Overshoot & Undershoot O/P Voltage)
± 5% @ 0-100% load
(Slew Rate: 0.1 A/μS, 50% duty cycle @ 5 Hz)
Start-up with Capacitive Loads
8,000 µF Max
*For power de-rating from 50°C to 70°C, see power de-rating on page 3.
**PARD is measured with an AC coupling mode, 5cm wires, and in parallel with 0.1µF ceramic capacitor & 47µF electrolytic capacitor.
2
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 07)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
24 V 100 W 1 Phase / PMT-24V100W1A□□
Mechanical
Case Chassis / Cover
Aluminium / SGCC
Dimensions (L x W x H)
158 x 97 x 38 mm (6.22 x 3.82 x 1.50 inch)
Unit Weight
0.36 kg (0.79 lb)
Indicator
Green LED (DC OK)
Cooling System
Convection
Terminal
PM☐-24V100W1AA☐
M3.5 x 7 Pins (Rated 300V/15A)
PM☐-24V100W1AG
M3.5 x 7 Pins (Rated 300V/20A)
PM☐-24V100W1AH
I/P (JWT): A3963WV2-5P-A
O/P (JWT): A3963WV2-7P-U
Wire
PM☐-24V100W1AA☐
AWG 22-12
PM☐-24V100W1AG
PM☐-24V100W1AH
Noise (1 Meter from power supply)
AWG 22-18 (For the recommended Mating Connector and
Terminal, please refer to the Table on Page 8)
Sound Pressure Level (SPL) < 25 dBA
Environment
Surrounding Air Temperature
Operating
-10°C to +70°C
Storage
-25°C to +85°C
Power De-rating
Operating Humidity
> 50°C de-rate power by 2.5% / °C
< 115 Vac de-rate power by 2.5% / 3 V
5 to 95% RH (Non-Condensing)
Operating Altitude
0 to 5,000 Meters (16,400 ft.)
Shock Test
Non-Operating
IEC 60068-2-27, Half Sine: 50G for a duration of 11ms,
3 times per direction, 18 times in total
Vibration
Non-Operating
IEC 60068-2-6, Random: 5Hz to 500Hz @ 2.09Grms,
20 min per axis for all X, Y, Z direction
Over Voltage Category
II
Pollution Degree
2
Protections
Overvoltage
115-135%, Hiccup Mode, Non-Latching
(Auto-Recovery)
Overload / Overcurrent
110-150%, Hiccup Mode, Non-Latching
(Auto-Recovery)
Over Temperature
< 70°C Surrounding Air Temperature @ 100% load, NonLatching (Auto-Recovery)
Short Circuit
Hiccup Mode, Non-Latching
(Auto-Recovery when the fault is removed)
Internal Fuse at L pin
T3.15 AH
Protection Against Shock
Class I with PE* connection
*PE: Primary Earth
3
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 07)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
24 V 100 W 1 Phase / PMT-24V100W1A□□
Reliability Data
MTBF
> 700,000 hrs as per Telcordia SR-332
I/P: 115 Vac, O/P: 100% load, Ta: 35°C
Expected Cap Life Time
10 years (115 Vac, 50% load @ 40°C)
Safety Standards / Directives
Safety Entry Low Voltage
Electrical Safety
SELV
TUV Bauart
UL/cUL recognized
CB scheme
BIS
EN 60950-1, EN 62368-1
UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881)
UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E131881)
IEC 60950-1, IEC 62368-1
IS 13152-1
CE
In conformance with EMC Directive 2014/30/EU and
Low Voltage Directive 2014/35/EU
UKCA
In conformance with Electromagnetic Compatibility Regulations
2016 and Electrical Equipment (Safety) Regulations 2016
Galvanic Isolation
Input to Output
3.0 KVac
Input to Ground
1.5 KVac
Output to Ground
0.5 KVac
EMC
Emissions (CE & RE)
CISPR 32, EN/BS EN 55032, FCC Title 47: Class B
Immunity
EN/BS EN 55024
Electrostatic Discharge
IEC 61000-4-2
Level 4 Criteria A1)
Air Discharge: 15 kV
Contact Discharge: 8 kV
Radiated Field
IEC 61000-4-3
Level 3 Criteria A1)
80 MHz-1 GHz, 10 V/M with 1 kHz tone / 80% modulation
Electrical Fast Transient / Burst
IEC 61000-4-4
Level 3 Criteria A1)
2 kV
Surge
IEC 61000-4-5
Conducted
IEC 61000-4-6
Level 3 Criteria A1)
Common Mode2): 2 kV
Differential Mode3): 1 kV
Level 3 Criteria A1)
150 kHz-80 MHz, 10Vrms
Power Frequency Magnetic Fields
IEC 61000-4-8
Criteria A1)
10 A/Meter
Voltage Dips and Interruptions
IEC 61000-4-11
100% dip; 1 cycle (20 ms); Self Recoverable
Low Energy Pulse Test (Ring Wave)
IEC61000-4-12
Harmonic Current Emission
Level 3 Criteria A1)
Common Mode2): 2 kV
Differential Mode3): 1 kV
IEC/EN/BS EN 61000-3-2, Class A
Voltage Fluctuation and Flicker
IEC/EN/BS EN 61000-3-3
1) Criteria A: Normal performance within the specification limits
2) Asymmetrical: Common mode (Line to earth)
3) Symmetrical: Differential mode (Line to line)
4
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 07)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
24 V 100 W 1 Phase / PMT-24V100W1A□□
Block Diagram
Device Description
PMT-24V100W1AA☐: Terminal Block
PMT-24V100W1AG: Front Face
PMT-24V100W1AH: Harness
1)
2)
3)
4)
5
Input & Output terminal block connector
DC voltage adjustment potentiometer
DC OK control LED (Green)
AC selectable switch
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 07)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
24 V 100 W 1 Phase / PMT-24V100W1A□□
Dimensions
L x W x H: 158 x 97 x 38 mm (6.22 x 3.82 x 1.50 inch)
6
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 07)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
24 V 100 W 1 Phase / PMT-24V100W1A□□
Engineering Data
Output Load De-rating VS Surrounding Air Temperature
Note
1.
2.
3.
Fig. 1
De-rating for Vertical and Horizontal Mounting Orientation
> 50°C de-rate power by 2.5% / °C
4.
5.
Power supply components may degrade, or
be damaged, when the power supply is
continuously used outside the shaded region,
refer to the graph shown in Fig. 1.
If the output capacity is not reduced when the
surrounding air temperature exceeds its
specification as defined on Page 3 under
“Environment”, the device will run into Over
Temperature Protection. When activated, the
output voltage will go into bouncing mode and
will recover when the surrounding air
temperature is lowered or the load is reduced
as far as necessary to keep the device in
working condition.
In order for the device to function in the
manner intended, it is also necessary to keep
a safety distance of 20 mm (0.79 inch) with
adjacent units while the device is in operation.
Depending on the surrounding air temperature
and output load delivered by the power
supply, the device can be very hot!
If the device has to be mounted in any other
please
contact
orientation,
info@deltapsu.com for more details.
Output Load De-rating VS Input Voltage
■
7
No output power de-rating for the input
voltage from 115 Vac to 132 Vac & 176 Vac
to 264 Vac
L Frame / Enclosed
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 07)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
24 V 100 W 1 Phase / PMT-24V100W1A□□
Assembly & Installation
Mounting holes for power supply assembly onto the mounting surface.
Ⓐ The power supply shall be mounted on minimum 2 mounting holes using M3 screw minimum 5 mm (0.20 inch) length.
Ⓑ This surface belongs to customer’s end system or panel where the power supply is mounted.
Ⓒ Connector
Side Mounting (Vertical)
Base Mounting (Vertical)
Fig. 2
•
•
Side Mounting (Horizontal)
Recommended Mounting Orientations
PM☐-24V100W1AA☐ / PM☐-24V100W1AG: Use flexible cable (stranded or solid) of AWG No. 22-12. The torque at the connector
shall not exceed 13 Kgf.cm (11.23 lbf.in). The insulation stripping length should not exceed 0.275” or 7mm.
PM☐-24V100W1AH: Please refer the table below for the recommended mating connector, terminal and AWG wire size.
Header (Board Mounting)
Mating Connector
Input (JWT)
A3963WV2-5P-A
A3963H02-5P
Output (JWT)
A3963WV2-7P-U
A3963H02-7P
Terminal
AWG
A3963T0P-2
22-18
Installation of Mounting Accessories
Fig. 3
Mounting Hole Locations
With reference to Fig. 3, the device should be mounted on a sturdy heat conducting surface with minimum of 4 mounting holes using
M3 screw through the base or side mounting holes.
8
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 07)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
24 V 100 W 1 Phase / PMT-24V100W1A□□
Fig. 4
Only use M3 screw ≤ 4.0 mm (0.16 inch) through the base and side mounting
holes. This is to keep a safe distance between the screw and internal
components.
Recommended mounting tightening torque: 4~7 Kgf.cm (3.47~6.08 lbf.in).
Mounting Screw
Safety Instructions
•
•
•
•
•
•
•
•
•
9
Must select correct AC input voltage before turning on (Refer to the “Device Description” on Page 5).
If user’s mounting orientation is not according to the recommended mounting orientations, please consult Delta for further
information.
To ensure sufficient convection cooling, always maintain a safety distance of ≥ 20 mm (0.79 inch) from all ventilated surfaces while
the device is in operation.
The device is not recommended to be placed on low thermal conductive surfaces, for example, plastics.
The enclosure of the device can become very hot depending on the ambient temperature and load of the power supply. Do not
touch the device while it is in operation or immediately after power is turned OFF. Risk of burning!
Do not touch the terminals while power is being supplied. Risk of electric shock.
Prevent any foreign metal, particles or conductors from entering the device through the openings during installation.
It may cause electric shock, safety hazard, fire and/or product failure.
The power supply must be mounted by metal screws onto a grounded metal surface. It is also highly recommended that the Earth
terminal on the connector be connected to the grounded metal surface.
Warning (For Standard Terminal Block and Front Face Terminal Block products): When connecting the device, secure Earth
connection before connecting L and N. When disconnecting the device, remove L and N connections before removing the Earth
connection.
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 07)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
24 V 100 W 1 Phase / PMT-24V100W1A□□
Functions
Start-up Time
The time required for the output voltage to reach 90% of its final steady state set value, after the input voltage is applied.
Rise Time
The time required for the output voltage to change from 10% to 90% of its final steady state set value.
Hold-up Time
Time between the collapse of the AC input voltage, and the output falling to 95% of its steady state set value.
■ Graph illustrating the Start-up Time, Rise Time, and Hold-up Time
Inrush Current
Dynamic Response
Inrush current is the peak, instantaneous, input current measured
and, occurs when the input voltage is first applied. For AC input
voltages, the maximum peak value of inrush current will occur
during the first half cycle of the applied AC voltage. This peak value
decreases exponentially during subsequent cycles of AC voltage.
The power supply output voltage will remains within ±5% of its
steady state value, when subjected to a dynamic load from 0 to
100% of its rated current.
10
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 07)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
24 V 100 W 1 Phase / PMT-24V100W1A□□
Overload & Overcurrent Protections (Auto-Recovery)
Overvoltage Protection (Auto-Recovery)
The power supply’s Overload (OLP) and Overcurrent (OCP)
The power supply’s overvoltage circuit will be activated when its
Protections will be activated when output current exceeds 110-150% internal feedback circuit fails. The output voltage shall not exceed
of IO (Max load). In such occurrence, the VO will start to droop and
its specifications defined on Page 3 under “Protections”.
once the power supply has reached its maximum power limit, the
protection is activated and the power supply will go into “Hiccup
mode” (Auto-Recovery). The power supply will recover once the
fault condition of the OLP and OCP is removed and IO is back within
the specifications.
Over Temperature Protection (Auto-Recovery)
It is not recommended to prolong the duration of IO when it is 100%, since it may cause damage to the PSU.
As described in load de-rating section, the power supply also has
Over Temperature Protection (OTP). In the event of a higher
operating temperature at 100% load, the power supply will run into
OTP when the operating temperature is beyond what is
recommended in the de-rating graph. When activated, the output
voltage will go into bouncing mode until the temperature drops to
its normal operating temperature as recommended in the de-rating
graph.
Short Circuit Protection (Auto-Recovery)
The power supply’s output OLP/OCP function also provides
protection against short circuits. When a short circuit is applied, the
output current will operate in “Hiccup mode”, as shown in the
illustration in the OLP/OCP section on this page. The power supply
will return to normal operation after the short circuit is removed.
11
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 07)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
24 V 100 W 1 Phase / PMT-24V100W1A□□
Operating Mode
Redundant Operation
In order to ensure proper redundant operation for the power
supply units (PSUs), the output voltage difference between the
two units must be kept at 0.45~0.50 V for these 24 V supplies.
Follow simple steps given below to set them up for the
redundant operation:
Step 1.
Measure output voltage of PSU 1 and PSU 2. If PSU 1 is the
master unit, then VO of PSU 1 must be higher than PSU 2. In
order to set the output voltage, individually connect each power
supply to 50% of rated load at any line voltage from 85-264Vac,
and set the PSU 1 and PSU 2 output voltage.
Step 2.
Connect the power supply units PSU 1 and PSU 2 to Vin 1 &
Vin 2, respectively, of the DRR-20N (or 20A) module shown on
the right of above diagram.
PSU 1
PSU 2
DRR-20N or
DRR-20A
LOAD
Terminal
Com
KEY
+ Output
– Common Signal
DC OK
Signal
Terminal N
L (L1)
N (L2)
PE
Fig. 5
Redundancy Operation Connection Diagram
Step 3.
Connect the system load to Vout. Please note that output voltage Vout from DRR module will be = VO (output voltage of power supply) –
Vdrop* (in DRR module).
*Vdrop will vary from 0.60 V to 0.90 V (Typical 0.65 V) depending on the load current and surrounding air temperature.
Parallel Operation
The power supply units (PSUs) can also be used for parallel
operation in order to increase the output power. The difference
in output voltage between the two units must be kept to within
25mV of each other. This difference must be verified with the
same output load connected independently to each unit.
Parameters such as EMI, inrush current, leakage current,
PARD, start up time will be different from those on the
datasheet, when two units are connected in parallel. The user
will need to verify that any differences will still allow the two
power supplies connected in parallel will work properly in their
product/application.
Fig. 6
12
Parallel Operation Connection Diagram
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 07)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
24 V 100 W 1 Phase / PMT-24V100W1A□□
Others
PFC – Norm EN 61000-3-2
Line Current Harmonic content
Typically, the input current waveform is not sinusoidal due to the periodical peak charging of the input capacitor.
In industrial environment, complying with EN 61000-3-2 is only necessary under special conditions. Complying to
this standard can have some technical drawbacks, such as lower efficiency as well as some commercial aspects
such as higher purchasing costs. Frequently, the user does not profit from fulfilling this standard, therefore, it is
important to know whether it is mandatory to meet this standard for a specific application.
Attention
Delta provides all information in the datasheets on an “AS IS” basis and does not offer any kind of warranty through the information for
using the product. In the event of any discrepancy between the information in the catalog and datasheets, the datasheets shall prevail
(please refer to www.DeltaPSU.com for the latest datasheets information). Delta shall have no liability of indemnification for any claim
or action arising from any error for the provided information in the datasheets. Customer shall take its responsibility for evaluation of
using the product before placing an order with Delta.
Delta reserves the right to make changes to the information described in the datasheets without notice.
Manufacturer and Authorized Representatives Information
Manufacturer
Thailand
Delta Electronics (Thailand) PCL.
909 Pattana 1 Rd., Muang, Samutprakarn, 10280 Thailand
Taiwan
Delta Electronics, Inc.
3 Tungyuan Road, Chungli Industrial Zone, Taoyuan County
32063, Taiwan
Authorized Representatives
The Netherlands
Delta Greentech (Netherlands) B.V.
Zandsteen 15, 2132 MZ Hoofddorp, The Netherlands
13
United Kingdom
Delta Electronics Europe Limited
1 Redwood Court, Peel Park Campus,
East Kilbride, Glasgow, G74 5PF, United Kingdom
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 07)
