TECHNICAL DATASHEET
PMT Panel Mount Power Supply
5 V 35 W 1 Phase / PMT-5V35W1A□
PMT
Highlights & Features
•
•
•
•
•
Universal AC input range
Power will not de-rate from input voltage 100 Vac to 264 Vac
High MTBF > 700,000 hrs. per Telcordia SR-332
Short Circuit / Overvoltage / Overload / Over Temperature
Protections
Versatile connector options (Terminal Block, Front Face,
Harness)
Safety Standards
CB Certified for worldwide use
Model Number:
PMT-5V35W1A☐
Unit Weight:
0.23 kg (0.51 lb)
Dimensions (L x W x H): 98 x 98 x 38 mm
(3.86 x 3.86 x 1.50 inch)
General Description
The new PMT series of panel mount power supplies is the latest offering from one of the world’s largest power supply manufacturers and
solution providers – Delta. The PMT products also offer a nominal output voltage of 5V with a wide operating temperature range from 10°C to +70°C and can withstand shock and vibration requirements (in accordance to IEC 60068-2-27 and IEC 60068-2-6 respectively).
In addition to features like overvoltage and overload protections, Delta’s PMT series of panel mount power supplies is unlike many other
brands in the same price level. The PMT series is designed for cost competitive markets without compromising the quality of the
components and product specifications. The series of products has an expected life time of 10 years and this versatile product has three
different connector options (Terminal Block, Front Face and Harness) and can also be converted into L Frame (PML) type of power
supplies to satisfy different application needs.
Model Information
PMT Panel Mount Power Supply
Model Number
Input Voltage Range
Rated Output Voltage
Rated Output Current
PMT-5V35W1A☐
85-264 Vac
5 Vdc
7.00 A
Model Numbering
PM
–
5V
35W
1
A
Panel Mount
Product Type
T – Enclosed
L – L Frame*
Output Voltage
Output Power
Single Phase
No PFC
Connector Type
A – Terminal Block
G – Front Face*
H – Harness*
*Options
A
1
G
H
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 08)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
5 V 35 W 1 Phase / PMT-5V35W1A□
Specifications
Input Ratings / Characteristics
Nominal Input Voltage
100-240 Vac
Input Voltage Range
85-264 Vac
Nominal Input Frequency
50-60 Hz
Input Frequency Range
47-63 Hz
Input Current
< 0.75 A @ 115 Vac, < 0.50 A @ 230 Vac
Efficiency at 100% Load
81.0% typ. @ 230 Vac
Max Inrush Current (Cold Start)
45 A typ. @ 230 Vac
Leakage Current
< 0.5 mA @ 240 Vac
Output Ratings / Characteristics
Nominal Output Voltage
5 Vdc
Output Voltage Tolerance
± 1% (initial set point tolerance from factory)
Output Voltage Adjustment Range
4.50-5.50 Vdc
Output Current
7.00 A
Output Power
35 W
Line Regulation
< 0.5% typ. (@ 115 Vac & 230 Vac input, 100% input)
Load Regulation
< 1% typ. (@ 115 Vac & 230 Vac input, 0-100% input)
PARD (20MHz)
< 80 mVpp @ 25°C to 50°C,
< 160 mVpp @ -10°C to 0°C
Rise Time
< 30 ms @ nominal input (100% load)
Start-up Time
1,200 ms typ. @ 115 Vac,
500 ms typ. @ 230 Vac (100% load)
Hold-up Time
20 ms typ. @ 115 Vac, 100 ms typ. @ 230 Vac
Dynamic Response
(Overshoot & Undershoot O/P Voltage)
± 10% (1000 mVp-p) @ 0-100% load
(Slew Rate: 0.1 A/µS)
Start-up with Capacitive Loads
8,000 µF Max
2
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 08)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
5 V 35 W 1 Phase / PMT-5V35W1A□
Mechanical
Case Chassis
Aluminium
Case Cover
SGCC
Dimensions (L x W x H)
98 x 98 x 38 mm (3.86 x 3.86 x 1.50 inch)
Unit Weight
0.23 kg (0.51 lb)
Indicator
Green LED (DC OK)
Cooling System
Convection
Terminal
Wire
PM☐-5V35W1AA
M3.5 x 5 Pins (Rated 300 V /15 A)
PM☐-5V35W1AG
M3.5 x 5 Pins (Rated 300 V /20 A)
PM☐-5V35W1AH
I/P (JST): B3P5-VH(LF)(SN)
O/P (JST): B2P3-VH(LF)(SN)
PM☐-5V35W1AA
AWG 18-12
PM☐-5V35W1AG
AWG 18-12
PM☐-5V35W1AH
AWG 18 (For the recommended Housing and Terminal, please
refer to the Table on Page 10)
Noise (1 Meter from power supply)
Sound Pressure Level (SPL) < 25 dBA
Environment
Surrounding Air Temperature
Power De-rating
Operating
-10°C to +70°C
Storage
-25°C to +85°C
Operating Humidity
> 50°C de-rate power by 2.5% / °C
< 100Vac de-rate power by 1.33% / V
(80% load @ 85 Vac)
5 to 95% RH (Non-Condensing)
Operating Altitude
0 to 5,000 Meters (0 to 16,400 ft)
Shock Test (Non-Operating)
IEC 60068-2-27, Half Sine Wave: 50 G for a duration of 11 ms,
3 shocks for each 3 directions
Vibration (Non-Operating)
IEC 60068-2-6, Random: 5 Hz to 500 Hz (2.09 Grms);
20 min per axis for all X, Y, Z direction
Pollution Degree
2
Protections
Overvoltage
5.75-7.50 V, SELV Output, Hiccup Mode,
Non-Latching (Auto-Recovery)
Overload / Overcurrent
105-150% of rated load current, Hiccup Mode,
Non-Latching (Auto-Recovery)
Over Temperature
Non-Latching (Auto-Recovery)
Short Circuit
Hiccup Mode, Non-Latching
(Auto-Recovery when the fault is removed)
Protection Against Shock
Class I with PE* connection
*PE: Primary Earth
3
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 08)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
5 V 35 W 1 Phase / PMT-5V35W1A□
Reliability Data
MTBF
> 700,000 hrs. as per Telcordia SR-332
I/P: 100 Vac, O/P: 100% Load, Ta: 35°C)
Expected Cap Life Time
10 years (115 Vac & 230 Vac, 50% load @ 40°C)
Safety Standards / Directives
Electrical Safety
TUV Bauart
UL/cUL recognized
CB scheme
BIS
EN 60950-1, EN 62368-1
UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881)
UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E131881)
IEC 60950-1, IEC 62368-1
IS 13152-1
CE
In conformance with EMC Directive 2014/30/EU and Low
Voltage Directive 2014/35/EU
UKCA
In conformance with Electromagnetic Compatibility Regulations
2016 and Electrical Equipment (Safety) Regulations 2016
Galvanic Isolation
Input to Output
3.0 KVac
Input to Ground
1.5 KVac
Output to Ground
0.5 KVac
EMC
EMC / Emissions
CISPR 22, EN/BS EN 55032, FCC Title 47: Class B
Immunity to
EN/BS EN 55024
Electrostatic Discharge
IEC 61000-4-2
Level 4 Criteria A1)
Air Discharge: 15 kV
Contact Discharge: 8 kV
Radiated Field
IEC 61000-4-3
Level 3 Criteria A1)
80 MHz-1 GHz, 10 V/M with 1 kHz tone / 80% modulation
Electrical Fast Transient / Burst
IEC 61000-4-4
Level 3 Criteria A1)
2 kV
Surge
IEC 61000-4-5
Level 3 Criteria A1)
Common Mode2): 2 kV
Differential Mode3): 1 kV
Conducted
IEC 61000-4-6
Level 3 Criteria A1)
150 kHz-80 MHz, 10 Vrms
Power Frequency Magnetic Fields
IEC 61000-4-8
Criteria A1)
10 A / Meter
Voltage Dips
IEC 61000-4-11
100% dip; 1 cycle (20 ms); Self Recoverable
Low Energy Pulse Test (Ring Wave)
IEC 61000-4-12
Level 3 200 A Criteria A1)
Common Mode2): 2 kV
Differential Mode3): 1 kV
1) Criteria A: Normal performance within the specification limits
2) Asymmetrical: Common mode (Line to earth)
3) Symmetrical: Differential mode (Line to line)
4
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 08)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
5 V 35 W 1 Phase / PMT-5V35W1A□
Block Diagram
Device Descriptions
PMT-5V35W1AA: Terminal Block
1)
2)
3)
5

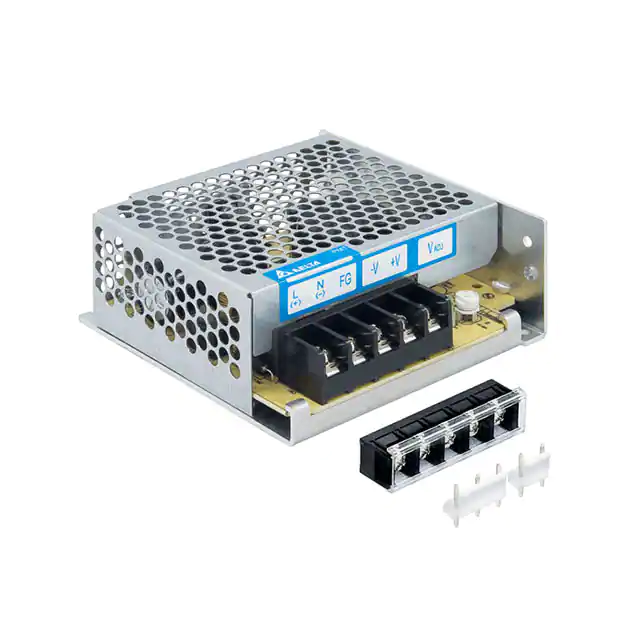

PMT-5V35W1AG: Front Face
Input & Output terminal block connector
DC voltage adjustment potentiometer
DC OK control LED (Green)
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 08)
PMT-5V35W1AH: Harness
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
5 V 35 W 1 Phase / PMT-5V35W1A□
Dimensions
PMT-5V35W1AA: Terminal Block
L x W x H: 98 x 98 x 38 mm (3.86 x 3.86 x 1.50 inch)
PMT-5V35W1AG: Front Face
L x W x H: 98 x 98 x 38 mm (3.86 x 3.86 x 1.50 inch)
6
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 08)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
5 V 35 W 1 Phase / PMT-5V35W1A□
PMT-5V35W1AH: Harness
L x W x H: 98 x 98 x 38 mm (3.86 x 3.86 x 1.50 inch)
PML-5V35W1AA: Terminal Block
L x W x H: 98 x 98 x 37.5 mm (3.86 x 3.86 x 1.48 inch)
7
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 08)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
5 V 35 W 1 Phase / PMT-5V35W1A□
PML-5V35W1AG: Front Face
L x W x H: 98 x 98 x 37.5 mm (3.86 x 3.86 x 1.48 inch)
PML-5V35W1AH: Harness
L x W x H: 98 x 98 x 37.5 mm (3.86 x 3.86 x 1.48 inch)
8
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 08)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
5 V 35 W 1 Phase / PMT-5V35W1A□
Engineering Data
De-rating
Note
1.
2.
3.
4.
Fig. 1
De-rating for Vertical and Horizontal Mounting Orientation
> 50°C de-rate power by 2.5% / °C
5.
Power supply components may degrade, or
be damaged, when the power supply is
continuously used outside the shaded region,
refer to the graph shown in Fig. 1.
If the output capacity is not reduced when the
surrounding air temperature >50°C, the
device will run into Over Temperature
Protection. When activated, the output voltage
will go into bouncing mode and will recover
when the surrounding air temperature is
lowered or the load is reduced as far as
necessary to keep the device in working
condition.
In order for the device to function in the
manner intended, it is also necessary to keep
a safety distance of 20mm with adjacent units
while the device is in operation.
Depending on the surrounding air temperature
and output load delivered by the power
supply, the device can be very hot!
If the device has to be mounted in any other
orientation, please do not hesitate to contact
info@deltapsu.com for more details.
Output De-rating VS. Input Voltage
9
No output power de-rating for the input
voltage from 100 Vac to 264 Vac
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 08)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
5 V 35 W 1 Phase / PMT-5V35W1A□
Assembly & Installation
Mounting holes for power supply (device). The power supply shall be mounted on minimum 2 mounting holes using M3 screw
minimum 5 mm length.
This surface belongs to customer’s end system or panel where the power supply is mounted.
Connector
Ⓐ
Ⓑ
Ⓒ
Side Mounting (Vertical)
Base Mounting (Vertical)
Fig. 2
Side Mounting (Horizontal)
Recommended Mounting Orientations
PM☐-5V35W1AA / PM☐-5V35W1AG: Use flexible cable (stranded or solid) of AWG No. 18-12. User should calculate and select
the suitable wire specification (type/quantity/diameter) according to actual output current. The torque at the Connector shall not
exceed 13Kgf.cm. The insulation stripping length should not exceed 0.275” or 7mm (Refer to Fig. 3).
PM☐-5V35W1AH: Use flexible cable (stranded or solid) of AWG No. 18. Please refer to Table 1 for the recommended Housing and
Terminal.
•
•
Connector (Board Mounting)
Housing
Input (JST)
B3P5-VH(LF)(SN)
VHR-5N
Output (JST)
B2P3-VH(LF)(SN)
VHR-3N
Table 1
Terminal
SVH-21T-P1.1
Safety Distance
D1 = 4.0mm Min.
Fig. 3
Assembly Reference
Ensure the mounted device is kept at ≥ 4 mm safety distance at all sides from other components and equipments. In addition, to ensure
sufficient convection cooling, always maintain a distance of ≥ 20 mm from ventilated surfaces while the device is in operation.
10
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 08)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
5 V 35 W 1 Phase / PMT-5V35W1A□
Fig. 4
For PMT and PML Series (Refer to Fig. 4): Only use M3 screw ≤ 3 mm
through the base mounting holes. This is to keep a safe distance between
the screw and internal components. Recommended mounting tightening
torque: 4~7 Kgf.cm.
Mounting Screw
Safety Instructions
•
•
•
•
•
•
•
•
11
If user’s mounting orientation is not according to the recommended mounting orientations, please consult Delta for further
information.
L frame (PML) and Open frame (PMB) options are to be manufactured by Delta and not to be reconfigured by users from the
standard enclosed configuration.
The device is not recommended to be placed on low thermal conductive surface. For example, plastics.
The enclosure of the device can become very hot depending on the ambient temperature and load of the power supply. Do not
touch the device while it is in operation or immediately after power is turned OFF. Risk of burning!
Do not touch the terminals while power is being supplied. Risk of electric shock.
Prevent any foreign metal, particles or conductors from entering the device through the openings during installation.
It may cause electric shock, safety hazard, fire and/or product failure.
The power supply must be mounted by metal screws onto a grounded metal surface. It is highly recommended that the Earth
terminal on the connector be connected to the grounded surface.
Warning (For Standard Terminal Block and Front Face Terminal Block products): When connecting the device, secure Earth
connection before connecting L and N. When disconnecting the device, remove L and N connections before removing the Earth
connection.
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 08)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
5 V 35 W 1 Phase / PMT-5V35W1A□
Functions
Start-up Time
The time required for the output voltage to reach 90% of its set value, after the input voltage is applied.
Rise Time
The time required for the output voltage to change from 10% to 90% of its set value.
Hold-up Time
Hold up time is the time when the AC input collapses and output voltage retains regulation for a certain period of time. The time
required for the output to reach 95% of its set value, after the input voltage is removed.
■ Graph illustrating the Start-up Time, Rise Time, and Hold-up Time
Inrush Current
Dynamic Response
Inrush current is the peak, instantaneous, input current measured
and, occurs when the input voltage is first applied. For AC input
voltages, the maximum peak value of inrush current will occur
during the first half cycle of the applied AC voltage. This peak value
decreases exponentially during subsequent cycles of AC voltage.
The power supply output voltage will remains within ±10% of its
steady state value, when subjected to a dynamic load from 0 to
100% of its rated current.
12
50% duty cycle / 5 Hz to 1 KHz
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 08)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
5 V 35 W 1 Phase / PMT-5V35W1A□
Overload & Overcurrent Protections
Overvoltage Protection
The power supply’s Overload (OLP) and Overcurrent (OCP)
Protections will be activated when output current exceeds 105% of
IO (Max load). In such occurrence, the VO will start to droop and
once the power supply has reached its maximum power limit, the
protection is activated and the power supply will go into “Hiccup
mode” (Auto-Recovery). The power supply will recover once the
fault condition of the OLP and OCP is removed and IO is back within
the specifications.
The power supply’s overvoltage circuit will be activated when its
internal feedback circuit fails. The output voltage shall not exceed
its specifications defined on Page 3 under “Protections”.
Over Temperature Protection
It is not recommended to prolong the duration of Io when it is
100%, since it may cause damage to the PSU.
As mentioned above, the power supply also has Over Temperature
Protection (OTP). In the event of a higher operating temperature at
100% load, the power supply will run into OTP when the operating
temperature is beyond what is recommended in the de-rating
graph. When activated, the output voltage will go into bouncing
mode until the temperature drops to its normal operating
temperature as recommended in the de-rating graph.
Short Circuit Protection
The power supply’s output OLP/OCP function also provides protection against short circuits. When a short circuit is applied, the output
current will operate in “Hiccup mode”, as shown in the illustration in the OLP/OCP section on this page. The power supply will return to
normal operation after the short circuit is removed.
Others
Attention
Delta provides all information in the datasheets on an “AS IS” basis and does not offer any kind of warranty through the information for
using the product. In the event of any discrepancy between the information in the catalog and datasheets, the datasheets shall prevail
(please refer to www.DeltaPSU.com for the latest datasheets information). Delta shall have no liability of indemnification for any claim
or action arising from any error for the provided information in the datasheets. Customer shall take its responsibility for evaluation of
using the product before placing an order with Delta.
Delta reserves the right to make changes to the information described in the datasheets without notice.
Manufacturer and Authorized Representatives Information
Manufacturer
Thailand
Delta Electronics (Thailand) PCL.
909 Pattana 1 Rd., Muang, Samutprakarn, 10280 Thailand
Taiwan
Delta Electronics, Inc.
3 Tungyuan Road, Chungli Industrial Zone, Taoyuan County
32063, Taiwan
Authorized Representatives
The Netherlands
Delta Greentech (Netherlands) B.V.
Zandsteen 15, 2132 MZ Hoofddorp, The Netherlands
13
United Kingdom
Delta Electronics Europe Limited
1 Redwood Court, Peel Park Campus,
East Kilbride, Glasgow, G74 5PF, United Kingdom
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2022, Rev. 08)
