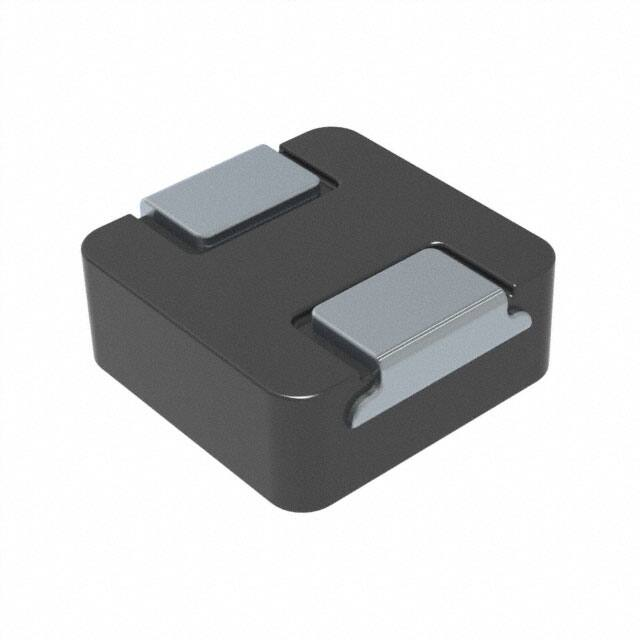

VCMT136E-470MN5

CYNTEC CO., LTD. 乾坤科技股份有限公司 DOCUMENT : CYNVC-19X-033 REVISION : A5 PAGE : 1 OF 9 The history of revision change for the specification Document  CYNVC‐19X‐033  REV.  A0  CYNVC‐19X‐033  A1  CYNVC‐19X‐033  A2  CYNVC‐19X‐033  A3  CYNVC‐19X‐033  A4  CYNVC‐19X‐033  A5  Modified date  Description  2019.10.17  New approval  1. Oct. ‐> Nov  2. Add 6R8, 8R2, 330 spec and curve  2019.11.13  3. Remove 1R0, 220 spec and curve  4. Update 150 spec  Idc(Typ./Max.): 8.5/7.7 ‐> 8.7/7.8  1. Nov., 2019 ‐> Jan., 2020  2020.1.13  2. Year Code: 2019 = 9 ‐> 2020 = 0  3. Remove frequency: (1MHz) from Features  1. Jan., ‐> Feb.,  2020.2.4  2. Add 1R0 spec and curve  1.Feb.,2020 ‐> Feb.,2021  2021.2.25  2.Add 2R2, 3R3, 4R7 spec and curve  1. Feb. ‐> Jun.  2021.6.15  2.Add 5R6 spec and curve  Jun., 2021 Issued CYNTEC CO., LTD. 乾坤科技股份有限公司 DOCUMENT : CYNVC-19X-033 REVISION : A5 PAGE : 2 OF 9 Power Choke Coil VCMT136E MN54M type  AEC-Q200 Features High performance (Isat) realized by metal dust core. Low profile：Thickness max. 6.5mm Low loss realized with low DCR Capable of corresponding high frequency Compliance with RoHS and Halogen Free AEC-Q200 qualified  Application Automotive applications  Outline Dimensions A' L Code W B' B B1 A1 H  T Dimensions (mm) L 13.45  0.35 W 12.6  0.2 T 6.3  0.2 A1 2.159  0.381 A’ 2.5  0.1 B 4.7  0.3 B1 9.2  0.5 B’ 6.0  0.2 H 0 ~ + 0.15 Recommend Land Pattern Dimensions The customer shall determine the land dimensions shown below after confirming and safety. B A C A 4.953 B 8.28 C 14.732 Unit : mm Jun., 2021 Issued CYNTEC CO., LTD. 乾坤科技股份有限公司  DOCUMENT : CYNVC-19X-033 REVISION : A5 PAGE : 3 OF 9 Marking and Date Code The point on the top surface represents winding direction of choke. (1) Marking The inductor is marked with a 3-digit code Example – – 10.0H  100 Upside of Chip (2) Date Code PIN 1 X XX (1) (2) XXX (3) Where 100 PIN 2 XXX XXX (1) Year Code Coil clockwise around Ex : 2021 = 1 (2) Weekly Code Serial number : 01 ~ 53 (3) Taping No. Serial number : 001 ~ ZZZ Jun., 2021 Issued CYNTEC CO., LTD. 乾坤科技股份有限公司  DOCUMENT : CYNVC-19X-033 REVISION : A5 PAGE : 4 OF 9 Specifications Rated Voltage (V) Heat Rating Current DC Amps. Idc ( A ) Saturation Current DC Amps. Isat ( A ) Maximum Typical Maximum Typical Maximum Maximum 1.65 1.77 43.2 38.9 26.0 22.3 75 2.2 4.0 4.5 21.0 18.9 17.5 15.0 75 VCMT136E-3R3MN54M 3.3 5.0 6.0 18.3 16.5 17.0 14.6 75 VCMT136E-4R7MN54M 4.7 8.0 8.7 15.0 13.5 13.5 11.6 75 VCMT136E-5R6MN54M 5.6 9.3 10.0 14.0 12.6 12.0 10.3 75 VCMT136E-6R8MN54M 6.8 9.8 11.3 14.2 12.8 10.5 9.0 75 VCMT136E-8R2MN54M 8.2 12.0 13.8 13.2 11.9 10.0 8.6 75 VCMT136E-100MN54M 10.0 15.2 17.2 11.0 9.9 9.2 7.9 75 VCMT136E-150MN54M 15.0 24.5 28.2 8.7 7.8 7.2 6.2 75 VCMT136E-330MN54M 33.0 60.0 69.0 5.5 5.0 4.3 3.7 75 VCMT136E-470MN54M 47.0 90.0 104.0 4.2 3.8 3.8 3.3 75 L0 ◇ Inductance ( H ) @ (0A) Typical VCMT136E-1R0MN54M 1.0 VCMT136E-2R2MN54M Part Number Rdc ( m) ◇ ◇：Significant Characteristic * ：If you require another part number please contact with us. **：Inductance Tolerance  20% Note 1.： All test data is referenced to 25℃ ambient. Note 2.： Test Condition:100KHz, 1.0Vrms Note 3.： Idc : DC current (A) that will cause an approximate △T of 40℃ Note 4.： Isat : DC current (A) that will cause L0 to drop approximately 20% Note 5.： Operating Temperature Range -55℃ to + 155℃ Note 6.： The part temperature (ambient + temp rise) should not exceed 155℃ under the worst case operating conditions. Circuit design, component placement, PCB trace size and thickness, airflow and other cooling provision all affect the part temperature. Part temperature should be verified in the end application. Note 7.： The rated current as listed is either the saturation current or the heating current depending on which value is lower. Note 8.： Cleaning Process Note (a) If this power choke is dipped in the cleaning agent, such as toluene, xylene, ketone, and ether system, there is a possibility that the performance decreases greatly (b) The high power ultrasonic washing may damage the choke body. (c) Please contact us if you need the cleaning via the above agents or ultrasonic washing. Jun., 2021 Issued CYNTEC CO., LTD. 乾坤科技股份有限公司  PAGE : 5 OF 9 0.80 60 0.60 INDUCTANCE(μH) 45 0.40 TEMP. RISE(℃) 30 25 30 35 40 DC BIAS(Amps) 45 50 55 3.50 2.80 0.00 100 5.40 60 INDUCTANCE(μH) 40 TEMP. RISE(℃) 1.40 20 0.70 0.00 0 2 4 6 7.20 6.00 4.80 INDUCTANCE(μH) 2.40 TEMP. RISE(℃) 0.00 6 9.60 8 10 12 14 DC BIAS(Amps) 16 18 20 6.40 6.50 TEMP. RISE(℃) 6 8 10 12 14 16 DC BIAS(Amps) 18 20 22 24 26 100 VCMT136E-6R8MN54M 80 60 INDUCTANCE(μH) TEMP. RISE(℃) 40 2.60 20 1.30 0.00 80 10.0 0 0.00 8 10 12 14 DC BIAS(Amps) 4 3.90 12.0 20 1.60 6 0 2 5.20 100 40 3.20 4 20 0 0 60 INDUCTANCE(μH) 2 40 TEMP. RISE(℃) 2 4 6 8 10 12 14 16 18 20 22 DC BIAS(Amps) 8.00 0 60 0.90 80 22 VCMT136E-8R2MN54M 4.80 100 INDUCTANCE(μH) 1.80 7.80 16 18 20 INDUCTANCE(μH) 4 8 10 12 14 16 18 20 22 24 26 28 30 32 DC BIAS(Amps) 80 2.70 100 0 2 6 VCMT136E-4R7MN54M 0 20 1.20 4 3.60 0.00 40 0 2 4.50 0 60 3.60 40 20 0 8 10 12 14 16 18 20 22 24 26 28 30 32 DC BIAS(Amps) VCMT136E-5R6MN54M 0 TEMP. RISE(℃) 0 80 2.10 0.90 60 VCMT136E-3R3MN54M 4.20 INDUCTANCE(μH) 100 VCMT136E-100MN54M 80 8.0 60 INDUCTANCE(μH) 6.0 TEMP. RISE(℃) 40 4.0 20 2.0 TEMP. RISE(℃) 20 INDUCTANCE(μH) 15 INDUCTANCE(μH) 10 60 1.35 0.45 TEMP. RISE(℃) 5 80 1.80 15 TEMP. RISE(℃) 0 100 VCMT136E-2R2MN54M TEMP. RISE(℃) 2.25 TEMP. RISE(℃) INDUCTANCE(μH) : A5 TEMP. RISE(℃) 75 0.00 INDUCTANCE(μH) REVISION TEMP. RISE(℃) 1.00 INDUCTANCE(μH) 2.70 TEMP. RISE(℃) 90 VCMT136E-1R0MN54M 0.20 INDUCTANCE(μH) : CYNVC-19X-033 Current Characteristic 1.20 INDUCTANCE(μH) DOCUMENT 0 0.0 0 2 4 6 8 10 12 14 16 18 DC BIAS(Amps) Jun., 2021 Issued CYNTEC CO., LTD. 乾坤科技股份有限公司 TEMP. RISE(℃) 40 6.0 20 3.0 0.0 2 4 6 8 10 DC BIAS(Amps) 60.0 12 14 PAGE : 6 OF 9 100 VCMT136E-330MN54M 80 28.0 60 21.0 INDUCTANCE(μH) 14.0 TEMP. RISE(℃) 40 20 0 0.0 0 16 1 2 3 4 5 6 7 8 DC BIAS(Amps) 100 VCMT136E-470MN54M 50.0 80 40.0 60 INDUCTANCE(μH) 30.0 : A5 7.0 0 0 INDUCTANCE(μH) 35.0 60 INDUCTANCE(μH) 9.0 80 REVISION TEMP. RISE(℃) 12.0 42.0 INDUCTANCE(μH) 15.0 100 TEMP. RISE(℃) VCMT136E-150MN54M : CYNVC-19X-033 TEMP. RISE(℃) 40 20.0 TEMP. RISE(℃) INDUCTANCE(μH) 18.0 DOCUMENT 20 10.0 0.0 0 0 1 2 3 4 DC BIAS(Amps) 5 6 7 Jun., 2021 Issued CYNTEC CO., LTD. 乾坤科技股份有限公司  DOCUMENT : CYNVC-19X-033 REVISION : A5 PAGE : 7 OF 9 Packaging (1) Tape packaging dimensions t +0.1 1.5 -0.0 2.0 ± 0.1 Sprocket hole 4.0 ± 0.1 1.75 ± 0.10 11.5 ± 0.1 24.0 ± 0.3 B0 A0 Carrier cavity K0 Pulling direction 16.0 ± 0.1 Dimensions Code (mm) UNITS/REEL A0 B0 K0 t 13.4  0.1 14.1  0.1 7.1  0.1 0.50  0.05 500 (2) Tape Direction The direction shall be seen from the top cover tape side. 100 XXX XXX 100 XXX XXX 100 XXX XXX Pulling direction Jun., 2021 Issued CYNTEC CO., LTD. 乾坤科技股份有限公司 DOCUMENT : CYNVC-19X-033 REVISION : A5 PAGE : 8 OF 9 2.0 ± 0.5 20.0 ± 0.5 B 330.0 ± 2.0 100.0 ± 1.0 (3) Reel dimensions A 13.0 ± 1.0 mm A B 24.5  0.5 2.0  0.2 (4) Peel force of top cover tape The peel speed shall be about 300 mm/minute. The peel force of top cover tape shall be between 0.1 to 1.3N. Top Cover Tape 165 ~ 180° 0.1 ~ 1.3N Carrier tape Jun., 2021 Issued CYNTEC CO., LTD. 乾坤科技股份有限公司  DOCUMENT : CYNVC-19X-033 REVISION : A5 PAGE : 9 OF 9 Reflow Profile Power Choke Coil Type Tp Temperature 260℃ tp:30 Sec max. Max. Ramp Up Rate =3℃/s Max. Ramp Down Rate =6℃/s 217℃ 60~150 Sec Preheat Area 200℃ 150℃ 60~120 Sec 25℃ 25°C to Peak ( 8 minutes max.) Time (1) Reflow Soldering Method : Tp:255~260℃ Max.30 seconds ( tp ) 217℃ 60~150 seconds Pre-Heat 150 ~ 200℃ 60~120 seconds Time 25℃ to peak temperature 8 minutes max. Reflow Soldering (2) Soldering iron Method : 350  5℃ max.3 seconds Jun., 2021 Issued
