AP1501-XXT5RG-U

AP1501-XXT5RG-U

  • 厂商:

    DIODES

  • 封装:

  • 描述:

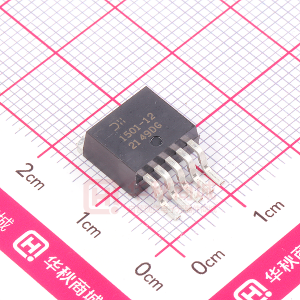

    AP1501-XXT5RG-U - 150KHz, 3A PWM BUCK DC/DC CONVERTER - Diodes Incorporated

  • 数据手册
  • 价格&库存
AP1501-XXT5RG-U 数据手册
AP1501 150KHz, 3A PWM BUCK DC/DC CONVERTER Features • • • • • • • • • • • • • Output voltage: 3.3V, 5V, 12V and adjustable output version Adjustable version output voltage range, 1.23V to 37V+4% 150KHZ +15% fixed switching frequency Voltage mode non-synchronous PWM control Thermal-shutdown and current-limit protection ON/OFF shutdown control input Operating voltage can be up to 40V Output load current: 3A Low power standby mode Built-in switching transistor on chip Lead Free packages: TO263-5L and TO220-5L(R) TO263-5L and TO220-5L(R): Available in “Green” Molding Compound (No Br, Sb) Lead Free Finish/RoHS Compliant (Note 1) General Description The AP1501 is a fully integrated step-down DC/DC converter, with the ability to drive 3A load without the need of additional driver components. The AP1501 operates at a switching frequency of 150KHZ enabling the use of small size filter components. As a result, board space is reduced and BOM costs are lowered. The AP1501 has integrated the shutdown function that allows standby mode to be activated via an external logic signal input. The internal compensation facilitates feedback control for line and load regulation without the need of an external circuitry. The AP1501 has a built-in Thermal shutdown and Current Limit function to prevent damage from high operating temperature and high current operating to the output switch. Additional features include a guaranteed +/- 4% tolerance on the output voltage under specified input and output load conditions, and +/- 15% on oscillator frequency. The AP1501 offers both fixed and a Adjustable output voltages. For fixed outputs the AP1501 supports 3.3V, 5.0V and 12V. The package options available are standard 5-lead TO263 and TO220(R) packages. Applications • • • Simple High-efficiency step-down regulator On-card switching regulators Positive to negative converter Ordering Information AP1501 - XX XXX X - X Output version Blank : Adjustable 33 : 3.3V 50 : 5.0V 12 : 12V Package K5 : TO263-5L T5 : TO220-5L T5R : TO220-5L(R) Lead Free L : Lead Free G : Green Packing U : Tube 13 : Tape & Reel Device Lead-free Package Code K5 K5 K5 K5 T5 T5 T5R T5R Packaging (Note 2) TO263-5L TO263-5L TO263-5L TO263-5L TO220-5L TO220-5L TO220-5L(R) TO220-5L(R) Quantity 50 NA 50 NA 50 50 50 50 Tube Part Number Suffix -U NA -U NA -U -U -U -U 13” Tape and Reel Quantity Part Number Suffix NA 800/Tape & Reel NA 800/Tape & Reel NA NA NA NA NA -13 NA -13 NA NA NA NA Lead-free Lead-free Lead-free AP1501-XXK5L-U AP1501-XXK5L-13 AP1501-XXK5G-U AP1501-XXK5G-13 AP1501-XXT5L-U AP1501-XXT5G-U AP1501-XXT5RL-U AP1501-XXT5RG-U Notes: 1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes. 2. Pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.. AP1501 Rev. 11 1 of 12 www.diodes.com JANUARY 2009 © Diodes Incorporated AP1501 150KHz, 3A PWM BUCK DC/DC CONVERTER Pin Assignments ( Top View ) 5 SD 4 FB 3 Gnd 2 Output 1 VIN Metal Tab GND ( Top View ) 5 SD 4 FB 3 Gnd 2 Output 1 VIN TO220-5L/TO220-5L(R) TO263-5L Pin Descriptions Name VIN Output Gnd FB SD Description Operating voltage input Switching output Ground Output voltage feedback control ON/OFF shutdown AP1501 Rev. 11 2 of 12 www.diodes.com JANUARY 2009 © Diodes Incorporated AP1501 150KHz, 3A PWM BUCK DC/DC CONVERTER Block Diagram SD VIN 200mV Current Source bias 1.235V Reference 2.5V Regulator Start up 220mV + Comp _ Comp + FB Absolute Maximum Ratings Symbol ESD MM VCC VSD VFB VOUT PD TST TJ TMJ Parameter Machine Model ESD Protection Supply Voltage ON/OFF Pin input Voltage Feedback Pin Voltage Output Voltage to Ground Power Dissipation Storage Temperature Operating Junction Temperature Maximum Junction Temperature AP1501 Rev. 11 3 of 12 www.diodes.com _ + Amp _ Frequency compensation Comp + Pre-driver 150kHz OSC. Thermal Shutdown _ 3A Switch Output Gnd Rating 400 +45 -0.3 to +40 -0.3 to +40 -1 Internally limited -65 to +150 -20 to +125 150 Unit V V V V V W o o o C C C JANUARY 2009 © Diodes Incorporated AP1501 150KHz, 3A PWM BUCK DC/DC CONVERTER Recommended Operating Conditions Symbol VOP TA Operating Voltage Operating Ambient Temperature Parameter Rating 4.5 to 40 -20 to 85 Units V o C Electrical Characteristics (All Output Voltage Versions) Unless otherwise specified, VIN = 12V for 3.3V, 5V, adjustable version and VIN = 24V for the 12V version. ILOAD = 0.5A Specifications with boldface type are for full operating temperature range, the other type are for TJ = 25ºC. Symbol IFB FOSC VSAT DC ICL Conditions VFB = 1.3V Feedback Bias Current (Adjustable version only) Oscillator Frequency Saturation Voltage Max. Duty Cycle(ON) Min. Duty cycle(OFF) Current Limit Output = 0 Output Leakage Output = -1 Current Quiescent Current Standby Quiescent Current IOUT = 3A No outside circuit VFB = 0V force driver on VFB = 0V force driver on VFB = 12V force driver off Peak current no outside circuit VFB = 0V force driver on No outside circuit VFB = 12V force driver off (Note 3) VIN = 40V VFB = 12V force driver off ON/OFF pin = 5V VIN = 40V Low (regulator ON) Parameter Min Typ. 40 127 110 150 Max 60 100 173 173 1.4 1.5 Unit nA KHZ V % 1.3 100 0 5.5 3.6 4.0 6.5 200 2 5 150 1.3 15 0.02 37 31 6 o A uA mA mA uA V IL IQ ISTBY VIL VIH IH IL θJA ON/OFF pin Logic Input Threshold Voltage High (regulator OFF) ON/OFF Pin Logic Input Current ON/OFF Pin Input Current Thermal Resistance unction to Ambient VLOGIC = 2.5V (OFF) VLOGIC = 0.5V (ON) TO263-5L (Note 4) 60 10 250 350 0.6 2.0 25 uA 5 o C/W TO220-5L(R) (Note 4) TO263-5L (Note 4) TO220-5L(R) (Note 4) θJC Thermal Resistance Junction to Case C/W 5 Notes: 3. Feedback pin removed from output and connected to 0V to force the output transistor switch ON. Feedback pin removed from output and connected to 12V for the 3.3V, 5V, and the ADJ. version, and 15V for the 12V version, to force the output transistor switch OFF. 4. Test condition: Device mounted with copper area of approximately 3 in2,1oz, no air flow. AP1501 Rev. 11 4 of 12 www.diodes.com JANUARY 2009 © Diodes Incorporated AP1501 150KHz, 3A PWM BUCK DC/DC CONVERTER Electrical Characteristics (Continued) Specifications with boldface type are for full operating temperature range, the other type are for TJ = 25ºC. Symbol VFB Parameter Output Feedback Efficiency Output Voltage Efficiency Output Voltage Efficiency Output Voltage Efficiency Conditions VMin Typ. VMax 1.267 1.28 Unit V AP1501-ADJ 4.5V < VIN < 40V 1.193 0.2A < ILOAD < 3A 1.18 VOUT programmed for 3V VIN = 12V, ILOAD = 3A 4.75V < VIN < 40V 0.2A < ILOAD < 3A VIN = 12V, ILOAD = 3A 7V < VIN < 40V 0.2A < ILOAD < 3A VIN = 12V, ILOAD = 3A 15V < VIN < 40V 0.2A < ILOAD < 3A VIN = 15V, ILOAD = 3A 11.52 11.4 4.8 4.75 3.168 3.135 1.23 η VOUT 73 3.3 73 5 80 12 90 12.48 12.6 5.2 5.25 3.432 3.465 % V % V % V % AP1501-3.3V η VOUT AP1501-5V η VOUT AP1501-12V η AP1501 Rev. 11 5 of 12 www.diodes.com JANUARY 2009 © Diodes Incorporated AP1501 150KHZ, 3A PWM BUCK DC/DC CONVERTER Typical Performance Characteristics Typical Performance Characteristics Normalized Output Voltage 5.10 VIN =20V, I LOAD=3A Normalized at TJ=25oC Efficiency 100 95 EFFICIENCY (%) OUTPUT VOLTAGE (V) 5.05 90 85 80 75 70 3A Load 5.00 5V 3.3V 4.95 4.90 -50 -25 0 25 50 75 100 125 65 8 10 15 20 25 30 35 40 JUNCTION TEMPERATURE( oC) JUNCTION TEMPERATURE( oC) Switch Saturation Voltage 1.60 SATURATION VOLTAGE (V) Switch Current Limit 5.50 SWITCH CURRENT LIMIT (A) 1.40 1.20 1.00 1 : -40 oC 2 : 25 oC 3 : 125 oC VIN=12V, VOUT=5V 5.00 4.50 1 0.80 0.60 3 2 4.00 3.50 0.5 1 2 3 -50 -25 0 25 50 75 100 125 SWITCH CURRENT(A) JUNCTION TEMPERATURE( oC) Operating Quiescent Current 25.0 SUPPLY CURRENT (mA) Shutdown Quiescent Current 200.0 160.0 CURRENT (uA) 20.0 15.0 Switch ON 10.0 5.0 0.0 -50 -25 0 25 50 75 100 125 120.0 80.0 40.0 0.0 1 2 3 Switch OFF VON/OFF=5V 1 : -40 oC 2 : 25 oC 3 : 125 oC 20 30 40 10 JUNCTION TEMPERATURE( oC) SUPPLY VOLOTAGE (V) AP1501 Rev. 11 6 of 12 www.diodes.com JANUARY 2009 © Diodes Incorporated AP1501 150KHz, 3A PWM BUCK DC/DC CONVERTER Typical Performance Characteristics Minimum Operating Supply Voltage 5.0 (Continued) ON/OFF Threshold Voltage 5.0 THRESHOLD VOLTAGE (V) SUPPLY VOLTAGE (V) 4.0 3.0 2.0 1.0 0.0 -50 -25 0 25 50 75 100 125 4.0 3.0 2.0 1.0 0.0 -50 -25 0 25 50 75 100 125 VOUT=1.23V ILOAD=120mA JUNCTION TEMPERATURE (oC) JUNCTION TEMPERATURE (oC) ON/OFF Pin Current (Sinking) 150.0 FREQUENCY (kHz) Switch Frequency 200.0 120.0 CURRENT (uA) VIN=40V -40oC ≤ TJ ≤ 125oC 150.0 90.0 60.0 30.0 0.0 1.4 5 10 15 20 22 23 24 25 ON/OFF PIN VOLTAGE (V) 100.0 50.0 0.0 -50 -25 0 25 50 75 100 o 125 JUNCTION TEMPERATURE ( C) Feedback Pin Bias Current 50.0 BIAS CURRENT (nA) 40.0 30.0 20.0 Adjustable Version Only 10.0 0.0 -50 -25 0 25 50 75 o 100 125 JUNCTION TEMPERATURE( C) AP1501 Rev. 11 7 of 12 www.diodes.com JANUARY 2009 © Diodes Incorporated AP1501 150KHz, 3A PWM BUCK DC/DC CONVERTER Typical Application Circuit (1) Fixed Type Circuit FB 12V DC Input Vin Cin Capacitor 1 5 SD 4 AP1501 -33 3 2 Output L1 33uH Inductor D1 B340A 3.3V/3A Output Load Gnd Co Capacitor (2) Adjustable Type Circuit R2 FB 12V DC Input Vin Cin Capacitor 4 1 AP1501 5 SD 3 Gnd D1 (Note 5) Co Capacitor 2 Output L1 47uH 5V/ 3A Output Load R1 Vout = VFB × (1 + VFB = 1.23V R2 = 1K ~ 3K (3) Delay Start Circuit R2 FB 12V DC Input Vin Cin Capacitor CDELAY 0.1uF 4 1 5 SD RDELAY 10K AP1501 3 Gnd 2 Output R1 R2 ) R1 L1 47uH 5V/ 3A Output Load D1 (Note 5) Co Capacitor Notes: 5. Suggested DIODES Power Schottky: B340A or PDS340 series. AP1501 Rev. 11 8 of 12 www.diodes.com JANUARY 2009 © Diodes Incorporated AP1501 150KHz, 3A PWM BUCK DC/DC CONVERTER Functional Description Pin Functions +VIN This is the positive input supply for the IC switching regulator. A suitable input bypass capacitor must be present at this pin to minimize voltage transients and to supply the switching currents needed by the regulator. Ground Circuit ground. Output Internal switch. The voltage at this pin switches between (+VIN – VSAT) and approximately – 0.5V, with a duty cycle of approximately VOUT / VIN. To minimize coupling to sensitive circuitry, the PC board copper area connected to this pin should be kept a minimum. Feedback Senses the regulated output voltage to complete the feedback loop. ON/OFF Allows the switching regulator circuit to be shutdown using logic level signals thus dropping the total input supply current to approximately 150uA. Pulling this pin below a threshold voltage of approximately 1.3V turns the regulator on, and pulling this pin above 1.3V (up to a maximum of 40V) shuts the regulator down. If this shutdown feature is not needed, the ON/OFF pin can be wired to the ground pin or it can be left open, in either case the regulator will be in the ON condition. Thermal Considerations The AP1501 is available in 5-pin surface mount TO-263 and TO-220. The TO-220 package needs a heat sink under most conditions. The size of the heat sink depends on the input voltage, the output voltage, the load current and the ambient temperature. The AP1501 junction temperature rises above ambient temperature for a 3A load and different input and output voltages. The data for these curves was taken with the AP1501 (TO-220 package) operating as a buck switching regulator in an ambient o temperature of 25 C (still air). These temperature rise numbers are all approximate and there are many factors that can affect these temperatures. Higher ambient temperatures require more heat sinking. The TO-263 surface mount package tab is designed to be soldered to the copper on a printed circuit board. The copper and the board are the heat sink for this package and the other heat producing components, such as the catch diode and inductor. The PC board copper area that the package is 2 soldered to should be at least 0.4 in , and ideally should have 2 or more square inches of 2 oz. Additional copper area improves the thermal characteristics, but with copper areas greater than 2 approximately 6 in , only small improvements in heat dissipation are realized. If further thermal improvements are needed, double sided, multilayer PC boards with large copper areas and/or airflow are recommended. The AP1501 (TO-263 package) junction temperature rises above ambient temperature with a 2A load for various input and output voltages. This data was taken with the circuit operating as a buck switching regulator with all components mounted on a PC board to simulate the junction temperature under actual operating conditions. This curve can be used for a quick check for the approximate junction temperature for various conditions, but be aware that there are many factors that can affect the junction temperature. When load currents higher than 2A are used, double sided or multilayer PC boards with large copper areas and/or airflow might be needed, especially for high ambient temperatures and high output voltages. For the best thermal performance, wide copper traces and generous amounts of printed circuit board copper should be used in the board layout. (One exception to this is the output (switch) pin, which should not have large areas of copper.) Large areas of copper provide the best transfer of heat (lower thermal resistance) to the surrounding air, and moving air lowers the thermal resistance even further. Package thermal resistance and junction temperature rise numbers are all approximate, and there are many factors that will affect these numbers. Some of these factors include board size, shape, thickness, position, location, and even board temperature. Other factors are, trace width, total printed circuit copper area, copper thickness, single or double-sided, multilayer board and the amount of solder on the board. The effectiveness of the PC board to dissipate heat also depends on the size, quantity and spacing of other components on the board, as well as whether the surrounding air is still or moving. Furthermore, some of these components such as the catch diode will add heat to the PC board and the heat can vary as the input voltage changes. For the inductor, depending on the physical size, type of core material and the DC resistance, it could either act as a heat sink taking heat away from the board, or it could add heat to the board. AP1501 Rev. 11 9 of 12 www.diodes.com JANUARY 2009 © Diodes Incorporated AP1501 150KHz, 3A PWM BUCK DC/DC CONVERTER Marking Information (1) TO263-5L ( Top View ) Logo Output Type : 1501 : ADJ 1501-33 : 3.3V 1501-50 : 5.0V 1501-12 : 12V 1501-XX YY WW X X L : Lead Free G : Green ID code Xth week : 01~52 Year : "07" = 2007 "08" = 2008 ~ (2) TO220-5L(R) ( Top view ) Logo Output Type : 1501: ADJ 1501-33: 3.3V 1501-50: 5.0V 1501-12: 12V 1501-XX YY WW X X L : Lead Free G : Green ID code Xth week : 01~52 Year : "07" = 2007 "08" = 2008 ~ AP1501 Rev. 11 10 of 12 www.diodes.com JANUARY 2009 © Diodes Incorporated AP1501 150KHz, 3A PWM BUCK DC/DC CONVERTER Package Information (1) Package Type: TO263-5L (2) Package Type: TO220-5L AP1501 Rev. 11 11 of 12 www.diodes.com JANUARY 2009 © Diodes Incorporated AP1501 150KHz, 3A PWM BUCK DC/DC CONVERTER Package Information (Continued) (3) Package Type: TO220-5L(R) Mechanical drawing IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. AP1501 Rev. 11 12 of 12 www.diodes.com JANUARY 2009 © Diodes Incorporated
