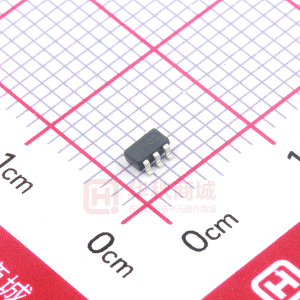

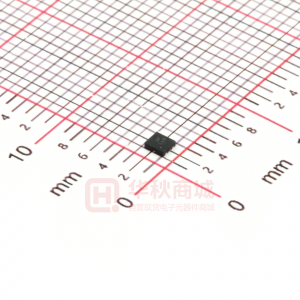

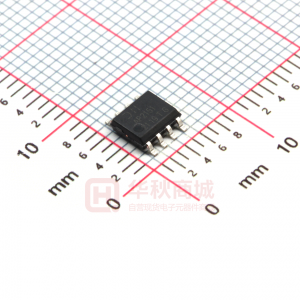

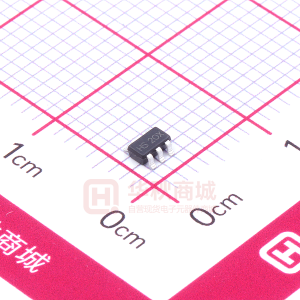

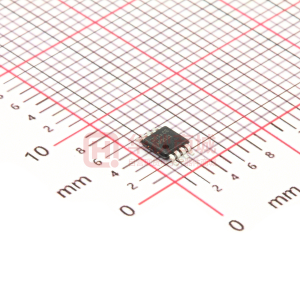

AP2151

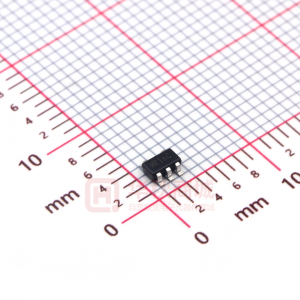

AP2141/AP2151 0.5A SINGLE CHANNEL CURRENT-LIMITED POWER SWITCH Features • • • • • • • • • • • • • • • • Single USB port power switches Over-current and thermal protection 0.8A accurate current limiting Reverse Current Blocking 95mΩ on-resistance Input voltage range: 2.7V – 5.5V 0.6ms typical rise time Very low shutdown current: 1uA (max) Fault report (FLG) with blanking time (7ms typ) ESD protection: 4KV HBM, 400V MM Active high (AP2151) or active low (AP2141) enable Ambient temperature range -40ºC to 85°C SOT25, SOP-8L, MSOP-8L-EP (Exposed Pad), and DFN2018-6: Available in “Green” Molding Compound (No Br, Sb) Lead Free Finish / RoHS Compliant (Note 1) UL Recognized, File Number E322375 IEC60950-1 CB Scheme Certified Description The AP2141 and AP2151 are integrated high-side power switches optimized for Universal Serial Bus (USB) and other hot-swap applications. The family of devices complies with USB 2.0 and available with both polarities of Enable input. They offer current and thermal limiting and short circuit protection as well as controlled rise time and under-voltage lockout functionality. A 7ms deglitch capability on the open-drain Flag output prevents false over-current reporting and does not require any external components. All devices are available in SOP-8L, MSOP-8L-EP, SOT25, and DFN2018-6 packages. Applications • • • Consumer electronics – LCD TV & Monitor, Game Machines Communications – Set-Top-Box, GPS, Smartphone Computing – Laptop, Desktop, Servers, Printers, Docking Station, HUB Typical Application Circuit AP2151 Enable Active High Power Supply 2.7V to 5.5V 10k 10uF 0.1uF IN OUT 0.1uF Load 120uF FLG EN ON OFF GND Available Options Part Number Channel Enable pin (EN) Current limit (typical) 0.8A 0.8A Recommended maximum continuous load current 0.5A 0.5A AP2141 AP2151 1 1 Active Low Active High AP2141/AP2151 Rev. 6 DS31562 1 of 19 www.diodes.com JUNE 2009 © Diodes Incorporated AP2141/AP2151 0.5A SINGLE CHANNEL CURRENT-LIMITED POWER SWITCH Ordering Information AP 21 X 1 XX G - X Enable 4 : Active Low 5 : Active High Channel 1 : 1 Channel Package W : SOT25 S : SOP-8L MP : MSOP-8L-EP FM : DFN2018-6 Packaging (Note 2) SOT25 SOP-8L MSOP-8L-EP DFN2018-6 Green G : Green Packing 7/13 : Tape & Reel Device AP21X1WG-7 AP21X1SG-13 AP21X1MPG-13 AP21X1FMG-7 Notes: Package Code W S MP FM 7”/13” Tape and Reel Quantity Part Number Suffix 3000/Tape & Reel -7 2500/Tape & Reel -13 2500/Tape & Reel -13 3000/Tape & Reel -7 1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at http://www.diodes.com/products/lead_free.html 2. Pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. AP2141/AP2151 Rev. 6 DS31562 2 of 19 www.diodes.com JUNE 2009 © Diodes Incorporated AP2141/AP2151 0.5A SINGLE CHANNEL CURRENT-LIMITED POWER SWITCH Pin Assignment ( Top View ) ( Top View ) GND 1 IN 2 IN 3 EN 4 8 NC GND 7 6 5 1 2 3 4 8 7 6 5 NC OUT OUT FLG OUT OUT FLG IN IN EN MSOP-8L-EP SOP-8L ( Top View ) OUT GND FLG 1 2 3 4 EN 5 IN ( Top View ) GND IN EN 1 6 OUT OUT FLG 2 5 3 4 SOT25 DFN2018-6 Pin Descriptions Pin Number SOP-8L MSOP-8L-EP SOT25 DFN2018-6 Descriptions Pin Name GND IN EN FLG OUT NC 1 2, 3 4 5 6, 7 8 2 5 4 3 1 N/A 1 2 3 4 5, 6 N/A Ground Voltage input pin (all IN pins must be tied together externally) Enable input, active low (AP2141) or active high (AP2151) Over-current and over-temperature fault report; open-drain flag is active low when triggered Voltage output pin (all OUT pins must be tied together externally) No internal connection; recommend tie to OUT pins AP2141/AP2151 Rev. 6 DS31562 3 of 19 www.diodes.com JUNE 2009 © Diodes Incorporated AP2141/AP2151 0.5A SINGLE CHANNEL CURRENT-LIMITED POWER SWITCH Functional Block Diagram AP2141, AP2151 Current Sense IN OUT UVLO Driver Current Limit EN FLG Thermal Sense Deglitch GND Absolute Maximum Ratings Symbol ESD HBM Parameter Human Body Model ESD Protection Ratings 4 Units KV ESD MM Machine Model ESD Protection for MSOP-8L-EP, SOT25 packages Machine Model ESD Protection for DFN2018-6, SOP-8L packages Input Voltage Output Voltage Enable Voltage Maximum Continuous Load Current Maximum Junction Temperature Storage Temperature Range (Note 3) 400 300 6.5 VIN + 0.3 6.5 Internal Limited 150 -65 to 150 V V V V V A °C °C VIN VOUT VEN , VFLG Iload TJmax TST Notes: 3. UL Recognized Rating from -30°C to 70°C (Diodes qualified TST from -65°C to 150°C) Recommended Operating Conditions Symbol VIN IOUT TA Parameter Input voltage Output Current Operating Ambient Temperature Min 2.7 0 -40 Max 5.5 500 85 Units V mA °C AP2141/AP2151 Rev. 6 DS31562 4 of 19 www.diodes.com JUNE 2009 © Diodes Incorporated AP2141/AP2151 0.5A SINGLE CHANNEL CURRENT-LIMITED POWER SWITCH Electrical Characteristics (TA = 25°C, VIN = +5.0V, unless otherwise stated) Symbol Parameter VUVLO ISHDN IQ ILEAK IREV Input UVLO Input Shutdown Current Input Quiescent Current Input Leakage Current Reverse Leakage Current Rload=1kΩ Disabled, IOUT= 0 Enabled, IOUT= 0 Disabled, OUT grounded Disabled, VIN= 0V, VOUT= 5V, IREV at VIN SOT25, MSOP-8L-EP, TA = 25°C SOP-8L VIN = 5V, DFN2018-6 IOUT= 0.5A -40°C ≤ TA ≤ 85°C VIN = 3.3V, TA = 25°C IOUT= 0.5A -40°C ≤ T ≤ 85°C A Test Conditions Min Typ. Max Unit 1.6 1.9 0.5 45 1 95 90 120 0.6 2.5 1 70 1 V μA μA μA μA 115 110 140 140 170 A 1.0 A A 0.8 V V μA ms RDS(ON) Switch on-resistance mΩ ISHORT ILIMIT ITrig VIL VIH ISINK TD(ON) TR TD(OFF) TF RFLG TBlank TSHDN THYS Short-Circuit Current Limit Over-Load Current Limit Current limiting trigger threshold EN Input Logic Low Voltage EN Input Logic High Voltage EN Input leakage Output turn-on delay time Output turn-on rise time Output turn-off delay time Output turn-off fall time FLG output FET on-resistance FLG blanking time Thermal Shutdown Threshold Thermal Shutdown Hysteresis Enabled into short circuit, CL=22μF VIN= 5V, VOUT= 4.8V, CL=22μF, -40°C ≤ TA ≤85°C Output Current Slew rate (
