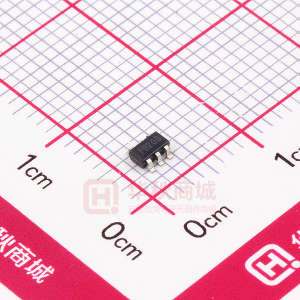

AP5724WG-7

AP5724 WHITE LED STEP-UP CONVERTER Description The AP5724 is a step-up DC/DC converter specifically designed to drive white LEDs with a constant current. The device can drive 2 ~ 6 LEDs in series from a Li-Ion cell. Series connection of the LEDs provides identical LED currents resulting in uniform brightness and eliminates the need for ballast resistors. For driving higher number of LEDs, AP5724 also supports a single feedback of parallel connected multiple strings of equal number of LEDs. The AP5724 switches at 1.2MHz that allows the use of tiny external components. A low 0.1V feedback voltage minimizes power loss in the current setting resistor for better efficiency. Pin Assignments (Top View) SW 1 6 VIN (Top View) SW VIN 1 2 3 6 5 4 GND 2 5 7 4 OVP GND FB EN FB 3 EN OVP SOT26 / TSOT23-6 DFN2020C-6 Features • • • • • • • • High efficiency: 84% typical Fast 1.2MHz switching frequency Current limit and UVLO protections Internal thermal shutdown Internal Over Voltage Protection Integrated soft-start function SOT26, TSOT23-6 and DFN2020C-6: Available in “Green” Molding Compound (No Br, Sb) Lead Free Finish/ RoHS Compliant (Note 1) Applications • • • • • Cellular Phones PDAs, Hand held Computers Digital Cameras MP3 Players GPS Receivers Notes: 1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at http://www.diodes.com/products/lead_free.html. Typical Application Circuit L1 22uH C IN 1uF V IN ON OFF PWM Dimming SW 2~6 LEDs VIN D1 COUT 1uF AP5724 OVP EN FB GND RSET 5 Figure 1. Typical Application Circuit AP5724 Document number: DS31843 Rev. 3 - 2 1 of 17 www.diodes.com July 2010 © Diodes Incorporated AP5724 WHITE LED STEP-UP CONVERTER Pin Descriptions Pin Name SW GND FB EN OVP VIN Description Switch Pin. Connect inductor/diode here. Minimize trace area at this pin to reduce EMI. GND pin. Feedback Pin. Reference voltage is 0.1V. Connect cathode of lowest LED and a sense resister here. Calculate resistor value according to the formula: RSET = 0.1V / ILED Converter On/Off Control Input. A high input at EN turns the converter On, and a low input turns it off. If On/Off control is not needed, connect EN to the input source for automatic startup. The EN pin cannot be left floating. Output Voltage detect pin for over voltage protection. Input Supply Pin. Must be locally bypassed with 1μF or 2.2μF to reduce input noise. Functional Block Diagram OVP 5 1 SW Comparator Driver A2 Rc CONTROL LOGIC Q1 + OTP FB 3 VIN 6 A1 + Cc VREF 0.1V Σ RAMP Generator 2 GND EN 4 Enable 1.2MHz Oscillator AP5724 Document number: DS31843 Rev. 3 - 2 2 of 17 www.diodes.com + July 2010 © Diodes Incorporated AP5724 WHITE LED STEP-UP CONVERTER Absolute Maximum Ratings Symbol VIN VSW VOVP VFB EN TJ(MAX) TLEAD TST VIN Pin Voltage SW Voltage OVP Pin Voltage Feedback Pin Voltage EN Maximum Junction Temperature Lead Temperature Storage Temperature Range Parameter Rating -0.3~7 -0.3~34 -0.3~35 -0.3~7 -0.3~7 150 300 -65 to +150 Unit V V V V V o o o C C C Caution: Operation above the absolute maximum ratings can cause device failure. These values, therefore, must not be exceeded under any condition. Operation at the absolute maximum rating for extended periods, may reduce device reliability. Recommended Operating Conditions Symbol VIN TJ TA Parameter Input Voltage Operating Junction Temperature Operating Ambient Temperature Min 2.7 -40 -40 Max 5.5 125 85 Unit V o C o C AP5724 Document number: DS31843 Rev. 3 - 2 3 of 17 www.diodes.com July 2010 © Diodes Incorporated AP5724 WHITE LED STEP-UP CONVERTER Electrical Characteristics (VIN = 3.6V, TA = 25°C, unless otherwise specified.) Symbol Parameter System Supply Input VIN Operating Input Voltage UVLO Under Voltage Lockout Under Voltage Lockout Hysteretic IQ Quiescent Current ISD Shutdown Current Oscillator FOSC Operation Frequency Dmax Maximum Duty Cycle Reference Voltage VFB Feedback Voltage IFB FB Pin Bias Current MOSFET Rds(on) On Resistance of MOSFET IOCP Switching Current Limit Control and Protection EN Voltage High EN Voltage Low IEN EN Pin Pull Low Current OVP OVP Threshold θJA θJC Notes: Conditions Min 2.7 - Typ. 2.2 85 500 0.1 1.2 90 0.1 45 0.95 750 4 30 162 152 200 36 32 30 Max 5.5 2.4 1 1.4 0.11 100 1.2 0.4 6 34 Unit V V mV μA μA MHz % V nA Ω mA V V μA V o FB=0.2V, No Switching VEN < 0.4V 1 86 0.09 10 1.5 26 Normal Operation ON OFF SOT26 (Note 2) Thermal Resistance Junction-toTSOT23-6 (Note 2) Ambient DFN2020C-6 (Note 2) SOT26 (Note 2) Thermal Resistance Junction-toTSOT23-6 (Note 2) Case DFN2020C-6 (Note 2) C/W o C/W 2. Test condition for SOT26, TSOT23-6 and DFN2020C-6: Device mounted on FR-4 substrate, single-layer PC board, 2oz copper, with minimum recommended pad layout AP5724 Document number: DS31843 Rev. 3 - 2 4 of 17 www.diodes.com July 2010 © Diodes Incorporated AP5724 WHITE LED STEP-UP CONVERTER Typical Performance Characteristics (6 LEDs ; VIN = 3.6V ; IOUT = 25mA) VIN vs. Shutdown Current 1 Shutdown Current(uA) Quiescent Current(uA) 700 600 500 400 300 200 100 0 2.5 3 3.5 4 VIN (V) 4.5 5 5.5 VIN vs. Quiescent Current 0.8 0.6 0.4 0.2 0 2.5 3 3.5 4 VIN (V) 4.5 5 5.5 VIN vs. Frequency 1.25 Frequency(MHz) 1.2 1.15 1.1 1.05 1 2.5 3 3.5 4 VIN (V) 4.5 5 5.5 Max Duty(%) 100 95 90 85 80 2.5 3 VIN vs. Max Duty 3.5 4 VIN(V) 4.5 5 5.5 VIN vs. Feedback Voltage 0.12 Feedback Voltage(V) IOUT vs. Feedback Voltage 0.12 Feedback Voltage(V) 0.11 0.1 0.09 0.08 0.07 0.06 0.11 0.1 0.09 0.08 0.07 0.06 2.5 3 3.5 4 VIN (V) 4.5 5 5.5 0 10 20 30 IOUT (mA) 40 50 AP5724 Document number: DS31843 Rev. 3 - 2 5 of 17 www.diodes.com July 2010 © Diodes Incorporated AP5724 WHITE LED STEP-UP CONVERTER Typical Performance Characteristics (Continued) V IN vs. OVP Threshold 35 OVP Threshold(V) 33 31 29 27 25 2.5 3 3.5 4 V IN ( V) 4.5 5 5.5 Shutdown Current(uA) 1 0.8 0.6 0.4 0.2 0 -50 Temperature vs. Shutdown Current -25 0 25 50 75 Temperature (℃) 100 125 Temperature vs. OVP Threshold 35 OVP Threshold(V) 30 25 20 15 10 -50 -25 0 25 50 75 Temperature (℃) 100 125 Tem perature vs. Frequency 1.7 V IN = 4.2V 1.4 Frequency (MHZ) 1.1 0.8 0.5 0.2 -50 -25 0 25 50 75 Tem perature ( ℃ ) 100 125 V IN = 3.6V Temperature vs. Feedback Voltage 120 Feedback Voltage(mV) 110 100 VIN = 3.6V 90 80 70 60 -50 -25 0 25 50 75 Temperature (℃) 100 125 VIN = 4.2V AP5724 Document number: DS31843 Rev. 3 - 2 6 of 17 www.diodes.com July 2010 © Diodes Incorporated AP5724 WHITE LED STEP-UP CONVERTER Typical Performance Characteristics (Continued) IOUT vs. Efficiency 90 85 Efficiency(%) 80 75 70 65 60 0 5 10 15 20 IOUT ( m A) 25 30 V IN = 3.6V V IN = 4.2V Efficiency(%) 90 85 80 75 IOUT vs. Efficiency VIN = 4.2V VIN = 3.6V 70 65 4 LEDs ; L = 22uH 6 LEDs ; L = 22uH 60 0 5 10 15 IOUT (mA) 20 25 30 VIN vs. Efficiency 100 90 Efficiency(%) 3 LEDs 4 LEDs 80 70 60 50 40 2.5 3 3.5 VIN (V) 6 LEDs 4 4.5 5 AP5724 Document number: DS31843 Rev. 3 - 2 7 of 17 www.diodes.com July 2010 © Diodes Incorporated AP5724 WHITE LED STEP-UP CONVERTER Typical Performance Characteristics (Continued) VOUT Ripple VIN = 3.6V; 4 LEDs ; IOUT = 30mA VOUT Ripple VIN = 3.6V; 6 LEDs ; IOUT = 30mA SW SW VOUT VOUT POWER ON VIN = 3.6V; 6 LEDs ; IOUT = 30mA POWER OFF VIN = 3.6V; 6 LEDs ; IOUT = 30mA VEN VEN VOUT VOUT Irushi Irushin g AP5724 Document number: DS31843 Rev. 3 - 2 8 of 17 www.diodes.com July 2010 © Diodes Incorporated AP5724 WHITE LED STEP-UP CONVERTER Applications Information Inductor Selection A 10μH~22μH inductor is recommended for most AP5724 applications. For high efficiency the inductor should have low core losses at 1.2MHz and low DCR (copper wire resistance). The inductor saturation current rating should also exceed the peak input current, especially for high load current applications (like 3S8P). Capacitor Selection The small size of ceramic capacitors are ideal for AP5724 applications. X5R and X7R types are recommended because they retain their capacitance over wider voltage and temperature ranges than other types such as Y5V or Z5U. A 1μF input capacitor and a 1μF output capacitor are sufficient for most AP5724 applications. For high output current applications like 3S8P, larger output capacitor of 2.2uF ~ 4.7uF is recommended to minimize output ripple. Diode Selection Schottky diodes, with their low forward voltage drop and fast reverse recovery, are the ideal choices for AP5724 applications. The forward voltage drop of a Schottky diode represents the conduction losses in the diode, while the diode capacitance (CT or CD) represents the switching losses. For diode selection, both forward voltage drop and diode capacitance need to be considered. Schottky diodes with higher current ratings usually have lower forward voltage drop and larger diode capacitance, which can cause significant switching losses at the 1.2MHz switching frequency of the AP5724. Schottky diodes with higher current ratings usually have lower forward voltage drop and larger diode capacitance. Larger Schottky diode capacitance can cause significant switching losses at the 1.2MHz switching frequency of the AP5724. A Schottky diode rated at 100mA to 200mA is sufficient for most AP5724 applications. LED Current Control The LED current is controlled by the feedback resistor (RSET in Figure 1). The feedback reference is 0.1V. The LED current is 0.1V/ RSET. In order to have accurate LED current, precision resistors are preferred (1% is recommended). The formula and table for RSET selection are shown below. RSET = 0.1V/ILED (See Table 1) Table 1. RSET Resistor Value Selection ILED (mA) RSET (Ω) 5 20 10 10 15 6.6 20 5 30 3.3 AP5724 Document number: DS31843 Rev. 3 - 2 9 of 17 www.diodes.com July 2010 © Diodes Incorporated AP5724 WHITE LED STEP-UP CONVERTER Applications Information (Continued) Open-Circuit Protection In the cases of output open circuit, when the LEDs are disconnected from the circuit or the LEDs fail, the feedback voltage will be zero. The AP5724 will then switch at a high duty cycle resulting in a high output voltage, which may cause the SW and OVP pin voltage to exceed the voltage rating of these pins. The OVP pin monitors the output voltage. If the output voltage reaches the over voltage protection threshold at the OVP pin (Figure 2), the over voltage protection is activated and SW pin stops switching. VIN C IN 1uF L1 22uH D1 COUT 1uF V IN SW x x RSET 5 FB AP5724 OVP EN GND Figure 2. LED Driver with Open-Circuit Protection Dimming Control There are four different types of dimming control circuits: 1. Using a PWM Signal to EN Pin With the PWM signal applied to the EN pin, the AP5724 is turned on or off by the PWM signal. The LEDs operate at either zero or full current. The average LED current increases proportionally with the duty cycle of the PWM signal. A 0% duty cycle will turn off the AP5724 and corresponds to zero LED current. A 100% duty cycle corresponds to full current. The typical frequency range of the PWM signal is below 2 kHz. AP5724 Document number: DS31843 Rev. 3 - 2 10 of 17 www.diodes.com July 2010 © Diodes Incorporated AP5724 WHITE LED STEP-UP CONVERTER Applications Information (Continued) 2. Using a DC Voltage For some applications, the preferred method of brightness control is a variable DC voltage to adjust the LED current. The dimming control using a DC voltage is shown in Figure 3. As the DC voltage increases, the voltage drop on R2 increases and the voltage drop on RSET decreases. Thus, the LED current decreases. The selection of R2 and R3 will make the current from the variable DC source much smaller than the LED current and much larger than the FB pin bias current. For VDC range from 0V to 2V, the selection of resistors in Figure 3 gives dimming control of LED current from 0mA to 20mA. AP5724 FB R3 100k R2 5k RSET 5 Figure 3. Dimming Control Using a DC Voltage VDC 3. Using a Filtered PWM Signal The filtered PWM signal can be considered as an adjustable DC voltage. It can be used to replace the variable DC voltage source in dimming control. 4. Using a Logic Signal For applications that need to adjust the LED current in discrete steps, a logic signal can be used as shown in Figure 4. RSET sets the minimum LED current (when the NMOS is off). RSET sets how much the LED current increases when the NMOS is turned on. AP5724 FB RINC Logic Signal RSET Figure 4. Dimming Control Using a Logic Signal AP5724 Document number: DS31843 Rev. 3 - 2 11 of 17 www.diodes.com July 2010 © Diodes Incorporated AP5724 WHITE LED STEP-UP CONVERTER Applications Information (Continued) VOUT L1 C1 1uF D2 LED 1 2 D3 LED R1 5ohm 3 D1 B0540WS U1 SW GND FB AP5724 D4 LED Vin OVP EN 6 5 4 22uH C2 1uF VIN ON OFF D5 LED D6 LED D7 LED Table 2. Suggested Inductors Inductors Vendor (uH) Wurth Electronics GOTREND TAIYO YUDRN 22 22 22 Current Rating (A) 0.51A 0.56A 0.51A Type SMD SMD SMD Dimensions (mm) 3.8X 3.8 X 1.6 3.8 X 3.8 X 1.05 4.0 X 4.0 X 1.25 Series 744031220 GLP3810PH220N NR4012 Table 3. Suggested Capacitors for CIN and COUT Vendor TAIYO YUDEN Capacitance 1uF Type SMD Series TMK212 B7105MG-T Table 4. Suggested Diodes Vendor Rating ZETEX DIODES DIODES 40V/0.5A 40V/0.5A 40V/0.25A Type SOD323 SOD323 SOD523 Series ZLLS400 B0540WS SDM20U40 Table 5. Suggested Resistor Vendor Type YAGEO SMD Table 6. Suggested W-LED Vendor Type LITEON SMD Series FR-SK Series LTW-C1911UC5 AP5724 Document number: DS31843 Rev. 3 - 2 12 of 17 www.diodes.com July 2010 © Diodes Incorporated AP5724 WHITE LED STEP-UP CONVERTER Ordering Information AP 5724 XXX G - 7 Package W : SOT26 WU : TSOT23-6 FDC : DFN2020C-6 Device AP5724WG-7 AP5724WUG-7 AP5724FDCG-7 Notes: Green G : Green Packing 7 : Tape & Reel Package Code W WU FDC Packaging (Note 3) SOT26 TSOT23-6 DFN2020C-6 7” Tape and Reel Quantity Part Number Suffix 3000/Tape & Reel -7 3000/Tape & Reel -7 3000/Tape & Reel -7 3. Pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. Marking Information (1) SOT26 and TSOT23-6 ( Top View ) 6 5 4 7 XX Y W X 1 Part Number AP5724WG-7 AP5724WUG-7 (2) DFN2020C-6 2 3 XX : Identification Code Y : Year 0~9 W : Week : A~Z : 1~26 week; a~z : 27~52 week; z represents 52 and 53 week X : A~Z : Green Identification Code FB GB Package SOT26 TSOT23-6 ( Top View ) XX YWX XX : Identification Code Y : Year : 0~9 W : Week : A~Z : 1~26 week; a~z : 27~52 week; z represents 52 and 53 week X : A~Z : Green Identification Code GB Part Number AP5724FDCG-7 Package DFN2020C-6 AP5724 Document number: DS31843 Rev. 3 - 2 13 of 17 www.diodes.com July 2010 © Diodes Incorporated AP5724 WHITE LED STEP-UP CONVERTER Package Outline Dimensions (All Dimensions in mm) (1) Package Type: SOT26 (2) Package Type: TSOT23-6 AP5724 Document number: DS31843 Rev. 3 - 2 14 of 17 www.diodes.com July 2010 © Diodes Incorporated AP5724 WHITE LED STEP-UP CONVERTER Package Outline Dimensions (Continued) (3) Package Type: DFN2020C-6 0.57/0.63 0.43mon. 0.15max. Marking 0.10 C 0.08 C (Active area depth) Seating plane C 0/0.05 0.25 A 2x Pin#1 ID B Top View 0.37 1.95/2.075 1.55/1.75 A R0. 15 1.95/2.075 0.86/1.06 0.25/0.35 1 R0. 0.45 2x- 0.25 B 0.65 0.25/0.35 1.59 0.10 M C A B 0.65nom. Bottom View Land Pattern Recommendation (Unit:mm) AP5724 Document number: DS31843 Rev. 3 - 2 15 of 17 www.diodes.com 0.9 July 2010 © Diodes Incorporated AP5724 WHITE LED STEP-UP CONVERTER Taping Orientation For DFN2020C-6 Notes: 4. The taping orientation of the other package type can be found on our website at http://www.diodes.com/datasheets/ap02007.pdf. AP5724 Document number: DS31843 Rev. 3 - 2 16 of 17 www.diodes.com July 2010 © Diodes Incorporated AP5724 WHITE LED STEP-UP CONVERTER IMPORTANT NOTICE DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION). Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated website, harmless against all damages. Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel. Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized application. Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings noted herein may also be covered by one or more United States, international or foreign trademarks. LIFE SUPPORT Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express written approval of the Chief Executive Officer of Diodes Incorporated. As used herein: A. Life support devices or systems are devices or systems which: 1. are intended to implant into the body, or 2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the labeling can be reasonably expected to result in significant injury to the user. B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or to affect its safety or effectiveness. Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems. Copyright © 2010, Diodes Incorporated www.diodes.com AP5724 Document number: DS31843 Rev. 3 - 2 17 of 17 www.diodes.com July 2010 © Diodes Incorporated
