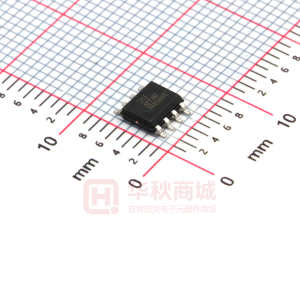

AP7167-SPG-13

AP7167-SPG-13

  • 厂商:

    DIODES

  • 封装:

  • 描述:

    AP7167-SPG-13 - 1.2A LOW DROPOUT REGULATOR WITH POK - Diodes Incorporated

  • 数据手册
  • 价格&库存
AP7167-SPG-13 数据手册
AP7167 1.2A LOW DROPOUT REGULATOR WITH POK Description The AP7167 is a 1.2A, adjustable output voltage, ultra-low dropout linear regulator. The device includes pass element, error amplifier, band-gap reference, current limit and thermal shutdown circuitry. The device is turned on when EN pin is set to logic high level. A Power-OK (POK) output is available for power sequence control. The characteristics of the low dropout voltage and low quiescent current make it suitable for low to medium power applications, for example, laptop computers, audio and video applications, and battery powered devices. The typical quiescent current is approximately 125µA. Built-in current-limit and thermal-shutdown functions prevent IC from damage in fault conditions. Pin Assignments ( Top View ) IN IN POK NC EN 1 2 3 4 5 10 9 8 7 6 OUT OUT FB NC GND DFN3030-10 ( Top View ) The AP7167 are available in DFN3030-10 and SOP-8L packages. IN IN POK EN 1 2 3 4 8 7 6 5 OUT OUT FB GND Features • • • • • • • • • • • • • • • Wide input voltage range: 2.2V – 5.5V 230mV very low dropout at 500mA load 500mV very low dropout at 1A load 3% total accuracy over line, load and temperature Very low quiescent current (IQ): 125µA typical Adjustable output voltage range: 0.8V to 5.0V Very fast transient response High PSRR Accurate voltage regulation Current limiting and short circuit protection Thermal shutdown protection Stable with any type output capacitor ≥ 4.7µF Ambient temperature range -40ºC to 85 ºC DFN3030-10 and SOP-8L-EP: Available in “Green” Molding Compound (No Br, Sb) Lead Free Finish/ RoHS Compliant (Note 1) SOP-8L-EP Applications • • • • • • Servers and laptops Smart phone and PDA MP3/MP4 Bluetooth headset Low and medium power applications FPGA and DSP core or I/O power Notes: 1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at http://www.diodes.com/products/lead_free.html. AP7167 Document number: DS31252 Rev. 7 - 2 1 of 14 www.diodes.com September 2010 © Diodes Incorporated AP7167 1.2A LOW DROPOUT REGULATOR WITH POK Typical Application Circuit VIN IN 100kOhm 1µF POK AP7167 FB R2 Enable EN GND OUT R1 VOUT 10µF ⎛ R⎞ VOUT = VREF ⎜1 + 1 ⎟ ⎜ R2 ⎟ ⎝ ⎠ Pin Descriptions Pin Name Pin # DFN3030-10 SOP-8L-EP Description IN POK EN GND FB OUT NC 1, 2 3 5 6 8 9, 10 4, 7 1, 2 3 4 5 6 7, 8 NA Voltage input pins, to be tied together externally. Bypass to ground through at least 1µF capacitor. Power-OK output, active-high open-drain. Enable input, active high. Ground. Output feedback. Voltage output pins, to be tied together externally. Bypass to ground through at least 4.7µF ceramic capacitor. No connection. AP7167 Document number: DS31252 Rev. 7 - 2 2 of 14 www.diodes.com September 2010 © Diodes Incorporated AP7167 1.2A LOW DROPOUT REGULATOR WITH POK Functional Block Diagram IN Current Limit and Thermal Shutdown OUT EN Gate Driver FB POK 0.8V 0.744V GND Absolute Maximum Ratings Symbol ESD HBM ESD MM VIN Parameter Human Body Model ESD Protection Machine Model ESD Protection Input Voltage OUT, FB, POK, EN Voltage Continuous Load Current Ratings 4 Unit KV 300 7 VIN + 0.3 Internal Limited -40 ~ 150 -65 ~150 3.1 4.0 V V V °C °C W W TJ TST PD Notes: Operating Junction Temperature Range Storage Temperature Range Power Dissipation DFN3030-10 (Note 2, 4) SOP-8L-EP (Note 2, 5) 2. Ratings apply to ambient temperature at 25°C Recommended Operating Conditions Symbol Parameter Min Max Unit VIN IOUT TA Input voltage Output Current Operating Ambient Temperature 2.2 0 -40 5.5 1.2 85 V A °C AP7167 Document number: DS31252 Rev. 7 - 2 3 of 14 www.diodes.com September 2010 © Diodes Incorporated AP7167 1.2A LOW DROPOUT REGULATOR WITH POK Electrical Characteristics (TA = 25oC, VIN = VOUT +1V, CIN = 1µF, COUT = 10µF, VEN = VIN, unless otherwise stated) Symbol Parameter Test Conditions Min ⎯ Typ. Max Unit IQ ISHDN VDropout VREF IFB VOUT Input Quiescent Current Input Shutdown Current Dropout Voltage FB reference voltage FB leakage Output Voltage Total Accuracy Line Regulation Load Regulation Start-up Time, from EN high to POK high Power Supply Rejection Ratio Current limit Short-circuit Current EN Input Logic Low Voltage EN Input Logic High Voltage EN Input leakage POK output low voltage Output voltage (rising) POK threshold Output voltage POK hysteresis IOUT= 0 VEN = 0V, IOUT = 0 (Note 3) VOUT ≥ 1.5V, IOUT = 0.5A VOUT ≥ 1.5V, IOUT = 1A 125 0.1 230 500 0.8 180 1 800 1 3 µA µA mV mV V µA % %/V -1 ⎯ 0.01 Over line, load and temperature VIN = VOUT +1V to 5.5V, IOUT = 1mA IOUT from 1mA to 1A VEN = 0V to 2.0V, IOUT = 100mA, VIN = 3.3V 1kHz, VIN = 3.3V, VOUT = 1.2V, IOUT = 100mA VOUT = 1.8V, ROUT = 0.5Ω VIN = 3.3V, VOUT < 0.2V -3 0.02 -1.5 190 60 1.2 1.6 750 ΔVOUT / VOUT ΔVIN ΔVOUT / VOUT 1.5 % µs dB A mA tST PSRR ILIMIT ISHORT VIL VIH IEN VOL VPOK_TH_UP VPOK_Hys POK deglitch IPOK_LK TSHDN THYS θJA Notes: 0.4 1.4 VEN = 0V or 5.5V Force 2mA FB (or OUT for fixed version) rising VIN = 3.3V, VOUT = 1.2V 87% ⎯ V V µA mV Vref Vref µs 0.01 100 92% 4% 160 1 200 97% POK leakage current Thermal shutdown threshold Thermal shutdown hysteresis Thermal Resistance Junction-toAmbient VPOK = 5.5V ⎯ 0.01 155 25 1 µA °C °C o o DFN3030-10 (Note 4) SOP-8L-EP (Note 5) 40 27 C/W C/W 3. POK pin must be disconnected from IN pin. 4. Test condition for DFN3030-10: Device mounted on FR-4 2-layer board, 2oz copper, with minimum recommended pad on top layer and 6 vias to bottom layer 1.0”x1.5” ground plane. 5. Test condition for SOP-8L-EP: Device mounted on 2" x 2" FR-4 substrate PCB, 2oz copper, with minimum recommended pad on top layer and thermal vias to bottom layer ground plane. Typical Performance Characteristics AP7167 Document number: DS31252 Rev. 7 - 2 4 of 14 www.diodes.com September 2010 © Diodes Incorporated AP7167 1.2A LOW DROPOUT REGULATOR WITH POK Output Voltage vs. Temperature 3.40 Output Voltage vs. Tem perature 1.30 VOUT = 3.3V VOUT = 1.2V 3.35 Output Voltage (V) Output Voltage (V) 1.25 3.30 1.20 3.25 1.15 3.20 -50 -25 0 25 50 75 100 125 1.10 -50 -25 0 25 50 75 100 125 Temperature ( C) 0 Tem perature ( 0C) Quiescent Current vs. Input Voltage 170 Quiescent Current vs. IOUT Quiescent Current ( μ A) 170 160 150 140 130 120 110 100 VIN=2.5V VIN=3.3V 0.0 0.2 0.4 0.6 0.8 1.0 1.2 VOUT=3.3V VOUT=1.8V Quiescent Current (μA) 155 140 125 110 95 Iout=0mA Iout=500mA 80 4.0 4.3 4.6 4.9 5.2 5.5 Input Voltage (V) IOUT ( A) Quiescent Current vs. Tem perature 170 0.810 Reference Voltage vs. Temperature Quiescent Current ( π A) 155 Reference Voltage (V) 0.805 140 125 0.800 110 VIN=2.2V, Vout=1.0V 95 VIN=3.3V, Vout=1.8V VIN=5.0V, Vout=3.3V 80 -50.0 -25.0 0.0 25.0 50.0 75.0 100.0 125.0 0.795 Vin=2.2V Vin=3.3V Vin=5.5V 0.790 -50 -25 0 25 50 75 100 125 Tem perature ( C) 0 Temperature ( C) 0 Typical Performance Characteristics (Continued) AP7167 Document number: DS31252 Rev. 7 - 2 5 of 14 www.diodes.com September 2010 © Diodes Incorporated AP7167 1.2A LOW DROPOUT REGULATOR WITH POK Line Regulation 0.10 Load Regulation 0.5 0.4 VOUT=1.8V, IOUT=1mA VIN=2.2V, VOUT=1.2V, 25°C 85°C -40°C Change in VOUT (%/V) Change in VOUT (%) 0.3 0.2 0.1 0.0 -0.1 -0.2 -0.3 -0.4 -0.5 0.05 0.00 -0.05 25°C 85°C - 40°C -0.10 3.0 3. 5 4. 0 4. 5 5.0 5.5 0.0 0.4 0.8 1.2 VIN (V) IOUT (A) Short Circuit Current vs. Input Voltage 0.77 Short Circuit Current vs. Temperature 0.80 VOUT=1.2V VOUT=1.2V Short Circuit Current (A) 0.76 0.75 0.74 0.73 0.72 0.71 0.70 0.69 2.2 2.4 2.6 2.8 3 3.2 3.4 Short Circuit Current (A) 0.75 0.70 0.65 0.60 -50 -25 0 25 50 75 Input Voltage (V) Temperature ( C) o Dropout Voltage vs. IOUT VOUT=3.3V 700 PSRR -40 -45 -50 PS RR (dB) 25°C 85°C -40°C Dropout Voltage (mV) 600 500 -55 -60 -65 -70 -75 -80 100 400 300 200 100 0 0 0.2 0.4 0.6 0.8 1 1.2 IOUT(A) 1000 10000 Frequency (Hz) 100000 AP7167 Document number: DS31252 Rev. 7 - 2 6 of 14 www.diodes.com September 2010 © Diodes Incorporated AP7167 1.2A LOW DROPOUT REGULATOR WITH POK Typical Performance Characteristics (Continued) Line Transient Response VIN =3V to 5.5V COUT =10uF (Ceramic) IOUT =200mA Line Transient Response VIN =5.5V to 3V COUT =10uF (Ceramic) IOUT =200mA VIN 2V/div VIN 2V/div VOUT 50mV/div VOUT 50mV/div Time (5ms/div) Output Load Transient Response (VOUT=1.8V) COUT=470uF (electrolytic) Time (500us/div) Output Load Transient Response (VOUT=3.3V) COUT=470uF (electrolytic) VOUT 100mV/div COUT=10uF (Ceramic) VOUT 100mV/div COUT=10uF (Ceramic) COUT=1uF (Ceramic) COUT=1uF (Ceramic) 1.2A IOUT 500mA/div 50mA IOUT 1A/us 500mA/div 50mA 1.2A 1A/us Time (100us/div) Start-up Time (VOUT=1.2V, IOUT=0.1A) Time (100us/div) Start-up Time (VOUT=1.2V, IOUT=1.2A) VEN 2V/div VEN 2V/div COUT=10uF VOUT 1V/div VOUT 1V/div COUT=10uF VPOK 2V/div VPOK 2V/div Time (50us/div) Time (50us/div) AP7167 Document number: DS31252 Rev. 7 - 2 7 of 14 www.diodes.com September 2010 © Diodes Incorporated AP7167 1.2A LOW DROPOUT REGULATOR WITH POK Typical Performance Characteristics (Continued) Current Limit vs. Temperature 1.8 Current Limit (A) 1.7 1.6 1.5 VIN =2.8V,Vout=1.8V VIN =3.3V,Vout=1.8V 1.4 -50 -25 0 25 50 75 100 Temperature ( C) o AP7167 Document number: DS31252 Rev. 7 - 2 8 of 14 www.diodes.com September 2010 © Diodes Incorporated AP7167 1.2A LOW DROPOUT REGULATOR WITH POK Application Notes Input Capacitor A 1μF ceramic capacitor is recommended to connect between IN and GND pins to decouple input power supply glitch and noise. The amount of the capacitance may be increased without limit. A lower ESR (Equivalent Series Resistance) capacitor allows the use of less capacitance, while higher ESR type requires more capacitance. This input capacitor should be located as close as possible to the device to assure input stability and less noise. For PCB layout, a wide copper trace is required for both IN and GND. Rearranging the equation will give the following equation to find the approximate resistor divider values: ⎛V ⎞ R1 = R2 ⎜ OUT − 1⎟ ⎜V ⎟ ⎝ REF ⎠ To maintain the stability of the internal reference voltage, R2 needs to be kept smaller than 250kΩ. No Load Stability Output Capacitor The output capacitor is required to stabilize and help the transient response of the LDO. The AP7167 is designed to have excellent transient response for most applications with a small amount of output capacitance. The AP7167 is stable for all available types and values of output capacitors ≥ 4.7μF. The device is also stable with multiple capacitors in parallel, which can be of any type of value. Additional capacitance helps to reduce undershoot and overshoot during transient. This capacitor should be placed as close as possible to OUT and GND pins for optimum performance. Other than external resistor divider, no minimum load is required to keep the device stable. The device will remain stable and regulated in no load condition. ENABLE/SHUTDOWN Operation The AP7167 is turned on by setting the EN pin high, and is turned off by pulling it low. If this feature is not used, the EN pin should be tied to IN pin to keep the regulator output on at all time. To ensure proper operation, the signal source used to drive the EN pin must be able to swing above and below the specified turn-on/off voltage thresholds listed in the Electrical Characteristics section under VIL and VIH. Adjustable Operation The AP7167 provides output voltage from 0.8V to 5.0V through external resistor divider as shown below. VIN IN OUT R1 FB R2 Enable EN GND POWER-OK The Power-Ok (POK) pin is an active high open-drain output. It can be connected to any 5.5V or lower rail through an external pull-up resistor. The recommended sink current of POK pin is up to 4mA, so the pull-up resistor for POK should be in the range of 10kΩ to 1MΩ. If output voltage monitoring is not needed, the POK pin can be left floating. VOUT CIN 100kOhm AP7167 POK COUT Current Limit Protection When output current at OUT pin is higher than current limit threshold, the current limit protection will be triggered and clamp the output current to approximately 1.6A (1.2A min) to prevent over-current and to protect the regulator from damage due to overheating. Short Circuit Protection When OUT pin is short-circuited to GND or OUT pin voltage is less than 200mV, short circuit protection will be triggered and clamp the output current to approximately 750mA. This feature protects the regulator from overcurrent and damage due to overheating. The output voltage is calculated by: ⎛ R⎞ VOUT = VREF ⎜1 + 1 ⎟ ⎜ R⎟ 2⎠ ⎝ Where VREF=0.8V (the internal reference voltage) AP7167 Document number: DS31252 Rev. 7 - 2 9 of 14 www.diodes.com September 2010 © Diodes Incorporated AP7167 1.2A LOW DROPOUT REGULATOR WITH POK Application Notes (Continued) Low Quiescent Current The AP7167, consuming only around 150µA for all input range and output loading, provides great power saving in portable and low power applications. Power Dissipation The device power dissipation and proper sizing of the thermal plane that is connected to the thermal pad is critical to avoid thermal shutdown and ensuring reliable operation. Power dissipation of the device depends on input voltage and load conditions and can be calculated by: Wide Output Range The AP7167, with a wide output range of 0.8V to 5.0V, provides a versatile solution for many portable and low power applications. PD = ( VIN − VOUT )xIOUT The AP7167 is available in the DFN3030-10 and SOP-8LEP packages, both with exposed pad, which is the primary conduction path for heat to the printed circuit board (PCB). The pad can be connected to ground or be left floating; however, to ensure the device will not overheat, it should be attached to an appropriate amount of copper PCB area. However, the maximum power dissipation that can be handled by the device depends on the maximum junction to ambient thermal resistance, maximum ambient temperature, and maximum device junction temperature, which can be approximated by the equation below: Thermal Shutdown Protection Thermal protection disables the output when the junction temperature rises to approximately +155°C, allowing the device to cool down. When the junction temperature reduces to approximately +130°C the output circuitry is enabled again. Depending on power dissipation, thermal resistance, and ambient temperature, the thermal protection circuit may cycle on and off. This cycling limits the heat dissipation of the regulator, protecting it from damage due to overheating. PD (max@ TA ) = ( +150°C − TA ) R θJA AP7167 Document number: DS31252 Rev. 7 - 2 10 of 14 www.diodes.com September 2010 © Diodes Incorporated AP7167 1.2A LOW DROPOUT REGULATOR WITH POK Ordering Information AP7167 - XX G - X Package FN : DFN3030-10 SP : SOP-8L-EP Device AP7167-FNG-7 AP7167-SPG-13 Notes: Green G : Green Packing 7/13 : Tape & Reel Package Code FN SP Packaging (Note 6) DFN3030-10 SOP-8L-EP 7”/13” Tape and Reel Quantity 3000/Tape & Reel 2500/Tape & Reel Part Number Suffix -7 -13 6. Pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. Marking Information (1) DFN3030-10 ( Top View ) XX YWX XX : Identification Code Y : Year : 0~9 W : Week : A~Z : 1~26 week; a~z : 27~52 week; z represents 52 and 53 week X : A~Z : Green Package DFN3030-10 Identification Code B4 Part Number AP7167 (2) SOP-8L-EP ( Top View ) 8 5 Logo Part No. AP7167 YY WW X X E 1 4 G : Green YY : Year : 08, 09,10~ WW : Week : 01~52; 52 represents 52 and 53 week X : Internal Code SOP-8L-EP AP7167 Document number: DS31252 Rev. 7 - 2 11 of 14 www.diodes.com September 2010 © Diodes Incorporated AP7167 1.2A LOW DROPOUT REGULATOR WITH POK Package Outline Dimensions (Continued) (1) Package Type: DFN3030-10 TOP MARK 0.10 C 0.08 C 0.57/0.63 0/0.02 0.15 Seating Plane Top View 10x-0.30 0.50Typ. 0.60 0.25 A Side View 2.9/3.1 2.3/2.5 C 2X- (Pin #1 ID) 1.80 2.9/3.1 1.5/1.7 R0 .30 0.25/0.55 2.60 Land Pattern Recommendation (Unit:mm) 2X- 0.25 B 0.375Typ. 0.50Typ. 0.20/0.30 0.10 CAB Bottom View (2) Package Type: SOP-8L-EP Detail "A" Exposed pad 7°~9° 3.85/3.95 5.90/6.10 3.70/4.10 45° 0.35max. 7°~9° 1 1.30/1.50 1.75max. 0.15/0.25 3.3Ref. 1 Bottom View 0/0.13 0.254 1.27typ 4.85/4.95 1 0.3/0.5 Gauge Plane Seating Plane 0.62/0.82 Detail "A" 8x-0.60 Exposed pad 6x-1.27 8x-1.55 Land Pattem Recommendation (Unit:mm) Notes: 7. All dimensions are in millimeters. Angles are in degrees. 8. Coplanarity applies to the exposed heat sink slug as well as the terminals. 5.4 AP7167 Document number: DS31252 Rev. 7 - 2 12 of 14 www.diodes.com 2.4Ref. 0.15 0.15 B A September 2010 © Diodes Incorporated AP7167 1.2A LOW DROPOUT REGULATOR WITH POK Taping Orientation (Note 9) For DFN3030-10 Notes: 9.The taping orientation of the other package type can be found on our website at http://www.diodes.com/datasheets/ap02007.pdf. AP7167 Document number: DS31252 Rev. 7 - 2 13 of 14 www.diodes.com September 2010 © Diodes Incorporated AP7167 1.2A LOW DROPOUT REGULATOR WITH POK IMPORTANT NOTICE DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION). Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated website, harmless against all damages. Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel. Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized application. Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings noted herein may also be covered by one or more United States, international or foreign trademarks. LIFE SUPPORT Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express written approval of the Chief Executive Officer of Diodes Incorporated. As used herein: A. Life support devices or systems are devices or systems which: 1. are intended to implant into the body, or 2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the labeling can be reasonably expected to result in significant injury to the user. B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or to affect its safety or effectiveness. Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems. Copyright © 2010, Diodes Incorporated www.diodes.com AP7167 Document number: DS31252 Rev. 7 - 2 14 of 14 www.diodes.com September 2010 © Diodes Incorporated
