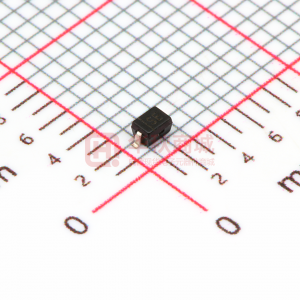

B0530WS-7-F

B0530WS SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Please click here to visit our online spice models database. Features • • • • • Low Forward Voltage Drop Guard Ring Construction for Transient Protection High Conductance Lead, Halogen and Antimony Free, RoHS Compliant "Green" Device (Notes 3 and 4) Qualified to AEC-Q101 Standards for High Reliability Mechanical Data • • • • • • • • Case: SOD-323 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020D Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe). Solderable per MIL-STD-202, Method 208 Polarity: Cathode Band Marking Information: See Page 3 Ordering Information: See Page 3 Weight: 0.004 grams (approximate) Top View Maximum Ratings @TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitance load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current (See Figure 1) Peak Repetitive Forward Current tp = 8.3ms, half sine-wave Non-Repetitive Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load Symbol VRRM VRWM VR VR(RMS) IO IFRM IFSM Value 30 21 0.5 3.5 2 Unit V V A A A Thermal Characteristics Characteristic Power Dissipation (Note 1) Typical Thermal Resistance Junction to Ambient (Note 1) Operating and Storage Temperature Range Symbol PD RθJA TJ, TSTG Value 235 426 -40 to +125 Unit mW °C/W °C Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 2) Forward Voltage Drop Leakage Current (Note 2) Total Capacitance Notes: 1. 2. 3. 4. @TA = 25°C unless otherwise specified Symbol V(BR)R VF IR CT Min 30 ⎯ ⎯ ⎯ ⎯ ⎯ ⎯ Typ ⎯ ⎯ 0.40 ⎯ ⎯ ⎯ 58 Max ⎯ 0.36 0.45 80 100 500 ⎯ Unit V V μA pF Test Conditions IR = 500μA IF = 0.1A IF = 0.5A VR = 15V VR = 20V VR = 30V f = 1MHz, VR = 0V DC Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. Short duration pulse test used to minimize self-heating effect. No purposefully added lead. Halogen and Antimony Free. Product manufactured with Data Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants. B0530WS Document number: DS30249 Rev. 13 - 2 1 of 3 www.diodes.com December 2008 © Diodes Incorporated B0530WS IF, INSTANTANEOUS FORWARD CURRENT (A) 240 210 PD, POWER DISSIPATION (mW) 180 150 120 90 60 30 0 0 0.1 0.2 0.3 0.4 0.5 0.6 IF(AV), AVERAGE FORWARD CURRENT (A) Fig. 1 Forward Power Dissipation 10,000 1,000 100 10 1 0.1 TA = -65ºC TA = 0ºC TA = 75ºC TA = 25ºC TA = 125ºC TA = 100ºC 10 1 T A = 125ºC TA = 100ºC 0.1 TA = 75ºC 0.01 TA = 25ºC TA = 0ºC 0.001 0 0.2 0.4 TA = -65ºC 0.6 0.8 1.0 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics 70 f = 1MHz 60 CT, TOTAL CAPACITANCE (pF) 30 50 40 30 20 10 0 0 10 5 15 20 VR, DC REVERSE VOLTAGE (V) Fig. 4 Total Capacitance vs. Reverse Voltage 0.01 0.001 0 10 20 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 3 Typical Reverse Characteristics 0.8 0.7 IF, DC FORWARD CURRENT (A) Note 5 0.6 0.5 0.4 0.3 0.2 0.1 0 0 25 75 125 50 100 TT, TERMINAL TEMPERATURE (°C) Fig. 5 Forward Current Derating Curve 150 B0530WS Document number: DS30249 Rev. 13 - 2 2 of 3 www.diodes.com December 2008 © Diodes Incorporated B0530WS Ordering Information Part Number B0530WS-7-F Notes: (Note 6) Case SOD-323 Packaging 3000/Tape & Reel 6. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information SE SE = Product Type Marking Code Package Outline Dimensions C H B A M L K J SOD-323 Dim Min Max A 0.25 0.35 B 1.20 1.40 C 2.30 2.70 H 1.60 1.80 J 0.00 0.10 K 1.0 1.1 L 0.20 0.40 M 0.10 0.15 0° 8° α All Dimensions in mm Suggested Pad Layout C X Y G Z Dimensions Value (in mm) Z 3.75 G 1.05 X 0.65 Y 1.35 C 2.40 IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. B0530WS Document number: DS30249 Rev. 13 - 2 3 of 3 www.diodes.com December 2008 © Diodes Incorporated
