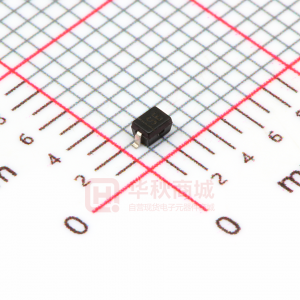

B0530WS

SPICE MODEL: B0530WS B0530WS SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Features · · · · · Low Forward Voltage Drop Guard Ring Construction for Transient Protection High Conductance Lead Free/RoHS Compliant (Note 3) Qualified to AEC-Q101 Standards for High Reliability H G A B D SOD-323 Dim Min 2.30 1.60 1.20 1.00 0.25 0.20 0.10 0° Max 2.70 1.80 1.40 1.10 0.35 0.40 0.15 8° A B C D E G C E J Mechanical Data · · · · · · · · Case: SOD-323 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Terminals: Solderable per MIL-STD-202, Method 208 Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe). Polarity: Cathode Band Marking: Type Code and Cathode Band Type Code: SE Weight: 0.004 grams (approximate) H J a 0.05 Typical All Dimensions in mm Maximum Ratings @ TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current (See Figure 1) Non-Repetitive Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load Power Dissipation (Note 1) Typical Thermal Resistance Junction to Ambient (Note 1) Operating and Storage Temperature Range Symbol VRRM VRWM VR VR(RMS) IO IFSM Pd RqJA Tj, TSTG Value 30 21 0.5 2 235 426 -40 to +125 Unit V V A A mW °C/W °C Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 2) Forward Voltage Drop Leakage Current (Note 2) Total Capacitance Note: @ TA = 25°C unless otherwise specified Symbol V(BR)R VF IR CT Min 30 ¾ ¾ ¾ ¾ ¾ ¾ Typ ¾ ¾ 0.40 ¾ ¾ ¾ 58 Max ¾ 0.36 0.45 80 100 500 ¾ Unit V V mA pF Test Conditions IR = 500mA IF = 0.1A IF = 0.5A VR = 15V VR = 20V VR = 30V f = 1MHz, VR = 0VDC 1. Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. 2. Short duration test pulse used to minimize self-heating effect. 3. No purposefully added lead. DS30249 Rev. 10 - 2 1 of 3 www.diodes.com B0530WS ã Diodes Incorporated Ordering Information (Note 4) Packaging SOD-323 Shipping 3000/Tape and Reel Device B0530WS-7-F Note: 4. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. 5. Part mounted on Polymide PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf Marking Information Type Code SE Cathode Band IF, INSTANTANEOUS FORWARD CURRENT (A) 0.8 0.7 10 IF, DC FORWARD CURRENT (A) Note 5 0.6 0.5 0.4 0.3 0.2 0.1 0 0 25 50 75 100 125 150 TT, TERMINAL TEMPERATURE (° C) Fig. 1 Forward Current Derating Curve 10,000 1,000 100 10 1 0.1 TA = -65ºC TA = 0ºC TA = 75ºC TA = 25ºC 1 TA = 125ºC TA = 100ºC 0.1 TA = 75ºC 0.01 TA = 25ºC TA = 0ºC 0.001 0 0.2 0.4 TA = -65ºC 0.6 0.8 1.0 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics 70 TA = 125ºC TA = 100ºC f = 1MHz 60 CT, TOTAL CAPACITANCE (pF) 30 50 40 30 20 10 0 0.01 0.001 0 10 20 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 3 Typical Reverse Characteristics 0 5 10 15 20 VR, DC REVERSE VOLTAGE (V) Fig. 4 Typ. Total Capacitance vs Reverse Voltage DS30249 Rev. 10 - 2 2 of 3 www.diodes.com B0530WS 240 210 IPK IAV = 1 (DC) PF(AV), AVERAGE FORWARD POWER DISSIPATION (mW) 180 150 120 90 60 30 0 0 0.1 0.2 0.3 0.4 0.5 0.6 IF(AV), AVERAGE FORWARD CURRENT (A) Fig. 5 Forward Power Dissipation IMPORTANT NOTICE Diodes, Inc. and its subsidiaries reserve the right to make changes without further notice to any product herein to make corrections, modifications, enhancements, improvements, or other changes. Diodes, Inc. does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT The products located on our website at www.diodes.com are not recommended for use in life support systems where a failure or malfunction of the component may directly threaten life or cause injury without the expressed written approval of Diodes Incorporated. DS30249 Rev. 10 - 2 3 of 3 www.diodes.com B0530WS
