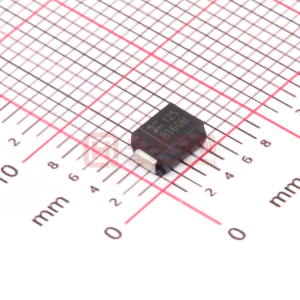

B160B

SPICE MODELS: B120 B130 B140 B150 B160 B120B B130B B140B B150B B160B B120/B - B160/B 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Features · · · · · · Guard Ring Die Construction for Transient Protection Ideally Suited for Automatic Assembly Low Power Loss, High Efficiency Surge Overload Rating to 30A Peak For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application Lead Free Finish/RoHS Compliant (Note 3) B Dim A SMA Min 2.29 4.00 1.27 0.15 4.80 0.10 0.76 2.01 Max 2.92 4.60 1.63 0.31 5.59 0.20 1.52 2.62 SMB Min 3.30 4.06 1.96 0.15 5.00 0.10 0.76 2.00 Max 3.94 4.57 2.21 0.31 5.59 0.20 1.52 2.62 A C B C D E G H J Mechanical Data · · · · · · · · Case: SMA/SMB Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Terminals: Lead Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208 e3 Polarity: Cathode Band or Cathode Notch Marking Information: See page 3 Ordering Information: See page 3 Approximate Weight: SMA 0.064 grams SMB 0.093 grams D J H G E All Dimensions in mm No Suffix Designates SMA Package “B” Suffix Designates SMB Package Maximum Ratings and Electrical Characteristics Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current @ TT = 130°C Non-Repetitive Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load Forward Voltage Peak Reverse Current at Rated DC Blocking Voltage Typical Total Capacitance (Note 2) Typical Thermal Resistance Junction to Terminal (Note 1) Operating and Storage Temperature Range Notes: @ TA = 25°C unless otherwise specified Symbol VRRM VRWM VR VR(RMS) IO IFSM VFM IRM CT RqJT Tj, TSTG B120/B 20 14 B130/B 30 21 B140/B 40 28 1.0 30 B150/B 50 35 B160/B 60 42 Unit V V A A @ IF = 1.0A @ TA = 25°C @ TA = 100°C 0.50 0.5 10 110 20 -65 to +150 0.70 V mA pF °C/W °C 1. Thermal Resistance: Junction to terminal, unit mounted on PC board with 5.0 mm2 (0.013 mm thick) copper pads as heat sink. 2. Measured at 1.0 MHz and applied reverse voltage of 4.0V DC. 3. RoHS revision 13.2.2003. High Temperature Solder Exemption Applied, see EU Directive Annex Note 7. DS13002 Rev. 13 - 2 1 of 3 www.diodes.com B120/B-B160/B ã Diodes Incorporated 10 IF, INSTANTANEOUS FWD CURRENT (A) IO, AVERAGE RECTIFIED CURRENT (A) 1.0 TA = +125° C TA = +75° C TA = +25° C 1.0 TA = -25° C 0.5 0 25 50 75 100 125 150 0.1 0.2 0.4 0.6 0.8 1.0 1.2 TT, TERMINAL TEMPERATURE (ºC) Fig. 1 Forward Current Derating Curve IF, INSTANTANEOUS FORWARD CURRENT (A) 10 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics - B120/B thru B140/B 40 IFSM, PEAK FORWARD SURGE CURRENT (A) Single Half Sine-Wave 30 1.0 TA = +125ºC 20 TA = +25ºC 0.1 10 0.01 0 0.2 0.4 IF Pulse Width = 300 ms 0 1 10 NUMBER OF CYCLES AT 60 Hz Fig. 4 Max Non-Repetitive Peak Fwd Surge Current 100 0.6 0.8 1.0 VF, INSTANTANEOUS FWD VOLTAGE (V) Fig. 3 Typ. Forward Characteristics - B150/B thru B160/B 1000 Tj = 25°C f = 1 MHz 10,000 TA = +125° C CT, TOTAL CAPACITANCE (pF) 1000 TA = +75° C 100 100 10 TA = +25° C 1 0.1 TA = -25° C 10 0.1 1 10 100 0.01 0 10 20 30 40 50 VR, REVERSE VOLTAGE (V) Fig. 5 Typical Total Capacitance VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 6 Typical Reverse Characteristics, B120/B thru B140/B DS13002 Rev. 13 - 2 2 of 3 www.diodes.com B120/B-B160/B 10,000 1000 TA = +125° C 100 10 TA = +70° C 1 TA = +25° C 0.1 0 10 20 30 40 50 60 70 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 7 Typical Reverse Characteristics, B150/B thru B160/B Ordering Information (Note 4) Device* B1XX-13-F B1XXB-13-F Notes: Packaging SMA SMB Shipping 5000/Tape & Reel 3000/Tape & Reel 4. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. * xx = Device type, e.g. B120-13-F (SMA package); B120B-13-F (SMB package). Marking Information B1X0 = Product type marking code, ex: B120 (SMA package) B1X0B = Product type marking code, ex: B160B (SMB package) = Manufacturers’ code marking YWW = Date code marking Y = Last digit of year ex: 2 for 2002 WW = Week code 01 to 52 YWW B1X0(B) Note: Device has a cathode band (as shown above) and may also have a cathode notch (as shown on Page 1). IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. DS13002 Rev. 13 - 2 3 of 3 www.diodes.com B120/B-B160/B
