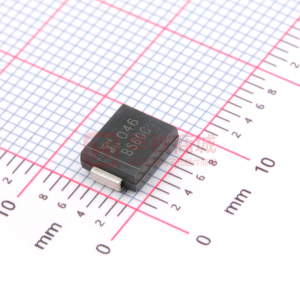

B560C-13-F

SPICE MODELS: B520C B530C B540C B550C B560C B520C - B560C 5.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Features · · · · · · Guard Ring Die Construction for Transient Protection Ideally Suited for Automatic Assembly Low Power Loss, High Efficiency Surge Overload Rating to 175A Peak For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application Lead Free Finish/RoHS Compliant (Note 3) B Dim A SMC Min 5.59 6.60 2.75 0.15 7.75 0.10 0.76 2.00 Max 6.22 7.11 3.18 0.31 8.13 0.20 1.52 2.62 A C B C D Mechanical Data · · · · · · · · Case: SMC Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Terminals: Lead Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208 e3 Polarity: Cathode Band or Cathode Notch Marking Information: See Page 3 Ordering Information: See Page 3 Weight: 0.21 grams (approximate) D J E G H H G E J All Dimensions in mm Maximum Ratings and Electrical Characteristics Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current @ TT = 90°C Non-Repetitive Peak Forward Surge Current, 8.3 ms single half-sine-wave Superimposed on Rated Load Forward Voltage Peak Reverse Current at Rated DC Blocking Voltage Typical Total Capacitance (Note 2) Thermal Resistance, Junction to Terminal Thermal Resistance, Junction to Ambient (Note 1) Operating Temperature Range Storage Temperature Range Notes: @ TA = 25°C unless otherwise specified Symbol VRRM VRWM VR VR(RMS) IO IFSM VFM IRM CT RqJT RqJA Tj TSTG B520C 20 14 B530C 30 21 B540C 40 28 5.0 175 B550C 50 35 B560C 60 42 Unit V V A A @ IF = 5.0A DC @ TA = 25°C @ TA = 100°C 0.55 0.5 20 300 10 50 -55 to +125 -55 to +150 0.70 V mA pF °C/W °C/W °C °C 1. Thermal Resistance: Junction to ambient, unit mounted on PC board with 8.0 mm2 (0.033 mm thick) copper pads as heat sink. 2. Measured at 1.0 MHz and applied reverse voltage of 4.0V DC. 3. RoHS revision 13.2.2003. High Temperature Solder Exemption Applied, see EU Directive Annex Note 7. DS13012 Rev. 8 - 2 1 of 3 www.diodes.com B520C-B560C ã Diodes Incorporated 4.0 IF, INSTANTANEOUS FORWARD CURRENT (A) 5.0 IO, AVERAGE RECTIFIED CURRENT (A) 100 10 B520C - B540C 3.0 B550C - B560C 2.0 1.0 1.0 Tj = 25ºC IF Pulse Width = 300 ms 0 25 50 75 100 125 150 0.1 0 0.2 0.4 0.6 0.8 1.0 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics 1000 TT, TERMINAL TEMPERATURE (ºC) Fig. 1 Forward Current Derating Curve IFSM, PEAK FORWARD SURGE CURRENT (A) 175 Single Half-Sine-Wave 140 105 CT, TOTAL CAPACITANCE (pF) Tj = 25°C f = 1MHz 100 70 35 0 1 10 100 NUMBER OF CYCLES AT 60 Hz Fig. 3 Max Non-Repetitive Peak Forward Surge Current 10 0.1 1 10 100 VR, DC REVERSE VOLTAGE (V) Fig. 4 Typical Total Capacitance IR, INSTANTANEOUS REVERSE CURRENT (mA) 100 Tj = 125°C 10 Tj = 100°C 1.0 0.1 0.01 Tj = 25°C 0.001 0 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE (%) Fig. 5 Typical Reverse Characteristics DS13012 Rev. 8 - 2 2 of 3 www.diodes.com B520C-B560C Ordering Information Device (Note 4) Packaging SMC SMC SMC SMC SMC Shipping 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel B520C-13-F B530C-13-F B540C-13-F B550C-13-F B560C-13-F Notes: 4. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information YWW B5x0C B5x0C = Product type marking code, ex: B540C (SMC package) = Manufacturers’ code marking YWW = Date code marking Y = Last digit of year ex: 2 for 2002 WW = Week code 01 to 52 x = 2,3,4,5 or 6 - i.e., x = 4 for B540C IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. DS13012 Rev. 8 - 2 3 of 3 www.diodes.com B520C-B560C
