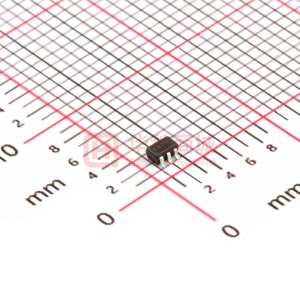

BAS40BRW

BAS40TW /DW-04 /DW-05 / DW-06 /BRW SURFACE MOUNT SCHOTTKY BARRIER DIODE ARRAYS NEW PRODUCT Features · · · · Low Forward Voltage Drop Fast Switching Ultra-Small Surface Mount Package PN Junction Guard Ring for Transient and ESD Protection SOT-363 A Dim A Marking Indicates BC Orientation B C D E G Min 0.10 1.15 2.00 0.30 1.80 1.80 ¾ 0.90 0.25 0.10 Max 0.30 1.35 2.20 0.40 2.20 2.20 0.10 1.00 0.40 0.25 Mechanical Data · · · · Case: SOT-363, Molded Plastic Terminals: Solderable per MIL-STD-202, Method 208 Polarity: See Diagrams Below Weight: 0.006 grams (approx.) KXX H K 0.65 Nominal H M J K L M J D F L All Dimensions in mm AC 1 A1 C2 C2 C1 A2 A2 C2 A2 AC 1 C1 C2 C1 C2 C3 C1 C1 A2 A1 A1 C2 A1 C1 AC 2 A1 A2 AC 2 A1 A2 A3 BAS40DW-06 Marking: K46 BAS40DW-05 Marking: K45 BAS40DW-04 Marking: K44 BAS40BRW Marking: K47 BAS40TW Marking: K43 Maximum Ratings @ TA = 25°C unless otherwise specified Symbol VRRM VRWM VR VR(RMS) IFM @ t < 1.0s IFSM Pd RqJA Tj, TSTG Value 40 28 200 600 200 625 -55 to +125 -65 to +125 Unit V V mA mA mW K/W °C Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current (Note 1) Non-Repetitive Peak Forward Surge Current Power Dissipation (Note 1) Thermal Resistance Junction to Ambient Air (Note 1) Operating and Storage Temperature Range Electrical Characteristics Characteristic Maximum Forward Voltage Maximum Peak Reverse Current Junction Capacitance Reverse Recovery Time Notes: @ TA = 25°C unless otherwise specified Symbol VFM IRM Cj trr Min ¾ ¾ ¾ ¾ Max 380 1000 200 5.0 5.0 Unit mV mV nA pF ns Test Condition IF = 1.0mA, tp < 300ms IF = 40mA, tp < 300ms VR = 30V VR = 0, f = 1.0MHz IF = IR = 10mA, Irr = 0.1 x IR, RL = 100W 1. Valid Provided that terminals are kept at ambient temperature. DS30156 Rev. D-1 1 of 1 BAS40TW /DW-04 /DW-05 /DW-06 /BRW
