BAS70

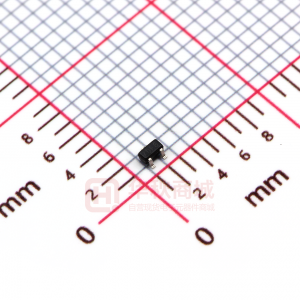

BAS70/ -04/ -05/ -06 SURFACE MOUNT SCHOTTKY BARRIER DIODE Features · · · Low Turn-on Voltage Fast Switching PN Junction Guard Ring for Transient and ESD Protection SOT-23 A Dim A B C D E G H K J L M Min 0.37 1.19 2.10 0.89 0.45 1.78 2.65 0.013 0.89 0.45 0.076 Max 0.51 1.40 2.50 1.05 0.61 2.05 3.05 0.15 1.10 0.61 0.178 TOP VIEW B C Mechanical Data · · · · Case: SOT-23, Molded Plastic Terminals: Solderable per MIL-STD-202, Method 208 Polarity: See Diagrams Approx. Weight: 0.008 grams E D G H J K L M All Dimensions in mm BAS70 Marking: K73, K7C BAS70-04 Marking: K74, K7D BAS70-05 Marking: K75, K7E BAS70-06 Marking: K76, K7F Maximum Ratings and Electrical Characteristics, Single Diode @ TA = 25°C unless otherwise specified Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current (Note 1) Non-Repetitive Peak Forward Surge Current Power Dissipation (Note 1) Thermal Resistance Junction to Ambient Air (Note 1) Operating Junction Temperature Range Storage Temperature Range @ tp < 1.0s Symbol VRRM VRWM VR VR(RMS) IF IFSM Pd RqJA Tj TSTG BAS70 70 49 70 100 200 625 -55 to +125 -65 to +150 Unit V V mA mA mW K/W °C °C Electrical Ratings @ TA = 25°C unless otherwise specified Symbol V(BR)R VF IRM Cj trr — ¾ ¾ — 410 1000 100 2.0 5.0 mV nA pF ns tp
