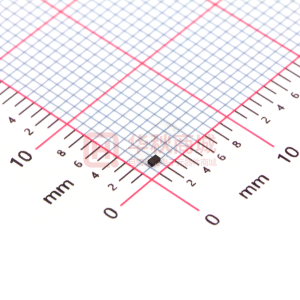

BAT54LP-7

SPICE MODEL: BAT54LP BAT54LP Lead-free Green SURFACE MOUNT SCHOTTKY BARRIER DIODE Features · · · · · · · · · · · · · · · Low Forward Voltage Drop Fast Switching Ultra-Small Leadless Surface Mount Package PN Junction Guard Ring for Transient and ESD Protection Lead Free By Design/RoHS Compliant (Note 1) "Green" Device (Note 2) Qualified to AEC-Q101 Standards for High Reliability DFN1006-2 NEW PRODUCT G H Dim A B C D G Min 0.95 0.55 0.45 0.20 0.47 0 ¾ 0.05 Max 1.075 0.675 0.55 0.30 0.53 0.05 ¾ 0.15 Typ 1.00 0.60 0.50 0.25 0.50 0.03 0.40 0.10 Mechanical Data Case: DFN1006-2 Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0 Moisture sensitivity: Level 1 per J-STD-020C Terminal Connections: Cathode Dot Terminals: Finish - NiPdAu annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 Marking: L1, Dot Denotes Cathode Side Ordering Information: See Page 2 Weight: 0.001 grams A B R C H N R D N All Dimensions in mm Maximum Ratings @ TA = 25°C unless otherwise specified Symbol VRRM VRWM VR IF IFRM @ t < 1.0s IFSM Value 30 200 300 600 Unit V mA mA mA Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Forward Continuous Current Repetitive Peak Forward Current Forward Surge Current Thermal Characteristics Characteristic Power Dissipation (Note 4) Thermal Resistance, Junction to Ambient Air (Note 4) Operating and Storage Temperature Range Symbol Pd RqJA Tj, TSTG Value 250 400 -65 to +125 Unit mW °C/W °C Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 3) @ TA = 25°C unless otherwise specified Symbol V(BR)R Min 30 ¾ ¾ ¾ ¾ Typ ¾ ¾ ¾ ¾ ¾ Max ¾ 240 320 400 500 1000 2.0 10 5.0 Unit V Test Condition IR = 100mA IF = 0.1mA IF = 1mA IF = 10mA IF = 30mA IF = 100mA VR = 25V VR = 1.0V, f = 1.0MHz IF = 10mA through IR = 10mA to IR = 1.0mA, RL = 100W Forward Voltage VF IR CT trr mV Reverse Leakage Current (Note 3) Total Capacitance Reverse Recovery Time Notes: 1. 2. 3. 4. mA pF ns No purposefully added lead. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php. Short duration pulse test used to minimize self-heating effect. Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. TA = 25°C. DS30504 Rev. 10 - 2 1 of 3 www.diodes.com BAT54LP ã Diodes Incorporated PD, POWER DISSIPATION (mW) 250 IF, INSTANTANEOUS FORWARD CURRENT (mA) 300 1000 NEW PRODUCT 100 200 TA = 125° C 150 10 TA = 75° C 100 TA = 25° C TA = 0° C 1 50 0 0 25 50 75 100 125 TA = -40° C 0.1 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 VR, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics TA, AMBIENT TEMPERATURE (°C) Fig. 1 Power Derating Curve 100 TA = 150ºC 10 IR, LEAKAGE CURRENT (uA) 1 0.1 TA = 125ºC TA = 85ºC 0.01 TA = 25ºC 0.001 TA = -65ºC 0.0001 0.00001 0 3 6 9 12 15 18 21 24 27 30 VR, REVERSE VOLTAGE (V) Fig. 3 Typical Reverse Characteristics Ordering Information Device BAT54LP-7 Notes: (Note 4) Packaging DFN1006-2 Shipping 3000/Tape & Reel 4. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information L1 L1 = Product Type Marking Code, Dot Denotes Cathode Side DS30504 Rev. 10 - 2 2 of 3 www.diodes.com BAT54LP NEW PRODUCT IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. DS30504 Rev. 10 - 2 3 of 3 www.diodes.com BAT54LP
