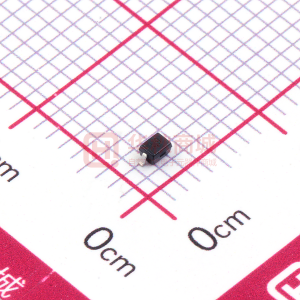

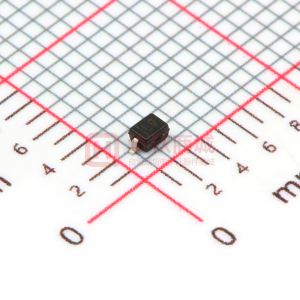

BAT54WS-7-F

BAT54WS SURFACE MOUNT SCHOTTKY BARRIER DIODE Please click here to visit our online spice models database. Features • • • • • Fast Switching Ultra-Small Surface Mount Package PN Junction Guard Ring for Transient and ESD Protection Lead, Halogen and Antimony Free, RoHS Compliant "Green" Device (Notes 3 and 5) Mechanical Data • • • • • • • • Case: SOD-323 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020D Leads: Solderable per MIL-STD-202, Method 208 Also Available in Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe). Polarity: Cathode Band Marking Information: See Page 3 Ordering Information: See Page 3 Weight: 0.004 grams (approximate) Top View Maximum Ratings @TA = 25°C unless otherwise specified Symbol VRRM VRWM VR VR(RMS) IO IF IFRM IFSM Value 30 21 100 200 300 600 Unit V V mA mA mA mA Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Forward Current Forward Continuous Current (Note 1) Repetitive Peak Forward Current (Note 1) Forward Surge Current (Note 1) . @ t < 1.0s Thermal Characteristics Characteristic Power Dissipation (Note 1) Thermal Resistance, Junction to Ambient Air (Note 1) Operating and Storage Temperature Range (Note 4) Symbol PD RθJA TJ, TSTG Value 200 625 -65 to +150 Unit mW °C/W °C Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 2) @TA = 25°C unless otherwise specified Symbol V(BR)R Min 30 Typ ⎯ Max ⎯ 240 320 400 500 1000 2.0 10 5.0 Unit V Test Condition IR = 100μA IF = 0.1mA IF = 1mA IF = 10mA IF = 30mA IF = 100mA VR = 25V VR = 1.0V, f = 1.0MHz IF = 10mA through IR = 10mA to IR = 1.0mA, RL = 100Ω Forward Voltage VFM IRM CT trr ⎯ ⎯ mV Reverse Leakage Current (Note 2) Total Capacitance Reverse Recovery Time Notes: ⎯ ⎯ ⎯ ⎯ ⎯ ⎯ μA pF ns 1. Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. 2. Short duration pulse test used to minimize self-heating effect. 3. No purposefully added lead. Halogen and Antimony Free. 4. d Ptot > 1 thermal runaway condition for a diode on its own heatsink. d TJ RθJA 5. Product manufactured with Data Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants. BAT54WS Document number: DS30098 Rev. 11 - 2 1 of 3 www.diodes.com August 2008 © Diodes Incorporated BAT54WS IF, INSTANTANEOUS FORWARD CURRENT (A) 1 100 0.1 10 1 TA = 125ºC 0.01 TA = 75ºC TA = 25ºC TA = 0ºC 0.1 0.001 0.01 T A = -40ºC 0.0001 0.001 0.4 1.0 0.2 0.8 0 0.6 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 1 Typical Forward Characteristics 1,000 f = 1.0MHz 0 5 10 15 20 25 30 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 2 Typical Reverse Characteristics 12 VR = 25V CT, TOTAL CAPACITANCE (pF) IR, LEAKAGE CURRENT (µA) 10 100 8 6 10 4 1 2 0.1 0 15 20 25 10 30 VR, DC REVERSE VOLTAGE (V) Fig. 3 Total Capacitance vs. Reverse Voltage 5 0 50 100 TJ, JUNCTION TEMPERATURE (°C) Fig. 4 Typical Reverse Characteristics 150 0 PD, POWER DISSIPATION (mW) 200 100 0 0 25 50 75 100 125 TA, AMBIENT TEMPERATURE (°C) Fig. 5 Power Derating Curve 150 BAT54WS Document number: DS30098 Rev. 11 - 2 2 of 3 www.diodes.com August 2008 © Diodes Incorporated BAT54WS Ordering Information Part Number BAT54WS-7-F Notes: (Note 6) Case SOD-323 Packaging 3000/Tape & Reel 6. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information L9 = Product Type Marking Code L9 Package Outline Dimensions C H B A M L K J SOD-323 Dim Min Max A 0.25 0.35 B 1.20 1.40 C 2.30 2.70 H 1.60 1.80 J 0.00 0.10 K 1.0 1.1 L 0.20 0.40 M 0.10 0.15 0° 8° α All Dimensions in mm Suggested Pad Layout C X Dimensions Value (in mm) Z 3.75 G 1.05 X 0.65 Y C Y G Z 1.35 2.40 IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. BAT54WS Document number: DS30098 Rev. 11 - 2 3 of 3 www.diodes.com August 2008 © Diodes Incorporated
